LIKERAINY 95Deg Inset Blind Corner Long-arm Hinge 35mm with Hydraulic Damper for Cabinet Door Soft Closing Stollen Hinges for Cupboard Wardrobe Doors Pack of 4

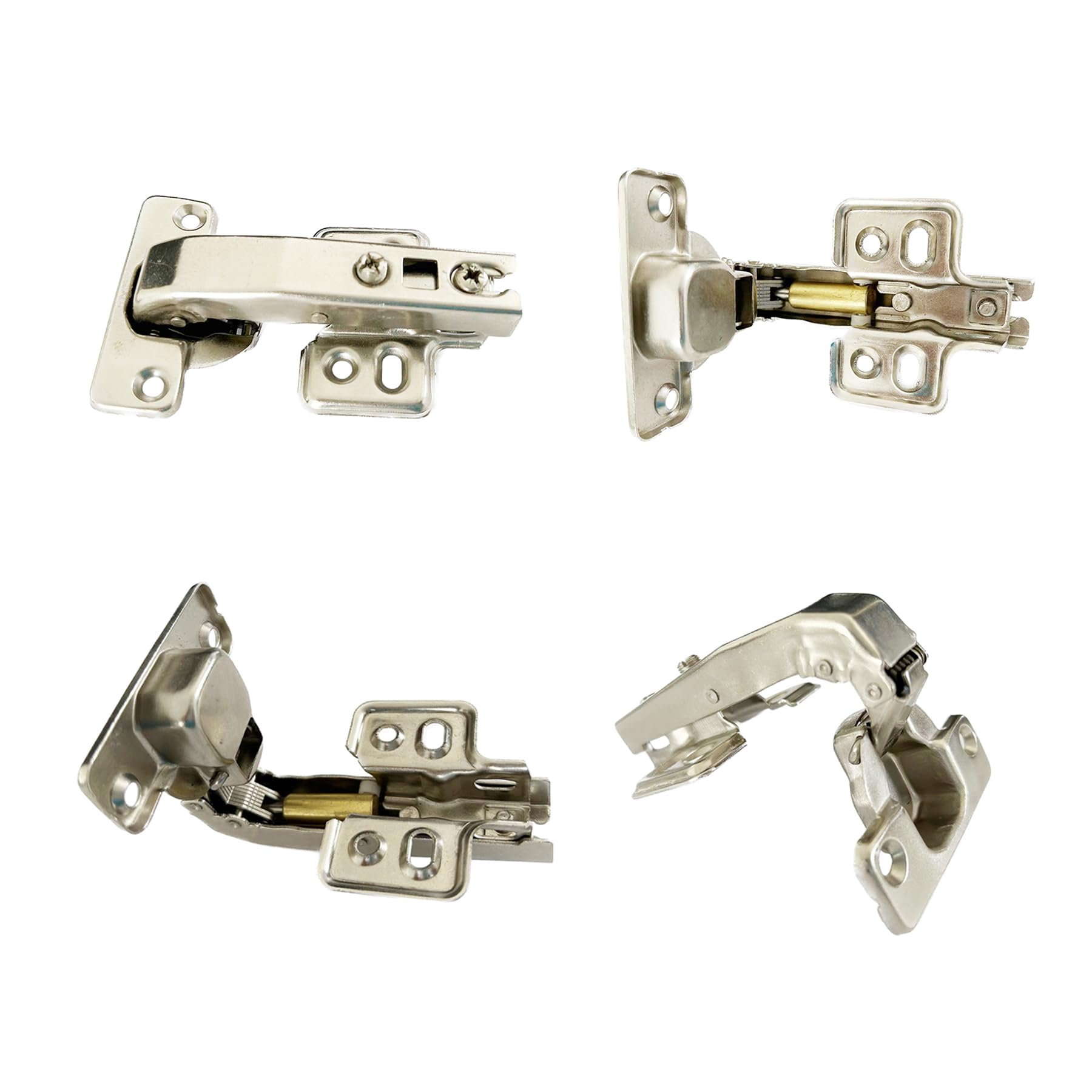

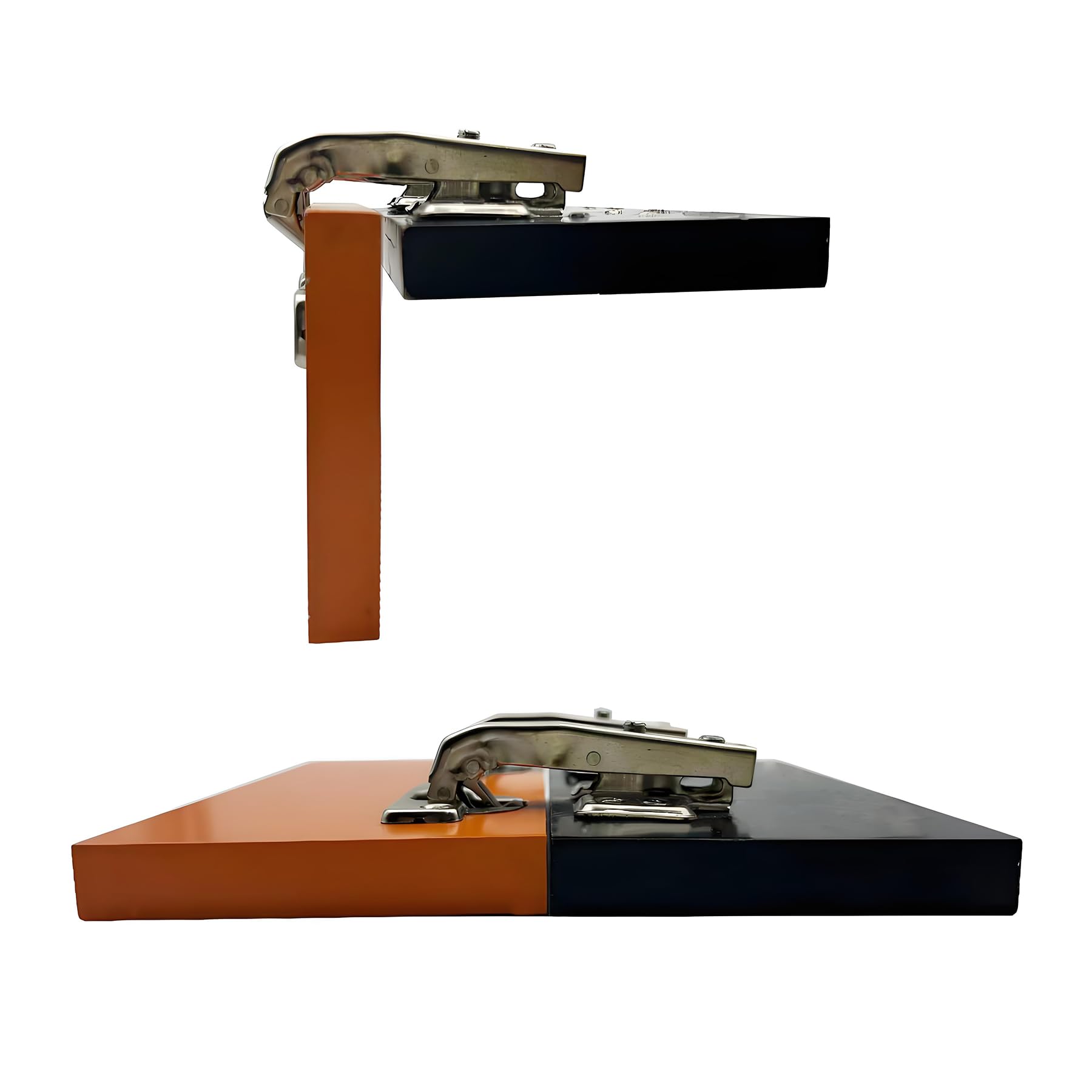

• Long-arm Blind-corner hinge with screw fixing for kitchen corner folding cabinet doors
• Soft Close integrated system can prevent from noise or slam when closing the doors
• Concealed furniture hinge for studs, Opening angle 95°, Pot strap, for cabinet door

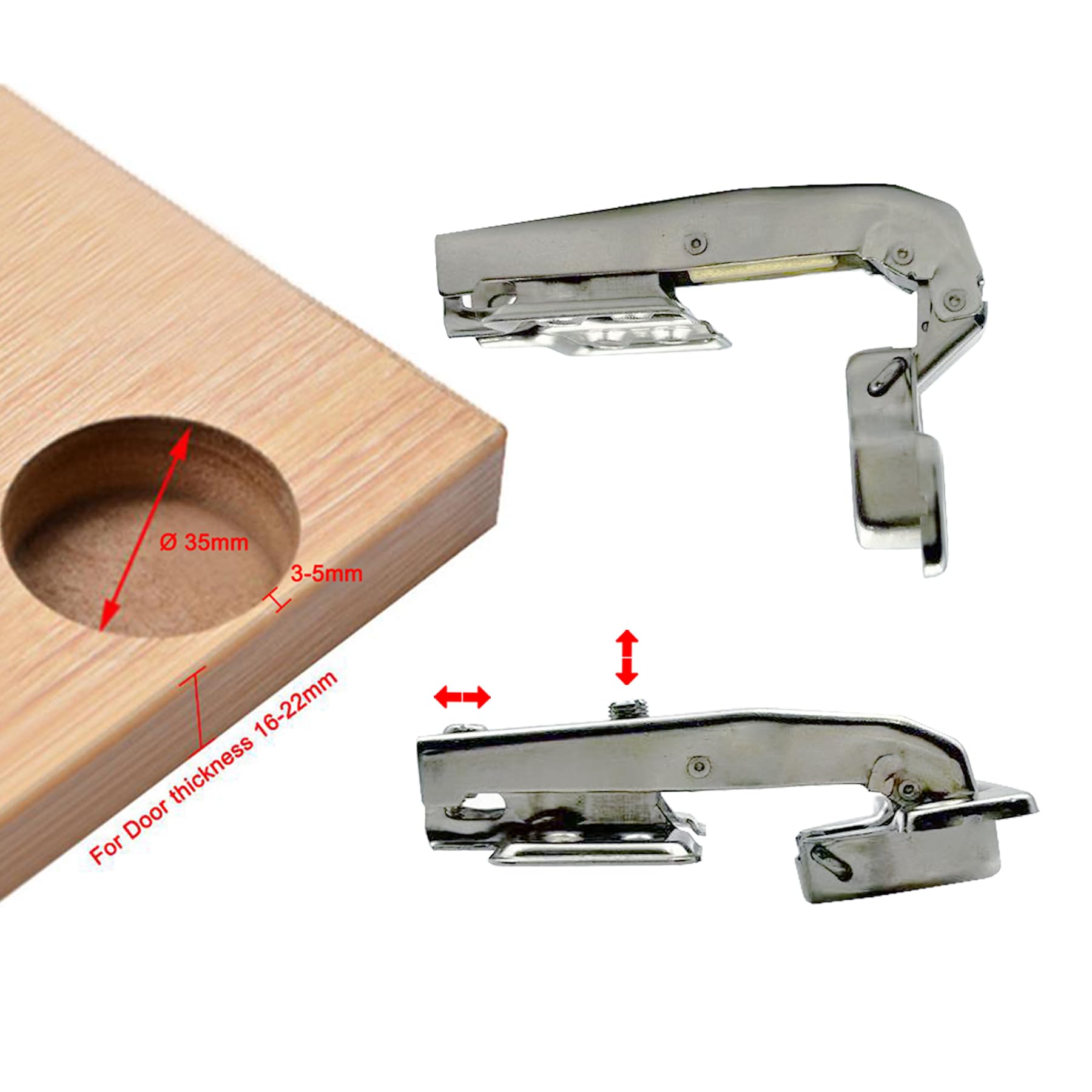

• For Door Thickness 16-22mm; Cup diameter Ø 35mm; Cup depth 11.5mm; Type: Internal stop; Base height: H=2
• Made of stainless steel; Nickel plating; Hinge for studs constructions; Non-detachable mounting plate

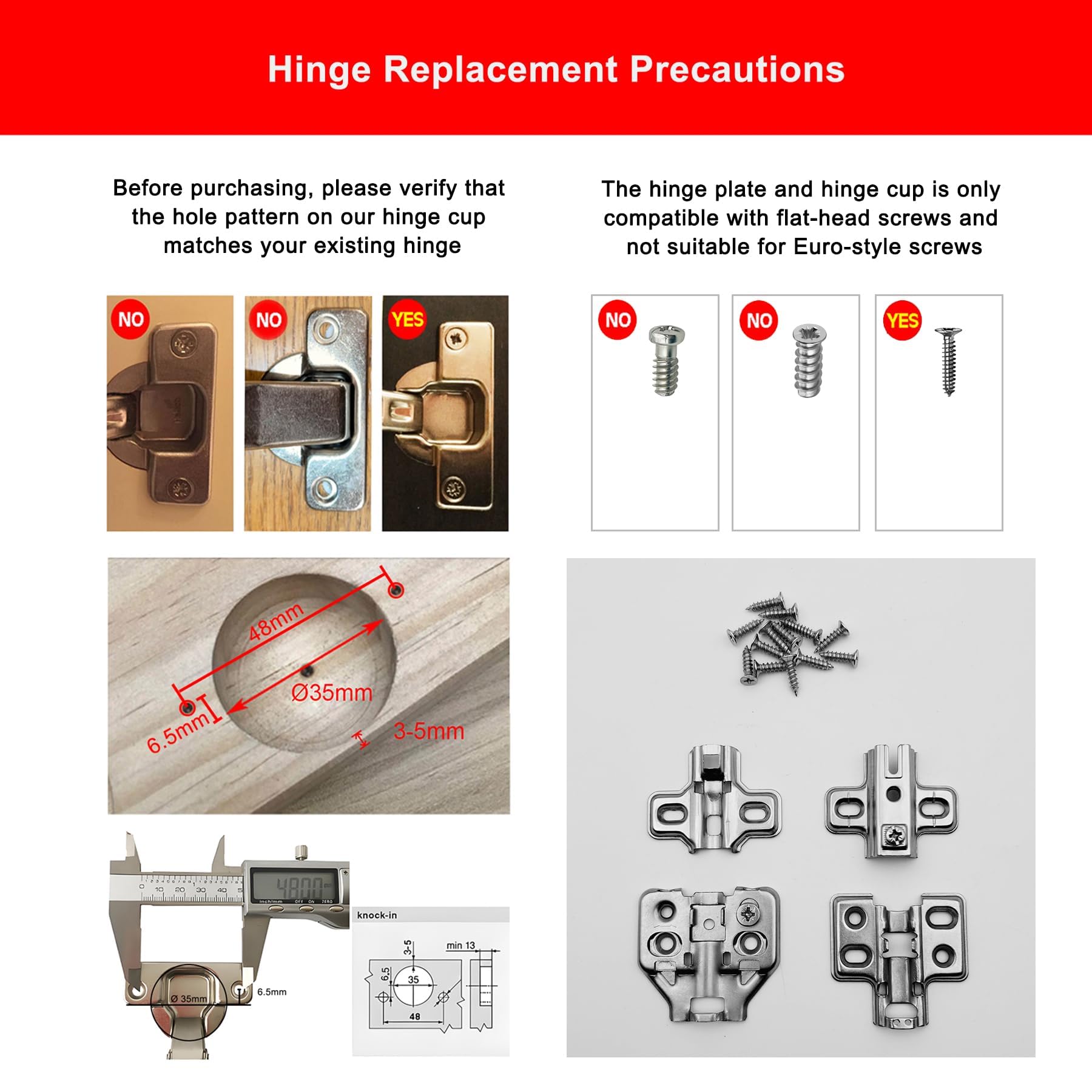

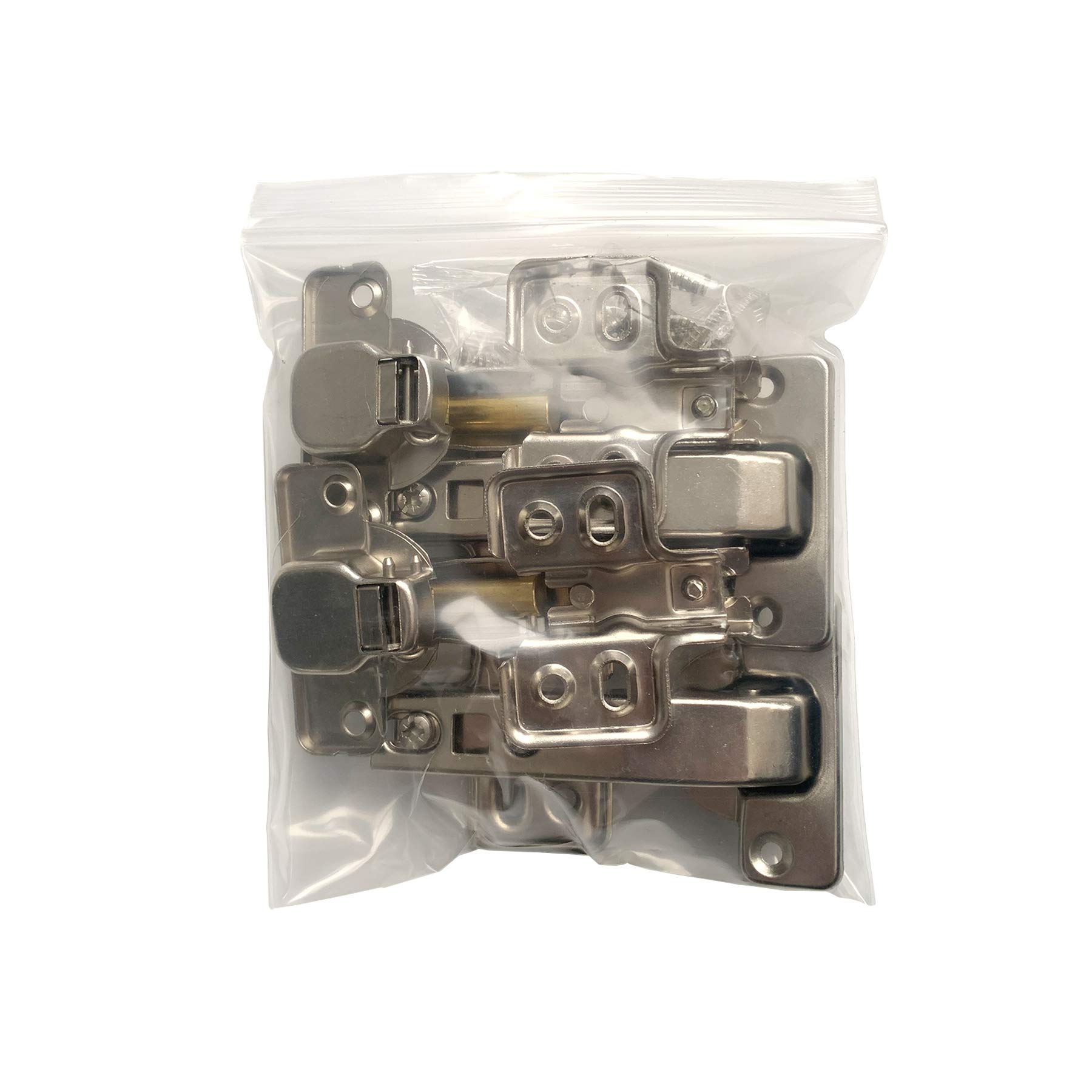

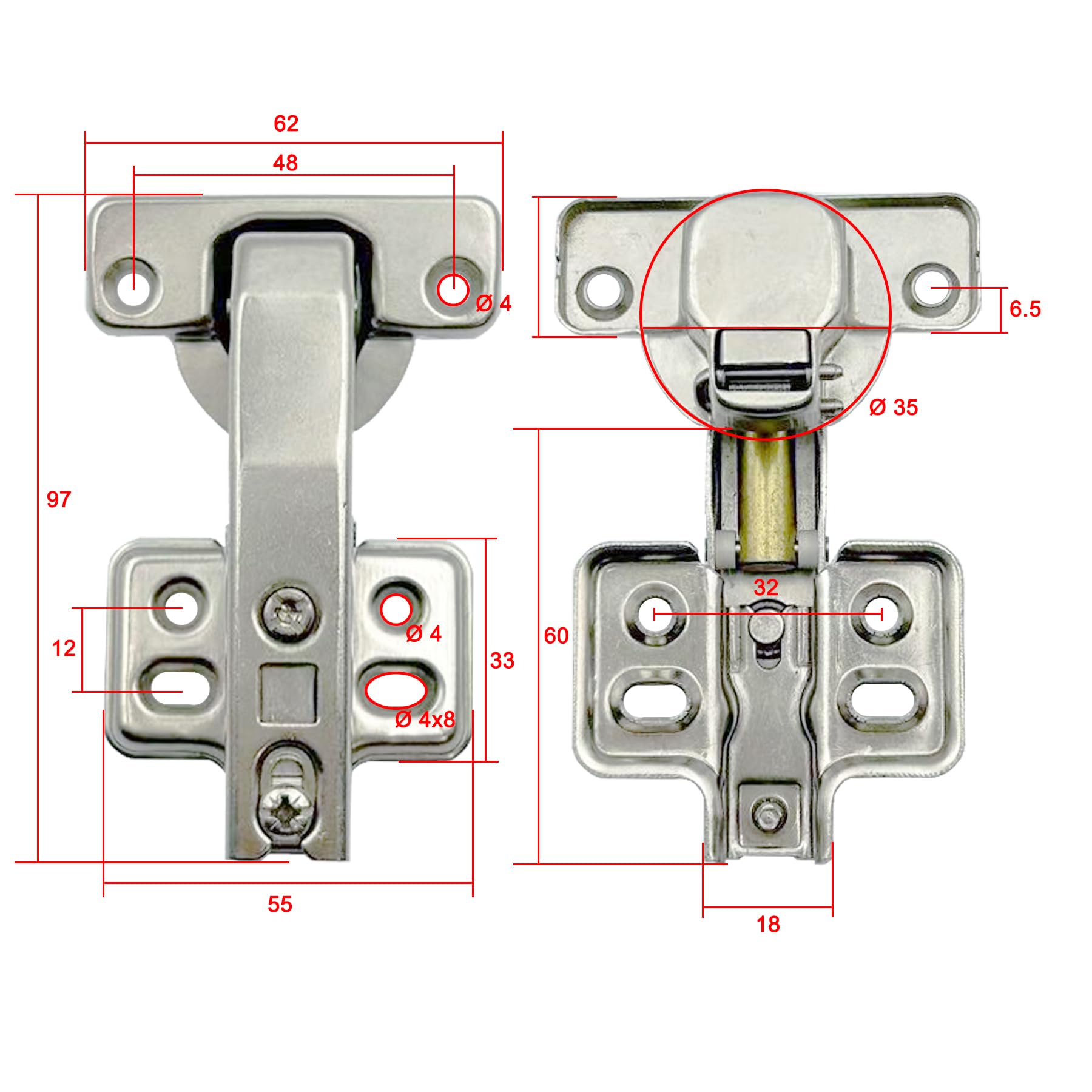

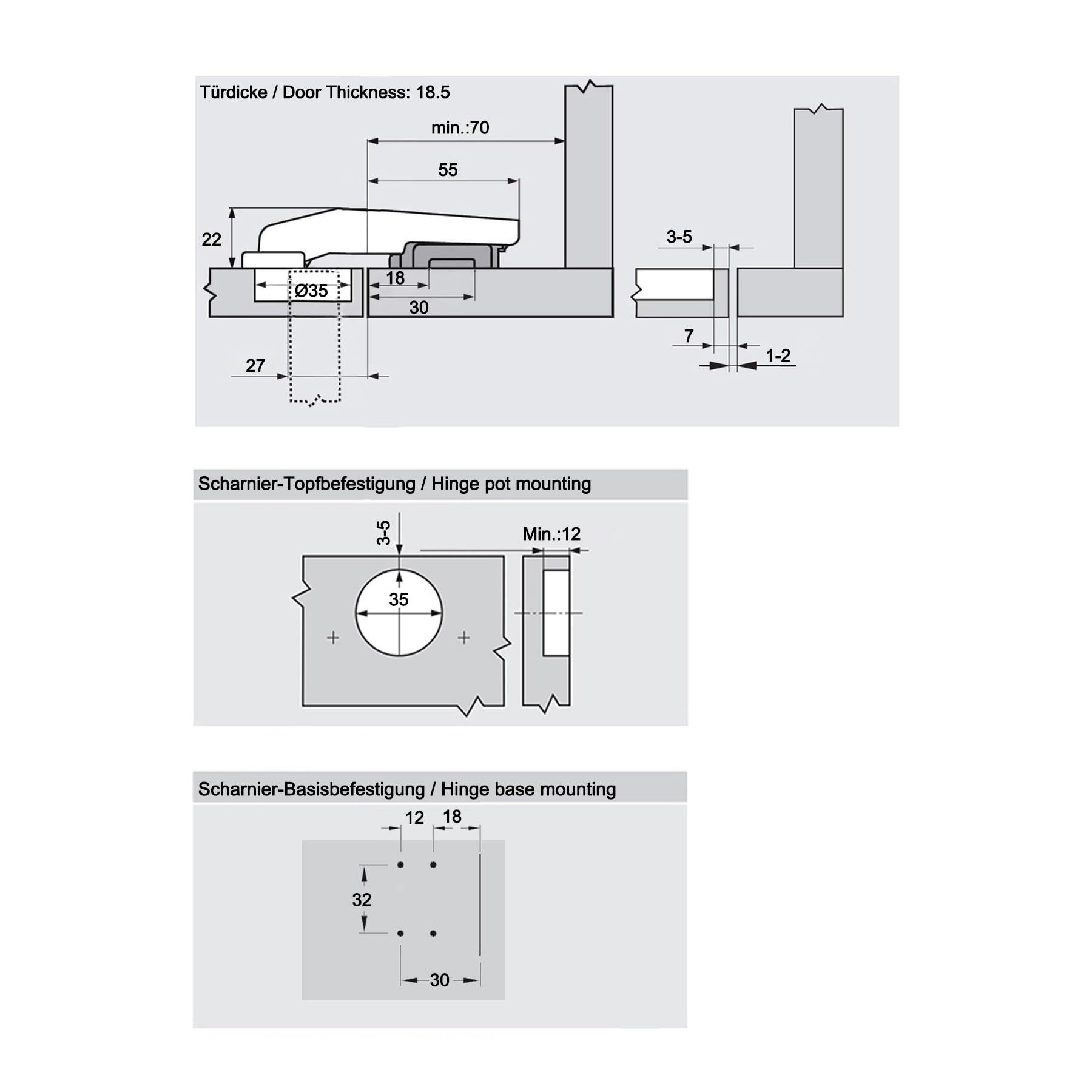

Product Dimension -Article type: LIKERAINY inset blind corner hinges with soft close damper -Mounting plate: Non-detachable (not clip on or slip on) -Material: Stainless steel -Opening angle (°): 95 Degree -Cup drilling version: 48mm / 6.5mm -Cup diameter: Ø 35mm -Cup Depth: 11.5mm -Stop type: Inside stop / Inset -DISTANCE between the two screw holes (next to the cup): 48mm -Mounting option: for screwing on -For depth of side panel (min.): 45mm (see photo above) -For door thickness: 16mm (min.) – 22mm (max.) -Integrated overlay adjustment: +2.5 mm / -2.5 mm -Integrated depth adjustment: +2.0mm / -2.0 mm -Hinge cup/arm finish: Nickel plated -Cover cap for carcass: NO -Cover cap for hinge cup: NO -Fast installation: Yes Package -Blind-corner Long-arm hinges: 4 Pieces -with mounting screws -No mounting instruction and processing information (see photos above)
