LIKERAINY 95 Degree Inset Hinges 26mm Without Damper Slide on Assembly Kitchen Cabinet Cupboard Wardrobe Door Hinge Pack of 10

• Concealed hinges with slide on assembly; without damper (soft closing function)
• Heavy strong and sturdy metal Hinge; Door mounting option: Inset Application

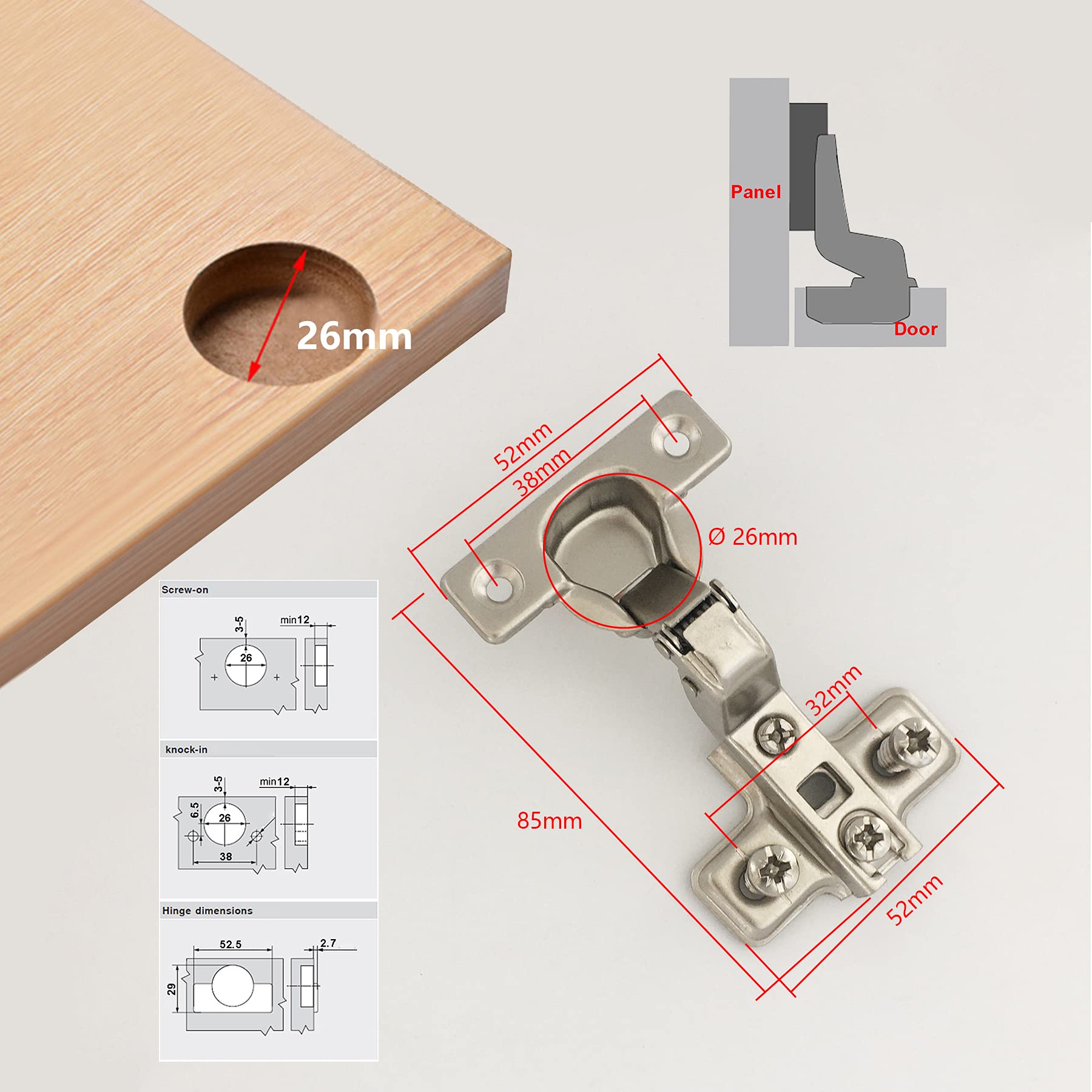

• For door thickness 12-18mm; Pot diameter Ø 26mm; Pot depth 10mm; Two holes distance in mounting plate is about 32mm
• Height adjustment at mounting plate; excellent hinge replacement solution for kitchen worn-out hinges
• Quality classification under EN 15570, Level 2

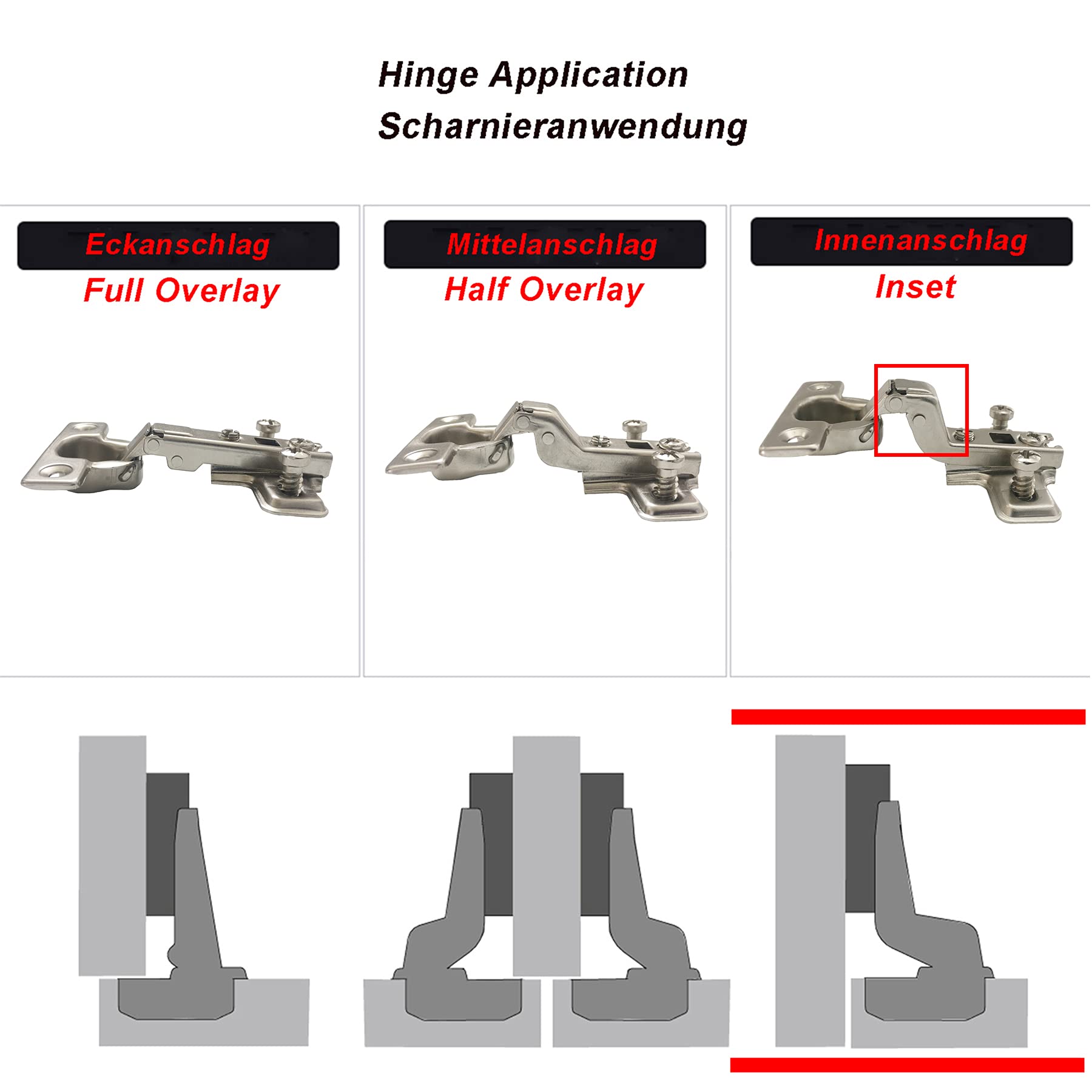

Please figure out the type of your current hinge/door application (FULL OVERLAY, HALF OVERLAY, INSET) first before you purchase, which are very important for your installation. Product Details -Article type: for screwing on and slide on -Material: Iron metal -Finish: Nickel plated -Opening angle (°): 95°-110° -Pot diameter: Ø 26mm -Pot Depth: 10mm -Distance between the two screw holes (next to the cup): 38mm -Two holes distance in mounting plate is about 32mm -The distance from door edge to cup center is suggested about 3-5mm -Mounting option: for screwing on -Door mounting option: Inset Application(see pictures above) -For door thickness: 12mm (min) – 18mm (max) -Integrated overlay adjustment: +0.5 mm / -1.5 mm -Integrated depth adjustment: +1 mm/ -1 mm -Height adjustment at mounting plate -Hinge cup/arm finish: nickel-plated -Cover cap for carcass: NO -This hinge can be stopped at any position between the door opening angle of 45-95 degrees. If the opening angle is less than 45 degrees, the hinge can close automatically. Standard Package -Hinges: 10 Pieces -with fixing screws (Size: M4x16mm) -No Mounting Instruction and Processing Information (see photo above) Note -These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary -These hinges are great suitable for cabinet cupboard doors. If you still need damper / soft slow closing mechanism for these hinges, please search for LIKERAINY
