LIKERAINY 95 Degree Full Overlay Hinges 26mm with Damper Soft Closing Kitchen Cabinet Cupboard Wardrobe Door Hinge Pack of 10

• Small concealed hinge with clip on assembly; with damper (soft closing function)
• Small concealed hinge with clip on assembly; with damper (soft closing function)
• Heavy strong and sturdy metal Hinge; Door mounting option: Full Overlay Application

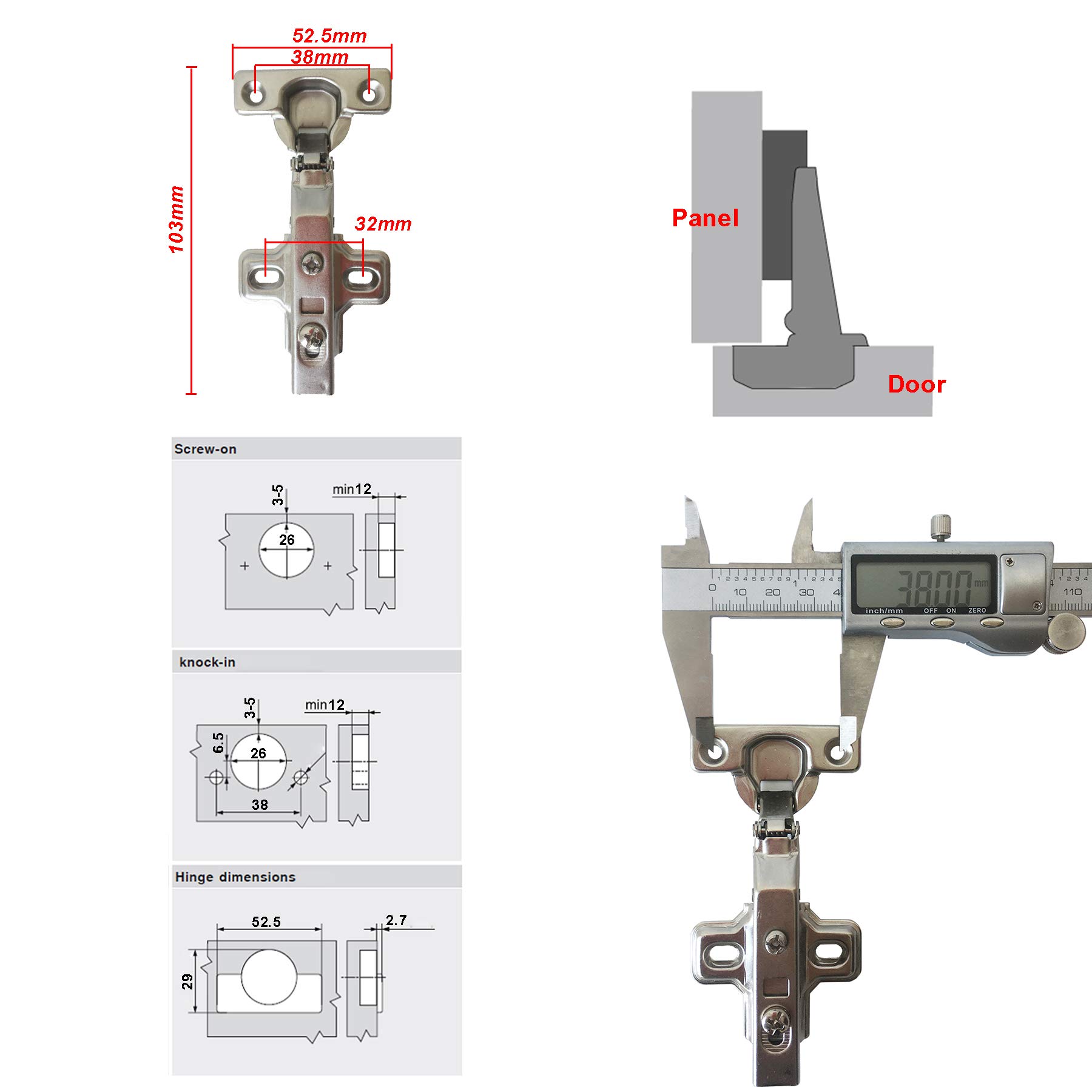

• For door thickness 12-18mm; Cup diameter Ø26mm; Cup depth 10mm; Two holes distance in mounting plate is about 32mm
• Height adjustment at mounting plate; excellent hinge replacement solution for kitchen worn-out hinges
• Quality classification under EN 15570, Level 2

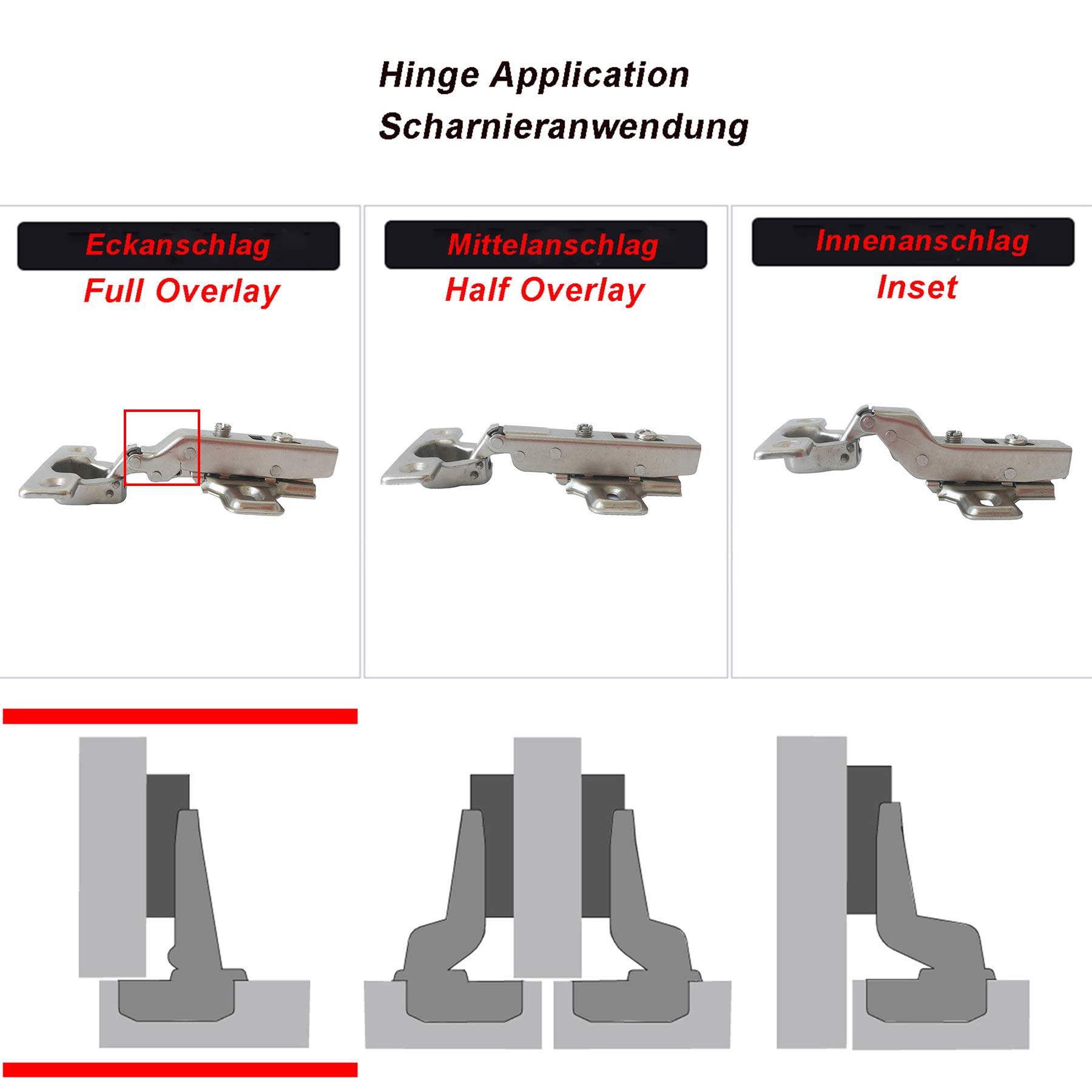

Please figure out the type of your current hinge/door application (FULL OVERLAY, HALF OVERLAY, INSET) first before you purchase, which are very important for your installation. Product Features -Article type: for screwing on and clip on -Material: Iron metal -Finish: Nickel plated -Opening angle (°): 95-110 Degree -Cup diameter: Ø 26mm -Cup Depth: 10mm -DISTANCE between the two screw holes (next to the cup): 38mm -Two holes distance in mounting plate is about 32mm -The distance from door edge to cup center is suggested about 3-5mm -Mounting option: for screwing on -Door mounting option: Full Overlay Application (see pictures above) -For door thickness: 12mm (min) – 18mm (max) -For panel door thickness: 16mm (min) – 18mm (max) -Integrated overlay adjustment: +0.5 mm / -1.5 mm -Integrated depth adjustment: +1 mm/ -1 mm -Height adjustment at mounting plate -Hinge cup/arm finish: Nickel-plated -Cover cap for carcass: NO Standard Package -Hinges: 10 Pieces -with fixing screws (Size: M4x16mm) -No Mounting Instruction and Processing Information (see photo above) Note -These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary -These hinges are great suitable for cabinet cupboard doors. If you still need damper / soft slow closing mechanism for these hinges, please search for LIKERAINY
