LIKERAINY 45 Degree Hinge Ø 35mm Without Damper for Special Corner Door Hinges for Cabinet Cupboard Wardrobe Folding Angular Doors Pack of 8

• Corner cupboard folding door hinge 45° without soft-close system
• For Door Thickness 16-20mm; Opening angle (°): 90 degree; Hinge pot diameter Ø 35mm; Hinge pot depth 11.5mm
• Slide-on technology: quick release mechanism for easy installation and removal of door
• Made of iron metal; Copper and nickel plating; Especially for multilateral doors of cabinet and cupboard
• This hinge can be stopped at any position between the door opening angle of 45-95 degrees. If the opening angle is less than 45 degrees, the hinge can close automatically

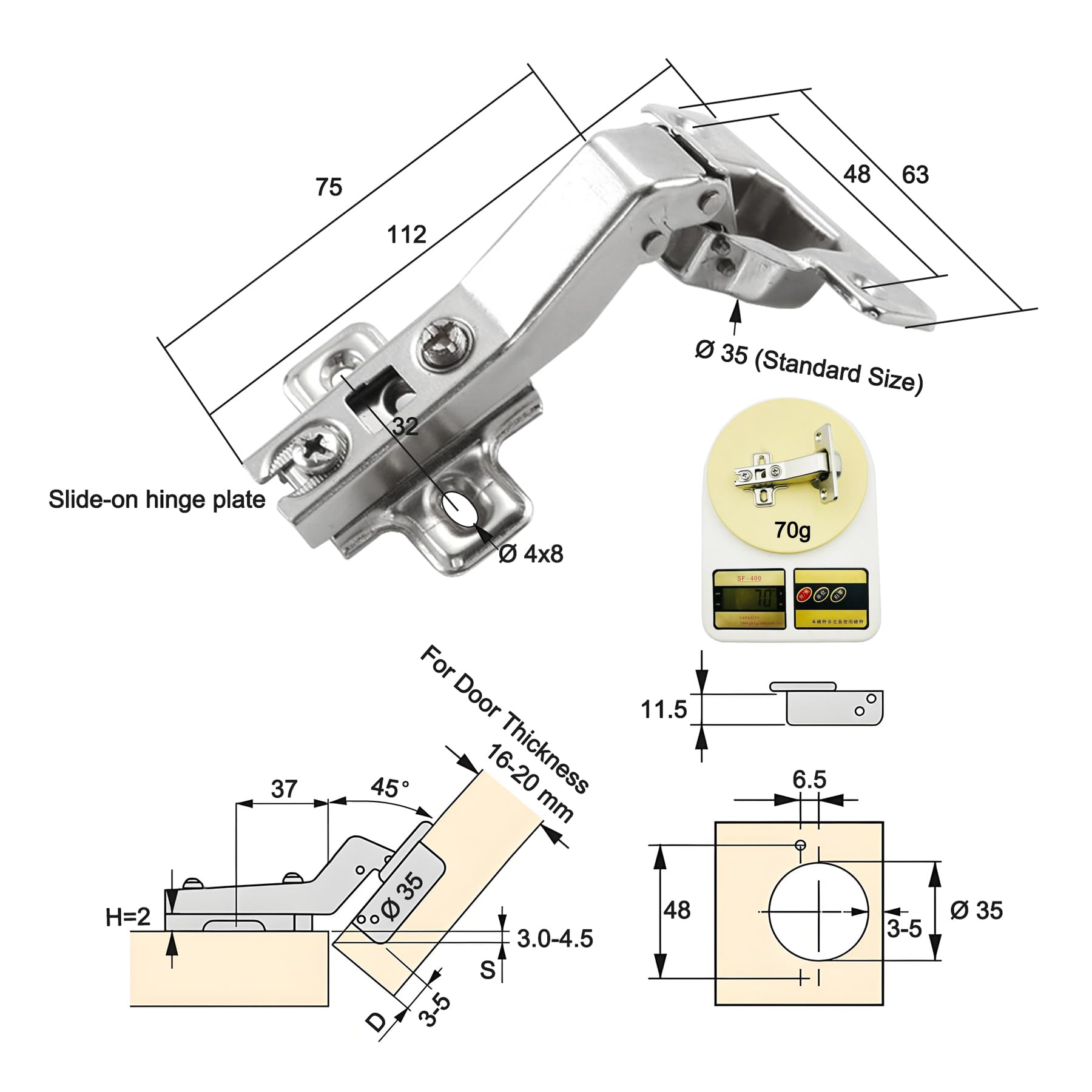

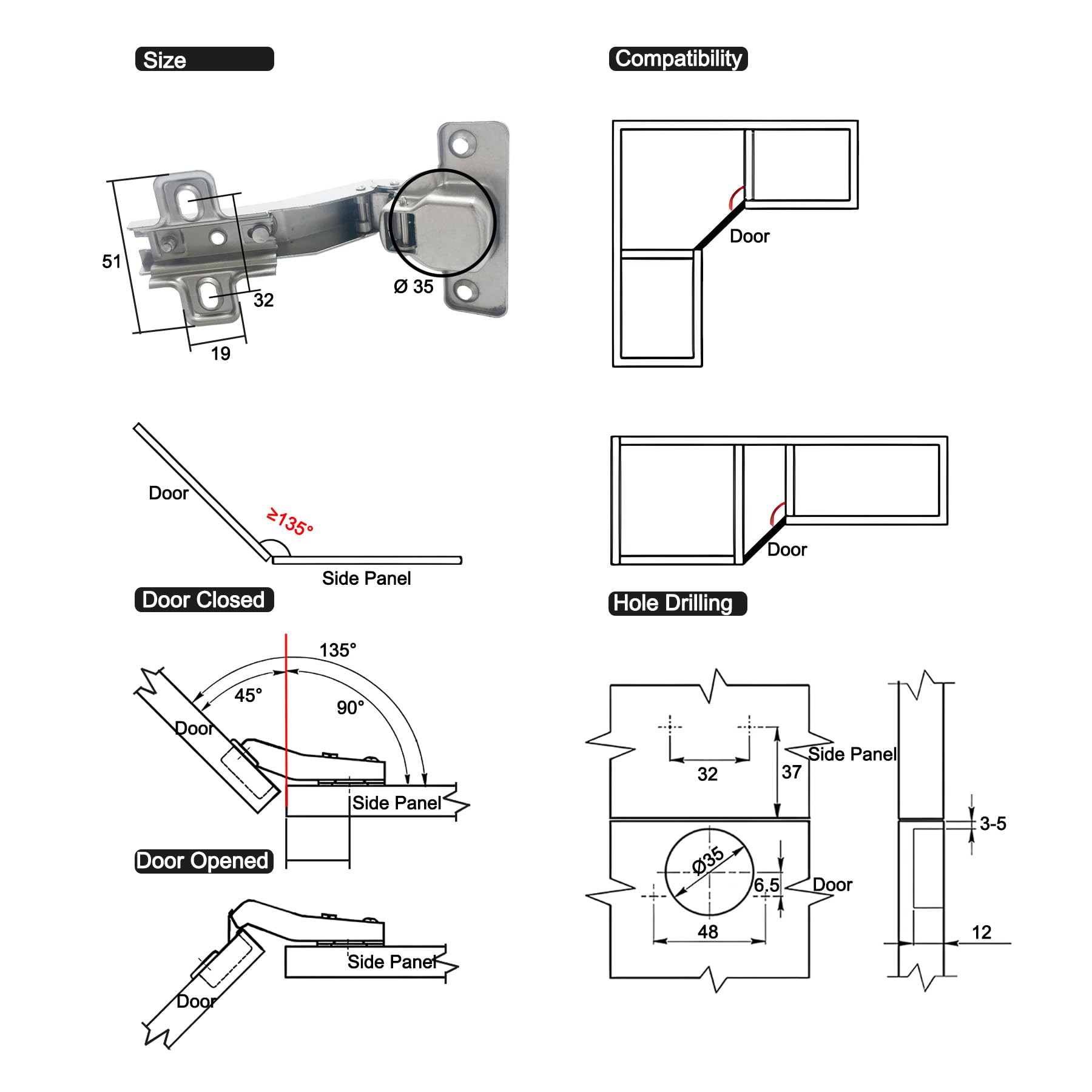

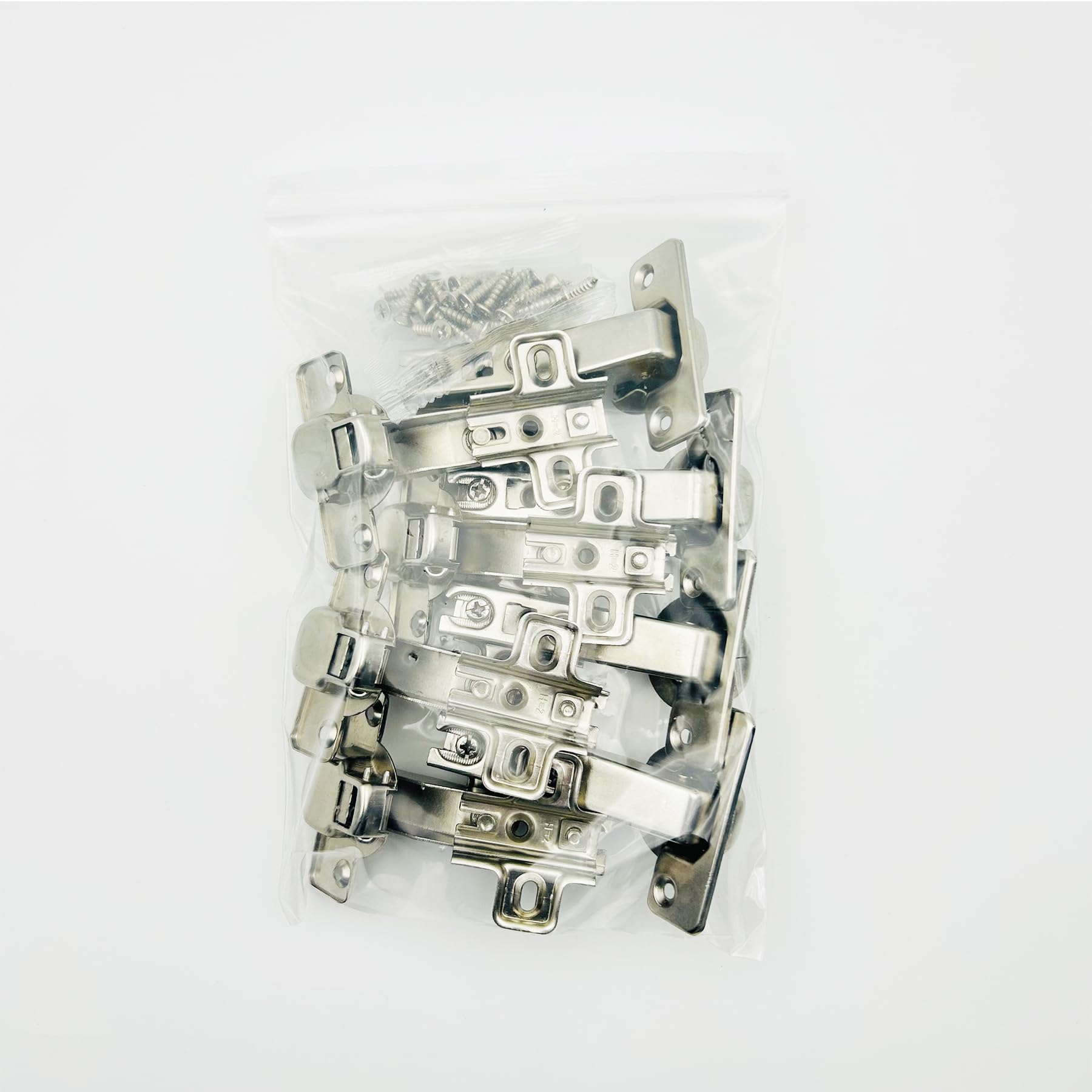

Product Dimension -Article type: LIKERAINY hinge without damper -Material: Iron metal -Opening angle (°): 90 Degree -Cup drilling version: 48mm / 6.5mm -Cup diameter: Ø 35mm -Cup Depth: 11.5mm -DISTANCE between the two screw holes (next to the cup): 48mm -Mounting option: for screwing on -Door mounting option: Suitable for corner cupboard with folding door have angle of 135° - 155° -For door thickness: 16mm (min.) – 20mm (max.) -Integrated overlay adjustment: +2.5 mm / -2.5 mm -Integrated depth adjustment: +2.0mm / -2.0 mm -Hinge cup/arm finish: Copper plated and Nickel plated -Cover cap for carcass: NO -Cover cap for hinge cup: NO Package -45° hinges: 8 Pieces -with mounting screws -No mounting instruction and processing information (see photos above)
