LIKERAINY 45° Hinge 35mm with Hydraulic Damper for Corner Cupboard Folding Door, Soft Close, Stainless Steel, Nickel-Plated, Black, Navy, Modern, Contemporary, Pack of 8

• Corner cupboard folding door hinge 45° with soft-close system (Hydraulic damper)
• For Door Thickness 14-24mm; Opening angle (°): 90 degree; Hinge cup diameter Ø 35mm; Hinge cup depth 11.5mm
• Soft close system can prevent from noise or slam when closing the doors
• Clip-on technology: quick release mechanism for easy installation and removal of door
• Made of stainless steel; Copper and nickel plating; Especially for multilateral doors of cabinet and cupboard

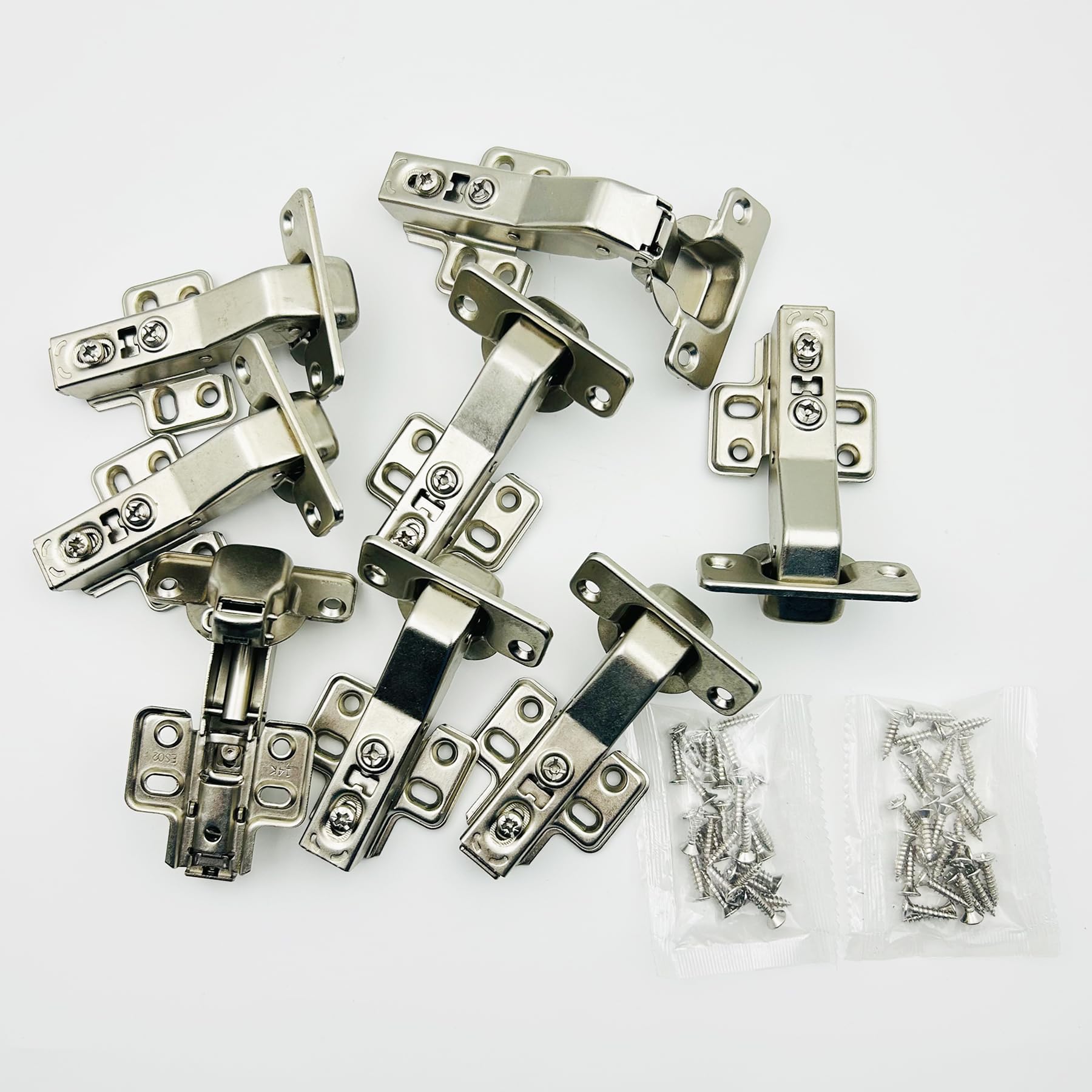

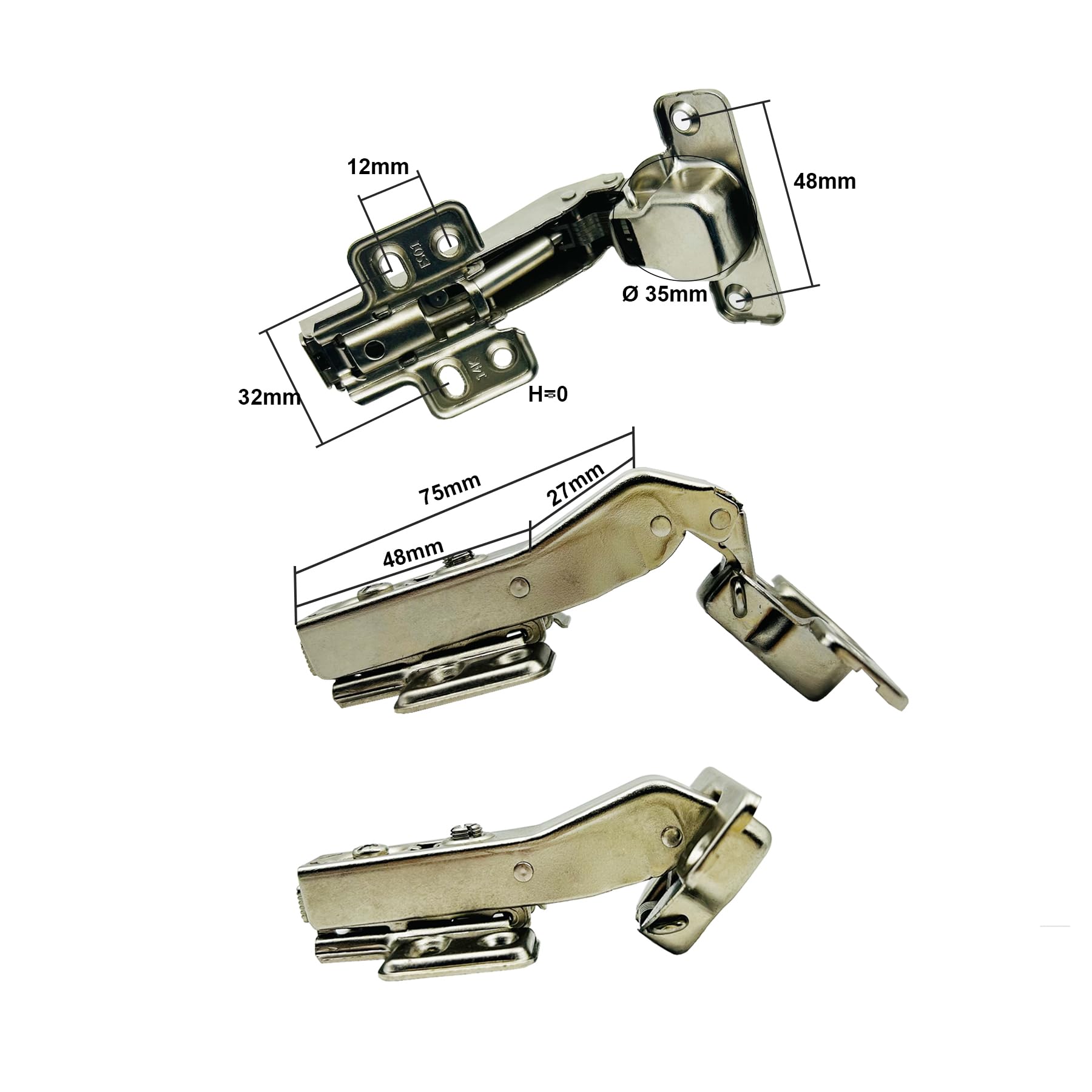

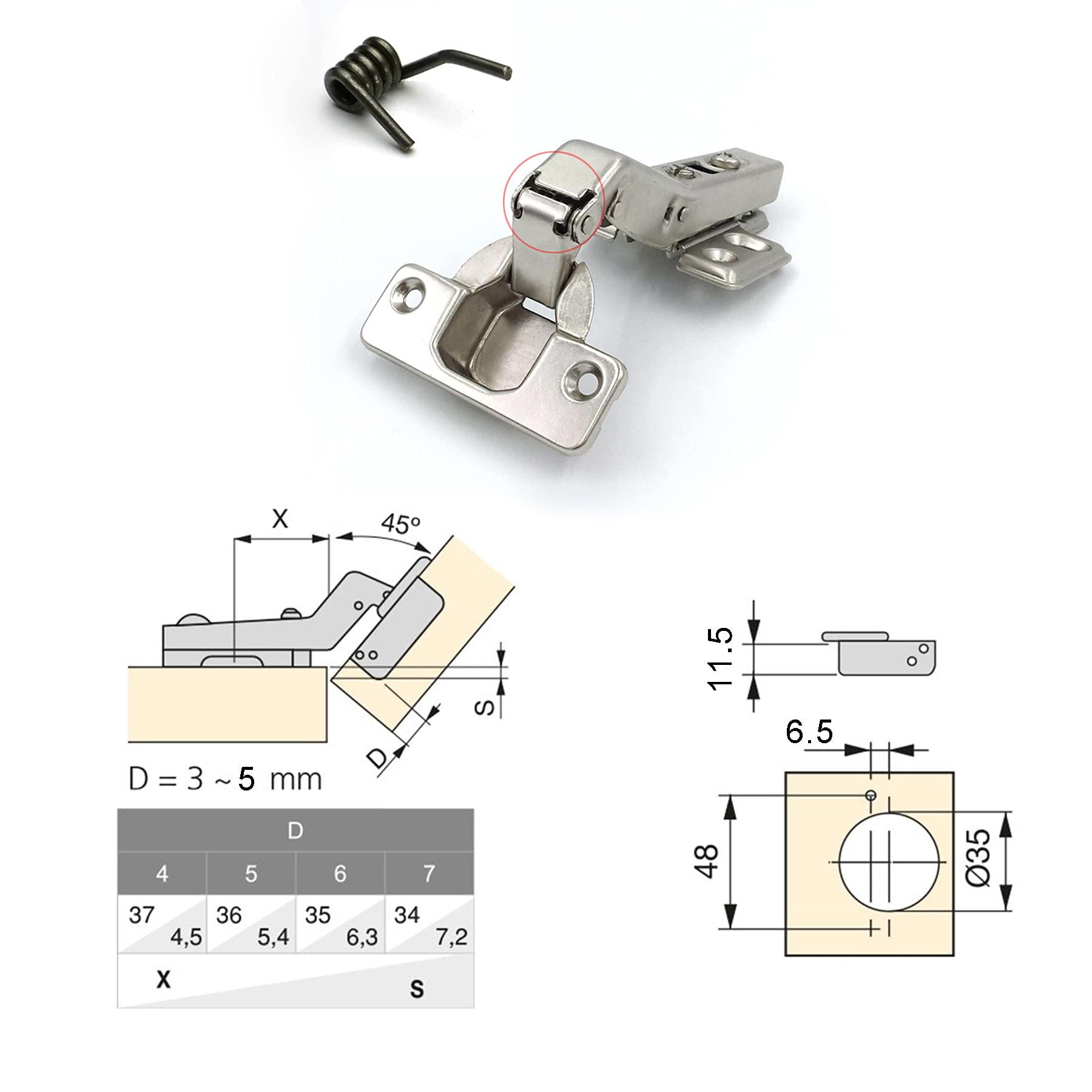

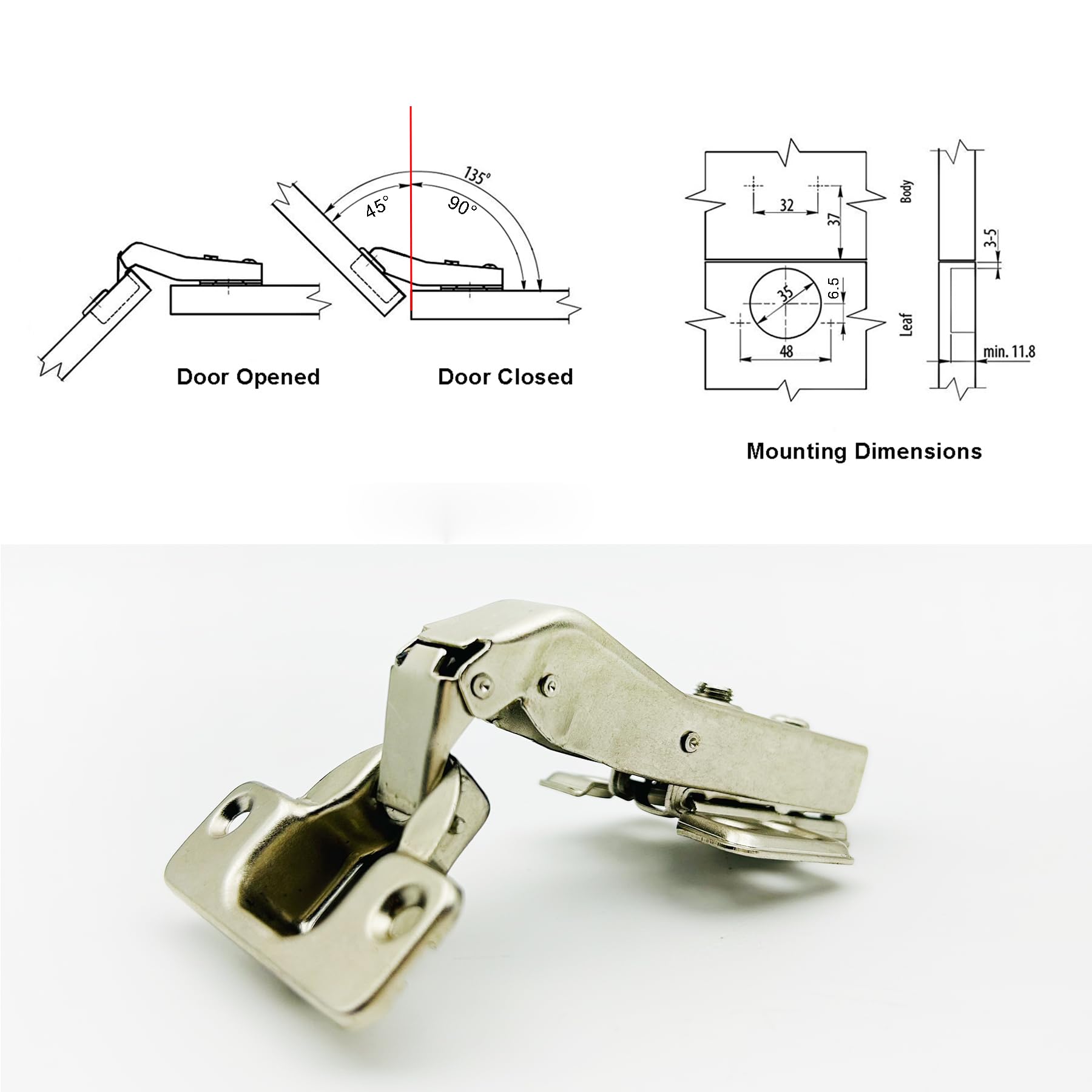

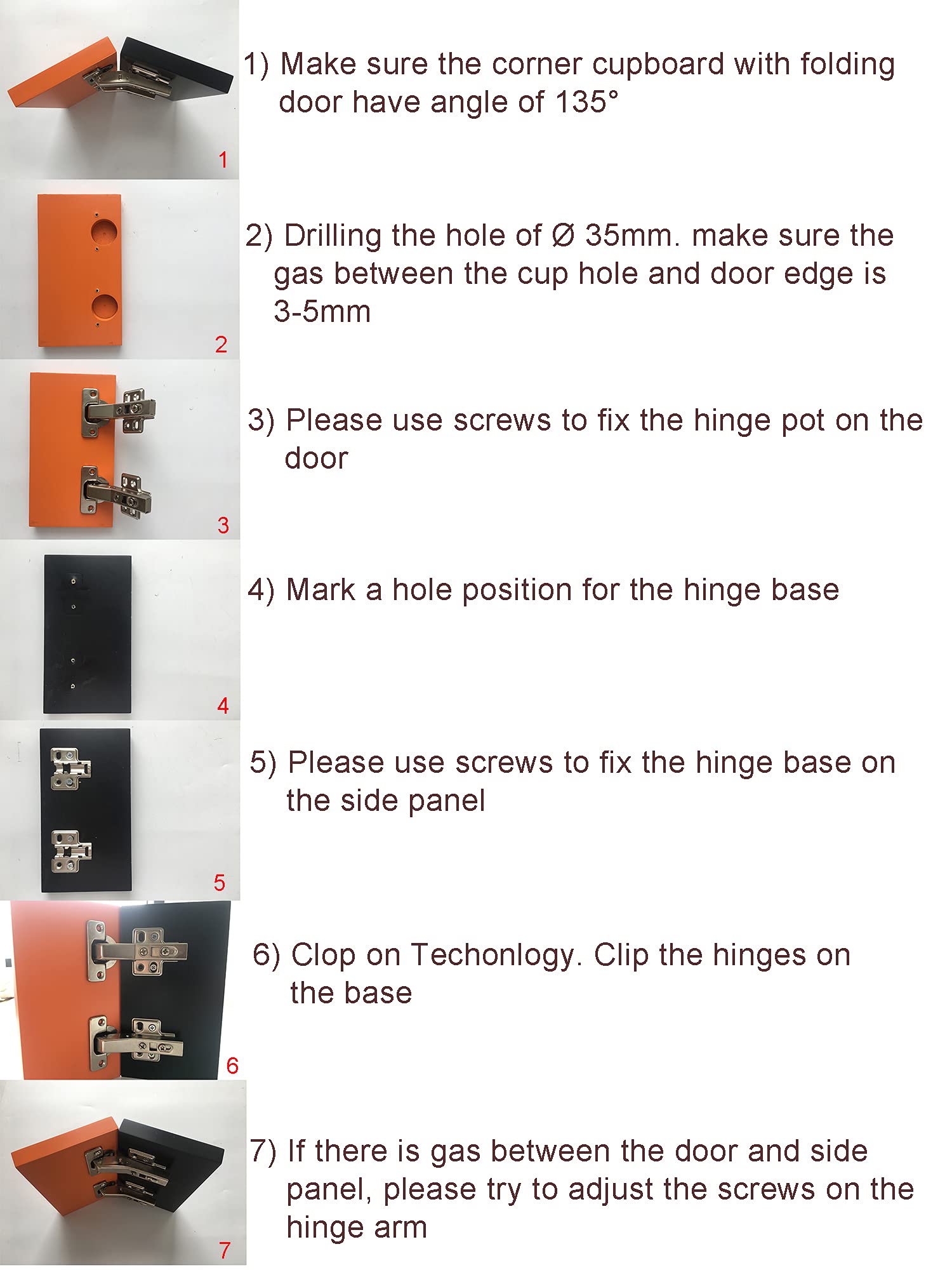

Product Dimension -Article type: LIKERAINY hinge with soft close damper -Material: Stainless steel -Opening angle (°): 90 Degree -Cup drilling version: 48mm / 6.5mm -Cup diameter: Ø 35mm -Cup Depth: 11.5mm -DISTANCE between the two screw holes (next to the cup): 48mm -Mounting option: for screwing on -Door mounting option: Suitable for corner cupboard with folding door have angle of 135° - 155° -For door thickness: 14mm (min.) – 24mm (max.) -Integrated overlay adjustment: +2.5 mm / -2.5 mm -Integrated depth adjustment: +2.0mm / -2.0 mm -Hinge cup/arm finish: Copper plated and Nickel plated -Cover cap for carcass: NO -Cover cap for hinge cup: NO -Fast installation: Yes Package -45° hinges: 8 Pieces -with mounting screws -No mounting instruction and processing information (see photos above)
