LIKERAINY 30 Degree Hinge 35mm with Hydraulic Damper for Special Corner Door Soft Closing Hinges for Cabinet Cupboard Wardrobe Folding Angular Doors Pack of 4

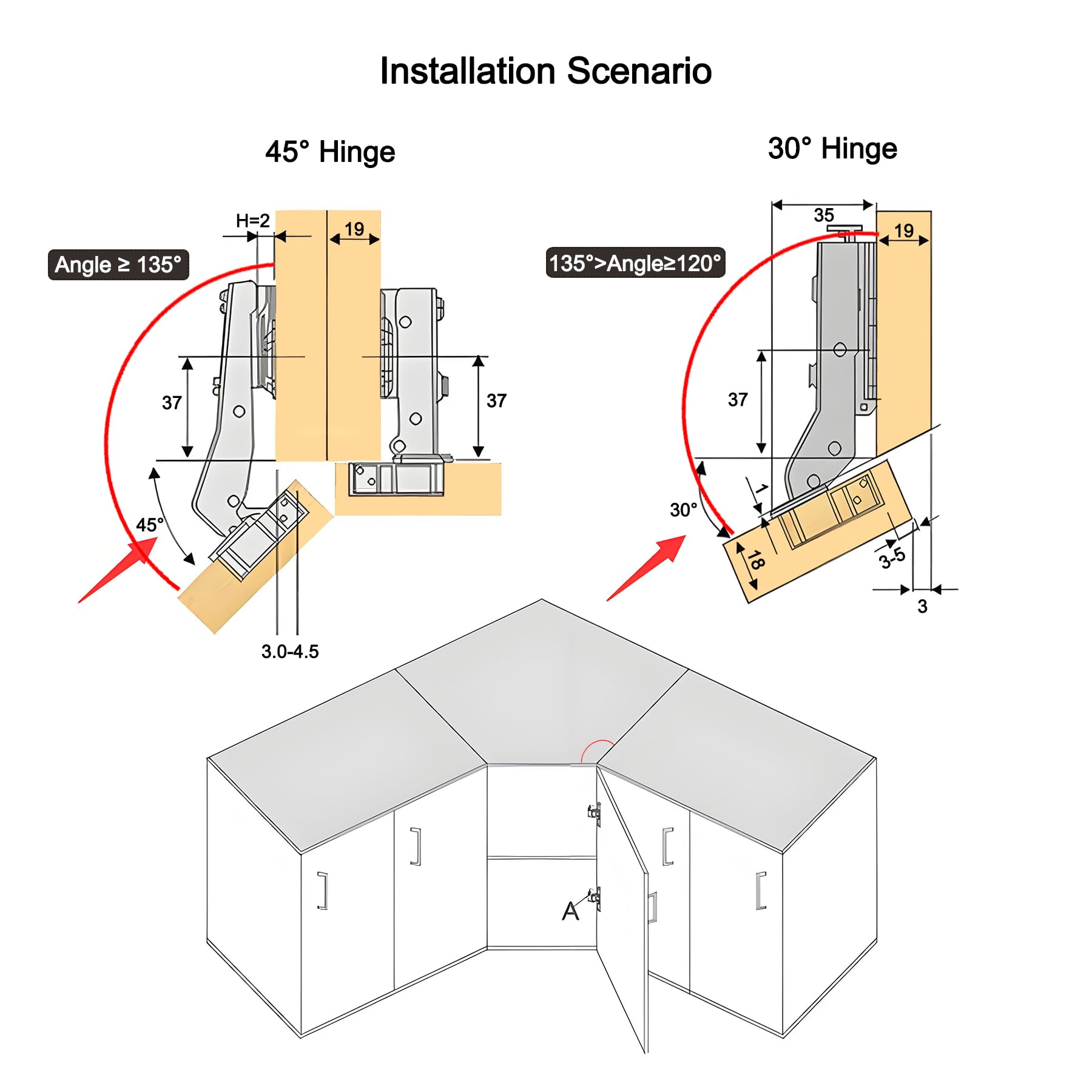

• Corner cupboard folding door hinge 30° with soft-close system (Hydraulic damper)

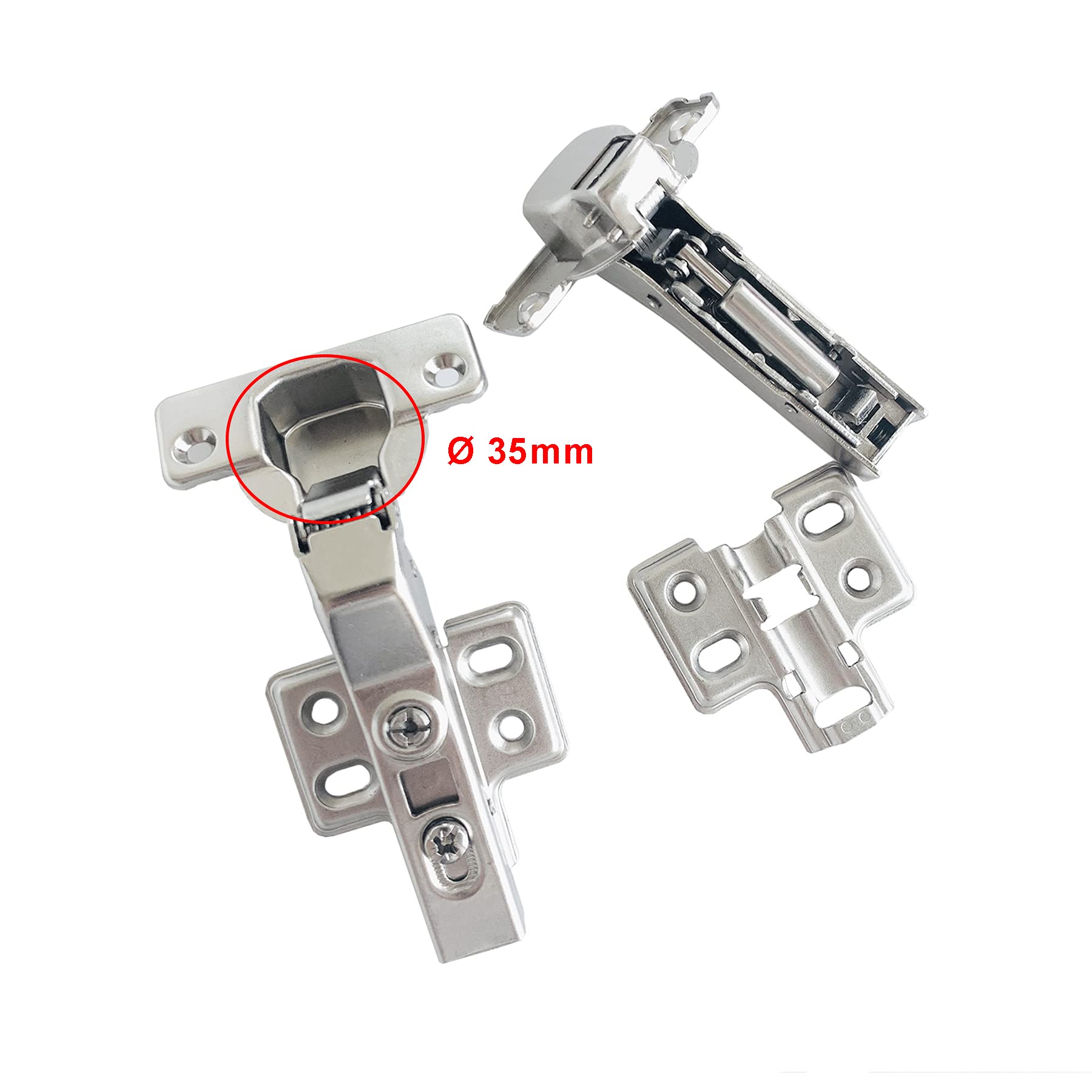

• For Door Thickness 14-22mm; Opening angle (°): 90 Degree; Hinge cup diameter: 35mm; Hinge cup depth 11.5mm
• Soft close system can prevent from noise or slam when closing the doors
• Clip-on technology: quick release mechanism for easy installation and removal of door
• Made of stainless steel; Copper and nickMade of stainless steel; Copper and nickel plating; Especially for multilateral doors of cabinet and cupboardel plating; Especially for multilateral doors of cabinet and cupboard

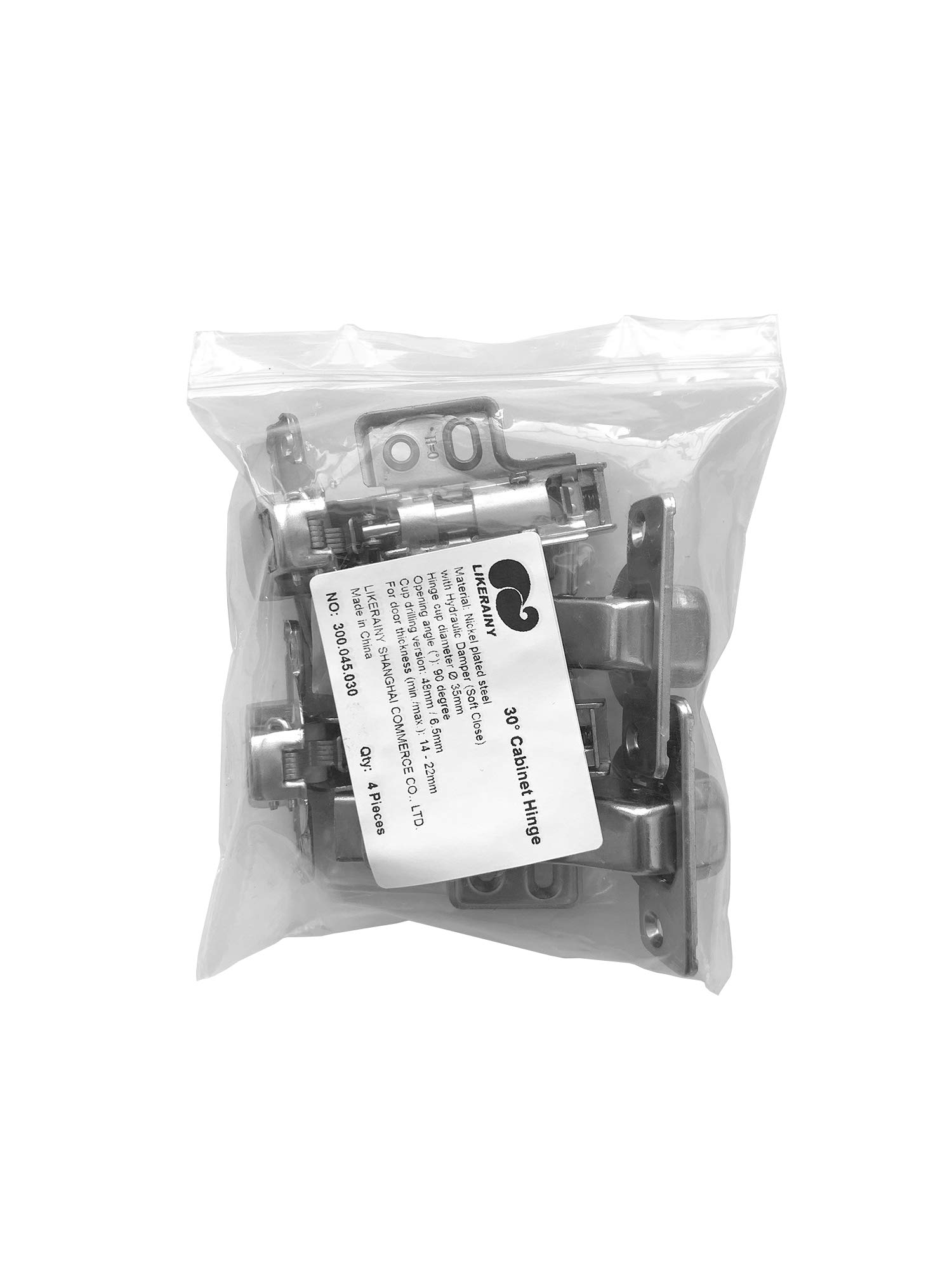

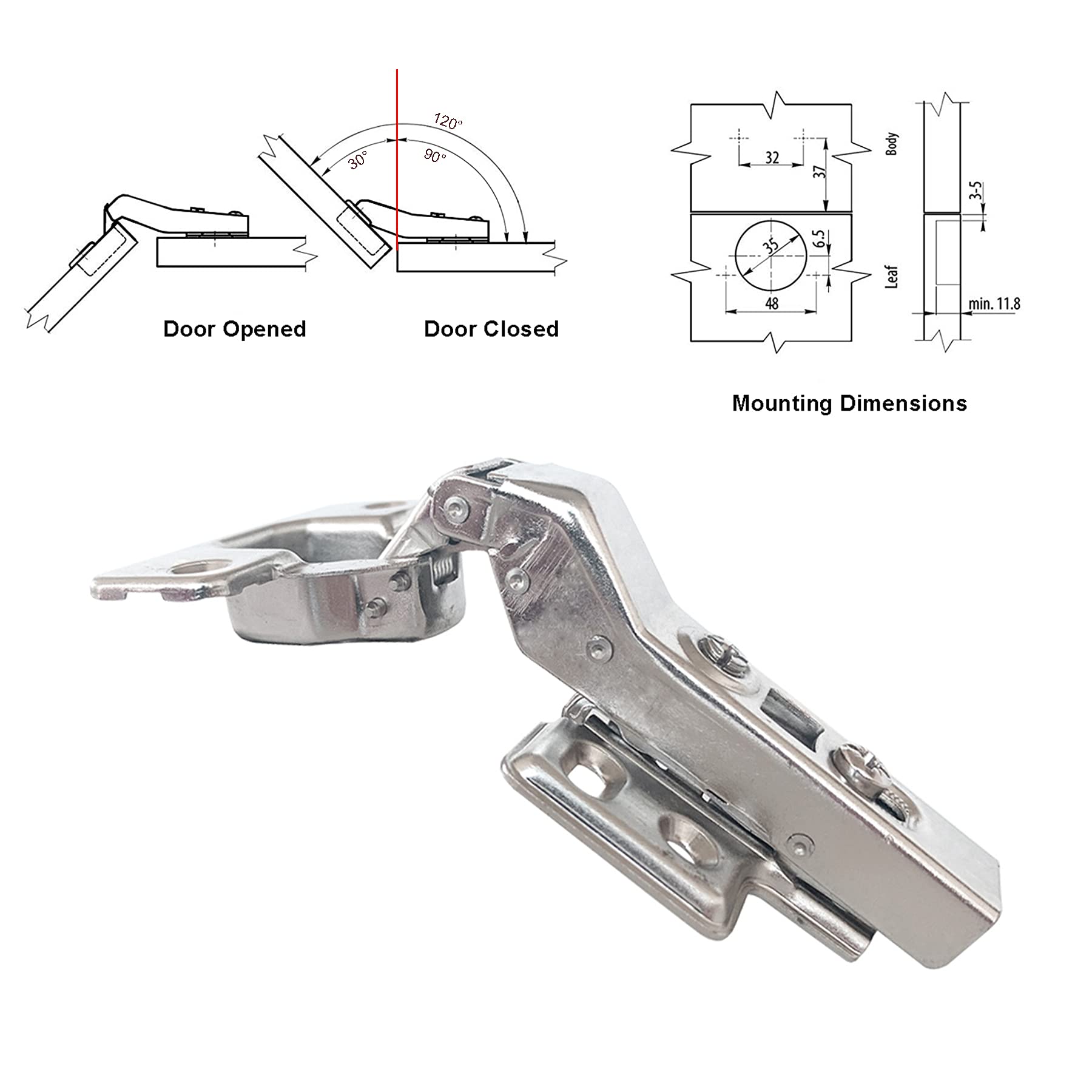

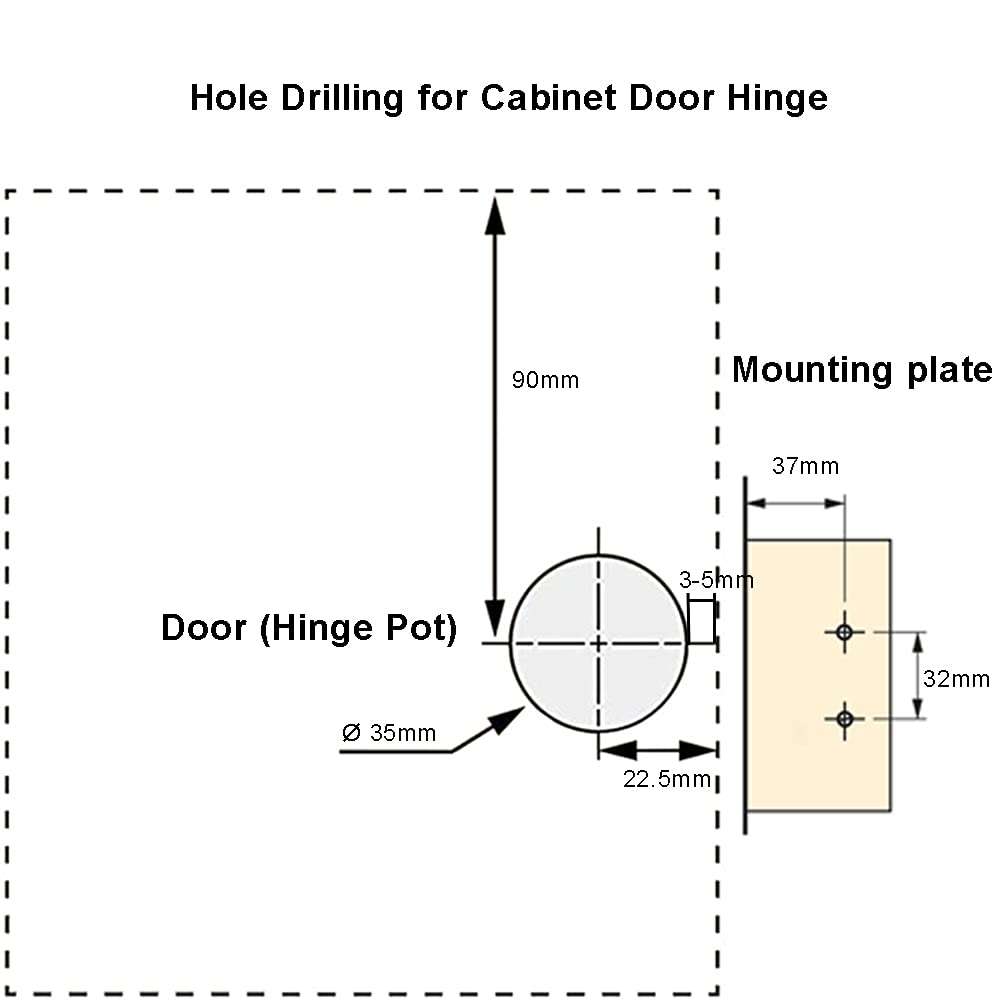

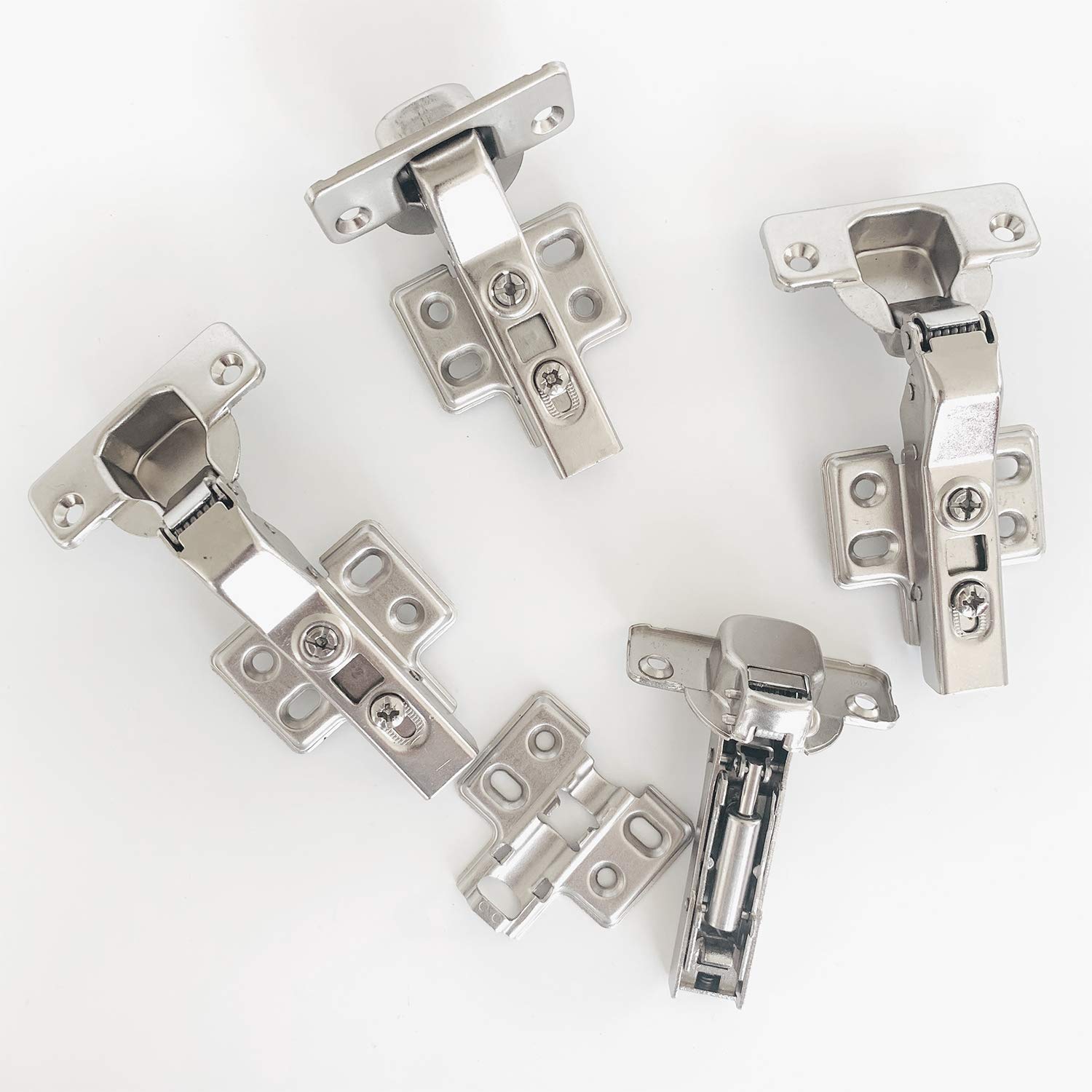

Product Dimension -Article type: LIKERAINY hinge with soft close damper -Material: Stainless steel -Opening angle (°): 90 Degree -Cup drilling version: 48mm / 6.5mm -Cup diameter: 35mm -Cup Depth: 11.5mm -DISTANCE between the two screw holes (next to the cup): 48mm -Mounting option: for screwing on -Door mounting option: Suitable for corner cupboard with folding door have angle of 120° -For door thickness: 14mm (min.) – 22mm (max.) -Integrated overlay adjustment: +2.5 mm / -2.5 mm -Integrated depth adjustment: +2.0mm / -2.0 mm -Hinge cup/arm finish: Copper plated and Nickel plated -Cover cap for carcass: NO -Cover cap for hinge cup: NO -Fast installation: Yes Package -30° hinges: 4 Pieces -with mounting screws -No mounting instruction and processing information (see photos above)
