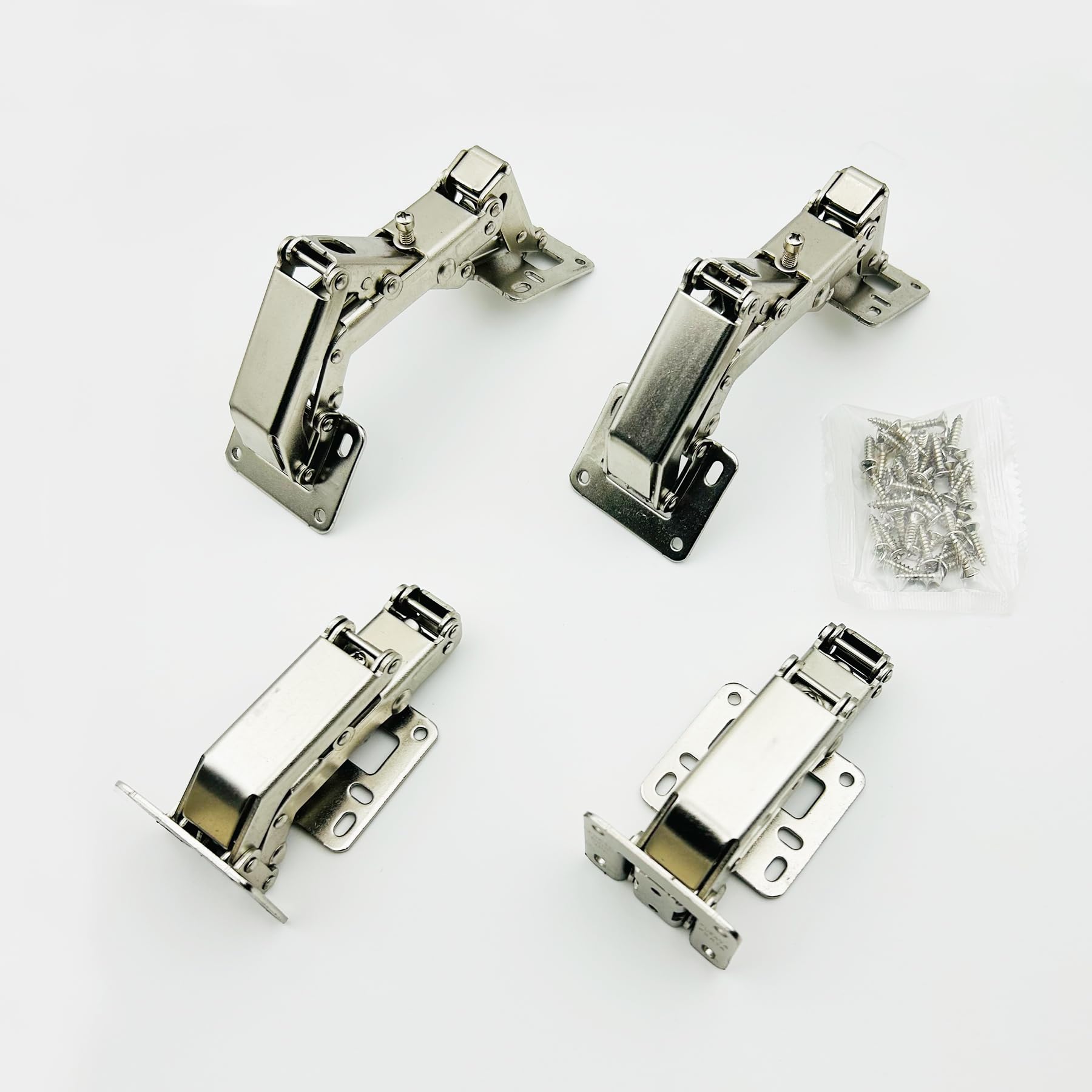

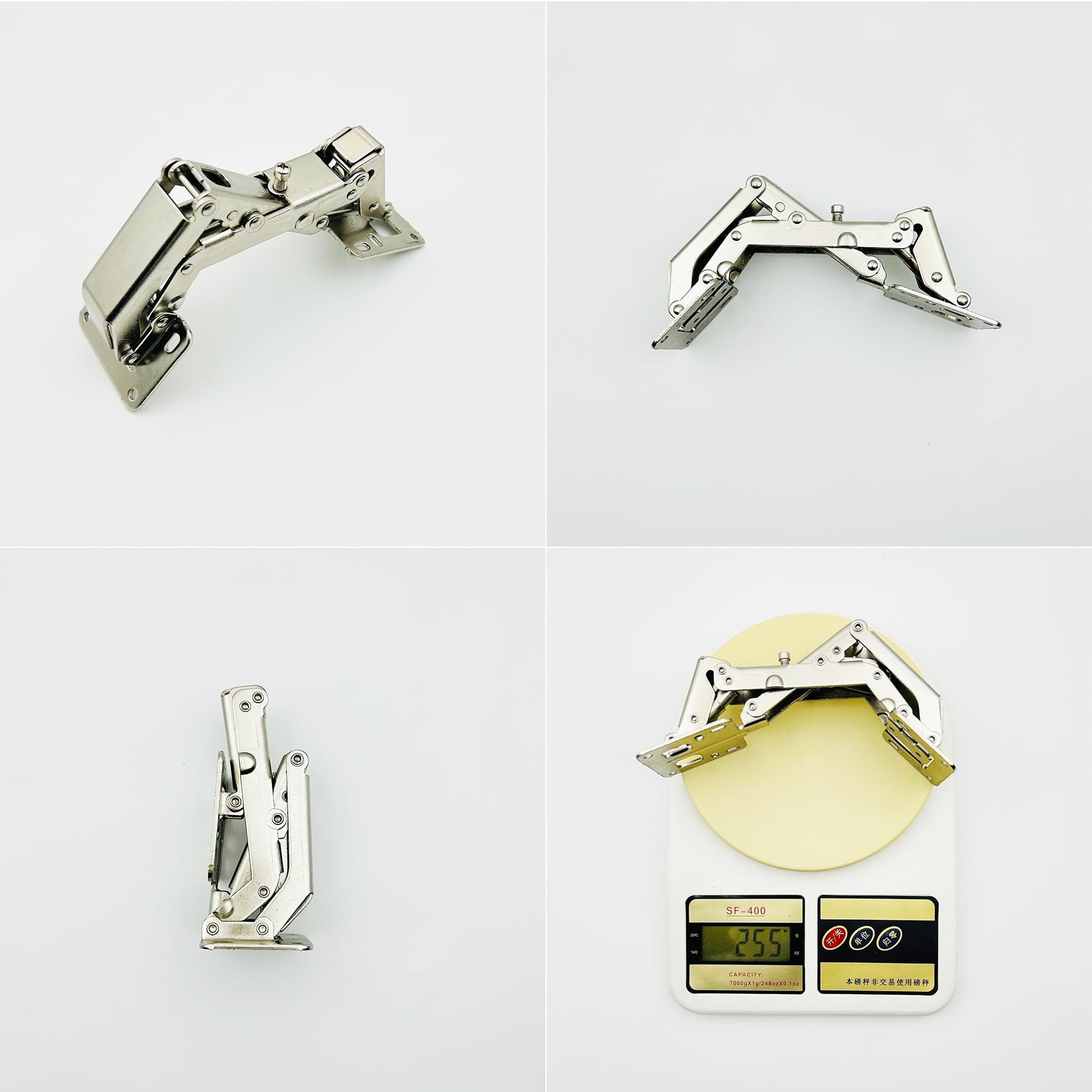

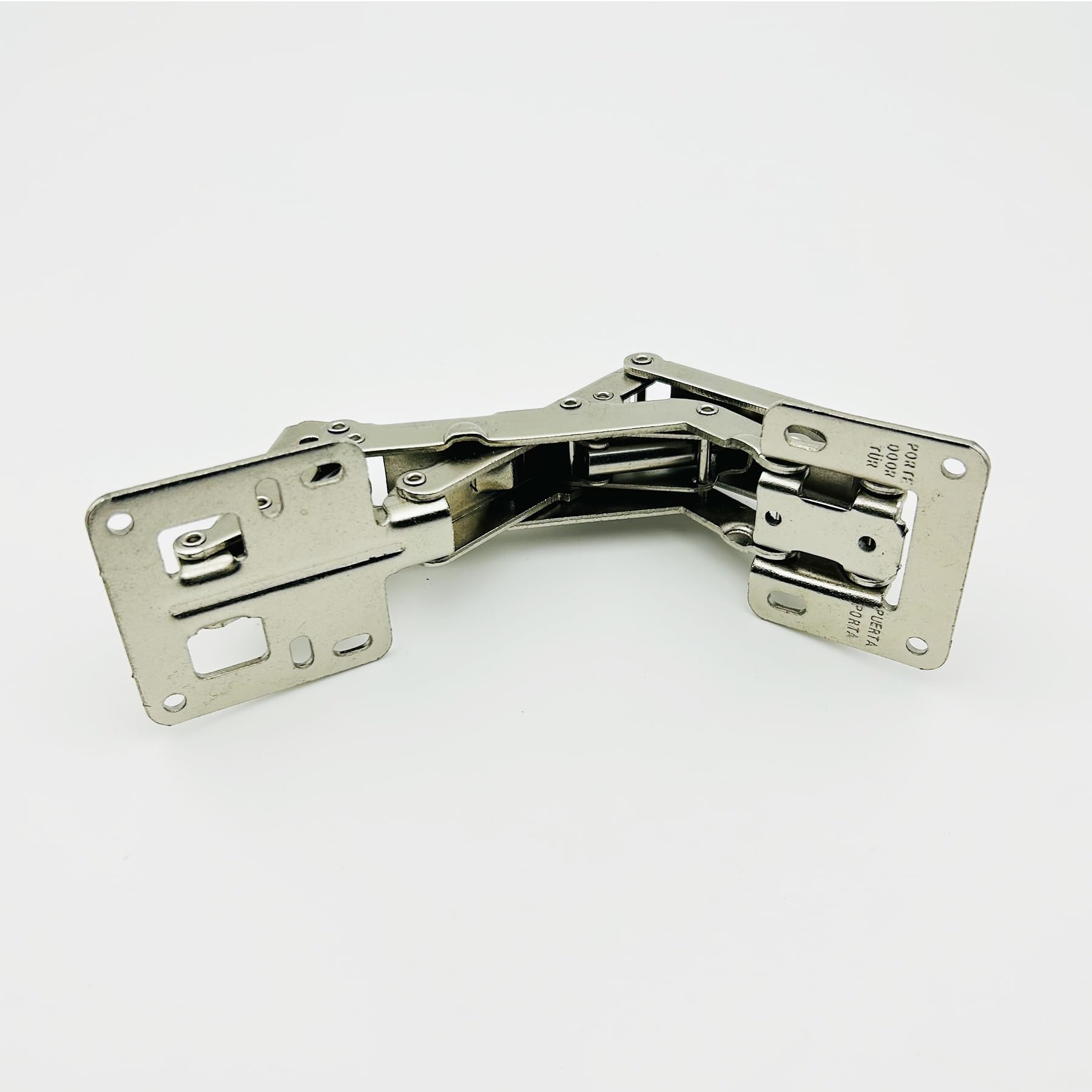

LIKERAINY 165 Degree Soft Closing Screw-on Hinge with Damping Without Cup Drilling for Kitchen Cabinet Cupboard Thick Door Stainless Steel Hinges Pack of 4

• Surface mounting hinges (with Damper) for all applications in which a cup drilling is not possible

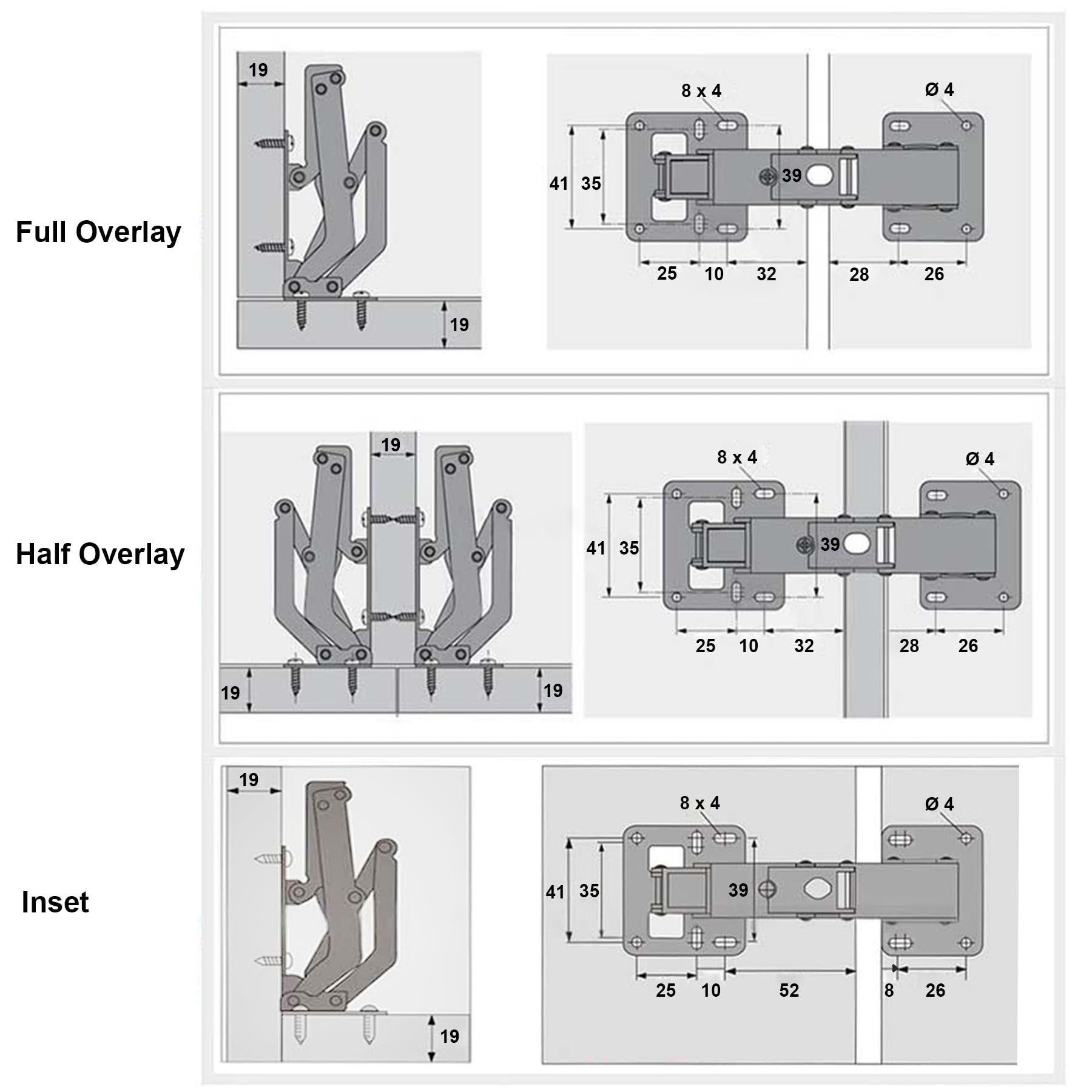

• For full overlay, half overlay, and inset door installation, for door panel thickness: 16mm (min.) – 40mm (max.)
• Big angle opening 135-165°; Steel material, Nickel plated; with Soft-closing feature (cushioning)
• Specialized for thick door panels, heavy duty hinge
• Quality classification under EN 15570, Level 3

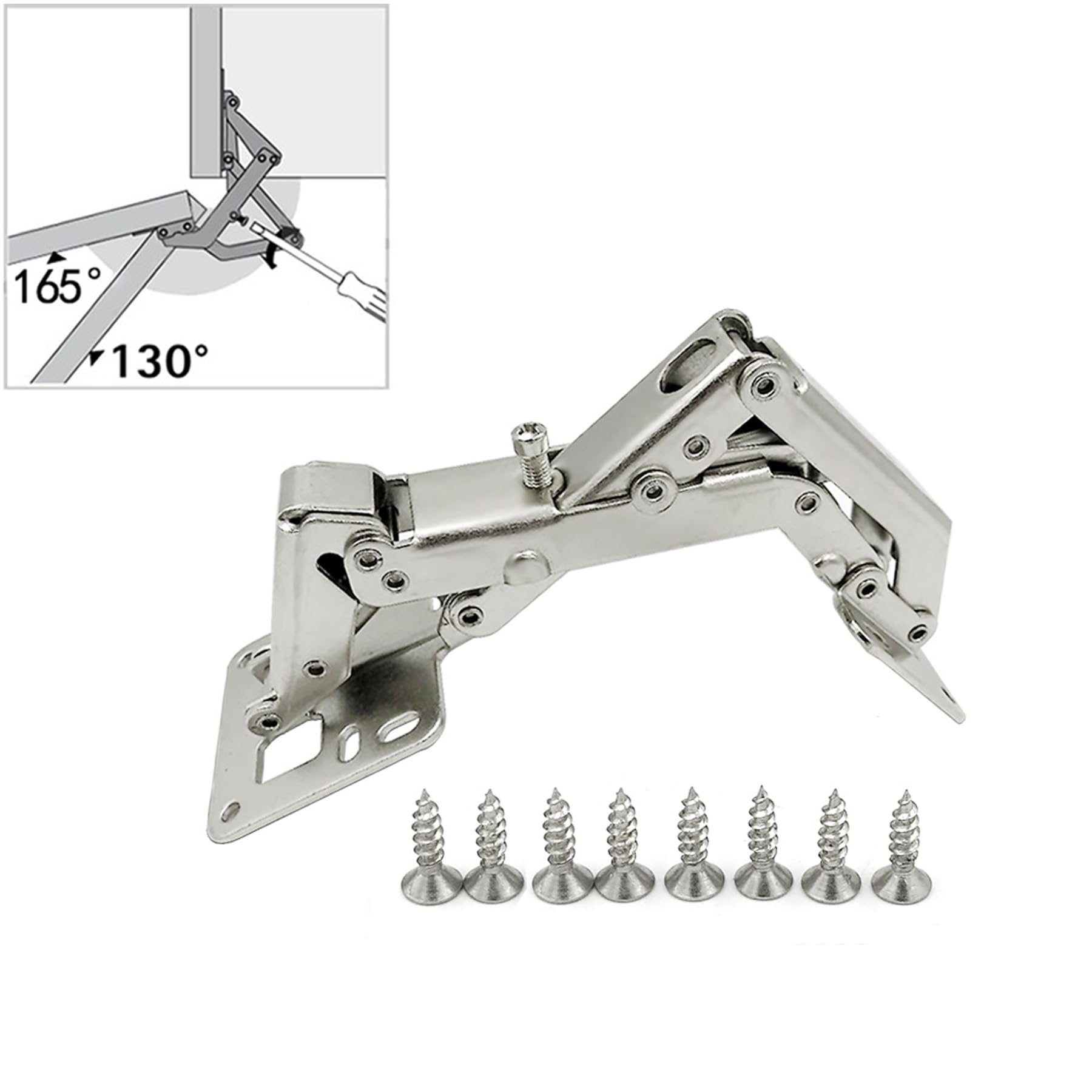

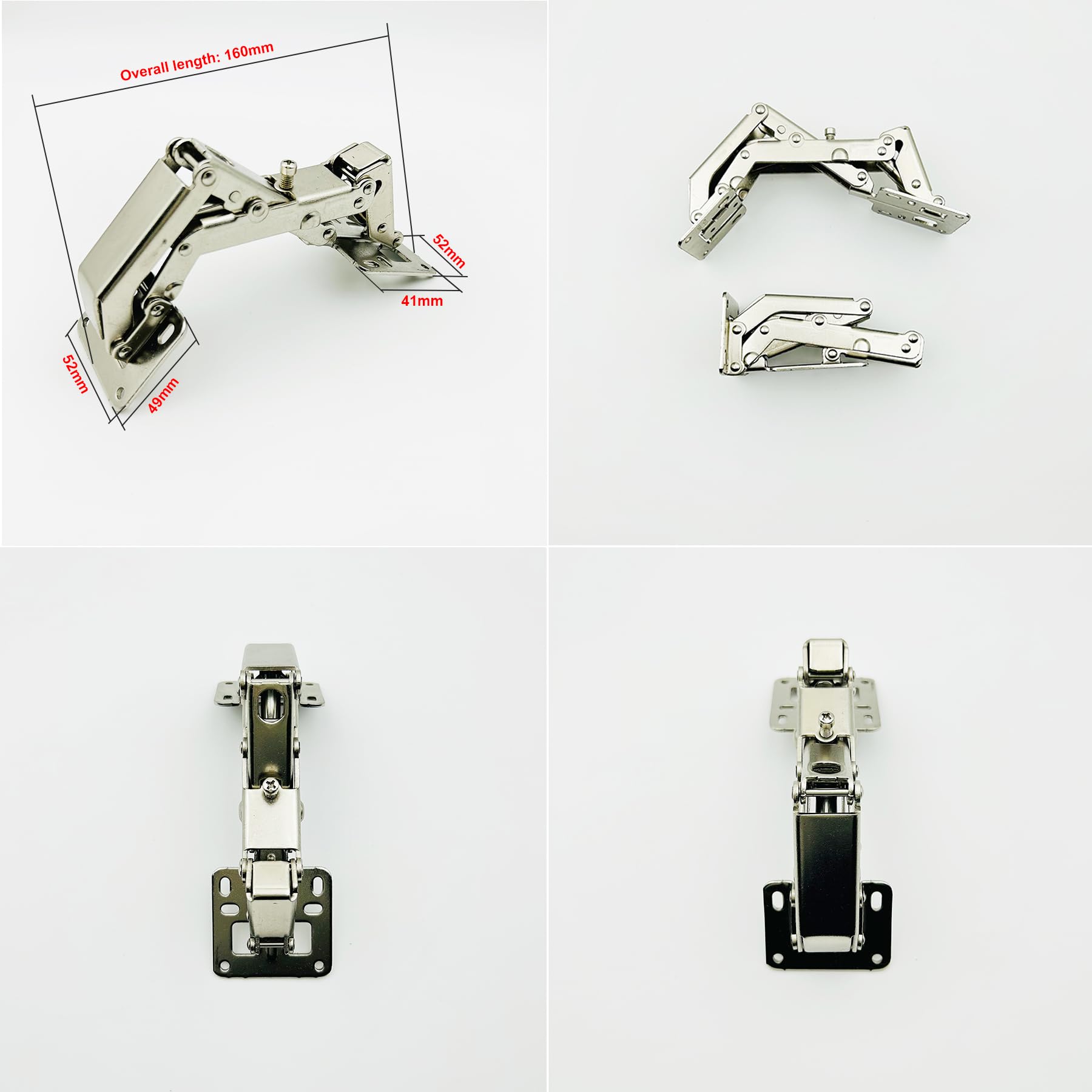

Product Dimension -Easy mounting hinge (with buffering function) without drilling the cabinet door -Material: Stainless Steel -Size: 163x52mm -Thickness: 2.0mm -Finish: Nickel-plated -Opening angle (°): 135-165 Degree -Mounting option: for screwing on -Door mounting option: full overlay, half overlay, and inset door -For Full Overlay and Half Overlay Door Application: Door panel thickness: 16mm (min.) – 25mm (max.) Side panel applicable range from 0 to 40mm -For Inset Door Application: Door panel thickness: 16mm (min.) – 40mm (max.) Standard Package -Hinges: 4 Pieces -with fixing screws -No Mounting Instruction & Processing Information (See Pictures Above) Note before purchase -1. When the door and side panel are 16-20mm thick, the maximum full opening angle is about 165 degrees, and the opening angle can be adjusted by screws between 135°-165°. -2. When the side panels are thicker and the door fully covers the 40mm thick side panel, the maximum full opening angle is about 130°.
