LIKERAINY 170 Degree Inset Hinges 35mm with Damper Soft Closing Clip on Assembly Kitchen Cabinet Cupboard Wardrobe Door Hinge Pack of 4

• Concealed hinges with clip on assembly; with damper (soft closing function)
• Concealed hinges with clip on assembly; with damper (soft closing function)
• Heavy strong and sturdy metal Hinge; Door mounting option: Inset Application
• For door thickness 14-22mm; Cup diameter Ø 35mm; Cup depth 11.5 mm; Two holes distance in mounting plate is about 32mm
• Height adjustment at mounting plate; excellent hinge replacement solution for kitchen worn-out hinges
• Quality classification under EN 15570, Level 2

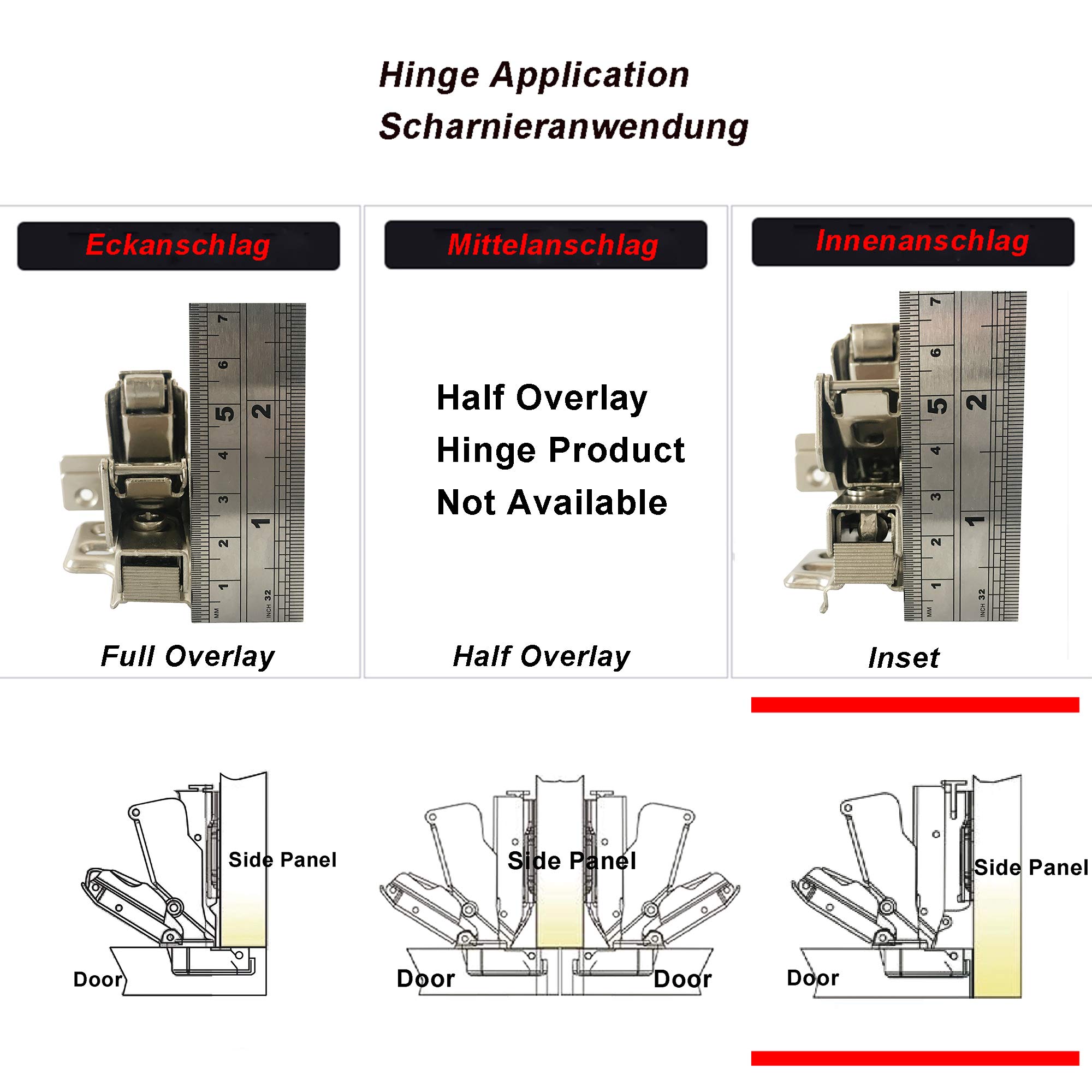

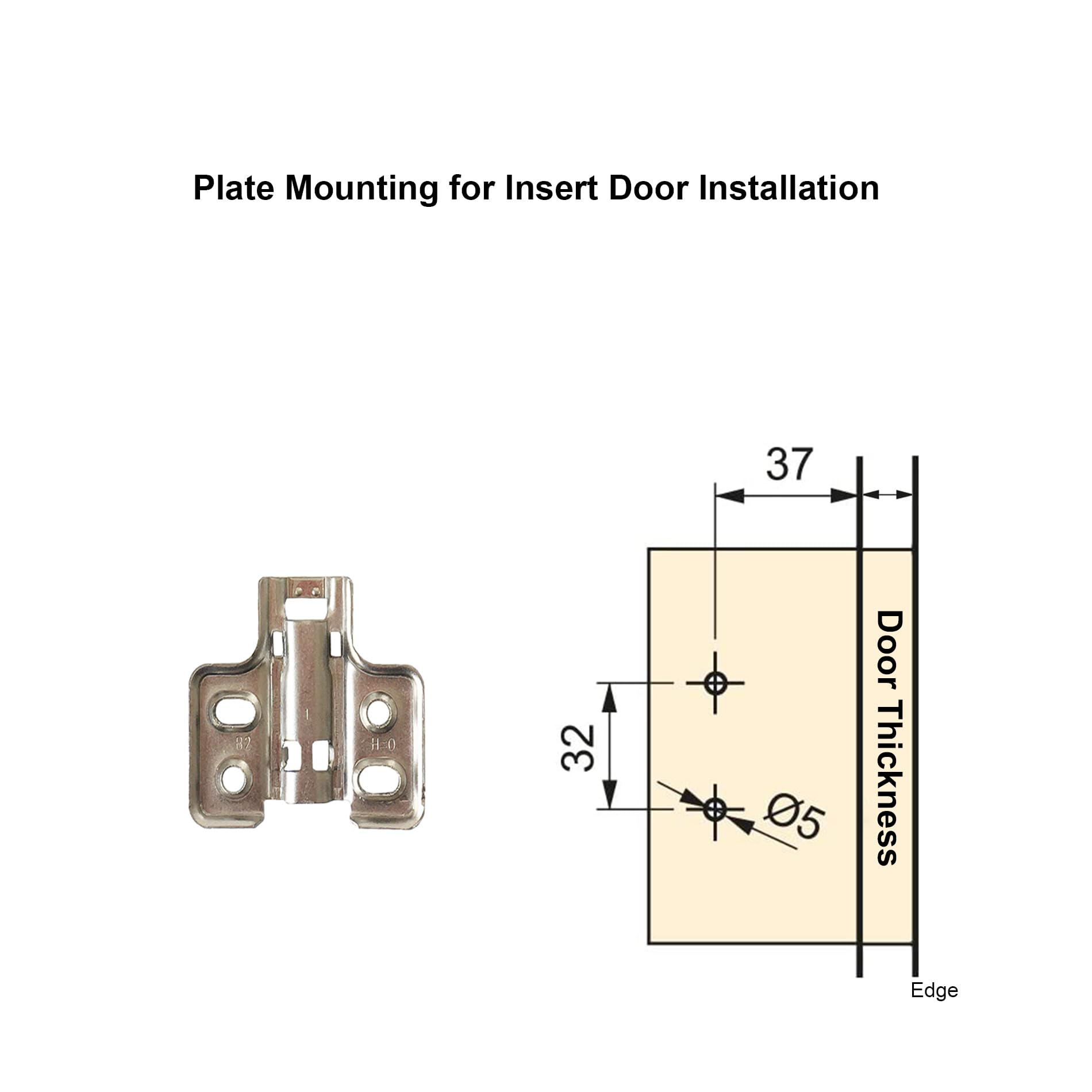

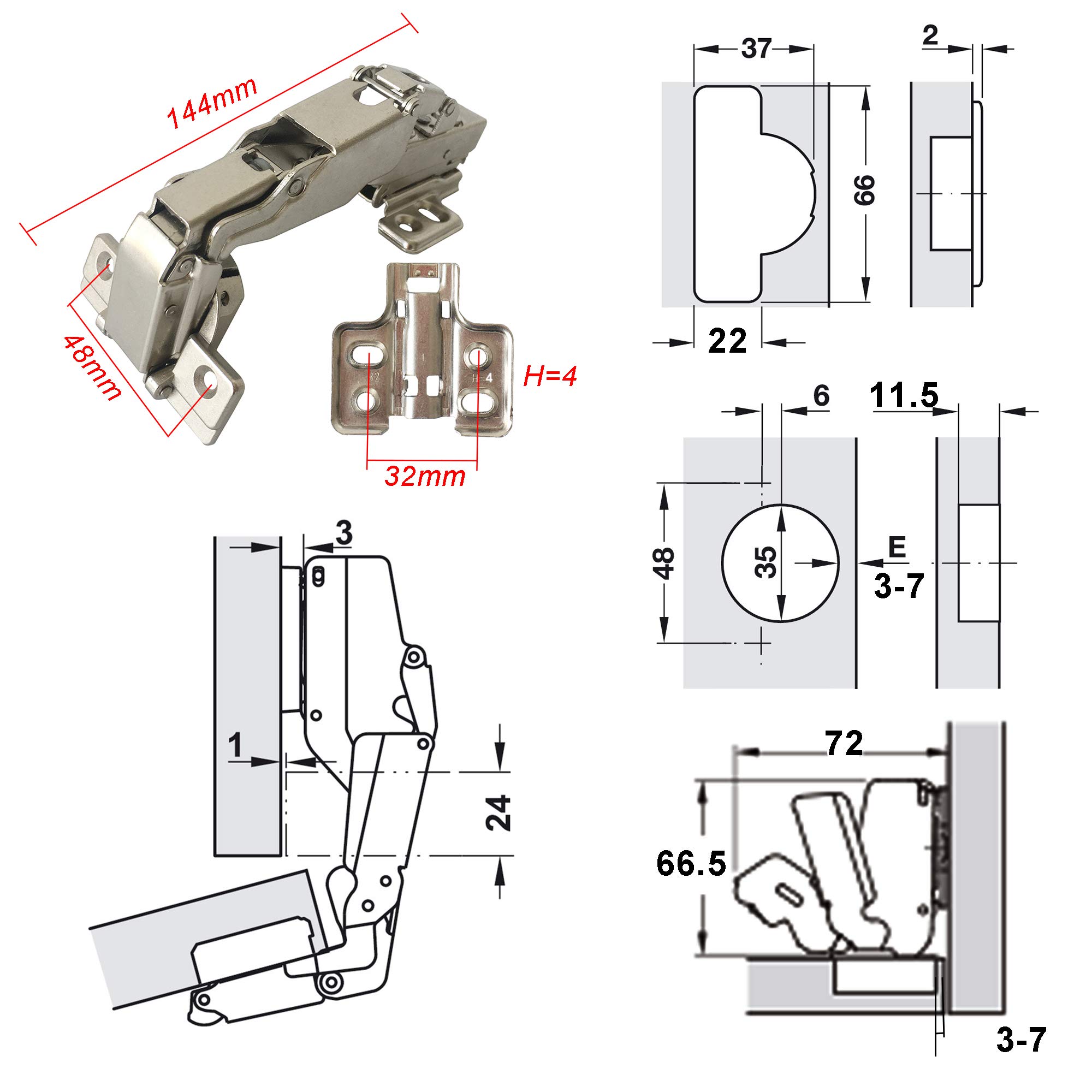

Please figure out the type of your current hinge/door application (FULL OVERLAY, HALF OVERLAY, INSET) first before you purchase, which are very important for your installation. Product Details -Article type: for screwing on and clip on -Material: Iron metal -Hinge cup/arm finish: Copper plated and Nickel plated -Opening angle (°): 170° -Cup diameter: Ø 35mm -Cup Depth: 11.5mm -Distance between the two screw holes (next to the cup): 48mm -Two holes distance in mounting plate is about 32mm -The distance from door edge to cup center is suggested about 3-6mm -Mounting option: for screwing on -Door mounting option: Inset Application(see pictures above) -For door thickness: 14mm (min) – 22mm (max) -Integrated overlay adjustment: +2 mm / -2 mm -Integrated depth adjustment: +3 mm/ -2 mm -Height adjustment at mounting plate -Cover cap for carcass: NO -Stay closed function: Yes Standard Package -Hinges: 4 Pieces -with fixing screws (Size: M4x16mm) -No Mounting Instruction and Processing Information (see photo above) Note -These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary -These hinges are great suitable for cabinet cupboard doors. If you still need damper / soft slow closing mechanism for these hinges, please search for LIKERAINY
