LIKERAINY 135 Degree Mitred Hinge 35mm with Hydraulic Damper for Furniture Cabinet Chamfered Door with 45° Soft Close Hinges Nickel-Plated for Cupboard Wardrobe Pack of 2

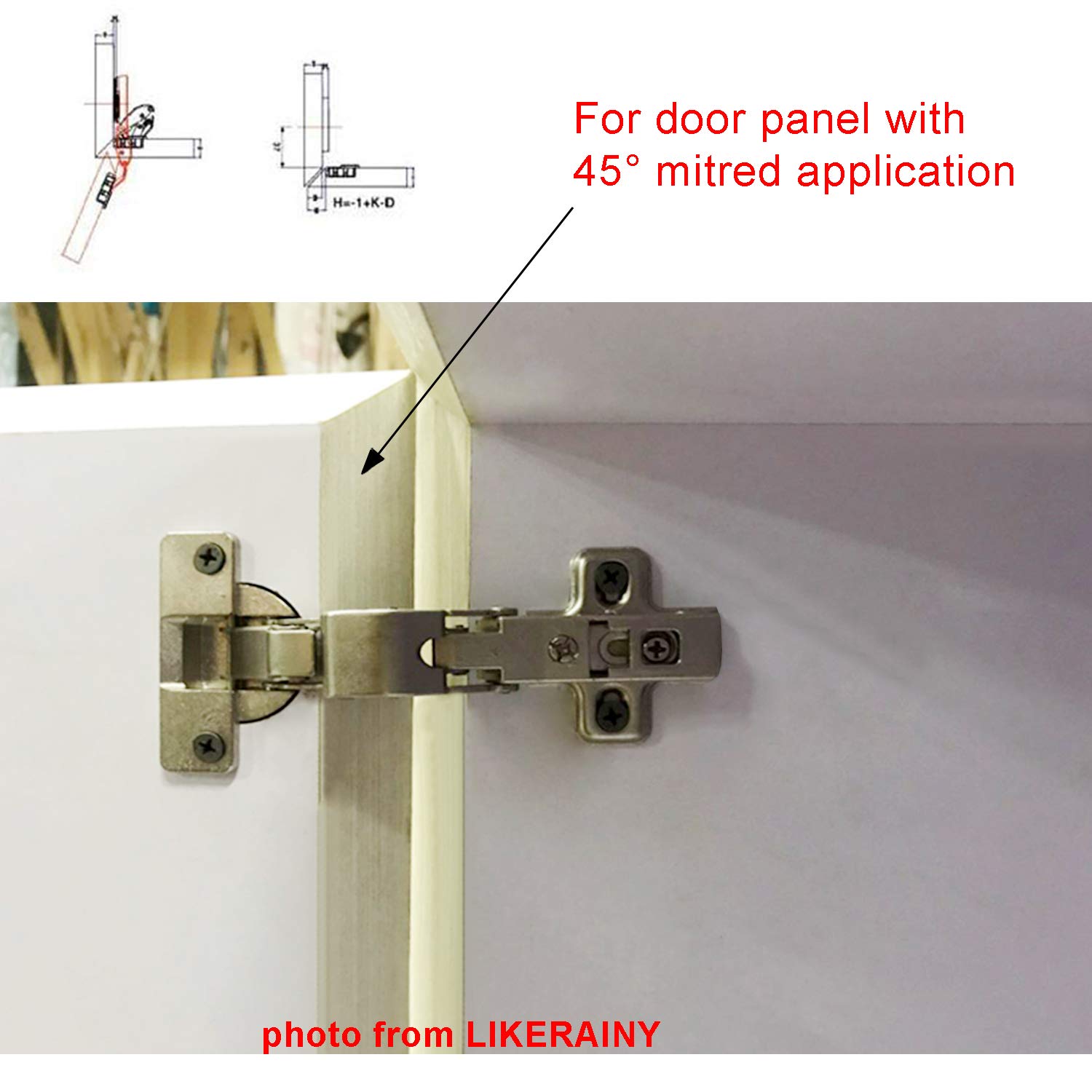

• Miter Hinge for cabinet and cupboard door 45° mitred applications; Specially designed to enable door and carcase edges to meet at mitred angles
• Soft Close damper can prevent from noise or slam when closing the doors
• 3 Dimensional adjustment; ONLY for use in combination with flap support or lid stay

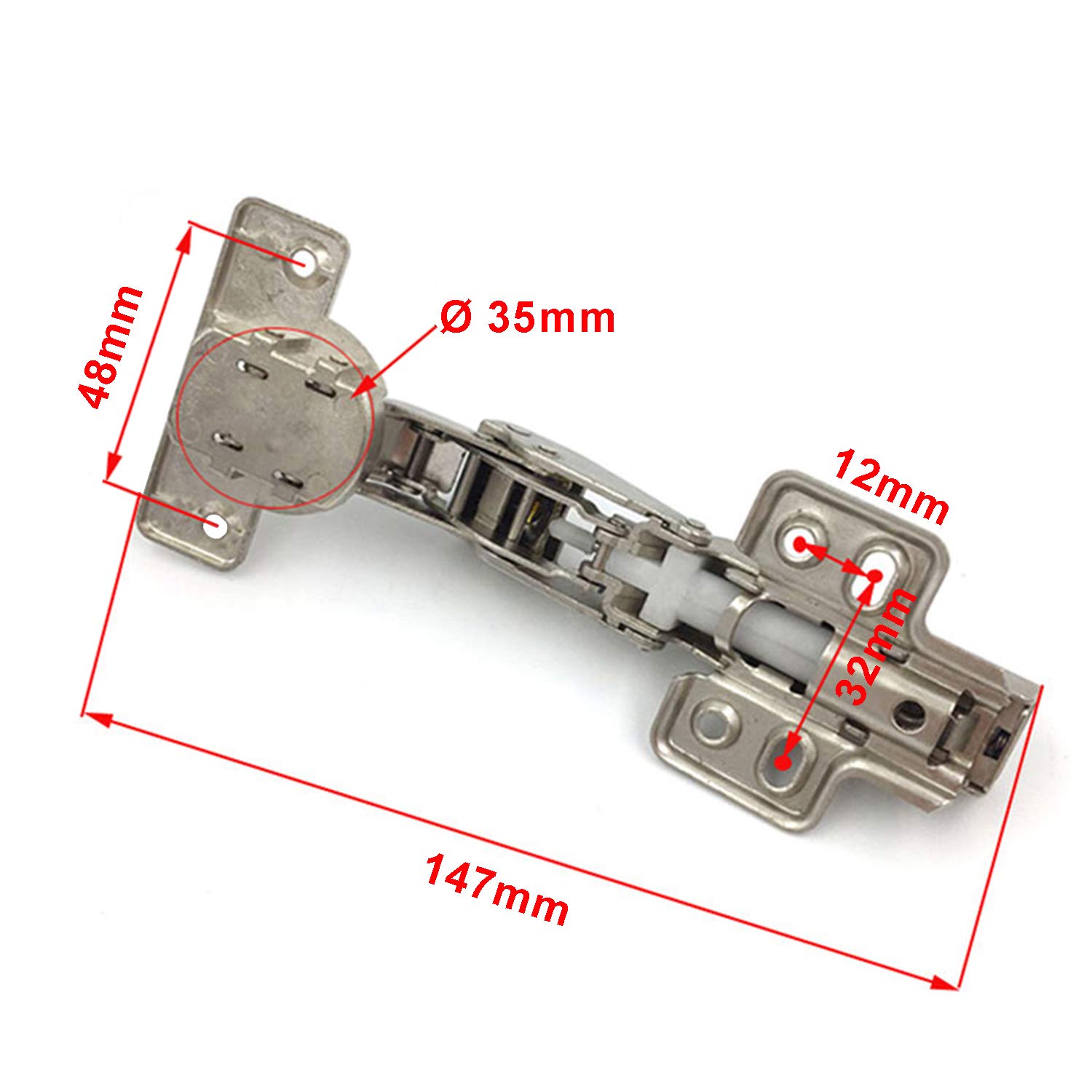

• For Door thickness 15-22mm; Hole spacing: 48mm; Cup diameter Ø 35mm; Hinge cup depth 11mm
• Side panel thickness: 15–20mm; Made of zinc alloy; Nickel plating surface

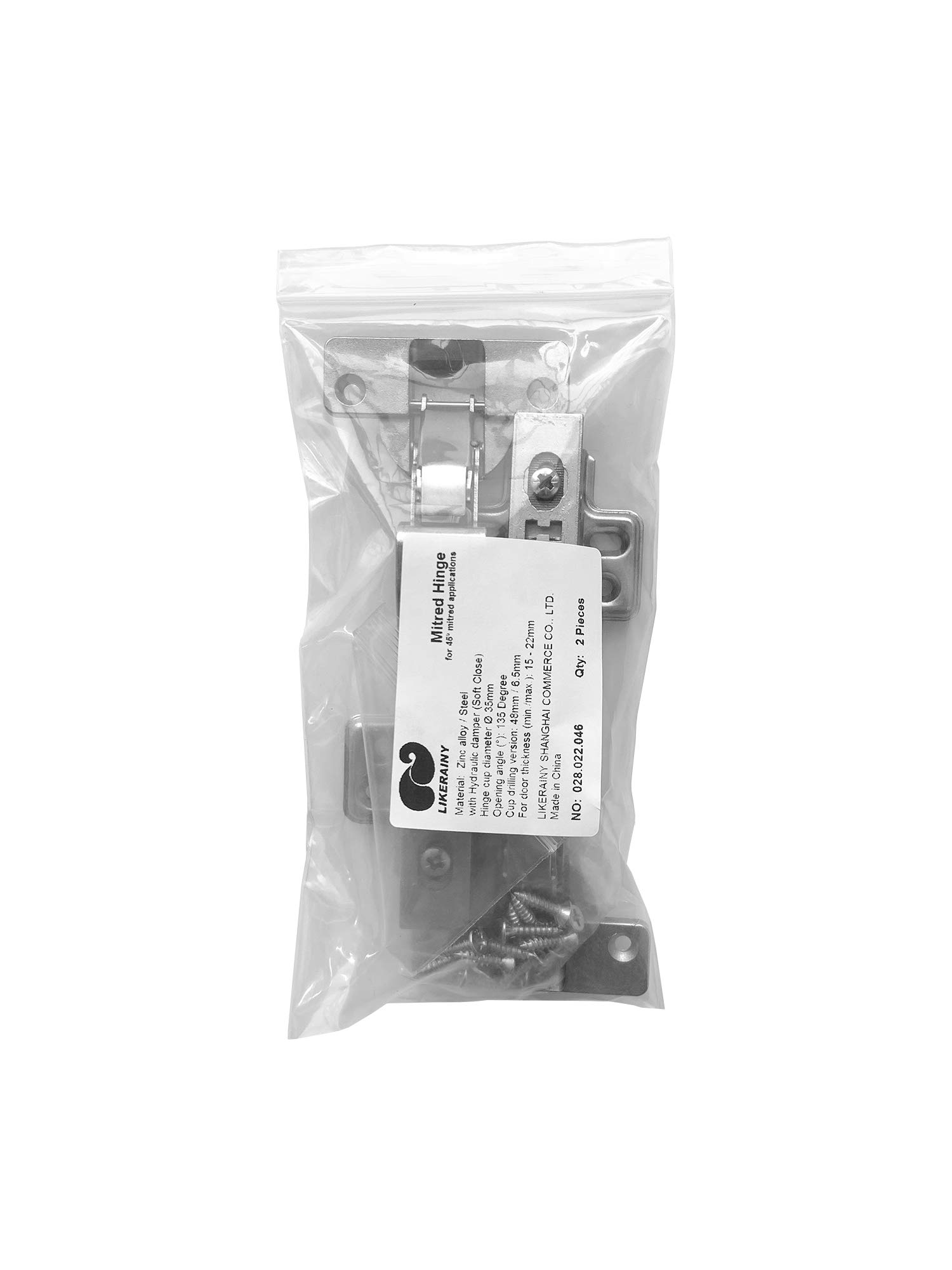

Product Dimension -Article type: LIKERAINY special miter hinge with damper for door panel with 45° mitred application -Hinge with Soft Closing hydraulic damper -Material: Zinc Alloy -Opening angle (°): 135 Degree -Cup drilling version: 48mm / 6.5mm -Cup diameter: Ø 35mm -Cup Depth: 11mm -DISTANCE between the two screw holes (next to the cup): 48mm -Drilling pattern: for 45° mitre cut -Mounting option: for screwing on -For door thickness: 15mm (min.) – 22mm (max.) with 45° mitre angle -Side panel thickness: 15–20 mm -Height adjustment: 2.0mm -Lateral and depth adjustment: 3.0mm -Hinge cup/arm finish: Nickel plated -Cover cap for hinge cup: NO Package -Miter hinges: 2 Pieces -with mounting screws -No mounting instruction and processing information (see photos above)
