LIGHTEU®, Mi.Light PA4 4-Channel High Power Amplifier DC12V-24V Max. 15A RGB RGBW LED Amplifier Controller for RGB RGBW LED Strip

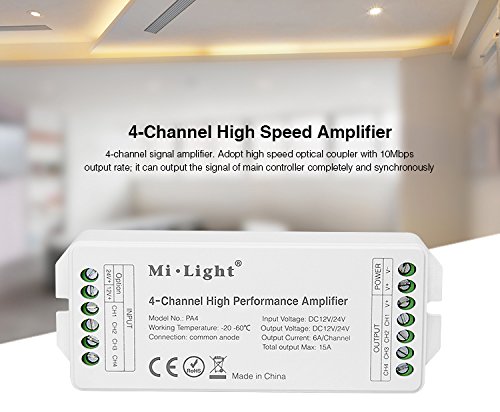

• A newly updated high performance 4-channel signal amplifier.
• Adopt high-speed coupler with 10Mbps output rate, it can output the signal from May controller completely and synchronously.

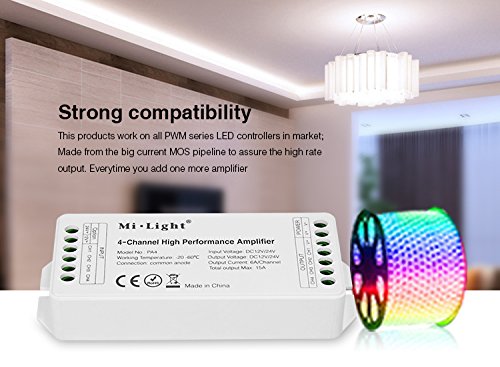

• This product works on all PWM series LED controllers in market. Made from the big current MOS pipeline to assure the high rate output.
• Everytime you add one more amplifier, input and output is with optoelctronic isolation.
• Working with main controller can satisfy the application requirung large power, wide range and synchronization area.

Specification: Product name: 4-channel high-power amplifier Model number: PA4 Working temperature: -20-60 degrees Operating voltage: DC12V / 24V Switching rate: 10 Mbps Max. Output: 6A / channel Total power Max: 15A Attention: 1.led strip must be DC12V or 24V and the outout and input must be the same. 2. Check if the input voltage of the constant voltage supply is the Controller and please check the connection of cathode and anode, otherwise the controller is defective. 3.Please do not connect wires when the power is on. Please do not switch on again until it is connected correctly and there is no short circuit. 4.Please do not use the controller in a place with a large meal or strong electromagnetic wave nearby, otherwise the distance will be severely impaired.
