Beikalone Modern Satin Nickel Lid Support Hinges (2Pcs), Soft Close, Max Weight Support 40lb/2pcs

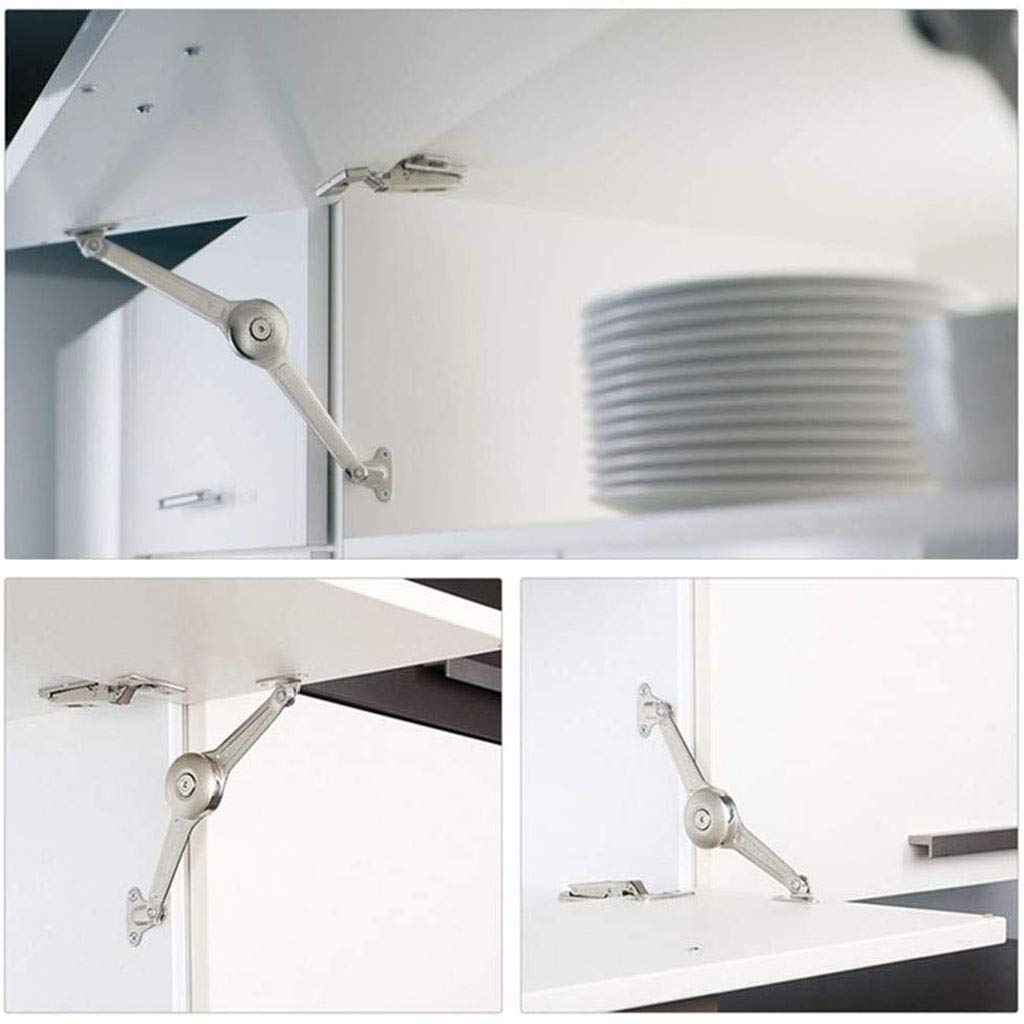

• The clutch assembly may a little hard to install, please make the plastic-part smaller. When a soft closing motion is required for your lids or flaps, our Lid Support Hinges will be your good choice. It holds the door in any open position or lets it slide down gently.

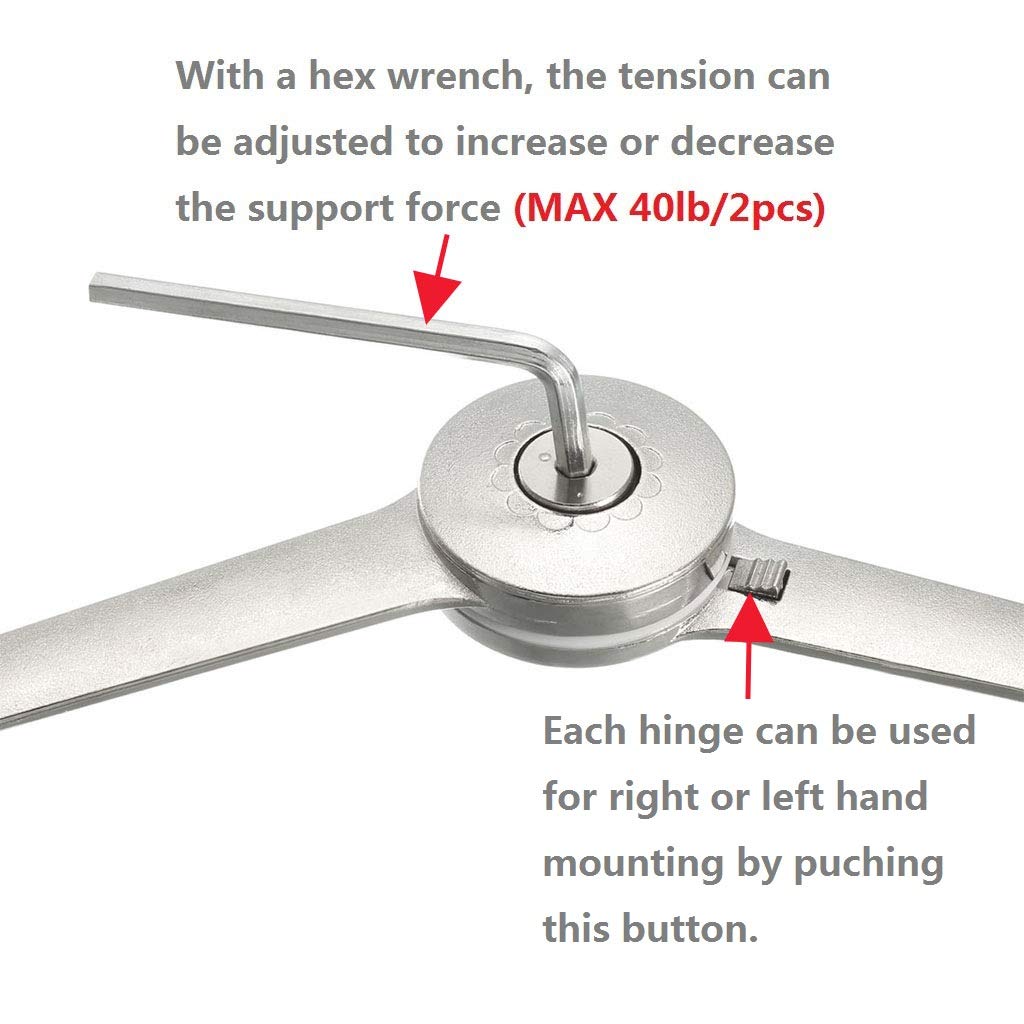

• When a soft closing motion is required for your lids or flaps, our Lid Support Hinges will be your good choice. It holds the door in any open position or lets it slide down gently,Adjustable friction pressure to fit different needs, by turning a screw at the middle of the arm to setup correct friction pressure(Max 40lbs/2pcs).

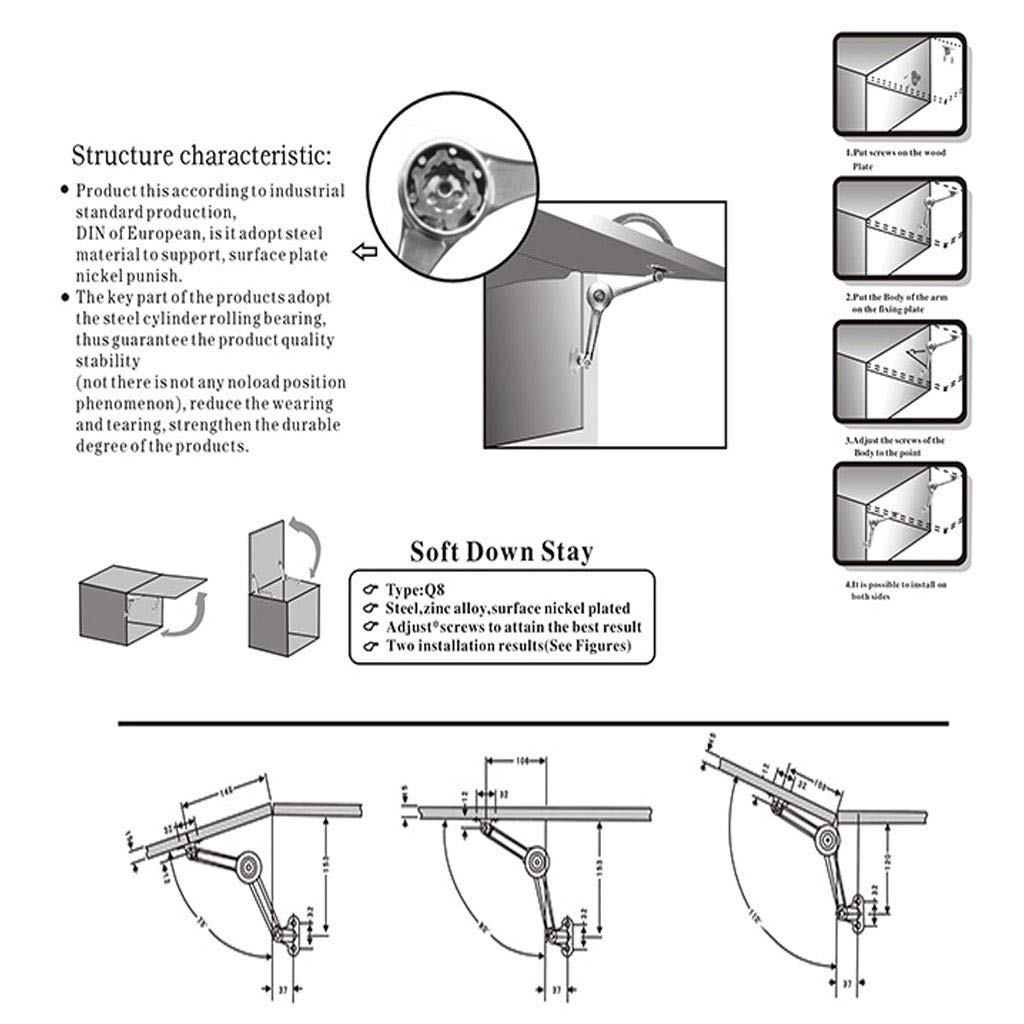

• By changing the installation position, the door opening angle can be adjusted in the largest 75°、90° and 100° (or 105°)position.

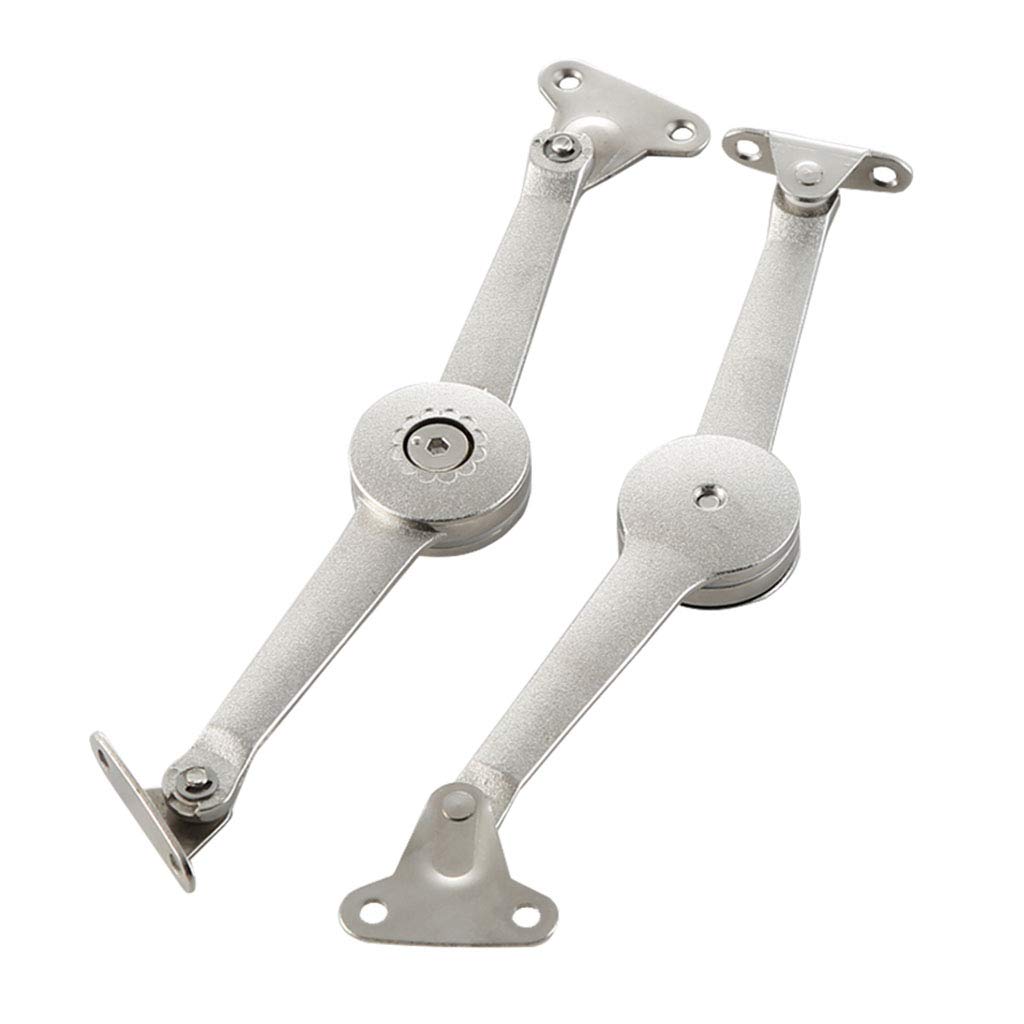

• Made of durable Zinc alloy in Satin Nickel.

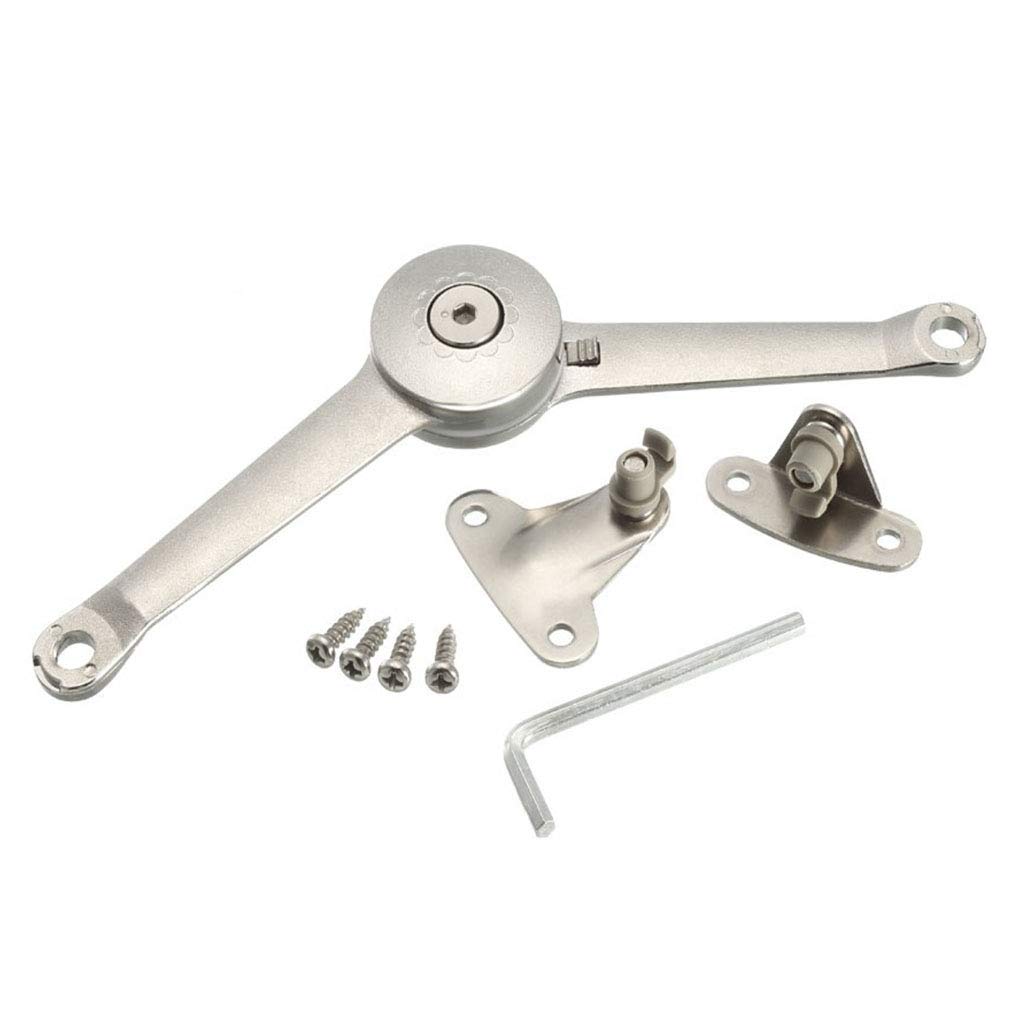

• Screws included for installation.

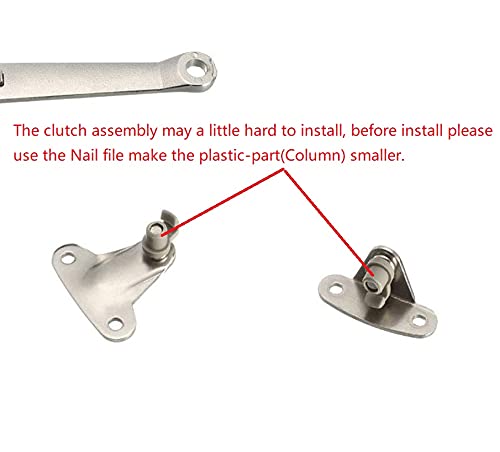

!!!! The clutch assembly may a little hard to install, before install please use the Nail file make the plastic-part(Column) smaller. Our Lid Hinges are made of durable zinc alloy material with nickel finish, not only a hardware, but also a decoration of your project. Max weight these hinges can hold -- 40lbs at 2pcs, and fully adjustable for different weights range by turning a screw at the middle of the arm to setup correct friction pressure. HOW TO INSTALL: IF YOUR DOOR OVERLAPS THE CABINET FRAME (OVERLAY STYLE)... -On the inside cabinet wall, mark two points for drilling holes: one 38mm in from the front edge of the cabinet and 160 mm down from the inside top of your cabinet, and the second exactly 32mm below the first one. -Measure the amount of overlap for your cabinet door in millimeters. If installing 2 hinges, note that it may be different on each side. Take that overlap dimension and add 12 to it to get inset dimension X. On the inside of the door, mark two points for drilling holes: one Xmm in from the side edge and 90mm from the top edge and another Xmm x 122mm. IF YOUR DOOR IS SET INSIDE THE CABINET FRAME (FLUSH MOUNT STYLE)... -Measure the thickness of your cabinet door in millimeters. Add 38 to it to get inset dimension X. On the inside cabinet wall, mark two points for drilling holes: one Xmm in from the front edge of the cabinet and 160 mm down from the inside top of your cabinet, and the second exactly 32mm below the first one. -On the inside of the door, mark two points for drilling holes: one 12mm in from the side edge and 90mm from the top edge and another 12mm x 122mm.
