LIBO Smart Home Access Control Power Supply K80 Power Switch DC 12V 3A/5A AC 110~260V for All Types Access Control System Door Lock with Time Delay (K805A)

• 1. AC input: Standard AC100V-240V 50-60HZ 36W, DC output: stabilizator DC12V/ 5 A.

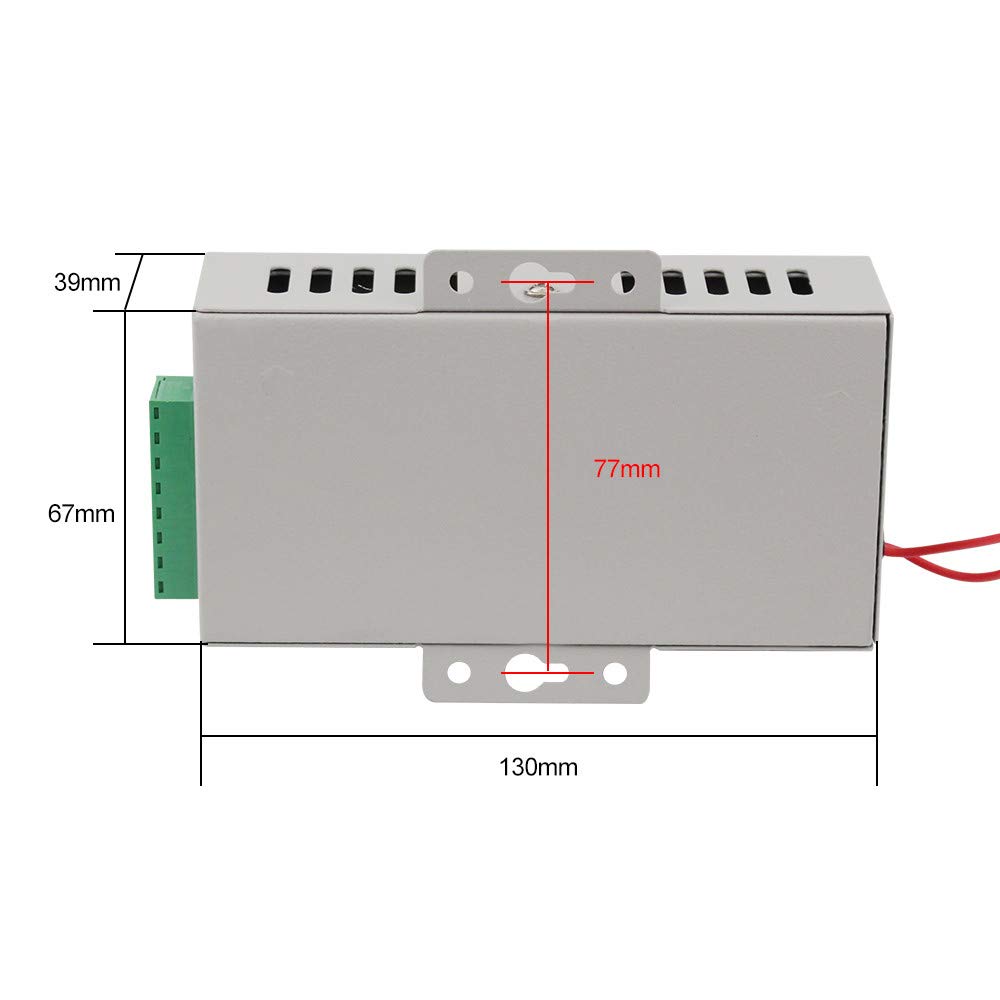

• 2. Outside iron shell dimension:130mm*67 mm*37mm.
• 3. Set NC / NO outputs, can control various types of electric locks.
• 4. Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric lock would be Burned Down.
• 5. Package Include: 1 x Access Control Power Supply,1 x Manual.

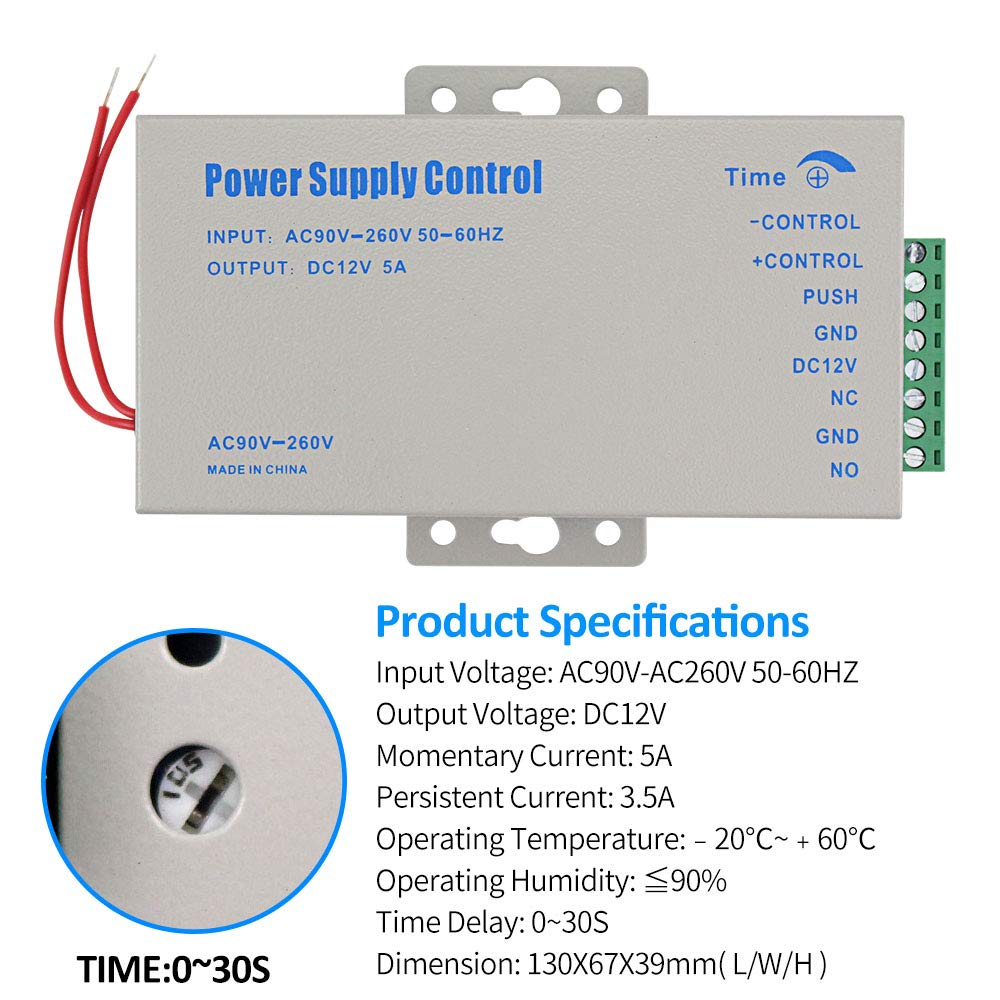

Description: This is a standard 12VDC,5A access control power supply. Can provide very stable and reliable output in a various applications, such as lock control/controller control/exit button/RFID-ID Reader, etc. Application: These products are widely applied in access control system and related applications such as Electric Magnetic lock , lock controller, RFID-IC card reader ,password keypad etc. Specifications: 1. Model: K80 5A 2.Size: aprox. 13x6.7x3.7 cm (L x W x H) 3. Input Voltage: AC 110 ~ 260 V / 50 ~ 60Hz 4. Output Voltage: DC 12 V / 5A 5. Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit. 6. Set NC / NO outputs, can control various types of electric locks. 7. Warm Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down. Package Include: 1 x Access Control Power Supply 1 x Manual
