LIBO Full Set Kit of RFID Access Control Keypad 125KHz with DC12V Electric Lock Electronic Bolt Lock, 3A Power Supply, Exit Button, 10pcs ID Key Cards

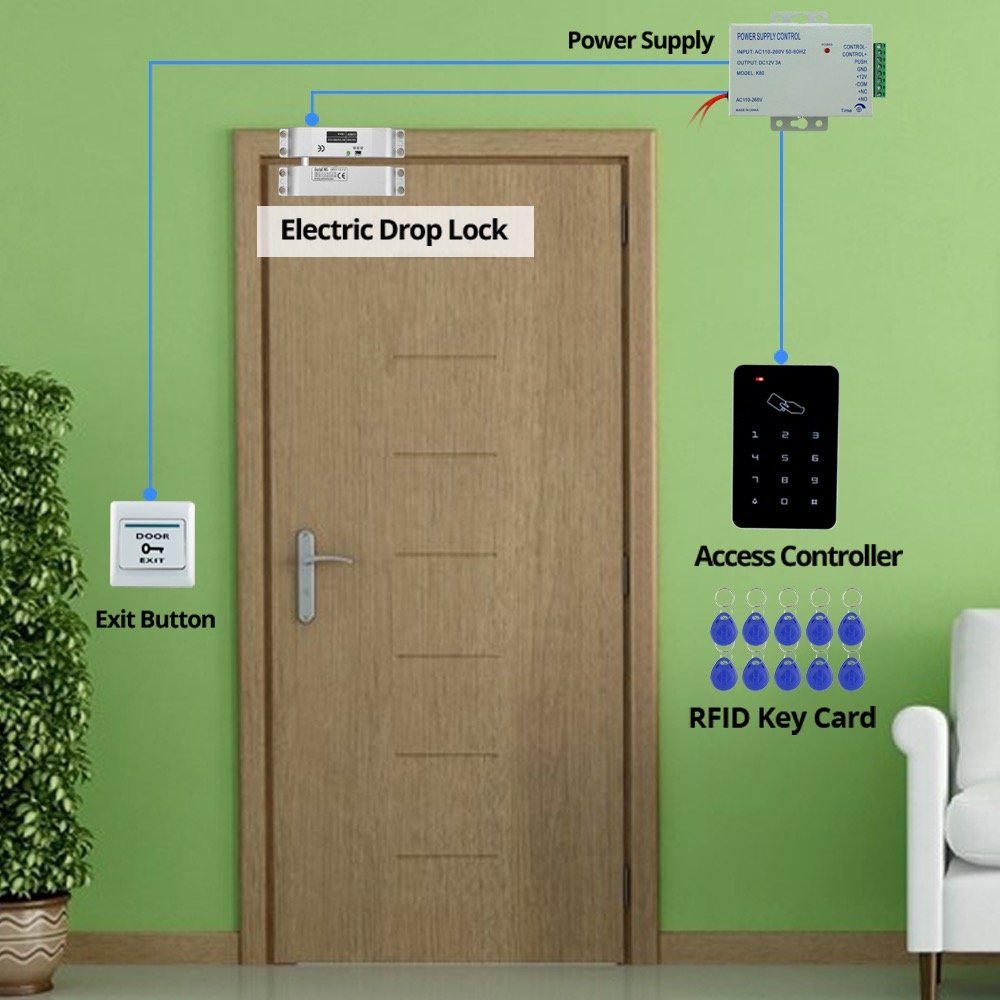

• 1. A full access control system for single door, including a access controller, power supply, electric lock and door release button.
• 2. Support 1000 users, support RFID card, password, card+password, total three open door mode.
• 3. Full programming from the keypad, doesn't need to connect on the computer, can works alone.
• 4. Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.
• 5. Applications: Home/ hotel/ office/ apartment/ factory, etc. 1 year warranty and lifetime support.

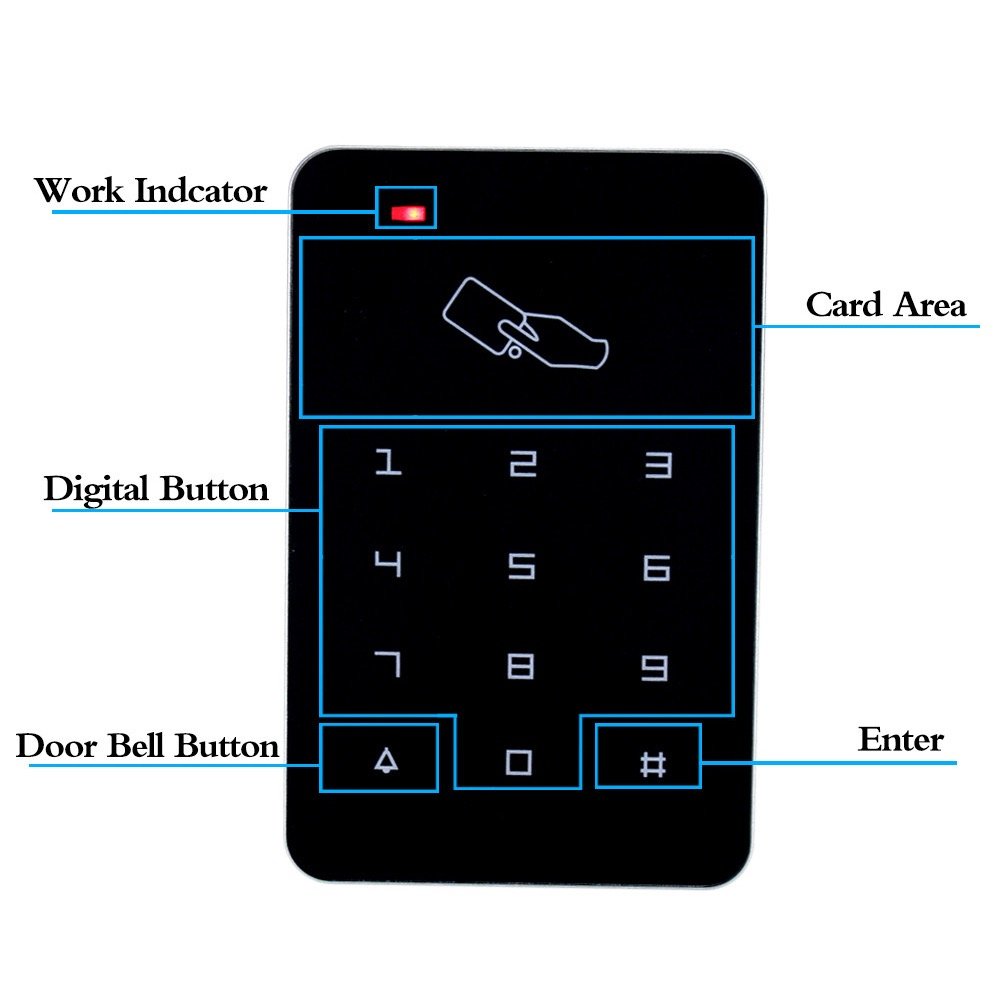

T22 Stand-along Access Control Keypad 1.Voltage: 12VDC, Current 120mA 2.User capacity: 1000 users 3.Proximity Reader Frequency: 125KHz 4.Compatible Cards: EM or EM compatible card 5.External Reader: Not support 6.Reading Distance: 3-10cm 7.Support Card, password, Card + password, total three open door mode. 8.Full programming from the keypad, doesn't need to connect on the computer, can works alone. 9. Dimension: 117*75*22mm, Material: plastic K80 Power Supply 1.AC input: Standard AC100V-240V 50-60HZ 36W, DC output: DC12V/ 3 A 2.Set NC / NO outputs, can control various types of electric locks. 3.Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit. 4.Dimension:100*65*32mm, Material: metal Electric Drop Bolt Lock 1.Working Voltage: DC12V, Working Current: Start state 1.2A Persistent state 120mA 2.NC Mode: Fail-safe type, unlocked when power off, locked when power on. 3. Lock core: The diameter 12.5MM, extending the length of 15MM 4.Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc. 5.With time delay: 0s, 3s, 6s. Waterproof: Yes, suitable for outdoor use. 6.Dimensions: 150x34x28mm 7. Wires: red to "NC", black to "GND". Warm Note:yellow line and white line are useless, don't need to be connected. Door Exit Button 1.Dimensions: 86*86*8mm 2.Material: fireproof ABS plastic 3.Power Input: DC 12V 4.Output Contact: NO / COM RFID Keyfobs 1.Frequency: 125KHz, EM ID type 2.Chip: TK4100 3.Color: blue 4. Read Only 5.Quantity: 10pcs Package Including 1 x Access Control Keypad 1 x Power Supply 1 x Electric Drop Bolt Lock 1 x Door Exit Button 10 x RFID Keyfobs 1 x User Manual
