LF10-4H Pressure Switch, 4 Port Air Compressor Pressure Switch Replacement Control NPT1/4 95-125 PSI 20A

• ✅ [Size]--6.3 mm unloader valve connection, 1/4 inch NPT Female connection. Cut off pressure 95-125 PSI.With relief valve can avoid the overload operation of the air compressor.
• ✅ [Part number]--LF10-4H-1-NPT1/4-95-125.This pressure switch is designed for a single stage or two stage air compressor pumping up to 125 PSI.
• ✅ [More conveient to use]--The four-port manifold gives you the option to mount in it any direction and to also have the option to add a relief valve, gauge, or multiple air outlet ports.

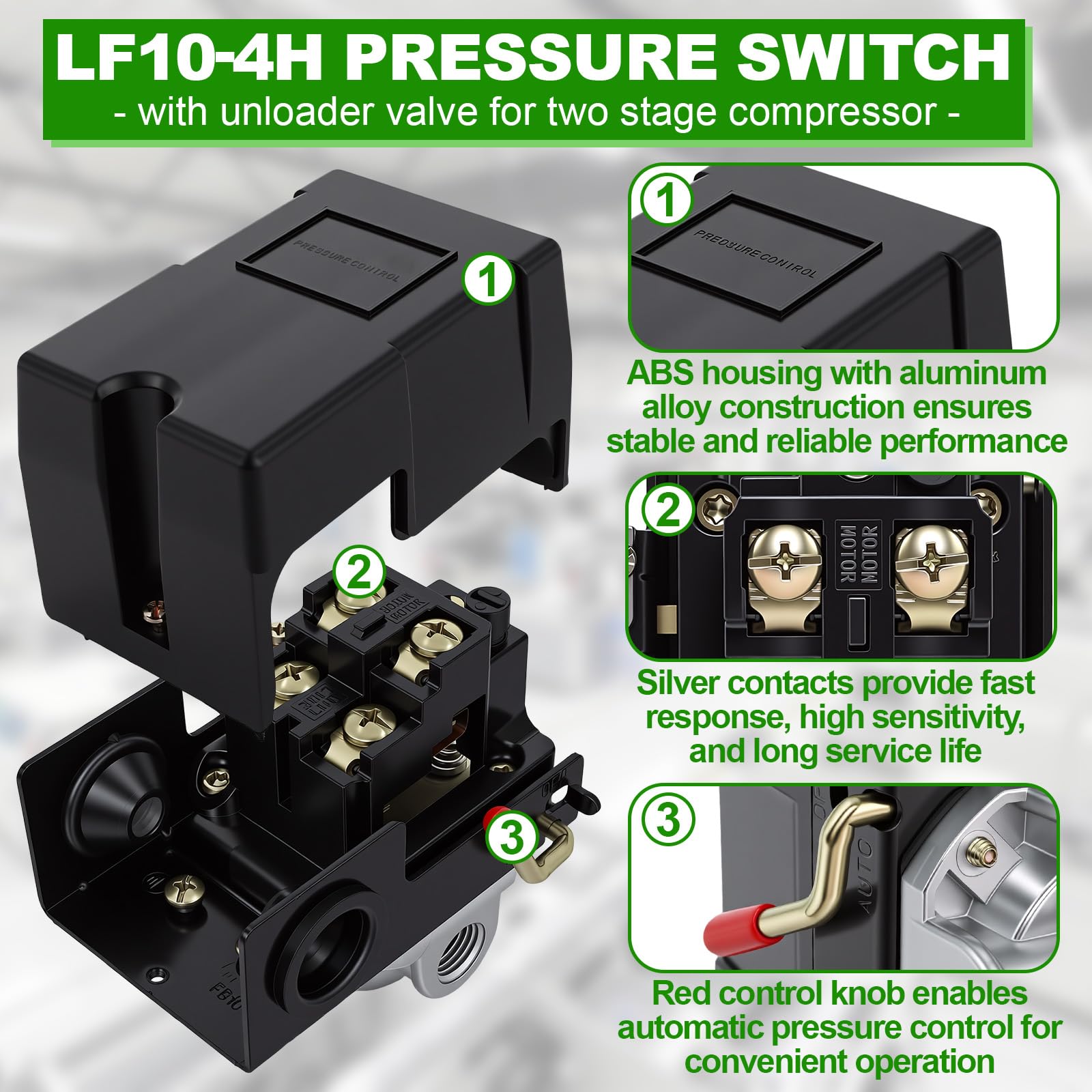

• ✅ [Intelligent handle design]--The handle can be used to cut off air compressor and 4-port base simply the mountion of exhaust valve and pressure gauge.This switch features a built-in On / Off metal lever and also a unloader located on the side of the switch.

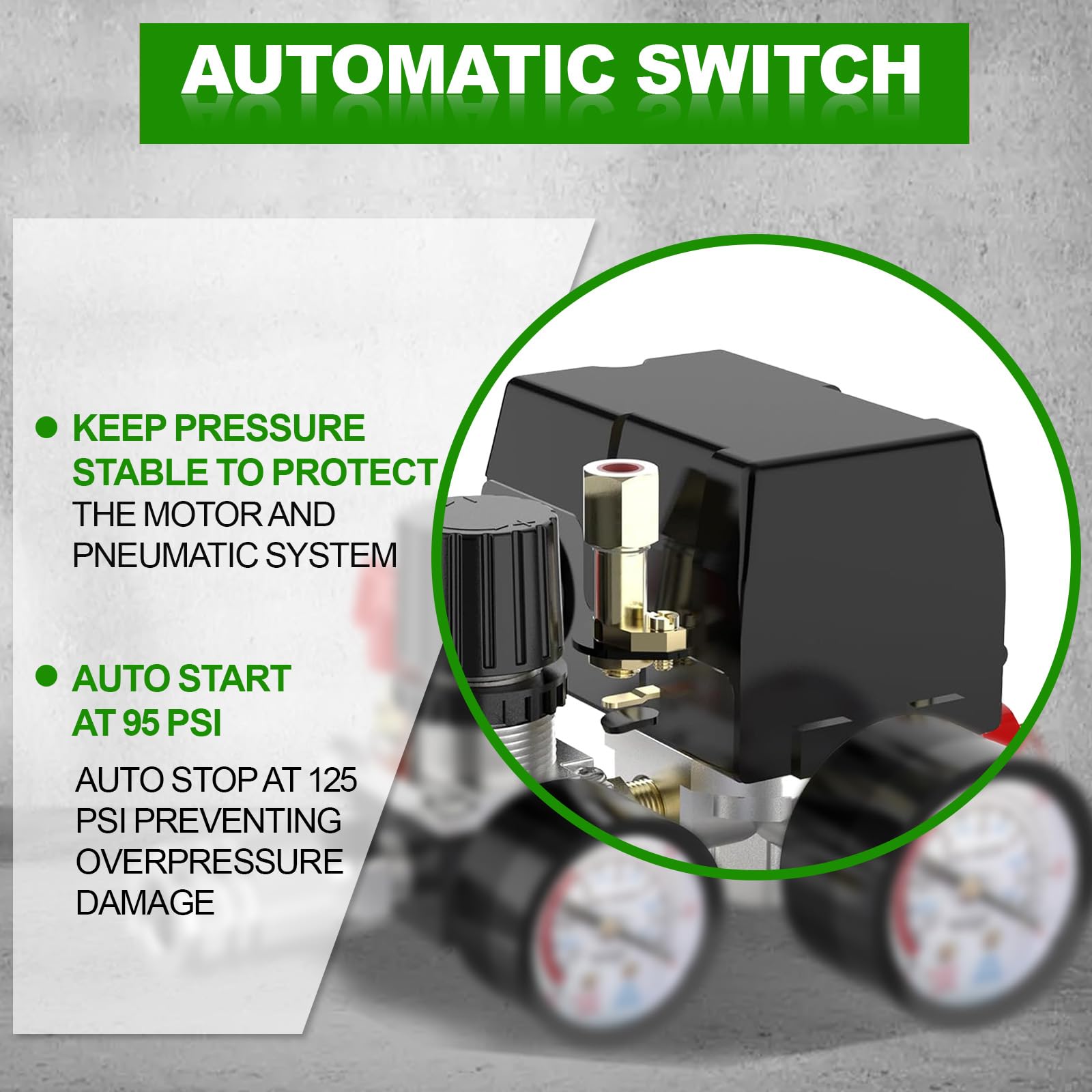

• ✅ [More safer to use]-- UL Listed and CSA Certified. This switch comes preset to turn the compressor on at 95 psi and shut off at 125 psi.

This valve usually has a 1/4" plastic or copper line that runs to the check valve or the head of the compressor. This switch can be used on a single stage or two stage compressor as long as the amperage is less than 20 amps on 120 volt or 12 amps on 240 volt. 2.A four port manifold is available which provides means for easy mounting of valves and gauges. The LF10-4H pressure switch is designed to regulate tank pressure between two preset values on small, electrically driven air compressors. 4.The LF10-4H air compressor pressure switch is available with an unloader valve, which prevents the compressor from starting underload.
