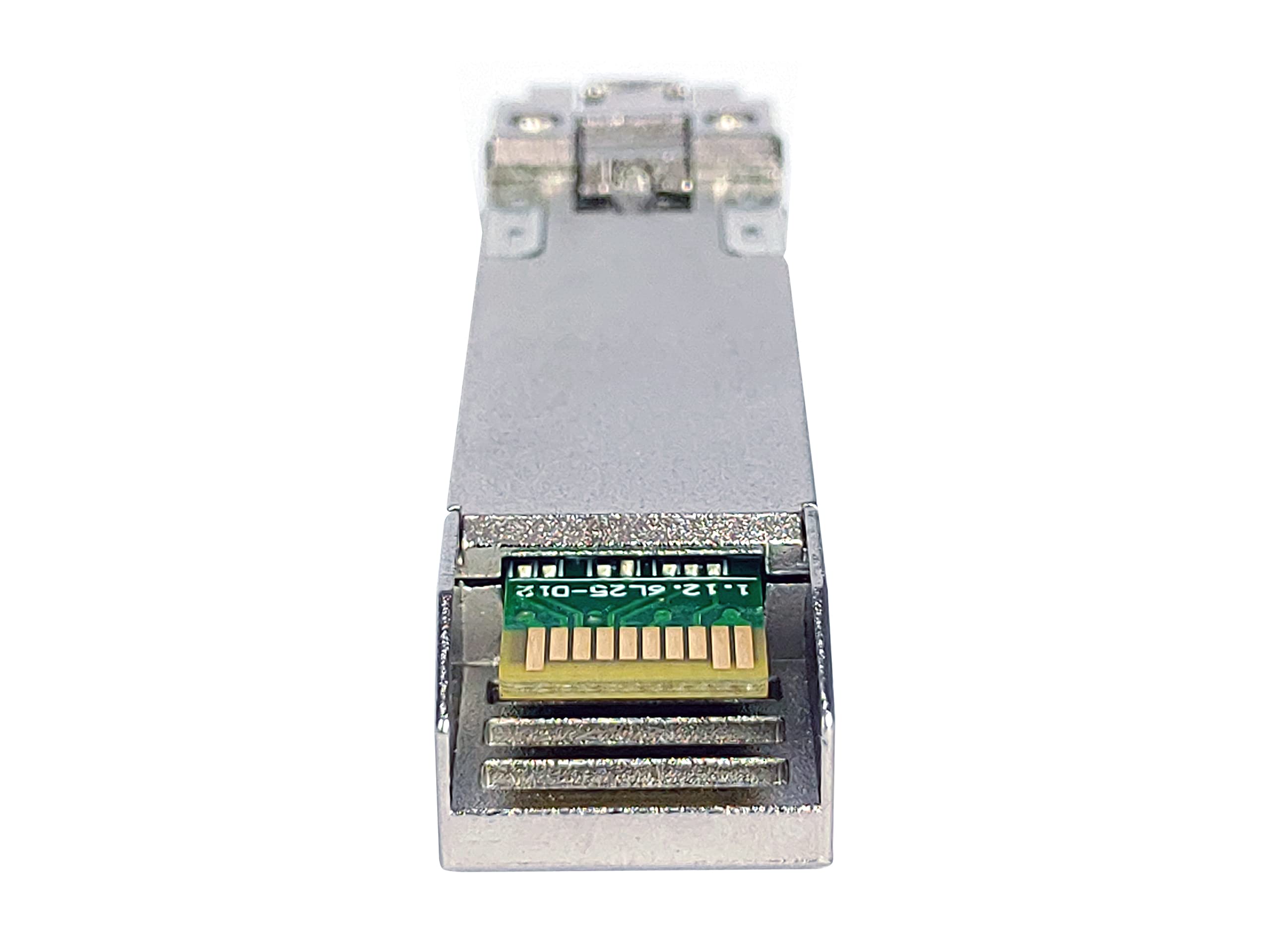

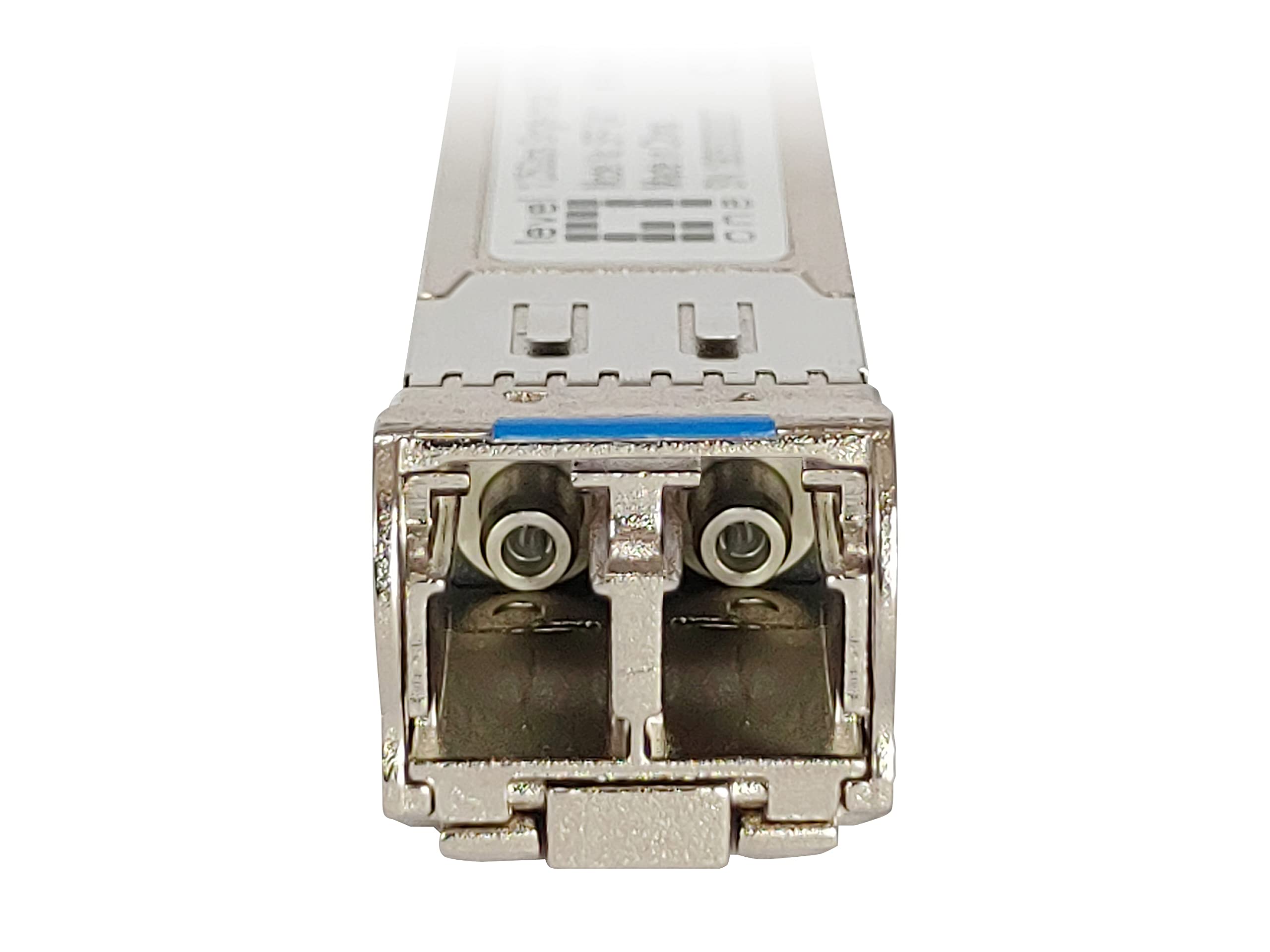

LevelOne GVT-0301 MiniGBIC SFP LX/LC Fibre SM 10 km/Single-Mode SFP Transceiver / 1.25 G/Silver

• Provides a 1000Base-ZX connection for LevelOne switches via Mini-GBIC/SFP ports.
• Connections up to 10 km/ TTL signal detect indicator.
• Compatible with IEEE 802.3z Gigabit Ethernet
• Easy installation and hot-swappable.
• Differential LVPECL input and output.
• Single 3.3 V power supply/Duplex LC connector.

The levelOne GVT-0301 is a powerful and cost-effective single mode SFP transceiver. It is designed for use with Gigabit Ethernet and provides a bi-directional data transfer rate of up to 1.25 Gbps on a single duplex fibre optic core. When used with 9 and 125 micron fibre optic cables, it can reach a distance of up to 10 km. The GVT-0301 transceiver operates at a wavelength of 1310nm with a FP laser diode light source and has an LC port. LevelOne 1.25G Single Mode SFP Transceiver (up to 10 km). SFP Transceiver Type: Fiber Optic Maximum Data Transfer Rate: 1250Mbps Interface: SFP Country of origin: Taiwan, Compatible products: GSW-2453 GVT-4000, Certification: Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11. Input voltage: 3.5V, Maximum voltage: 6V, Current (Max): 0.3A. Width 13.5mm Depth 55.5mm Height 8.5mm Number of products included: 1 piece(s), Package width: 70 mm, Package depth: 50 mm.
