LEGRAND, RX3 Circuit Breaker Thermal Magnetic Circuit Breaker B-Characteristic, 6A, 1-Pole, 6000A Breaking Capacity, 230/400VAC, 1TE, 419133

• Use: our thermal magnetic circuit breaker is used to protect wiring systems against overload and short circuit and can also be used to control and disconnect the system.
• Switching capacity: According to the standard IEC 60898-1 for domestic installations, the cut-off capacity is 6000 amps. The tripping threshold in the event of a short circuit is between 18 A and 30 A (B-characteristic between 3 in and 5 in)
• Installation: The circuit breaker is installed on a DIN standard DIN rail and can be connected with either a copper cable via prong rails (top or bottom) or fork rails (bottom).
• Protection type: the circuit breaker is protected against solid bodies larger than 12.5 mm ("fingerproof"). This corresponds to protection class IP20. The maximum degree of limitation of the transmitted energy is ensured by energy limit class 3.

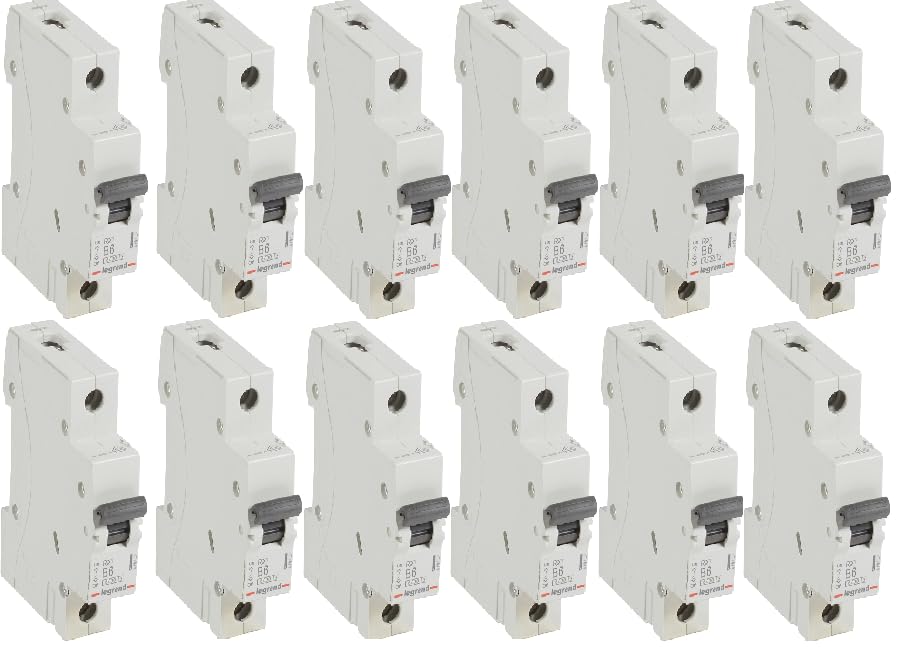

• Technical details: B-characteristic, 6A, 1-pole, 6000A breaking capacity, 230/400VAC, 1TE, thermal-magnetic circuit breaker, IP20, DIN standard DIN rail, pack of 12, 419133

Use: our thermal magnetic circuit breaker is used to protect wiring systems against overload and short circuit and can also be used to control and disconnect the system. Switching capacity: According to the standard IEC 60898-1 for domestic installations, the cut-off capacity is 6000 amps. The tripping threshold in the event of a short circuit is between 18A and 30A (B-characteristic between 3 in and 5 in). Installation: The circuit breaker is installed on a DIN standard DIN rail and can be connected either with a copper cable via prong rails (top or bottom) or fork rails (bottom). Protection type: the circuit breaker is protected against solid bodies larger than 12.5 mm ("fingerproof"). This corresponds to protection class IP20. The maximum degree of limitation of the transmitted energy is ensured by energy limit class 3.
