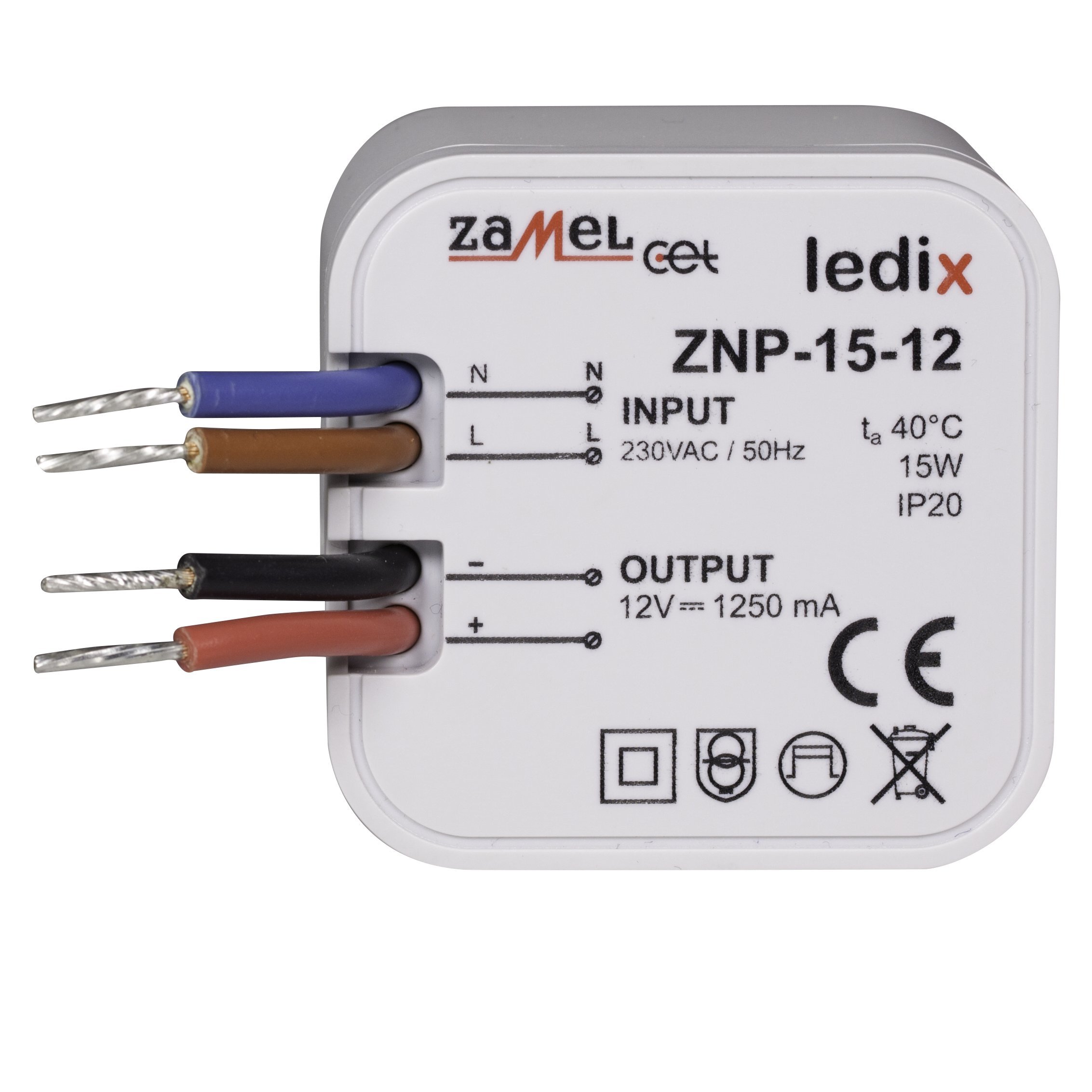

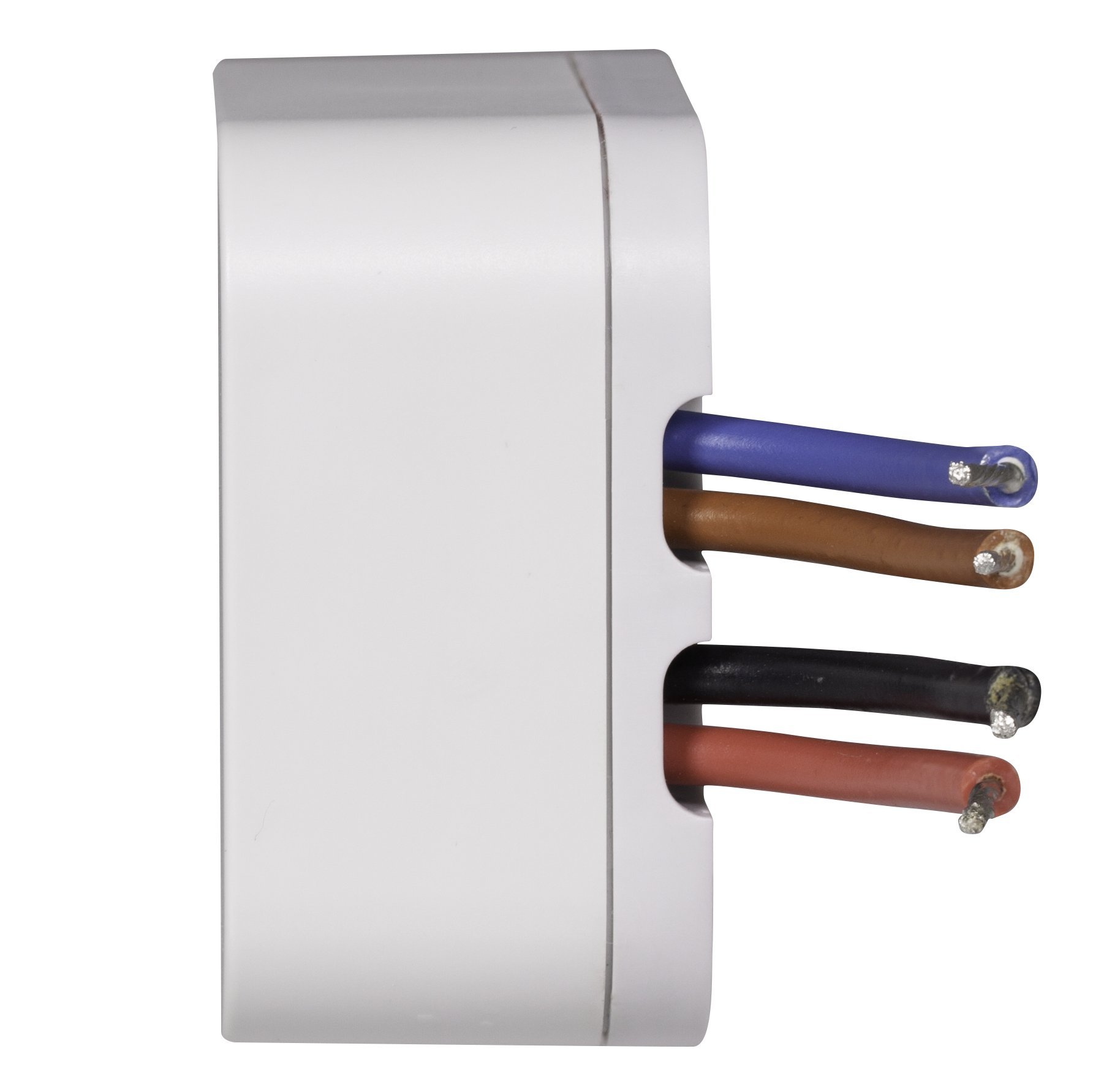

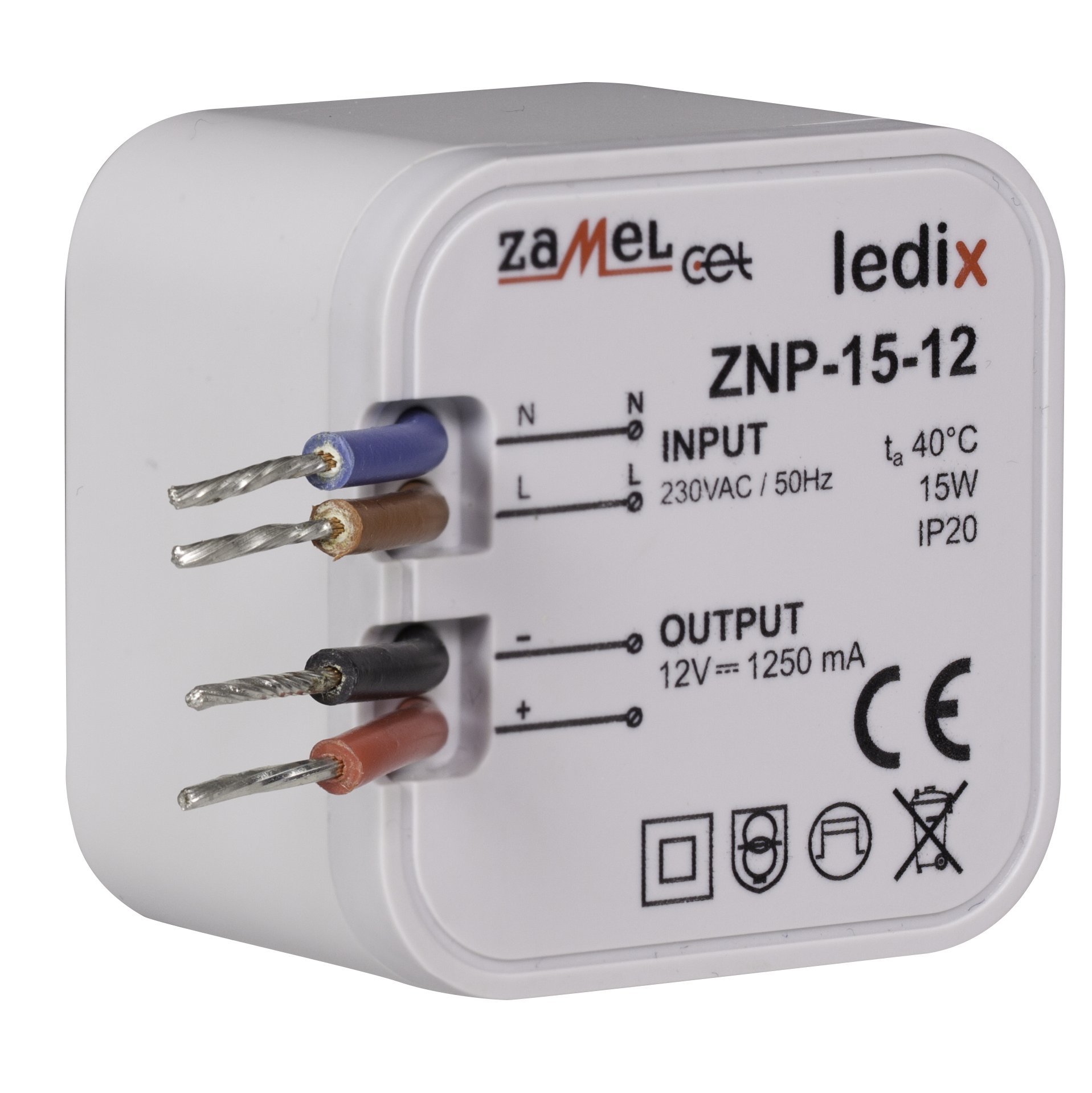

Zamel ZNP-15-12 LED Driver Constant Voltage 15 W 1.25 A 12 V/DC Over Voltage

• Professional pulse supply with 12 V DC output
• Designed to work with typical LED products powered by 12V DC
• Designed for direct mounting in a distribution box
• Rated power: 15 W
• Energy efficient

ZNP-15-12 junction box power supply is a professional pulse power supply with 12 V DC output voltage and 15 W rated power. The power supply is designed to work with LEDIX products such as controllers, radio receivers and other LED products with 12 V DC for direct mounting in a diameter 60 junction box, the product is equipped with a short circuit and overload protection that increases the safety of its application. its high efficiency and A very low power consumption in standby mode. It is a very economical solution for continuous operation and meets the requirements of harmonised standards. Output Rated Output Current 1.25A Rated Output Current Range 0÷ 1.25A Rated Power 15W Voltage Tolerance 5% Voltage Ripple 80mVss Timeout 10ms Uout Voltage Time Setting 20ms Input Rated Input Rated Input Voltage 230V AC Rated Frequency 50Hz Voltage Tolerance -15% ÷ + 15% 0% effective. Grade 79 ÷ 80% power consumption (standby) 0.25 W starting current 20 A other protection measures short circuit, overload ambient temperature range -10 ÷ +50 °C protection class IP20 protection level II.
