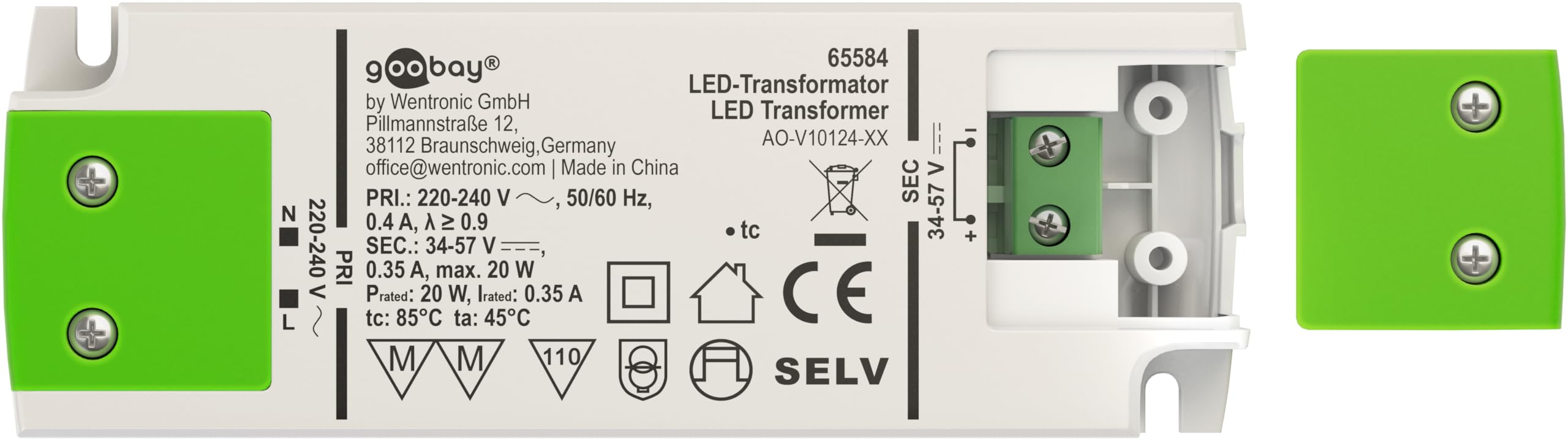

LED transformer 350 mA/20 W for constant current/LED driver constant current source/indoor lighting/Power supply light - 65584

• Compact LED transformer with 7 W minimum load as ballast electronics for connecting many common LED light sources

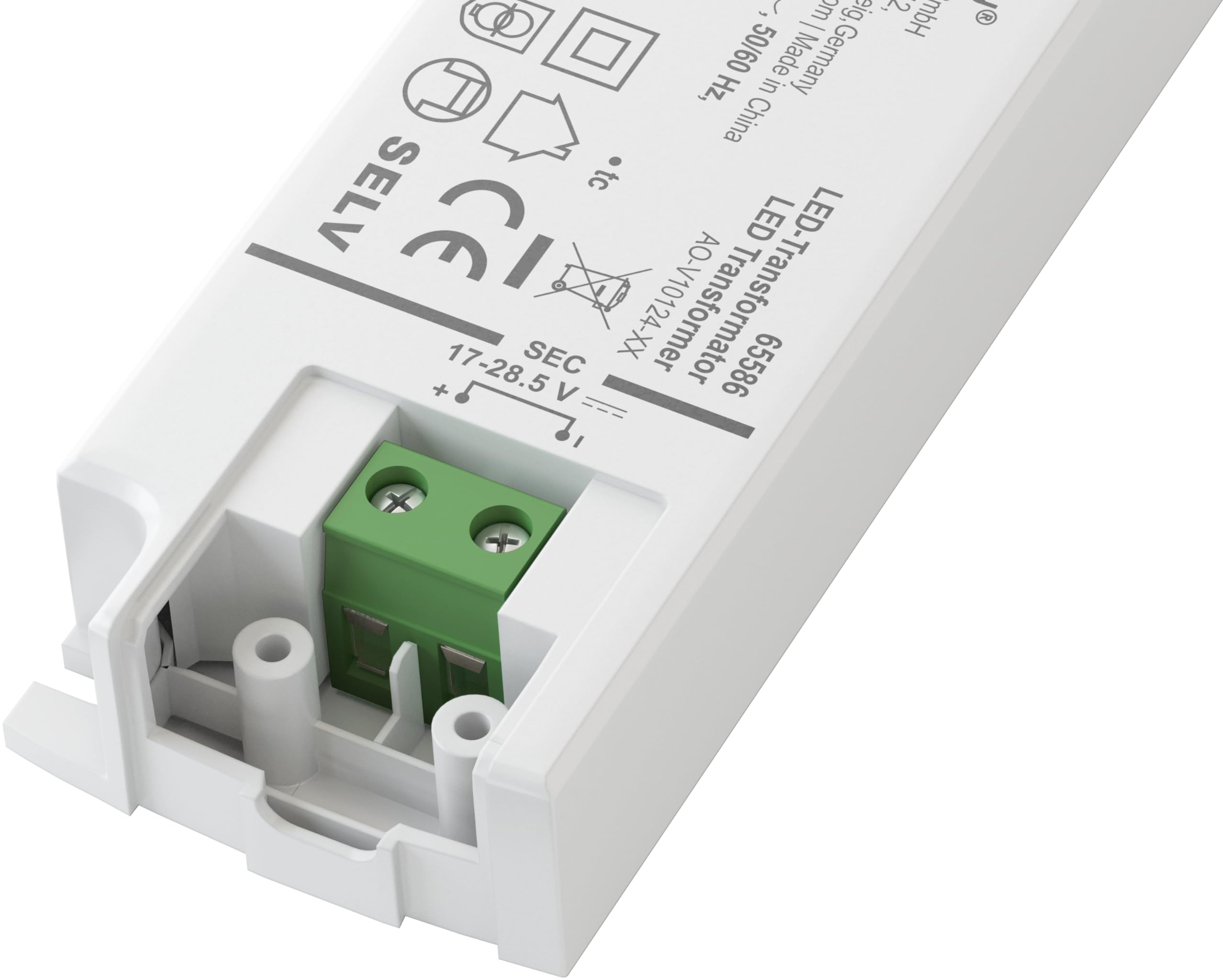

• The DC source is quick and easy to install using the integrated screw terminals

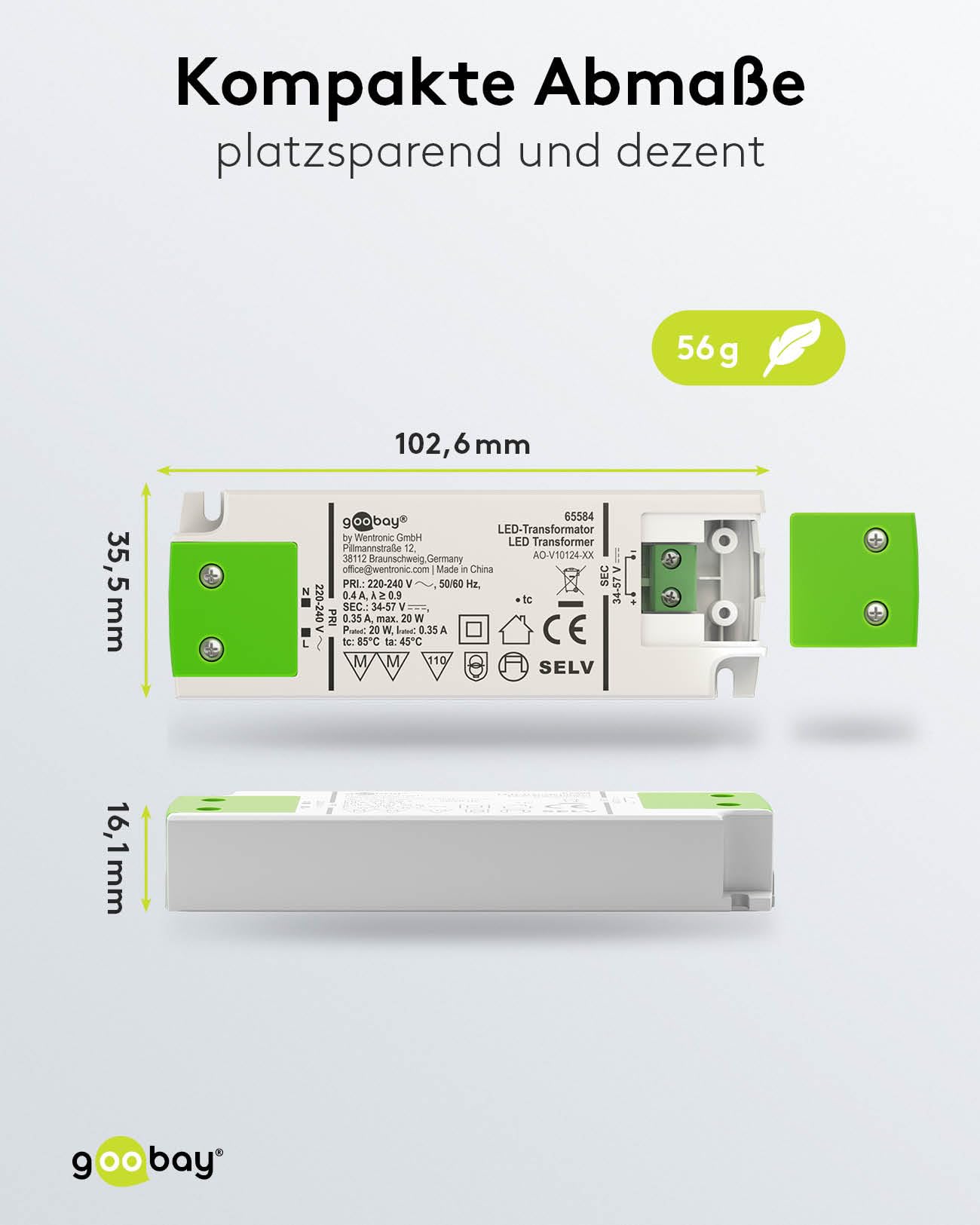

• The LED driver is approved for installation in furniture and can be mounted inconspicuously, e.g. behind cabinets. The flat design enables low heat generation
• Driver with constant output current for series circuits and safe electronic isolation in accordance with protection class II
• Ballast with protection class IP20, suitable for indoor use only. Note: LED transformer is not dimmable

Constant Current LED Transformer 350 mA, 20 W for LEDs with 350 mA constant current up to 20 W total load in the 34-57 V (DC) voltage range The transformer supplies LEDs with constant current (CC), effectively preventing flickering and heat wear of the connected LEDs. In contrast to transformers with a constant voltage (CV), drivers with a constant current provide a constant light quality and brightness and ensure a uniform current in all LEDs, even in series connections. Compact DC transformer with 12 W minimum load and ballast electronics for connecting most common LED lamps such as spotlights, ceiling lights or recessed lighting The constant output current of 350 mA with a variable voltage range of 34-57 V (DC) protects connected LEDs from overcurrent and maximises the service life of the light source Thanks to the integrated screw terminals, the DC power source is quick and easy to install The flat design and low heat generation are perfect for a space-saving installation, even in confined spaces The LED driver is approved for installation in furniture and can be mounted discreetly, e.g. behind cabinets Suitable for series connection and indoor use (IP20), with safe electronic isolation in accordance with appliance class II Note: The LED light transformer is not dimmable Technical specifications Connections Input, type Screw clamp Output, type Screw clamp ErP Average active efficiency 89.4 % Performance max. performance 20 W minimum load 12 No-load power consumption 0.09 W Dimmability not dimmable Device connections Output, max. amperage 0.35 A Input, Voltage Range 220 - 240 (AC) V Number of outputs 2 number of inputs 2 Input Cross Section 0.75 mm² Output Cross Section 0.75 mm² Output, Voltage Range 34 - 57 (DC) V Output, max. amperage 350.0 mA General protection class IP20 Appliance Class II Color white, Green Markings WEEE, CE, Haus Applications Furniture installation Special feature Constant current (for series connection) Operating temperature from -20 °C Operating temperature up to 45 °C Packaging type Retail Box
