LED Light Connector Kit, 10mm RGB LED Connector Includes 20x Wire Clips, 12x Gapless Connectors, 6X L Shape Connectors, 2X Open Pry Tools

• NO NEED SOLDERING - The easiest way to connect RGB led light: Just slot the light strip into the SSLC LED connector and clamp the cover, you can achieve the ultra firmly stable connection.
• SAFETY AND DURABLE - LED strip light connectors are made of professional flame retardant material, the working temperature is -40 ℉ ~ 221℉, which ensures our connector more durable and safer.

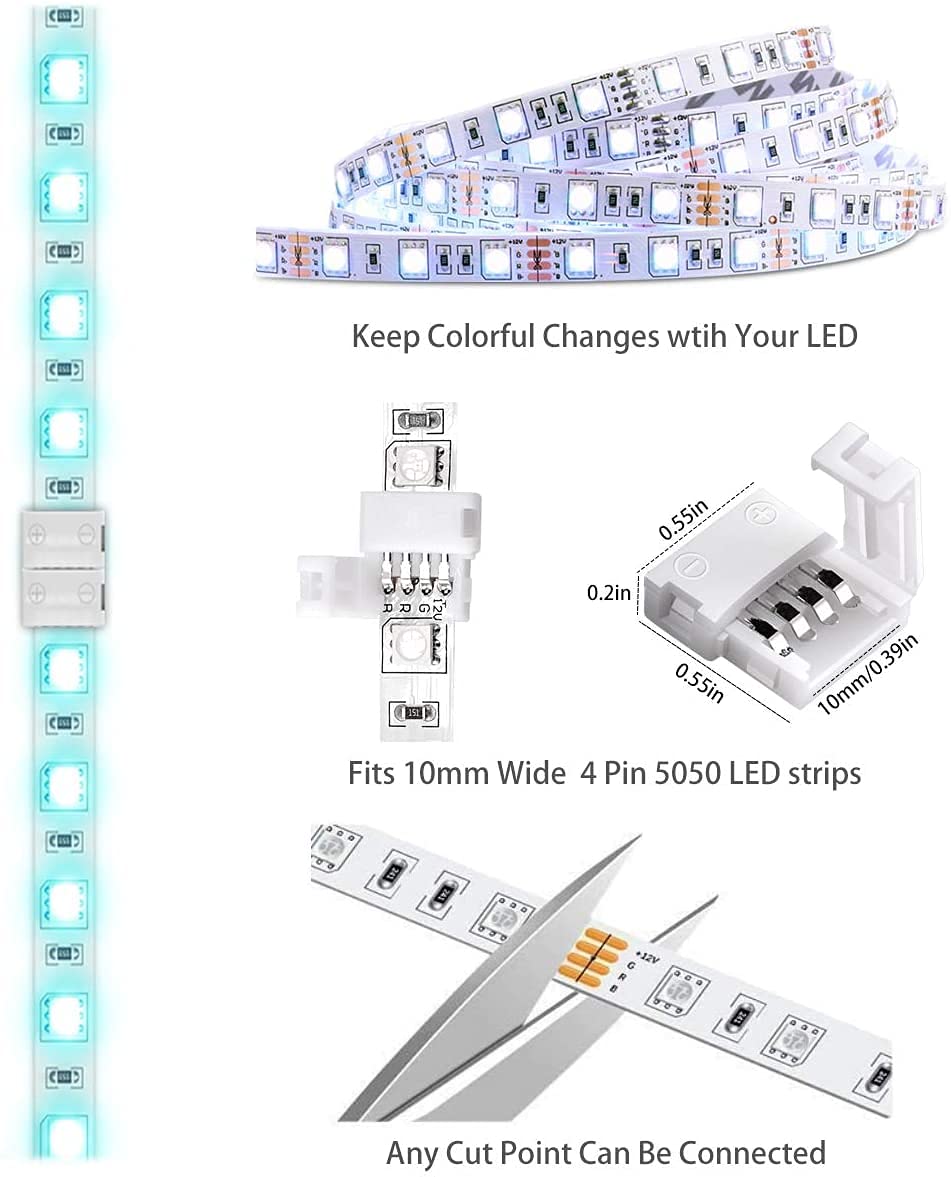

• COMPATIBILITY - 4 pin led connector fits all 10mm(0.39'') wide 3528/5050 RGB LED strips. Non-waterproof light strips can be installed directly. Need to strip the silicone on the contact area when used for waterproof LED strips.
• HUMANIZED DESIGN - After listening to all feedback from customers, we have upgraded the positioning slot at each connection port of the connector to help you insert the light strip easily. Also, we equipped with triangular plates to help you quickly open the led light connectors.

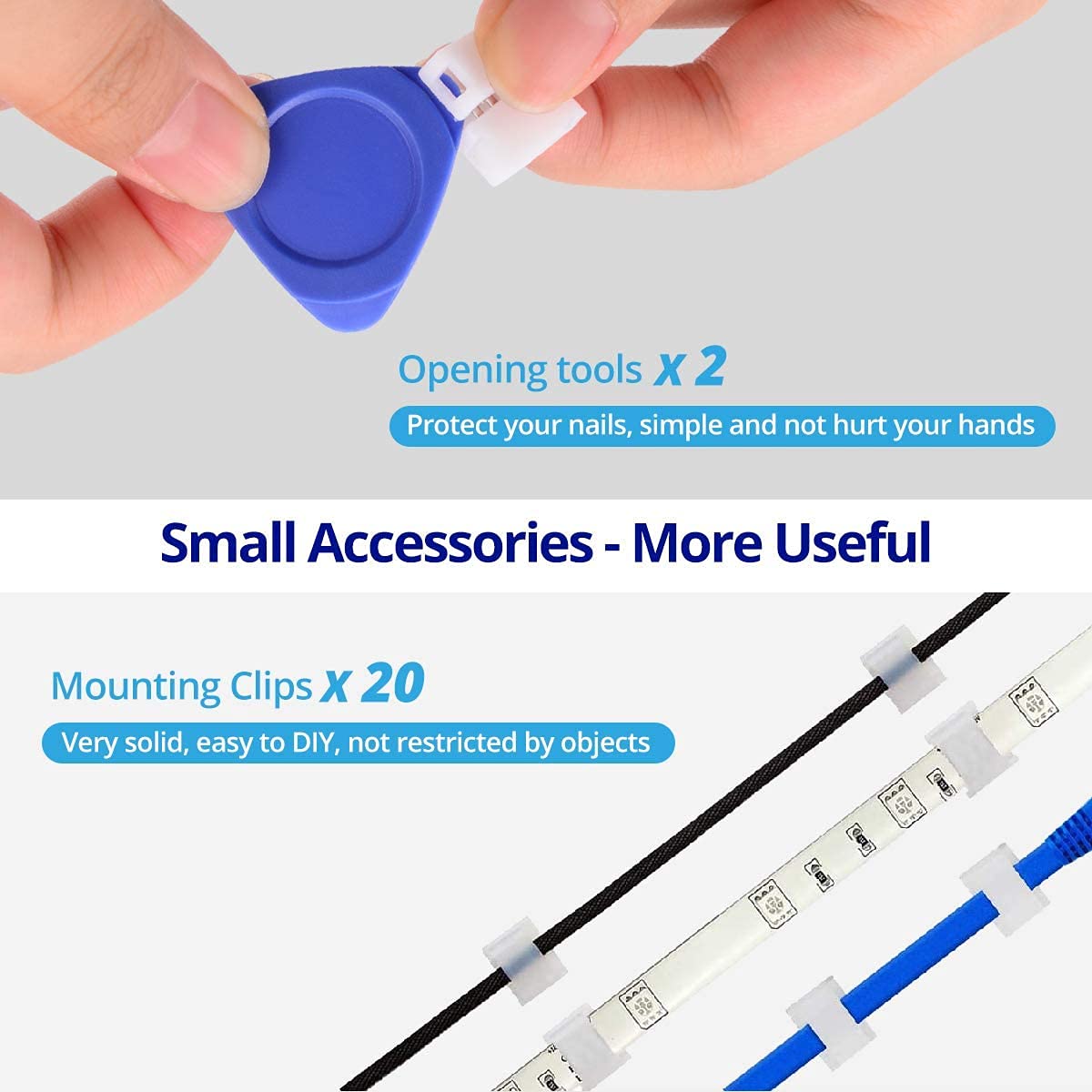

• WHAT YOU GET - 100% satisfaction with a 12-months warranty and lifetime support. LED strip connectors kit includes Gapless connectors x12, L shape connectors x6, LED strip clips x20, triangular plate x2.

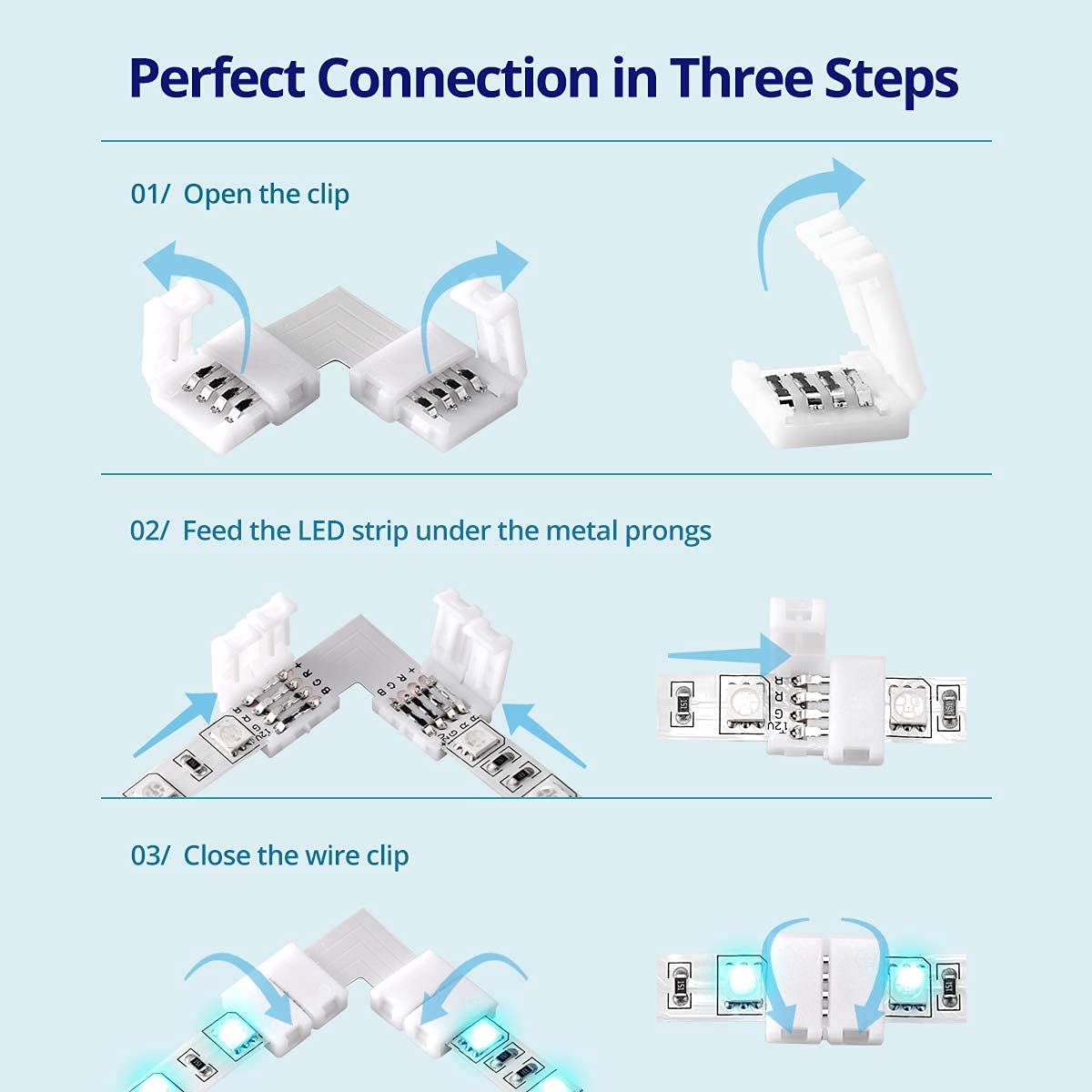

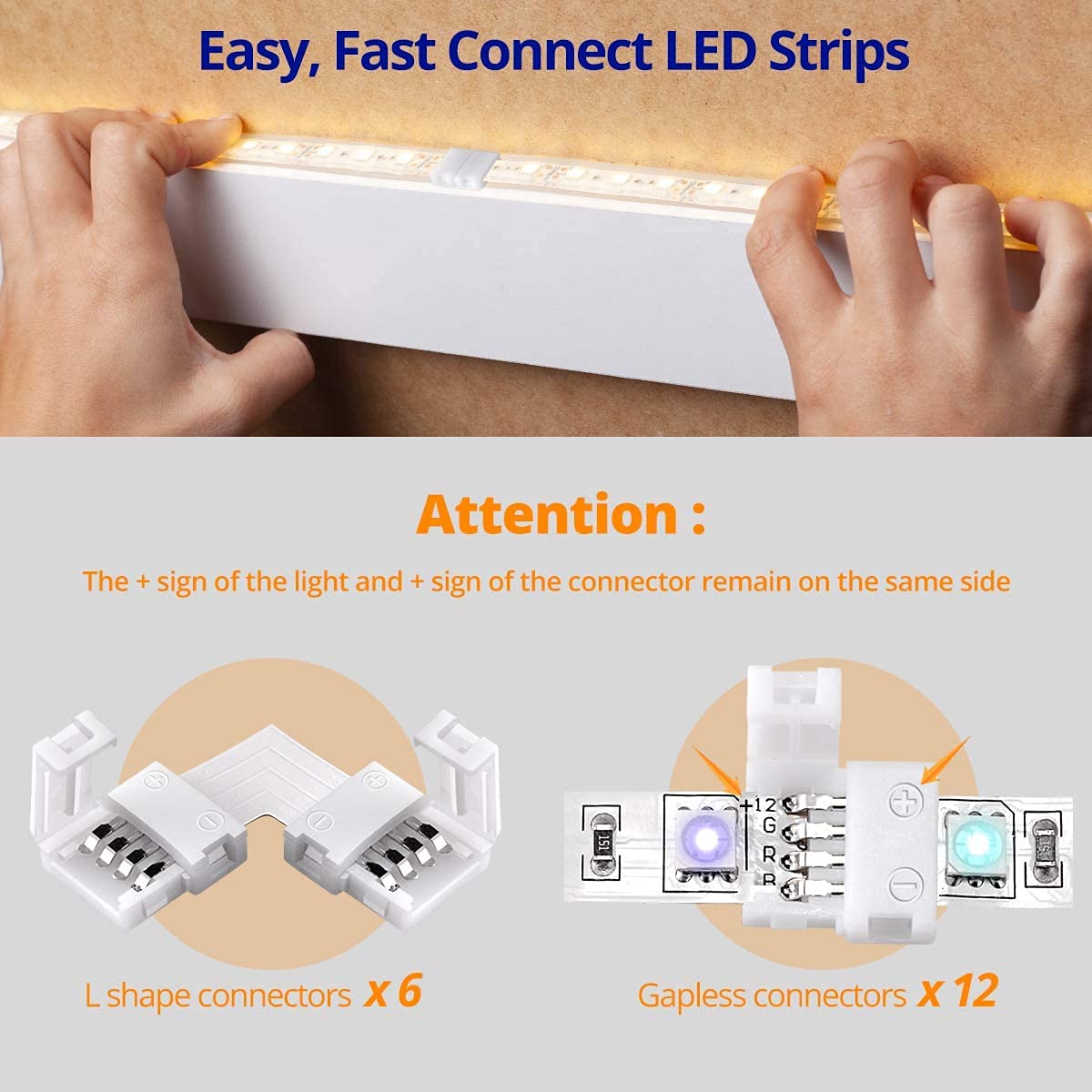

The connectors apply to 4-Pin 5050 RGB LED SMD Light Strip. Applicable light strip width: 10mm(0.39inch) Applicable light strip thickness: 0.3mm-0.4mm Applicable lines range: AWG22#/20# Current: 5A, AC, DC Voltage: DC 0-24V Working temperature: -40℃ +105℃ Breakdown voltage: 1500V, AC/min Contact resistance: 30mΩMAX Insulation resistance: 1000mΩMIN Product bite traction: >12N 【CONNECTOR INSTRUCTIONS】 1. Ensure your light strips work well. 2. Cut along the suggested line of the LED strip evenly. 3. when used for waterproof LED strips, please strip the silicone on the contact area (about 0.25inch). 4. Align the "+" on the light strip with the side with the cover on the connector. Ignore the RGB/BGR labels, which are irrelevant. 5. Slide the LED strips to the connector from the slots on the connector sides. 6. Make sure that each metal pin on the connector is pressed above the brass contact point of the light strip. 7. Turn on the power to make sure that each LED is working. Then close the lids of connectors.
