Leapiture UHF VHF Duplexer, MX72N Transit Station Duplexer, 44-148MHz & 400-470MHz, Different Frequency Indoor Antenna Combiner

• COMPOSITION - MX72N duplexer is a series of inductance coils and capacitors that acts as a band-pass filter.

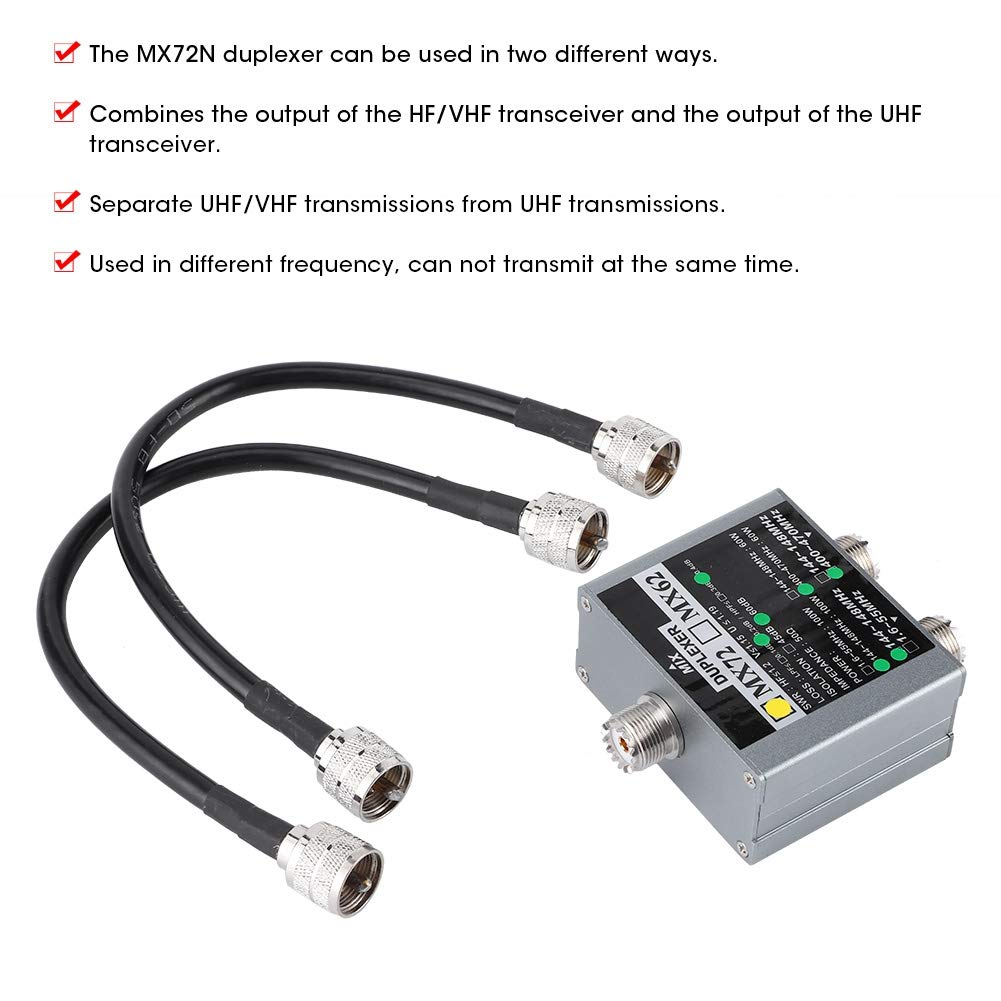

• DUALITY - MX72N duplexer can be used in two different ways. You can use them separately or together to meet your different needs.
• MERGER - Combines the output of the HF/VHF transceiver and the output of the UHF transceiver so that both transceivers can be connected to the same antenna.
• SEPARATION - Antenna duplexer can also be used to separate UHF/VHF transmissions from UHF transmissions so that one transceiver can be connected to two antennas.
• COMPATIBILITY - Transit station duplexer used in different frequency, can not transmit at the same time.

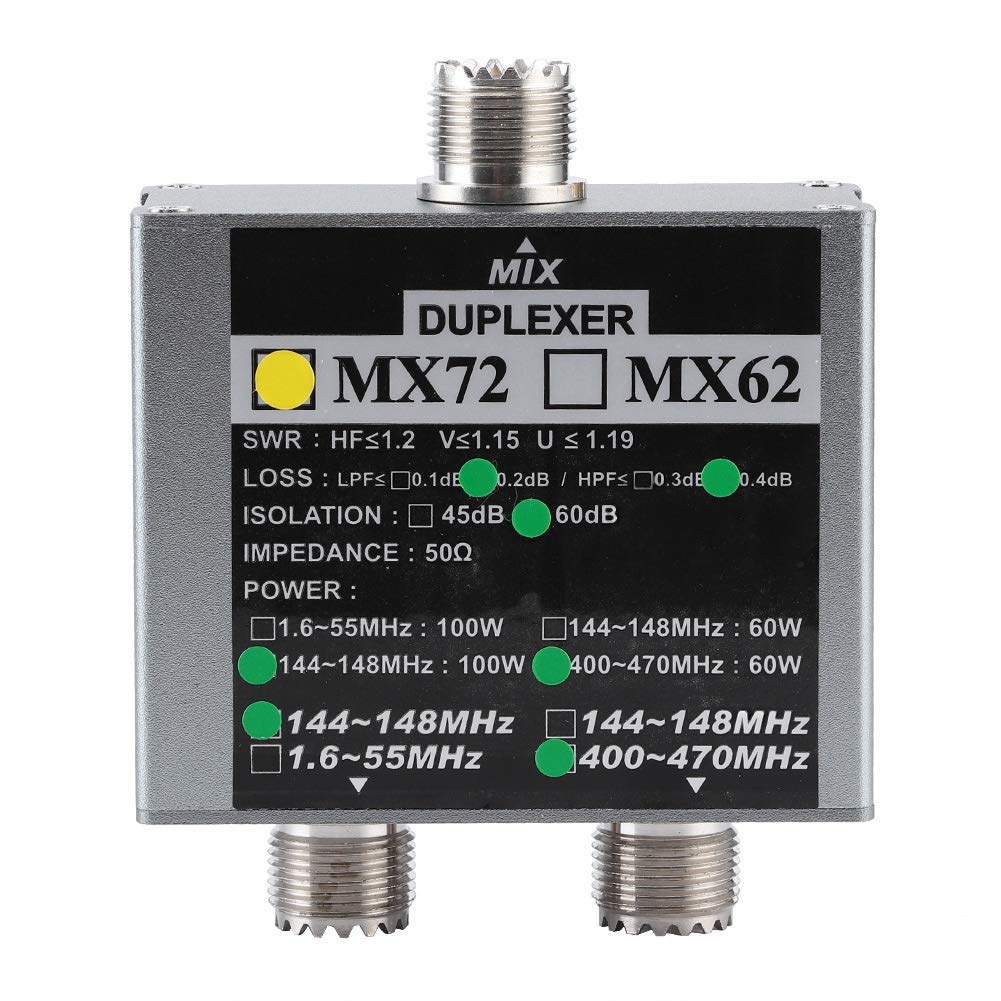

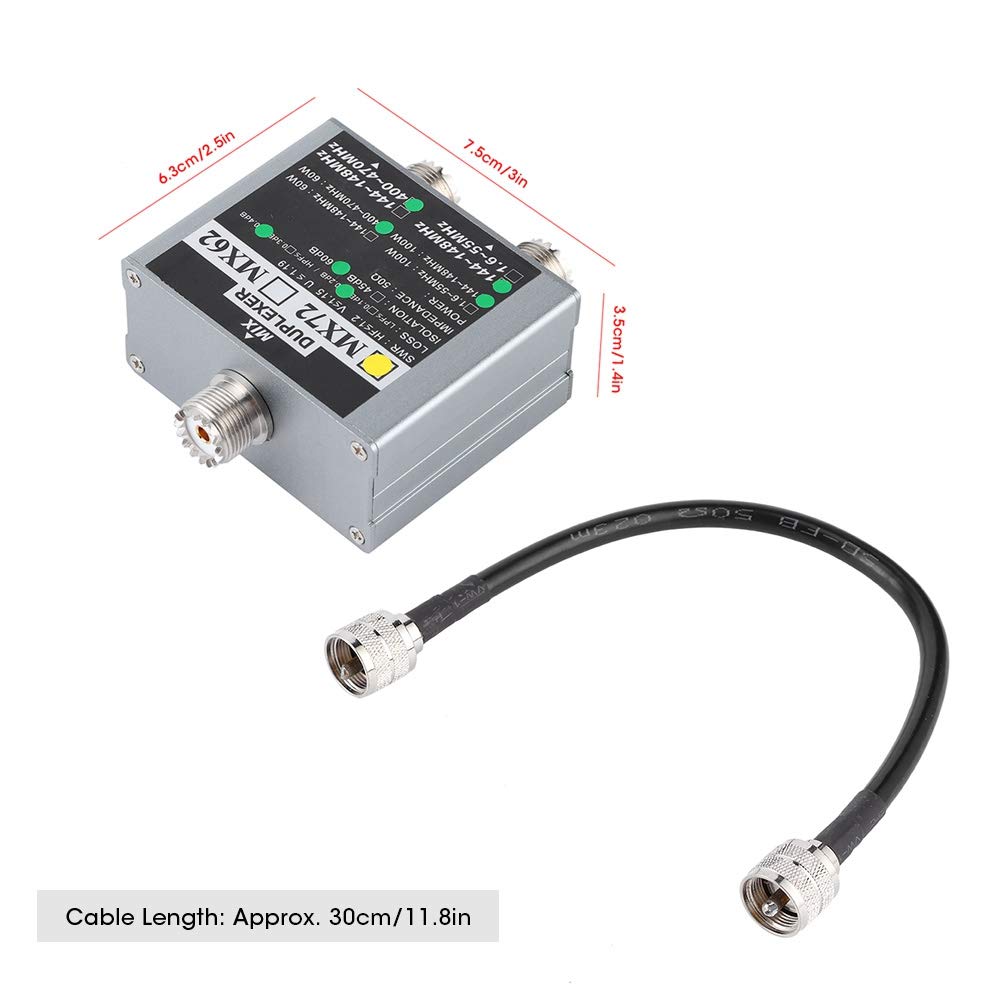

We are committed to providing our customers with a variety of high quality car accessories, motorcycle accessories, car interiors, car tuning parts, car engine systems and more. Our pursuit and goal is to provide you with the best products and services, and to offer you a good shopping experience. Specification: Condition: 100% Brand New Item Type: UHF+VHF Duplexer Material: Alloy Color: As picture shown Cable Length: Approx. 30cm/11.8in Operating Frequency: 144 - 148MHz & 400 - 470MHz Endurance: 144 - 148MHz: 100W 400 - 470MHz: 60W Isolation: 60dB Insertion Loss: 144 - 148MHz: <0.2dB 400 - 470MHz: <0.4dB Standing Wave Ratio: VHF: <1.15, UHF: <1.19 Impedance: 50 ohms Coaxial Feeder: 5D-FB (30cm) Size(WxHxD): Approx. 74 x 33 x 63mm/2.9 x 1.3 x 2.5in Interface: MJ-MP MP Package List: 1 x MX72N UHF+VHF Duplexer Warm Tips: The MX72 VHF+UHF Duplexer is designed for indoor use.If you use the MX72 VHF+UHF Duplexer outdoors, it should only be used for short periods of time under good weather conditions. Do not use the MX72 VHF+UHF Duplexer outdoors when there is any kind of precipitation.
