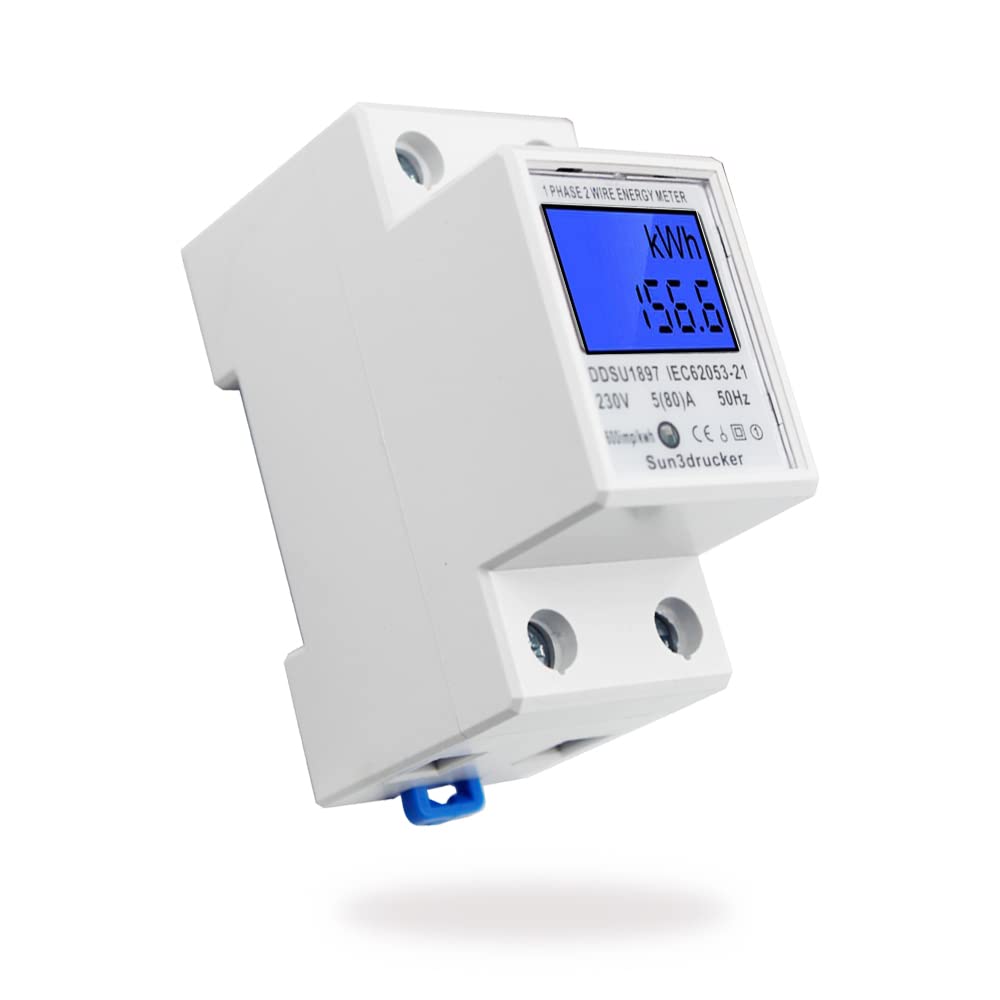

LCD digital Single-phase electricity meter top hat rail KWh meter 5 (80) A 1-phase 2-pole 2P DIN-rail electricity meter

• Nominal voltage: 230 V AC Rated current: 5-32A, 5-80A
• Load capacity: 0.05Ib - Imax (direct access type) or 0.02Ib - Imax (access via transformer)
• Data display: LCD display Power indicator: green light
• Display of the electrical energy pulse: red light (if a scanning signal is present, it lights up for about 80 ms)

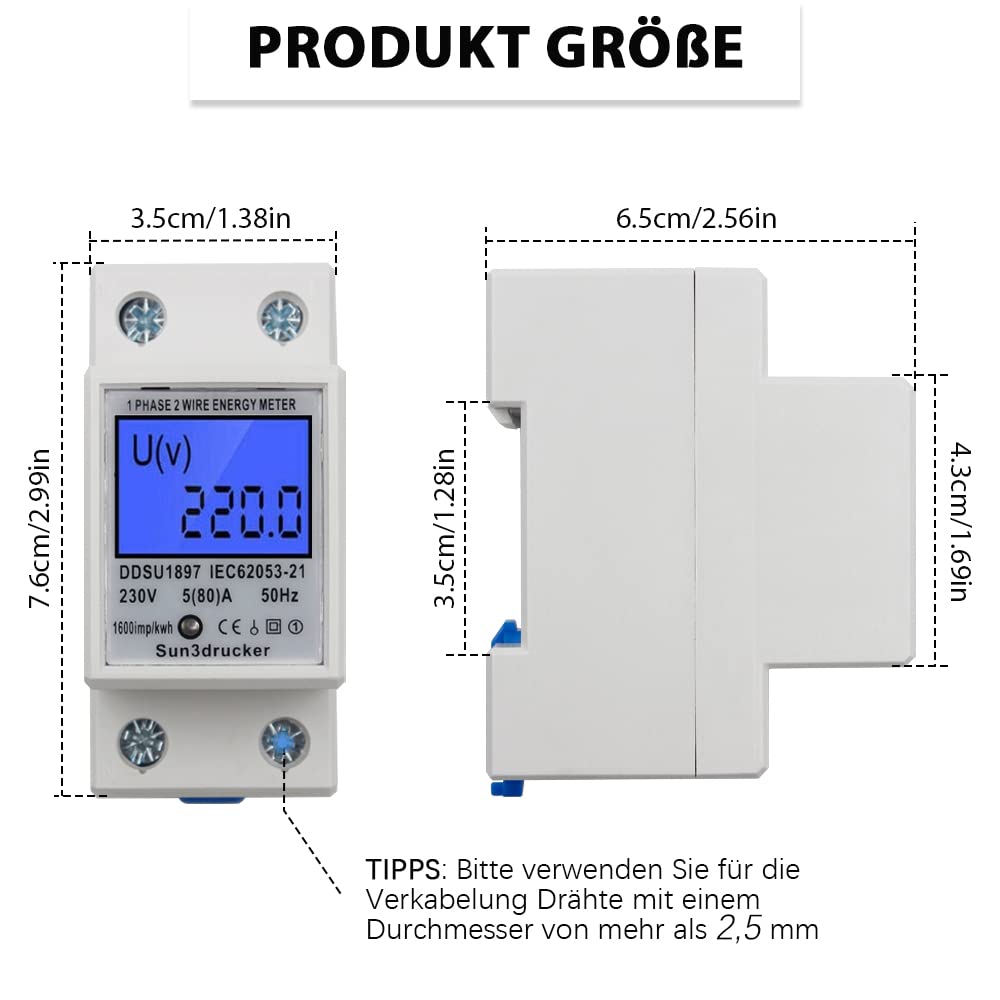

• Mounting type: 35mm DIN rail Working environment: -25 55 ~ 55 degree Celsius, ≤95% RH Size: 78.5 * 36.5mm / 3.09 * 1.44in Package weight: approx. 133 g / 4.7 oz

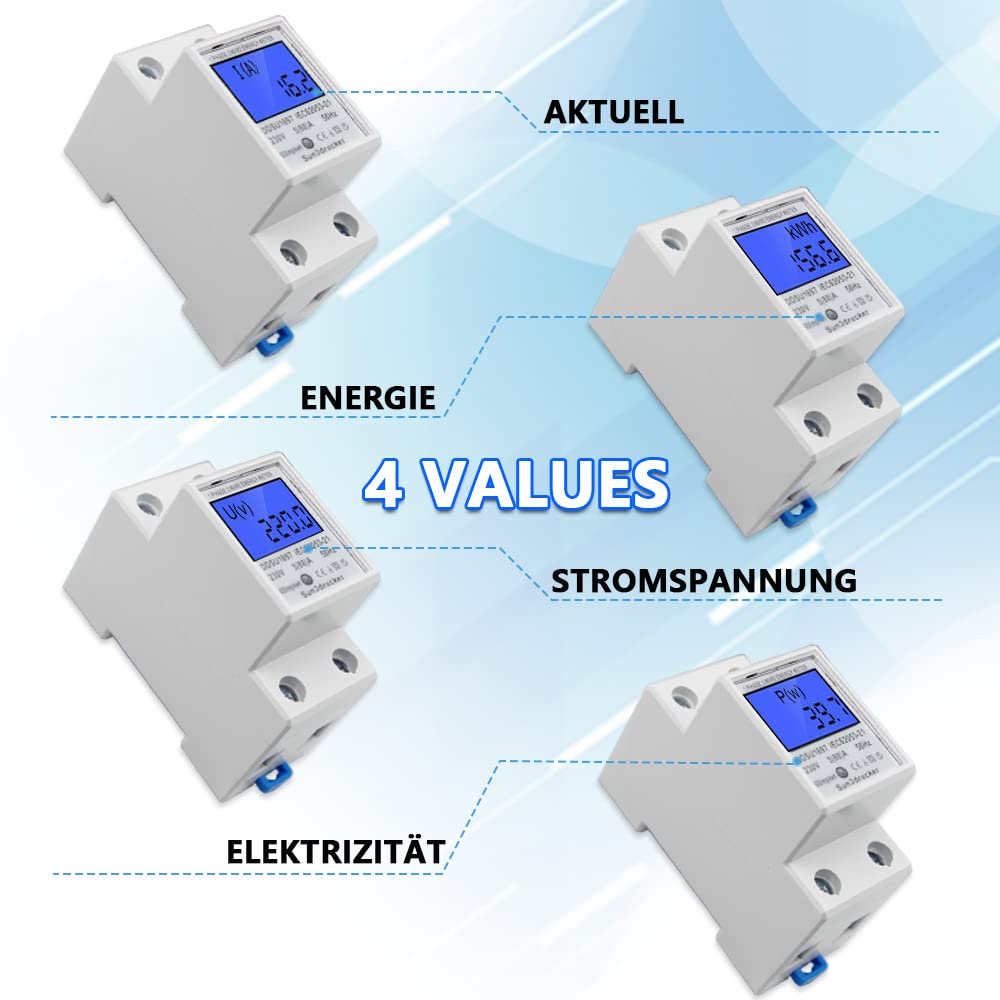

Features: 1. Adopt microelectronics and digital processing technology to measure electrical energy precisely and reliably. 2. The internal integrated circuit is manufactured and features with precision SMT technology about good resistance to electromagnetic interference and stable performance. 3. This energy meter can measure positive active energy in measuring electrical energy, which is clearly displayed by the LCD backlight screen. 4. It shows circular voltage, Electricity, power and energy KWh on. 5. Small size, light weight, 35mm DIN rail mounting. 6. It has low power consumption, high precision, high overload and anti-theft electricity. Note: The product has no clear function Specification: Rated voltage: 230 V AC Rated current: 5-32A, 5-80A Load capacity: 0.05Ib - Imax (direct access type) or 0.02Ib - Imax (access via Transfor mator) Data display: LCD display Power display: Green light Display of the electrical energy pulse: Red light (If a scanning signal is present, it lights up for about 80 ms) Mounting type: 35mm DIN rail Working environment: -25 55 ~ 55 degree Celsius, ≤95% RH Size: 78.5 * 36.5mm / 3.09 * 1.44 inch Package weight: Approx. 133 g / 4.7 oz Package list: 1 * energy meter
