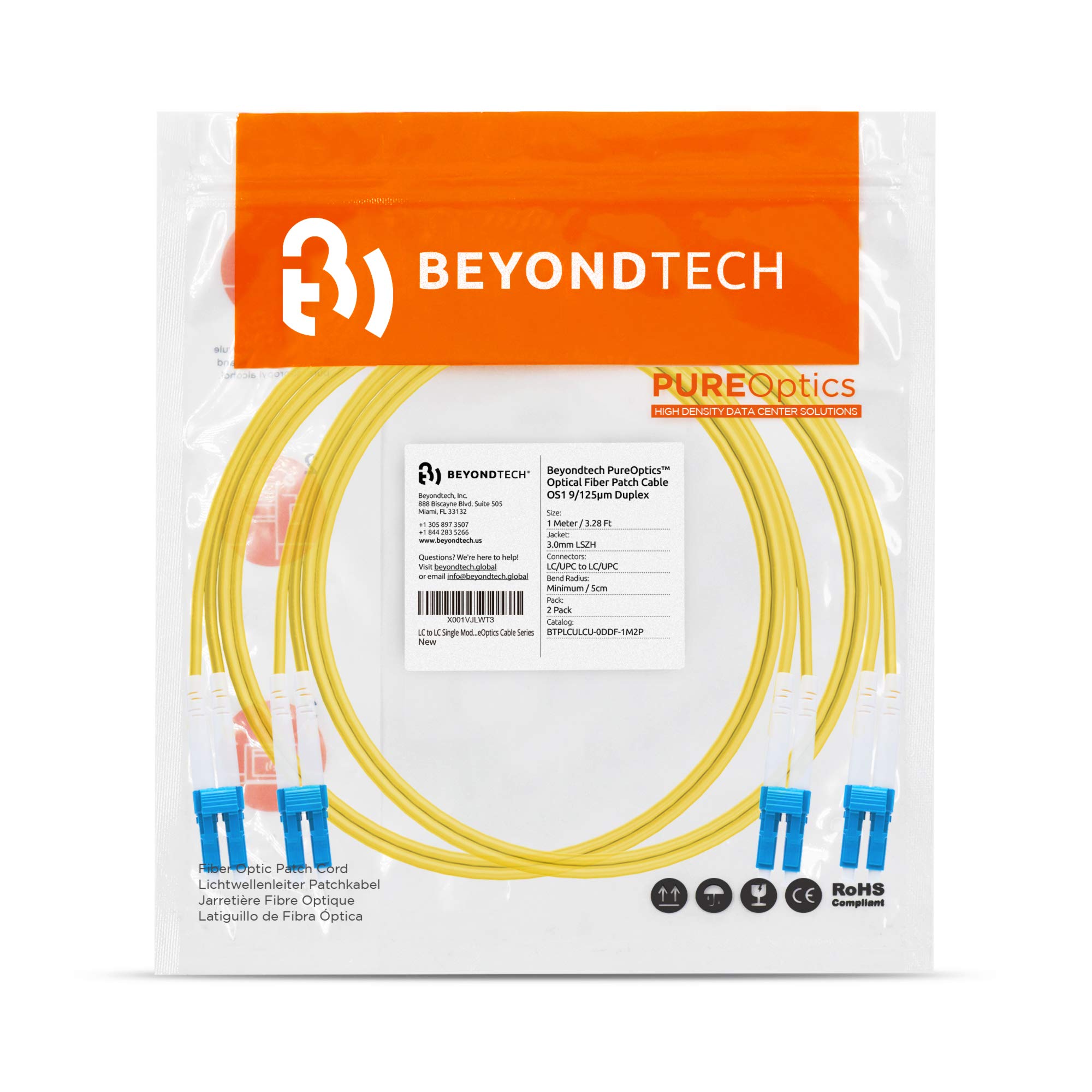

BEYONDTECH LC to LC Single Mode Fibre Patch Cable Duplex - 1M (LSZH) 9/125um OS1 (2 Pack) Singlemode Lead Series

• Beyondtech high-quality LC to LC Fibre Patch Cable Single mode 9/125 OS1 fibre is specially designed for fast Ethernet, Fibre Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial, 10GBASE-L (1310 nm), 10GBASE-E (1550 nm), 1000BASE-LX (1300 nm) and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.
• This Beyondtech Fibre OS1 9/125 LC/LC Fibre Patch Lead conforms with TIA/EIA 492AAAA and IEC60793-2-10 A1b standards and complies with RoHS specifications.

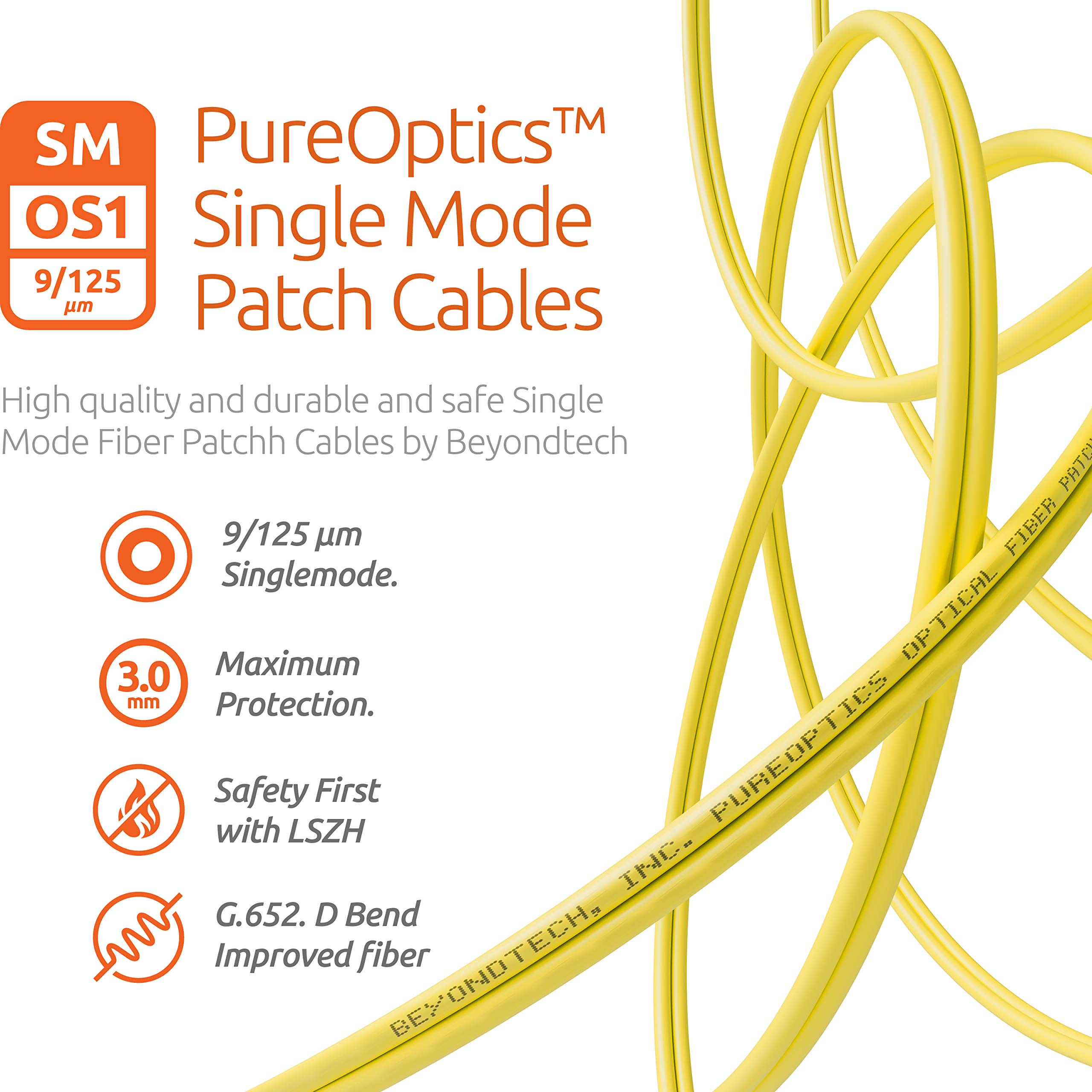

• This Single Mode fibre Cable has an yellow color jacket with a 3.0mm diameter. OS1 cables have a 0.25 dB/km attenuation at 1550 nm and 0.35 dB/km at 1310 nm.
• This LC to LC Single mode Duplex OS1 fibre patch cords operate at -20¼C to +70¼C and have a minimum installation bending radius of 5.0 cm and a minimum long term bending radius of 3 cm.
• OS1 patch optical leads allow for connections between patching panels adapters and network and server equipment. OS1 patch cords are commonly used in passive applications (GPON, FTTX and LANs)

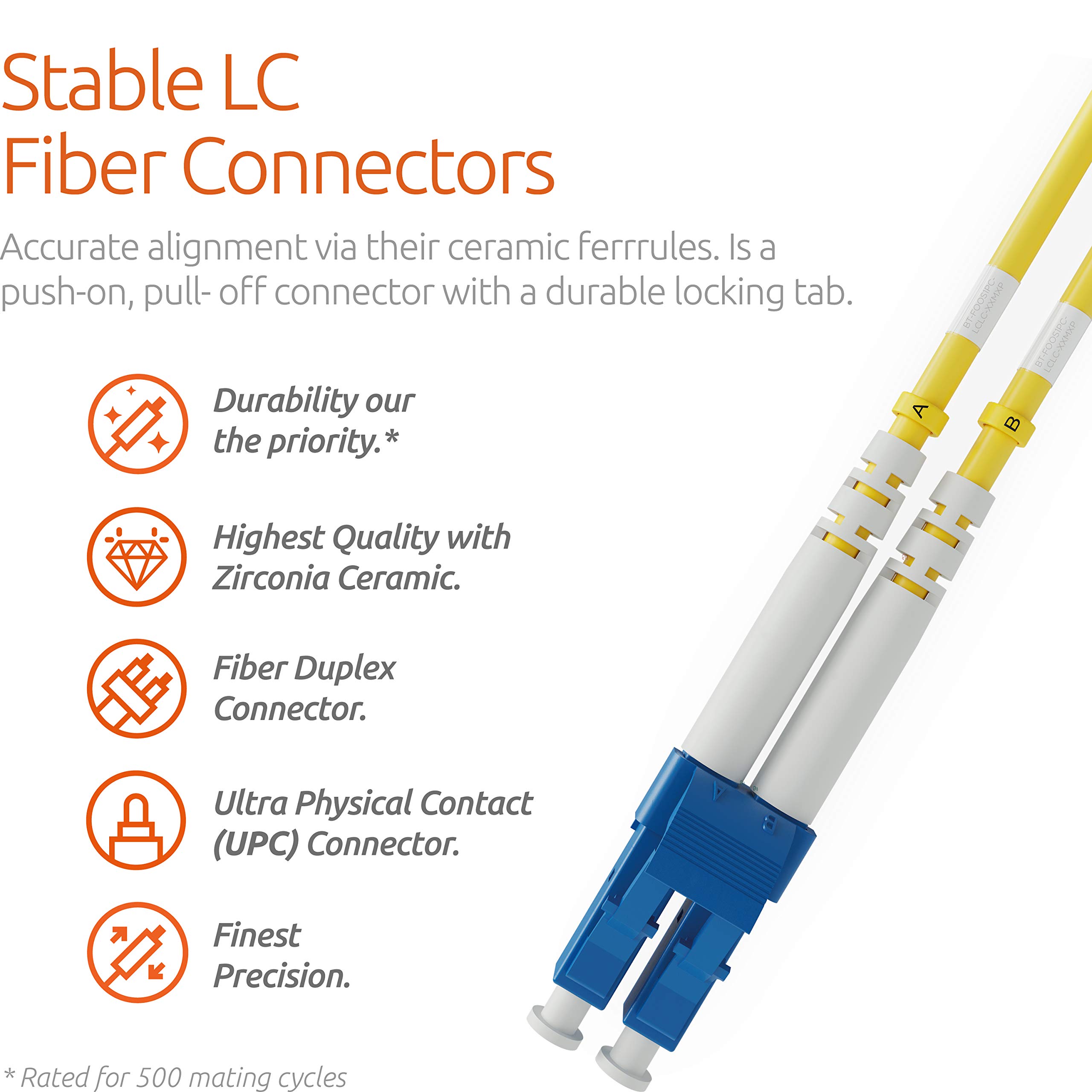

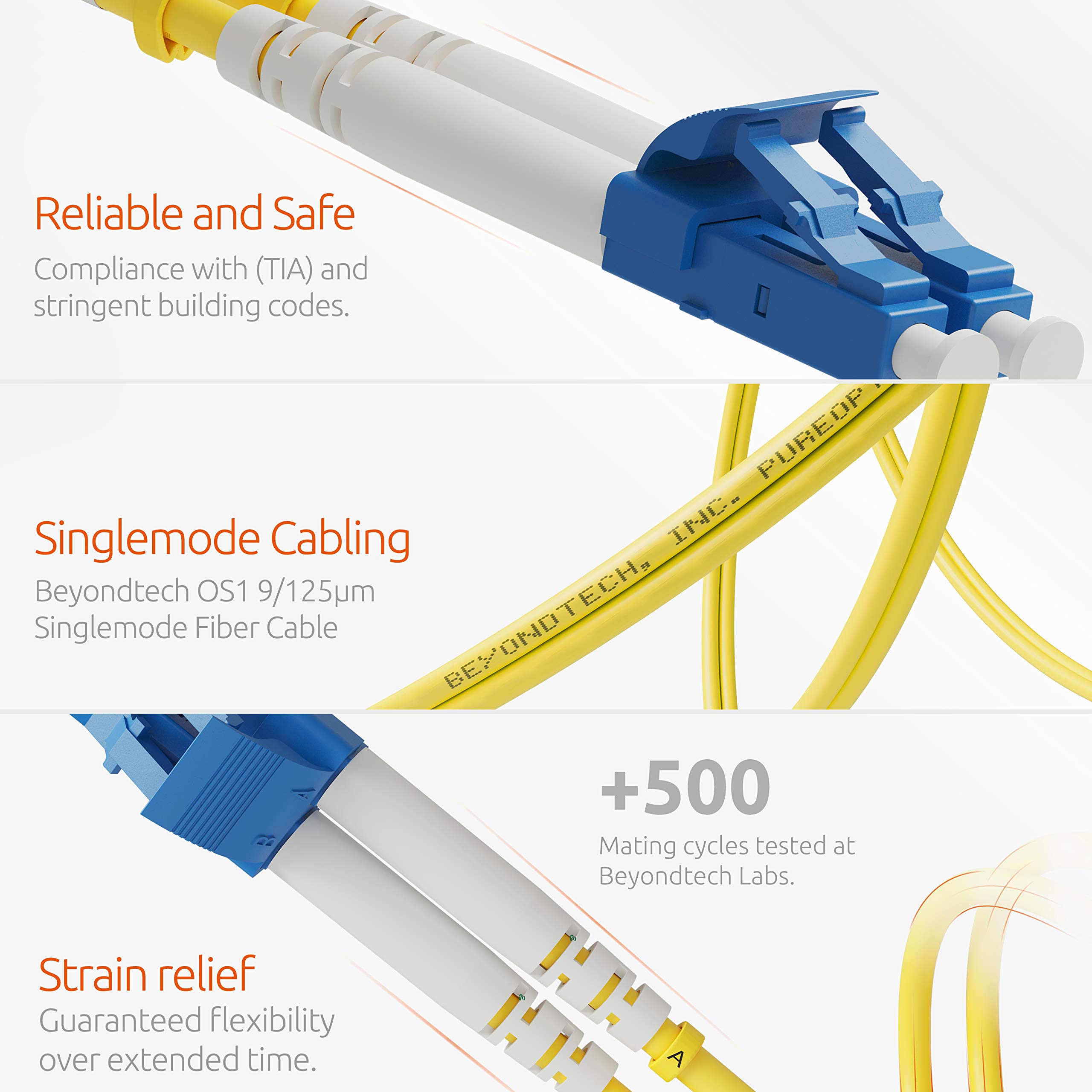

Easy installationBeyondtech OS1 9/125 LC to LC Fibre Patch cable simplify the installation process and reduce the total cost of ownership of your project, due to pre-terminated fibre intrinsic plug-and-play characteristic.10 Gigabit PerformanceOS1 Singlemode laser optimized fibre patch cables are designed to be used in LAN, WAN and SAN 10GB networks and is able of handling the most challenging telecommunications data transmission requests.Properly testedEach patch cable is individually and rigorously tested and certified to be within accurate optical insertion loss.Cable Specifications:Wavelengths: 1310 and 1550Yellow JacketBend Radius: Minimum / 5cmCable Jacket: 3.0mm LSZHOperating Temperature: -4¡ to 158¡ F (-20¡ to +70¡ C)Termination (A,B) : Connector A (LC/UPC) / Connector B (LC/UPC)Polishing: UPC to UPCITU Spec: G.652DCore:OS1 9/125Lenght (In Meters): 1 MeterStandard Zip CordOS1 9/125 fibre conforms to ITU-652.D, TIA/EIA 492 CAAAMultiple Sizes AvailableLC/LC connector (Fibre Patch Cable)Beyondtech LC LC Patch Cable feature precision hold, plastic ferrule. They comply with all ANSI/EIA/TIA standards.LC to LC Single mode Duplexis used to connect LC / LC devices and are suitable for Gigabit Ethernet, video, multimedia, premise installations, fiber optics patch panels, fiber optic transceiver and fiber optic network, industrial, and military applications. Connectors feature dust caps on the tips for protection.
