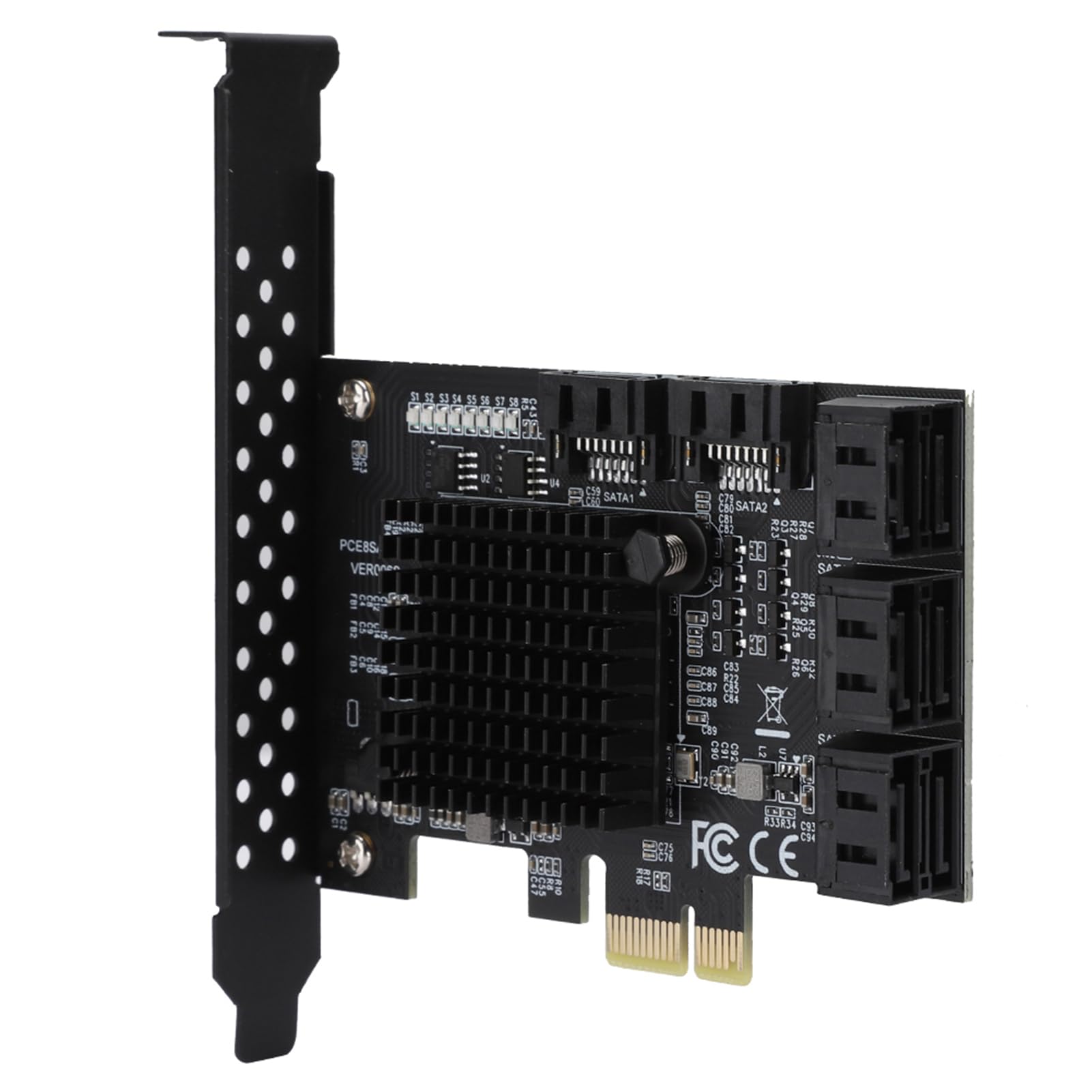

Lazmin 8 Port PCI-E to SATA3.0 Controller, PCI Express to SATA3.0 8-Port SATA III Expansion Controller Card Adapter

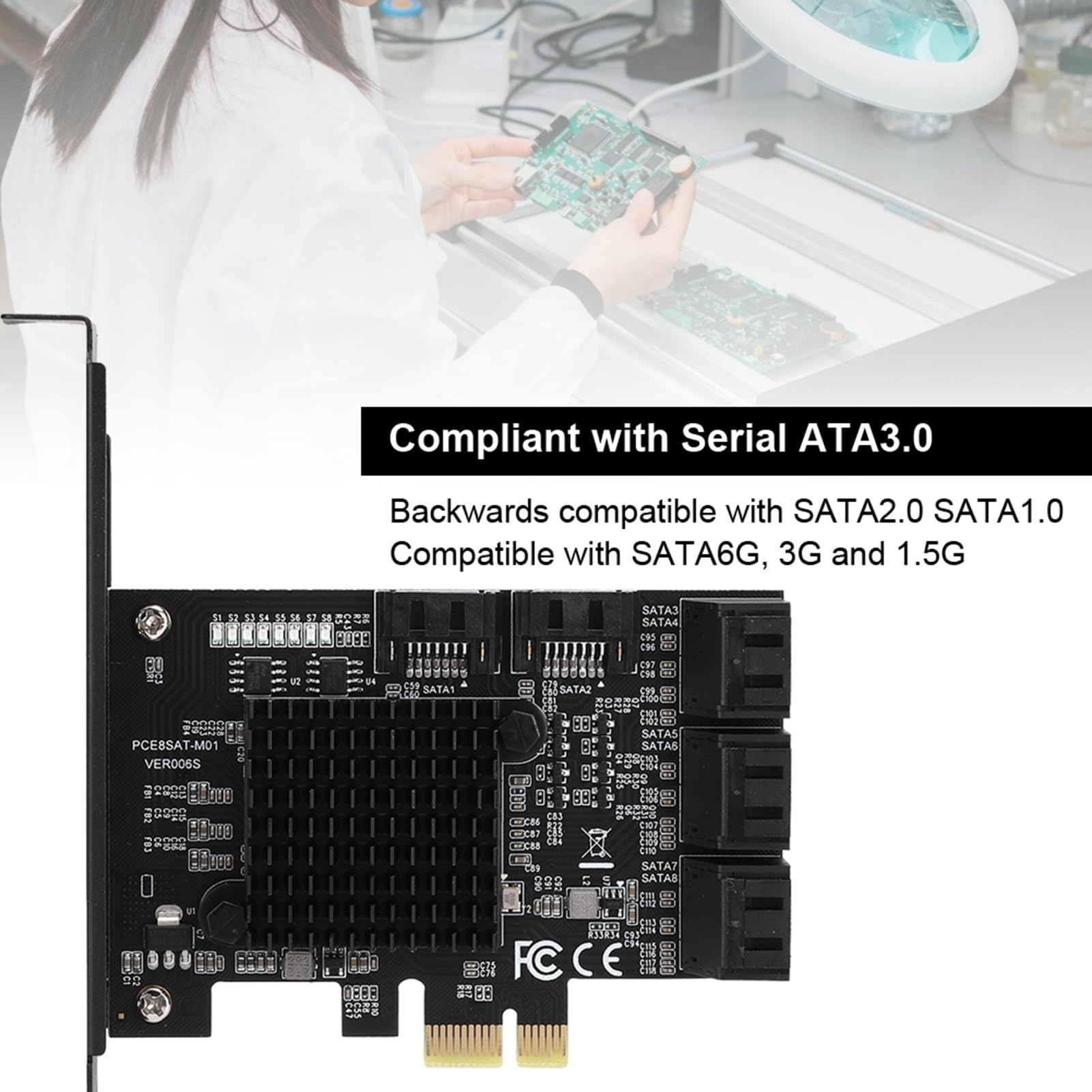

• Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0; PCI-Express v2.0 compliant, backward compatible with PCI-Express v1.0.
• Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps; supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

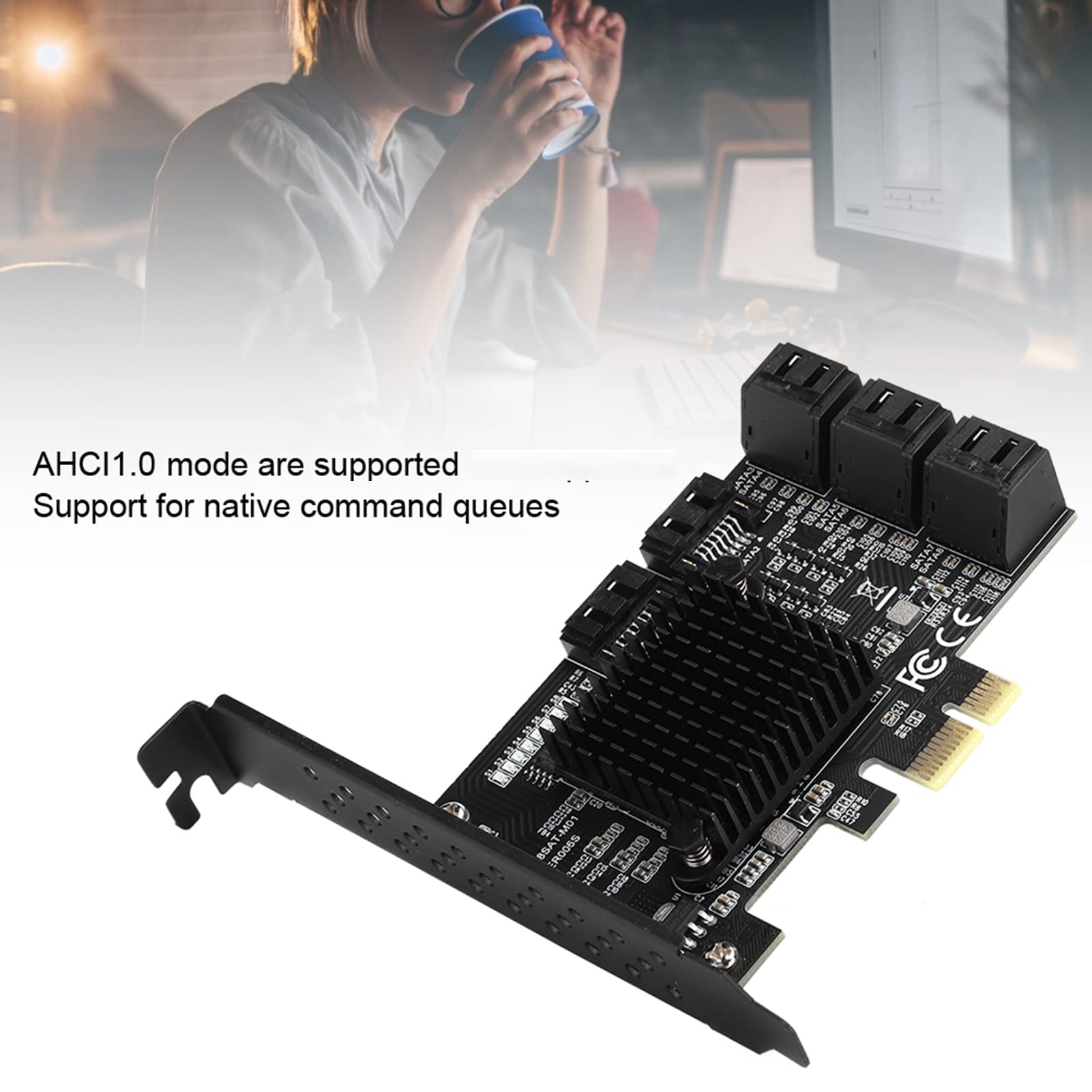

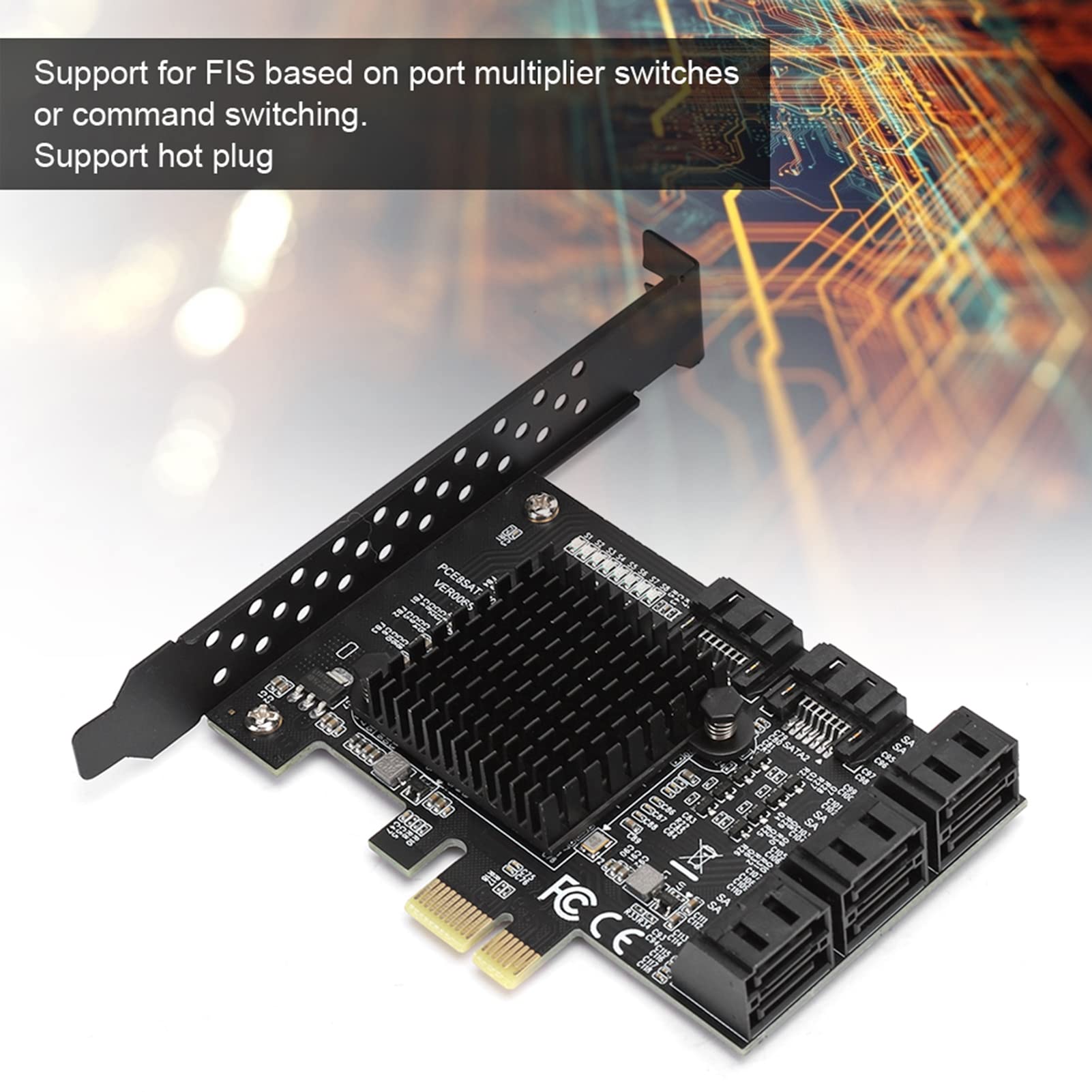

• Supports AHCI1.0 mode and IDE mode, native command queue (NCQ), FIS based on port multiplier switch or command switching and hot plug.
• Compatible with SATA6G, 3G and 1.5G hard drives.
• User with SATA3.0 data cable for best results.

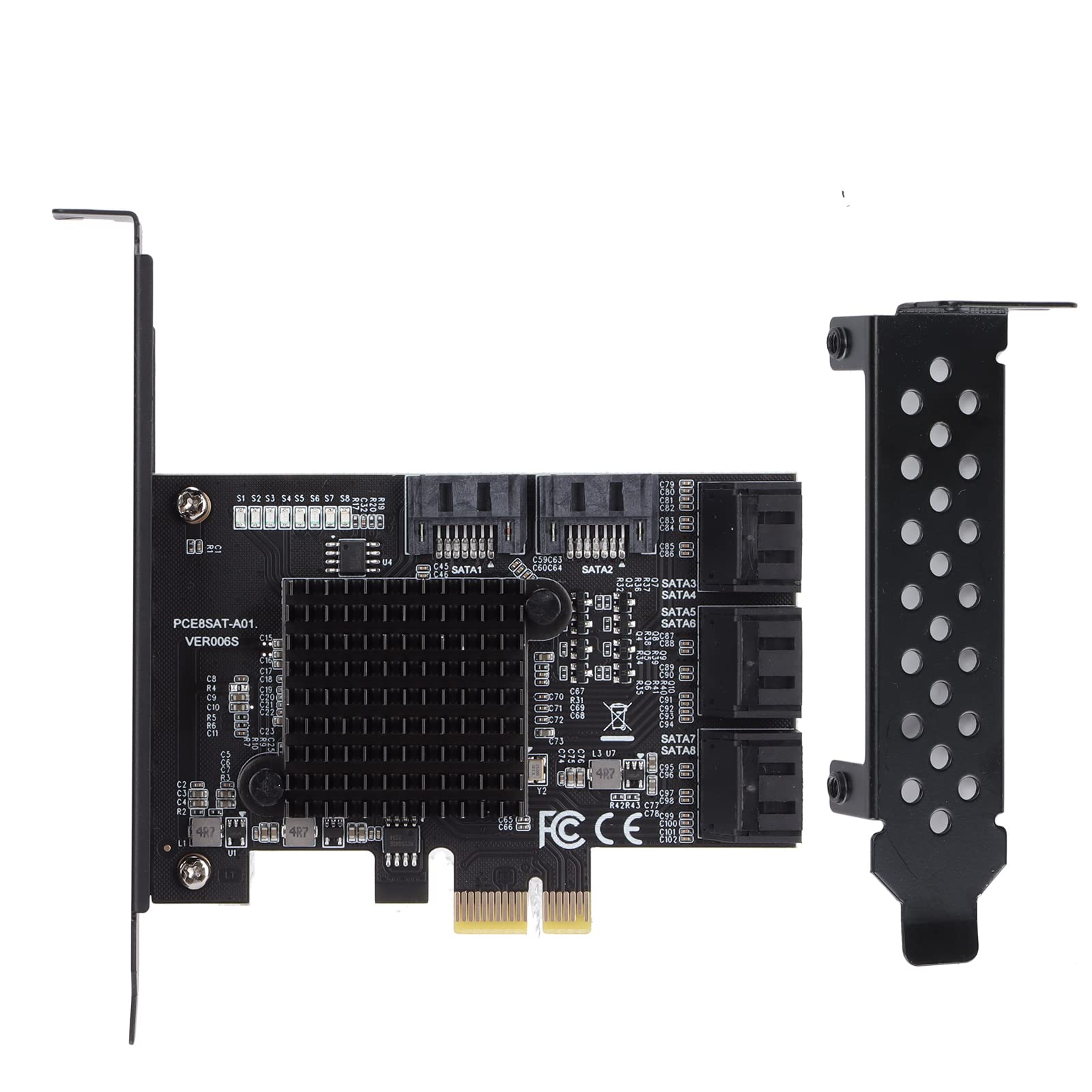

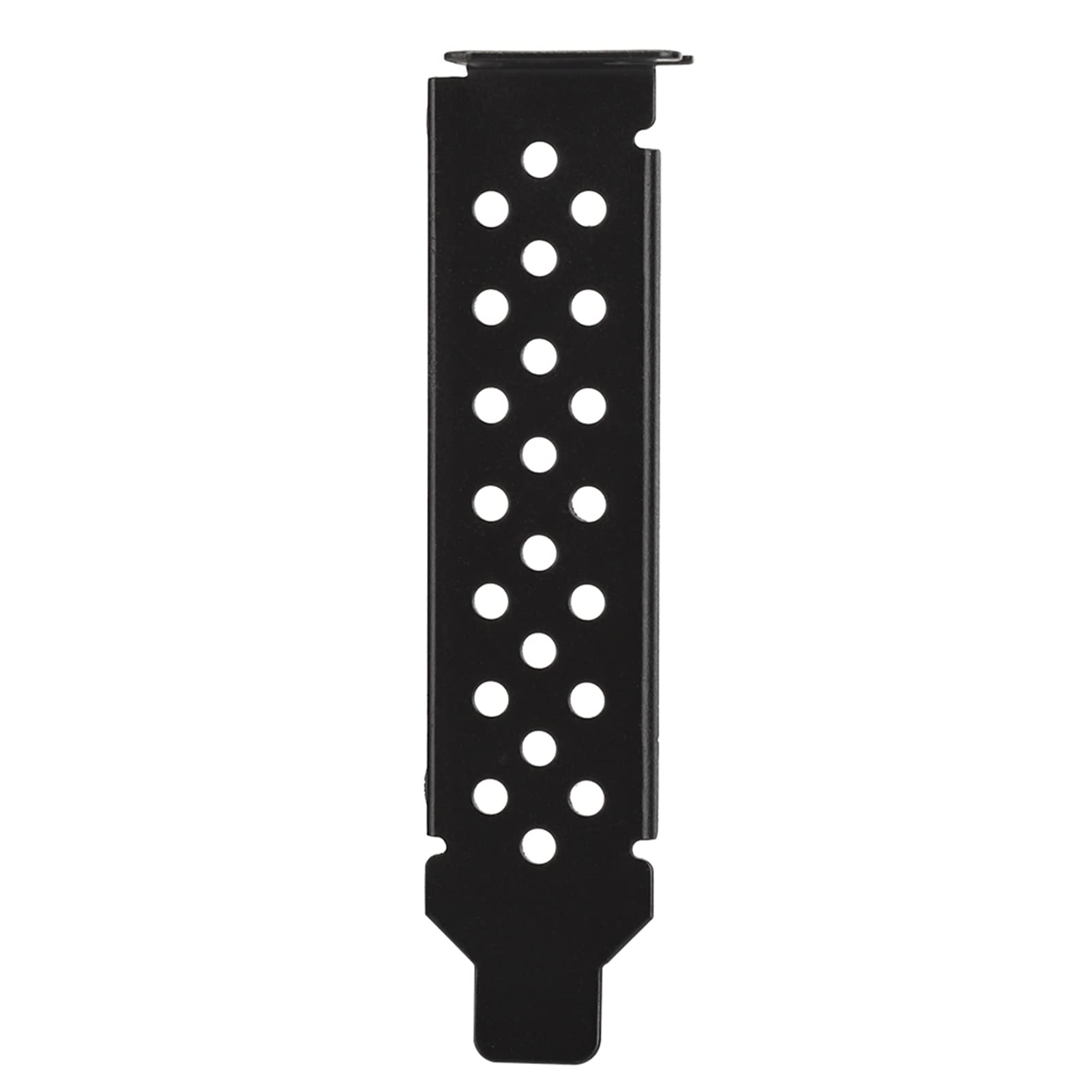

Specifications: Item Type: PCI-E to SATA 3.0 Card Model No.: PCE8SAT-M01 Master: Suitable for Marvell 88SE92xx + JMB5XX Interface: PCI-E 1X 2X 4X 8X 16X Support System: Fit for Windows 7/8/XP/10 Fit for Ubuntu Expansion interface: 8 x SATA3.0 interfaces Package list: 1 x Expansion Board 1 x Semi-Top Baffle 1 x Driver Disc Note: PCI-E must have a slot greater than V2.0, V1.0 will not exceed 250M, PCI-E can be X1 or X16 as long as it is V2.0 version, there is a spare X16 slot directly in the enabled X16 slot. Motherboard WOOD setting: SATA mode needs to be changed to AHCI, although some PCIE of the motherboard is version 2.0, but BOIS does not enable the default high-speed transmission mode (gen2 high-speed mode) must be activated manually. In PCI-E 1.0 mode, only 200-250M, mode 2.0 is less than 350-400M. If you do not accept it, change the motherboard. When the SATA port is used at the same time, it slows down. It is not suitable for users who are looking for speed. It is only used for the extended interface of the hard drive.
