Laser Diode Collimator Lens-Anteryon AC405,10PCS

• AC405 is the Hybrid Aspherical Polymer on Glass lens, which is diffraction limited and have low wave front aberration.
• Long focus length (23mm) can provide more stable optical system.
• AC405 is the ideal choice for collimating or focusing the light of a laser diode.

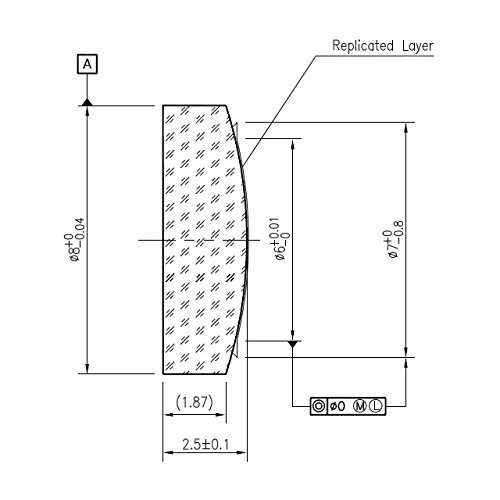

Parameters <br> <br> Lens Material : Hybrid aspherical polymer on glass lens <br> Lens Diameter : φ8.0 mm <br> Center Thickness : 2.5 mm <br> Edge Thickness : 1.87 mm <br> Design Wavelength : 650 nm <br> Clear Aperture (CA) : φ6.0 mm <br> Numerical Aperture (NA) : 0.13 <br> Effective Focal Length (EFL): 23 mm (with BK7 t=0.25mm cover glass) <br> Back Focal Length (BFL) : 21.45 mm <br> Axis Wave front Error (RMS) : 0.03 λ <br> Field Radius : 0.5 mm <br> Transmittance : ≧97% <br> Storage Temperature : -40 to 85 ℃ <br> <br>
