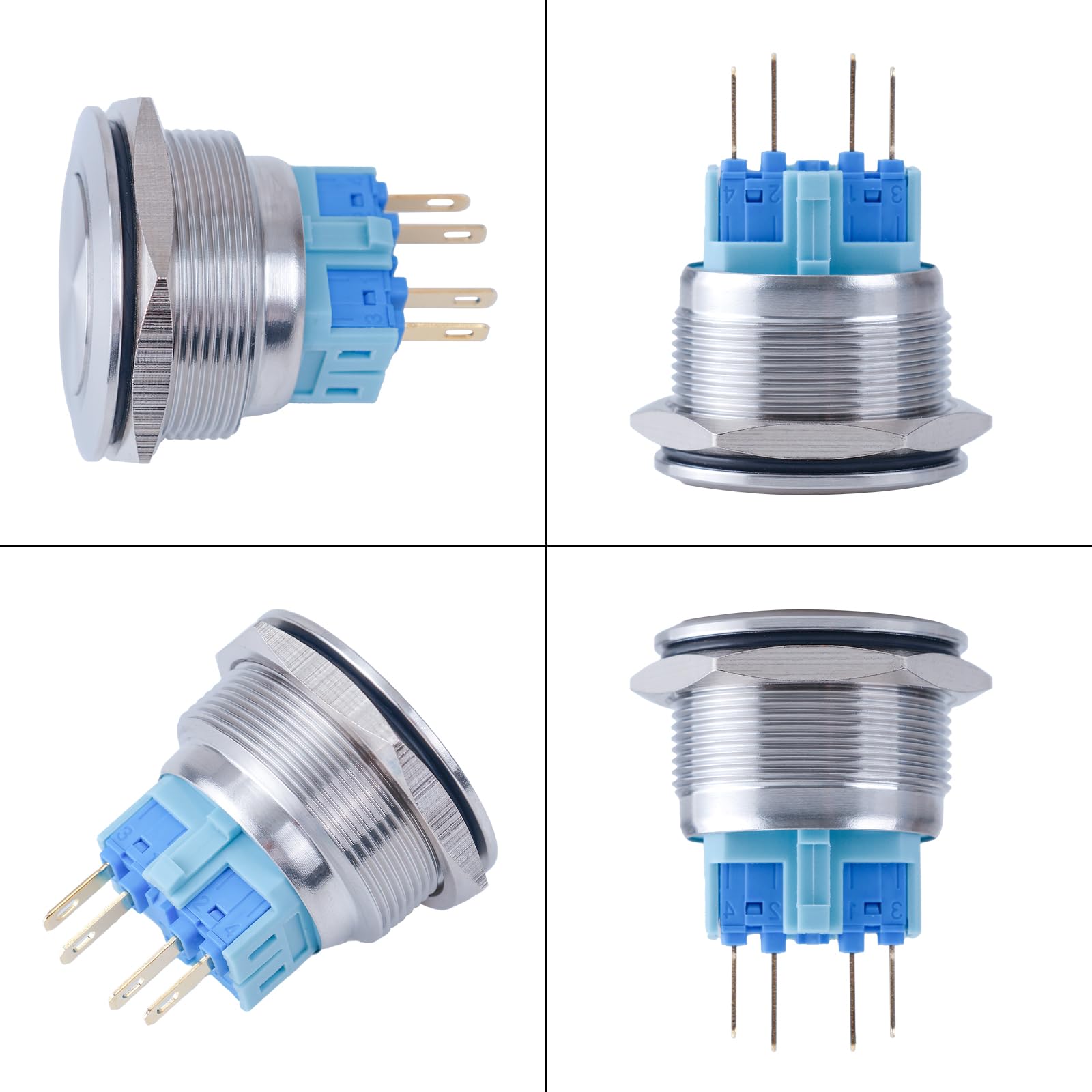

Larcele Push Button Switch 28mm Waterproof Momentary Metal DIY Switch,Large Size,1 Piece JSANKG-15

• Body material: Stainless Steel, Plastic, Electric Parts.
• Normally Open switch, without led indicator. Large size to meet your needs.
• Current rating: 4A/230V AC. Head protection level: IP65,IK08.
• Commonly used as vehicle horns, ignition switch, doorbells, and car boat outdoor project.
• Non-Latching Switch: A push button switch is a momentary or automatic return switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. An automatic mechanism (such as a Spring) returns the switch to its default position immediately afterwards, restoring the initial circuit condition.

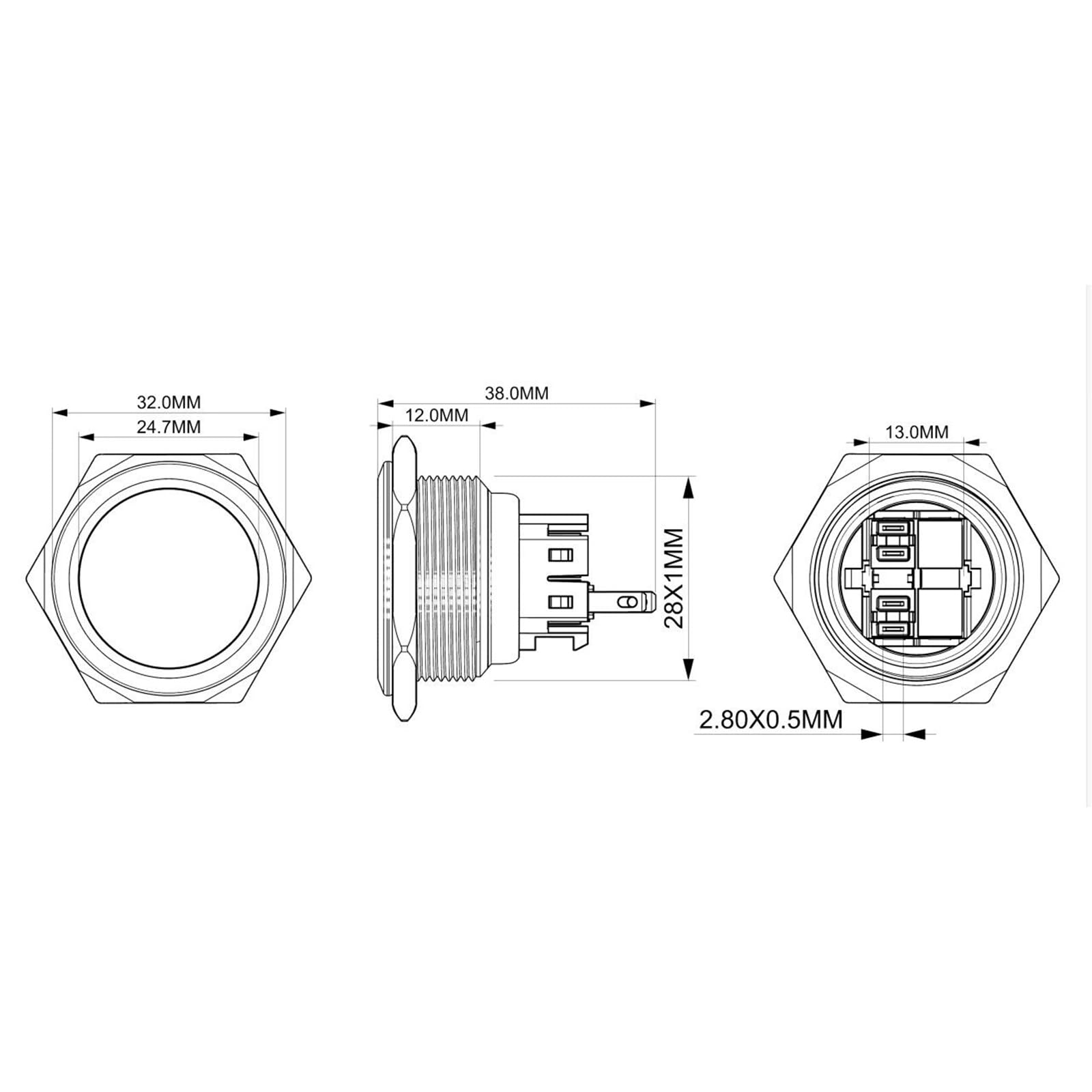

Non-Latching Switch: A push button switch is a momentary or automatic return switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. An automatic mechanism (such as a Spring) returns the switch to its default position immediately afterwards, restoring the initial circuit condition. Waterproof Push Button Momentary Switch Mounting hole size: 28mm Terminal Type:Pin Nut torque: 5-14Nm Head shape: Round Flat Body material: Stainless Steel Rating: 4A ,230V AC Contact type: NO Waterproof level:IP65 Dielectric Intensity: 1500VAC/1min Life: >10000 Cycles Environmental Temperature: -25 ～ +55 ℃ Contact Resistance: <50mΩ Insulation Resistance: >100mΩ Package included: 1x Push Button Switches Note: Installation instruction and wiring diagram are not included in the package. The terminals are small, need to be careful when soldering the wires on to them. Recommended solder within 3 seconds. Professional installation is highly recommended.
