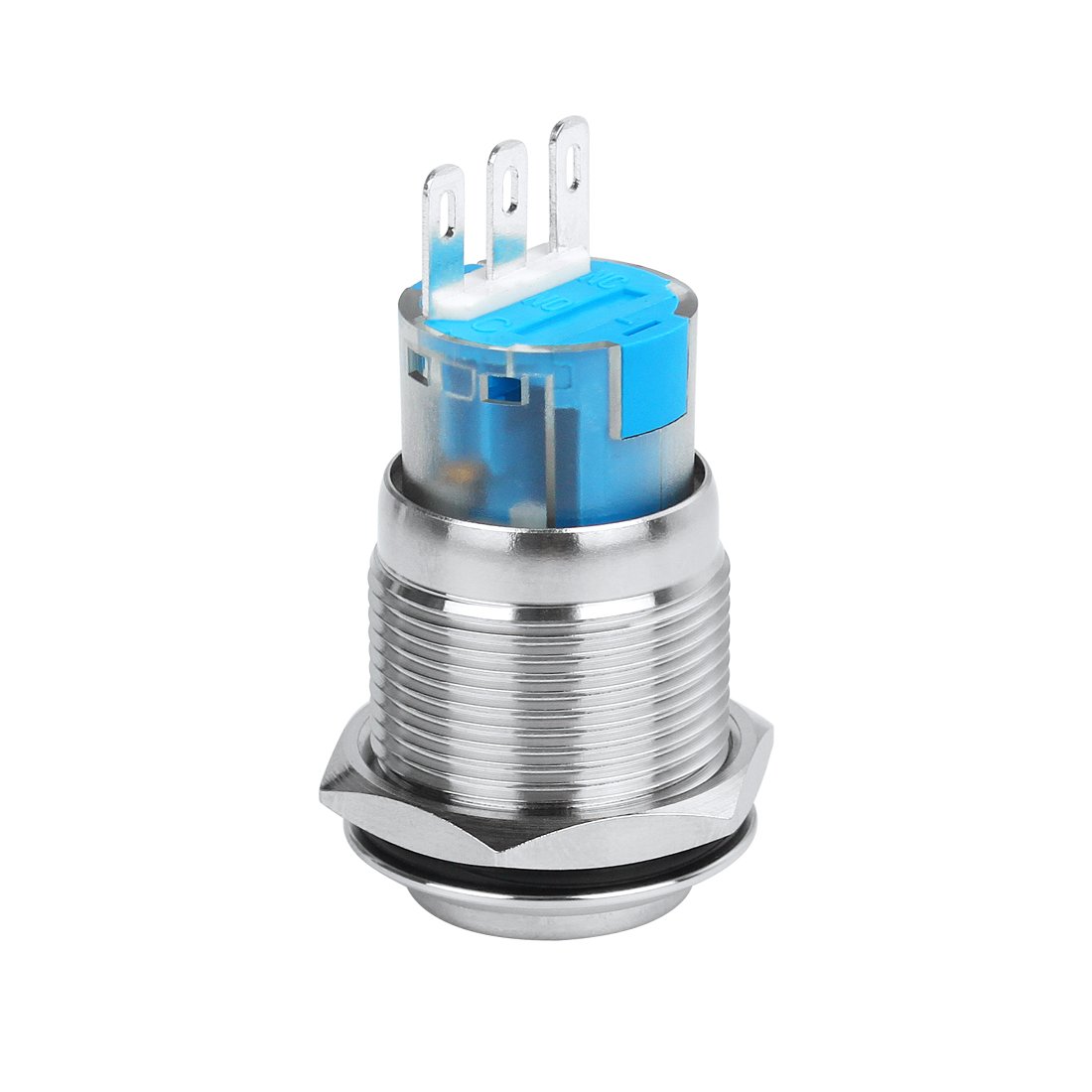

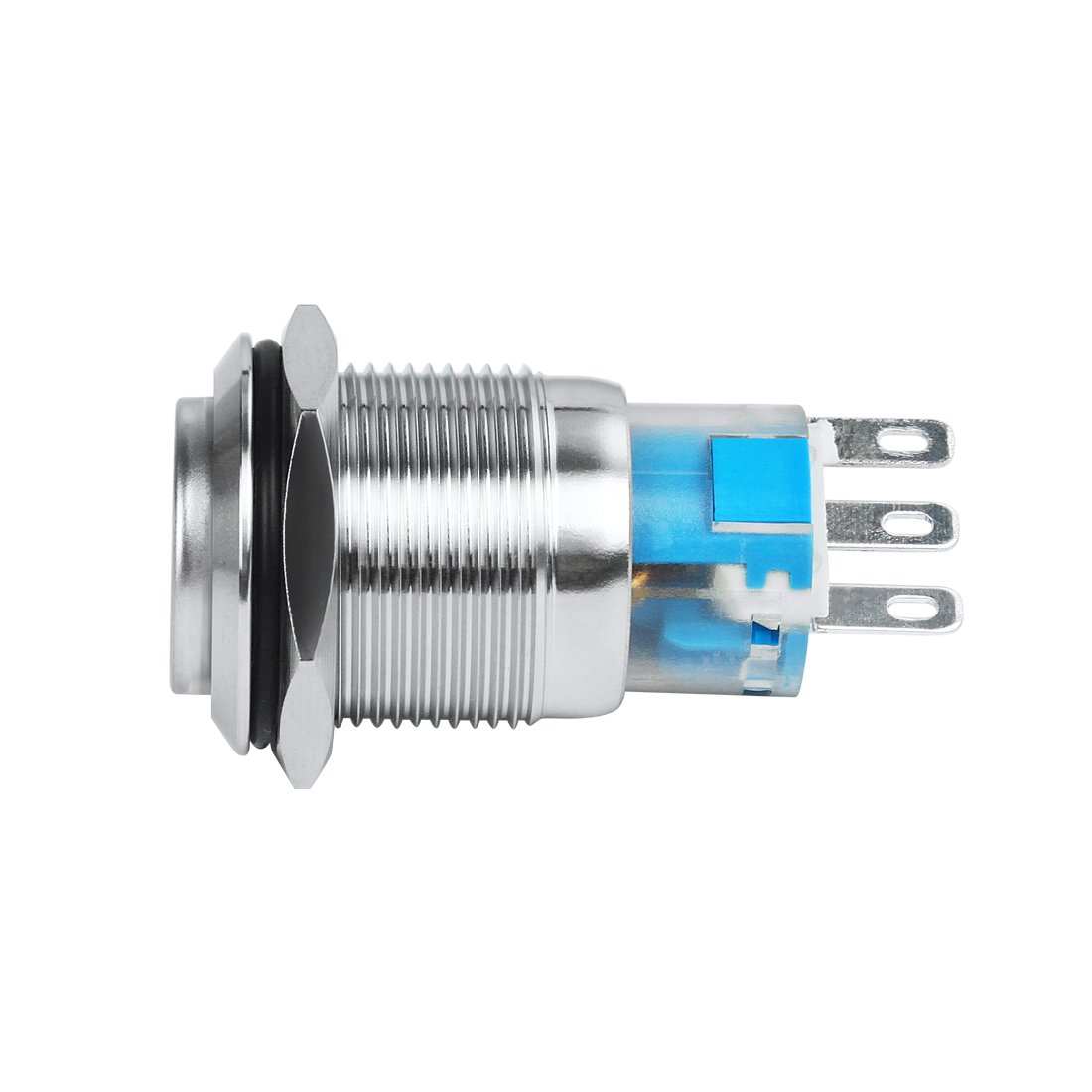

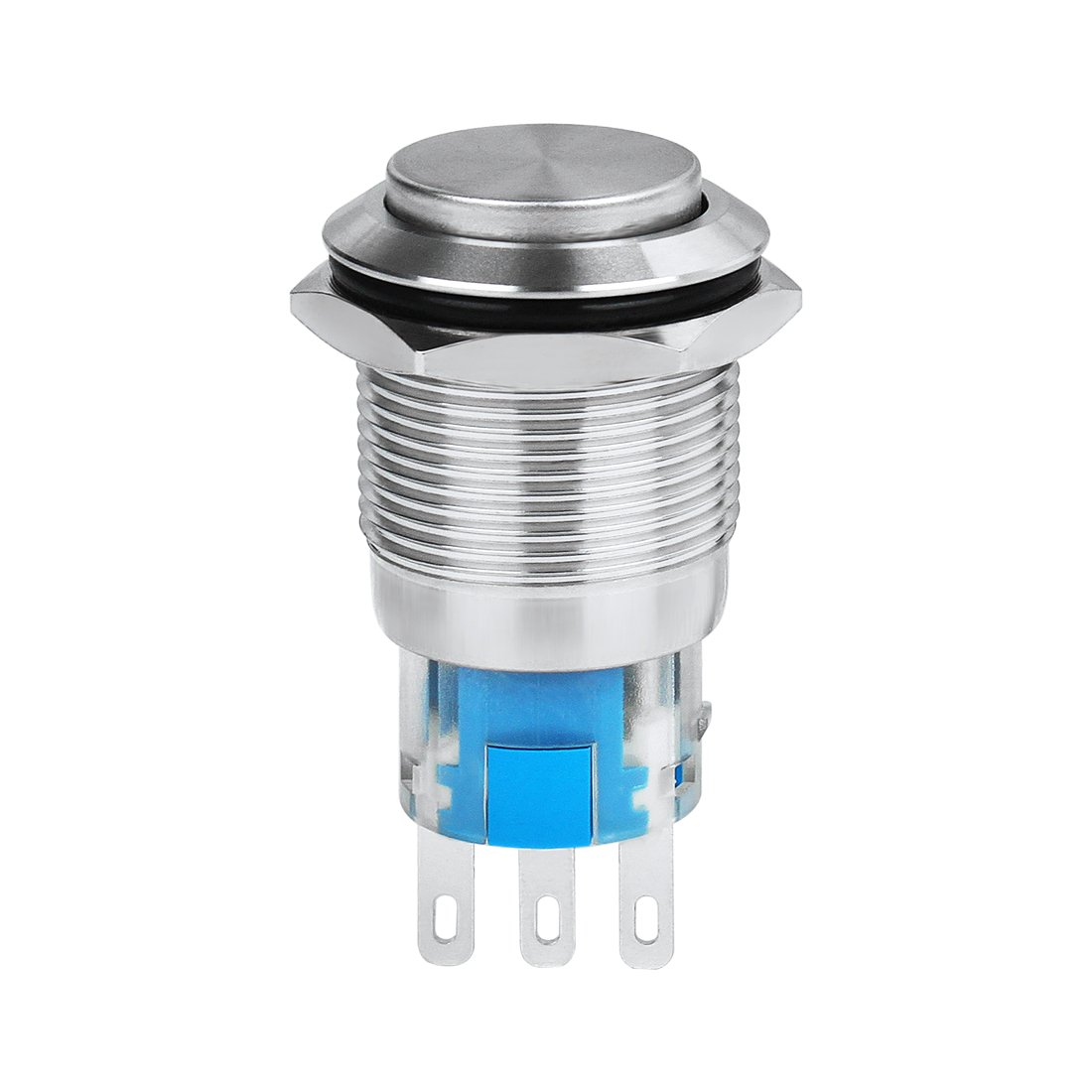

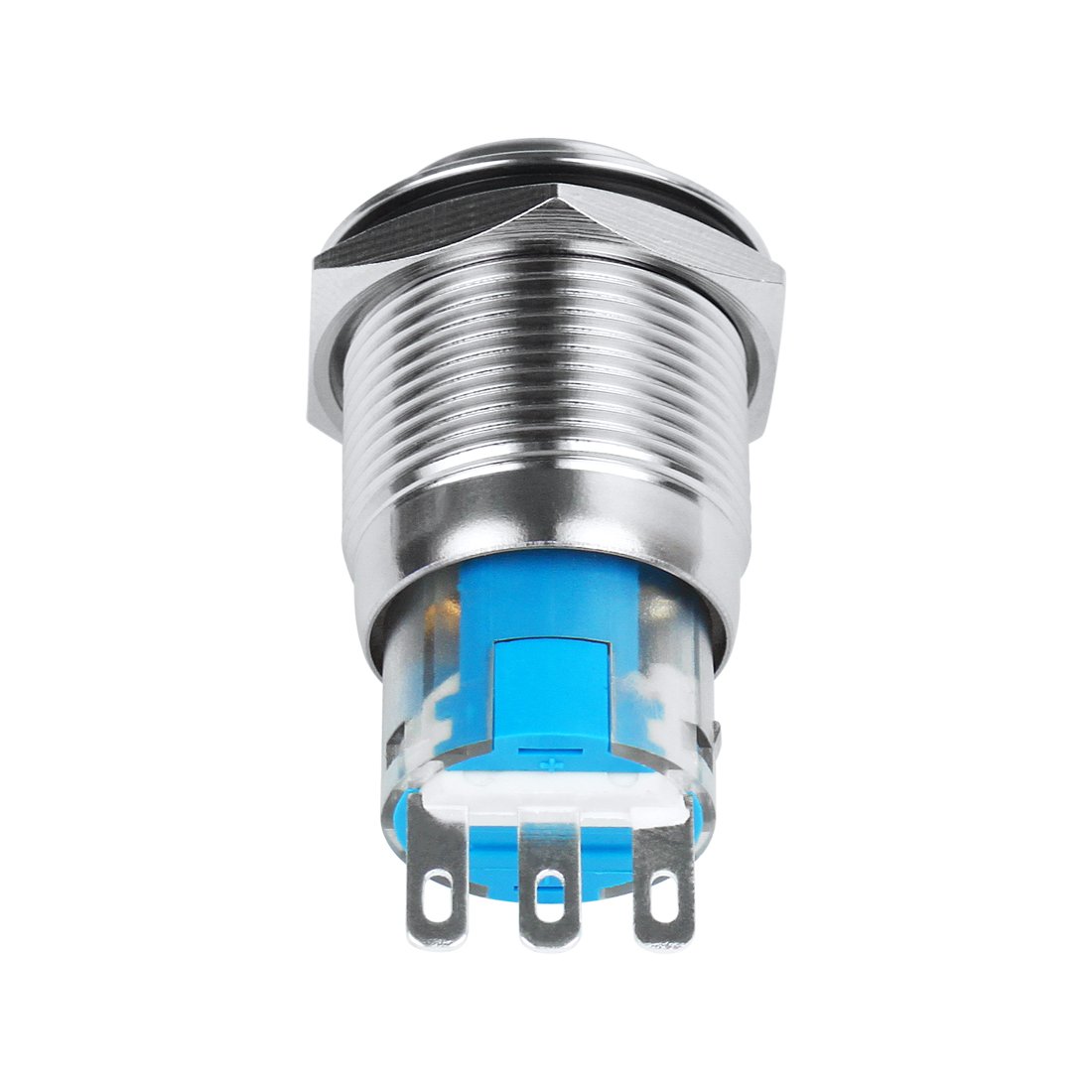

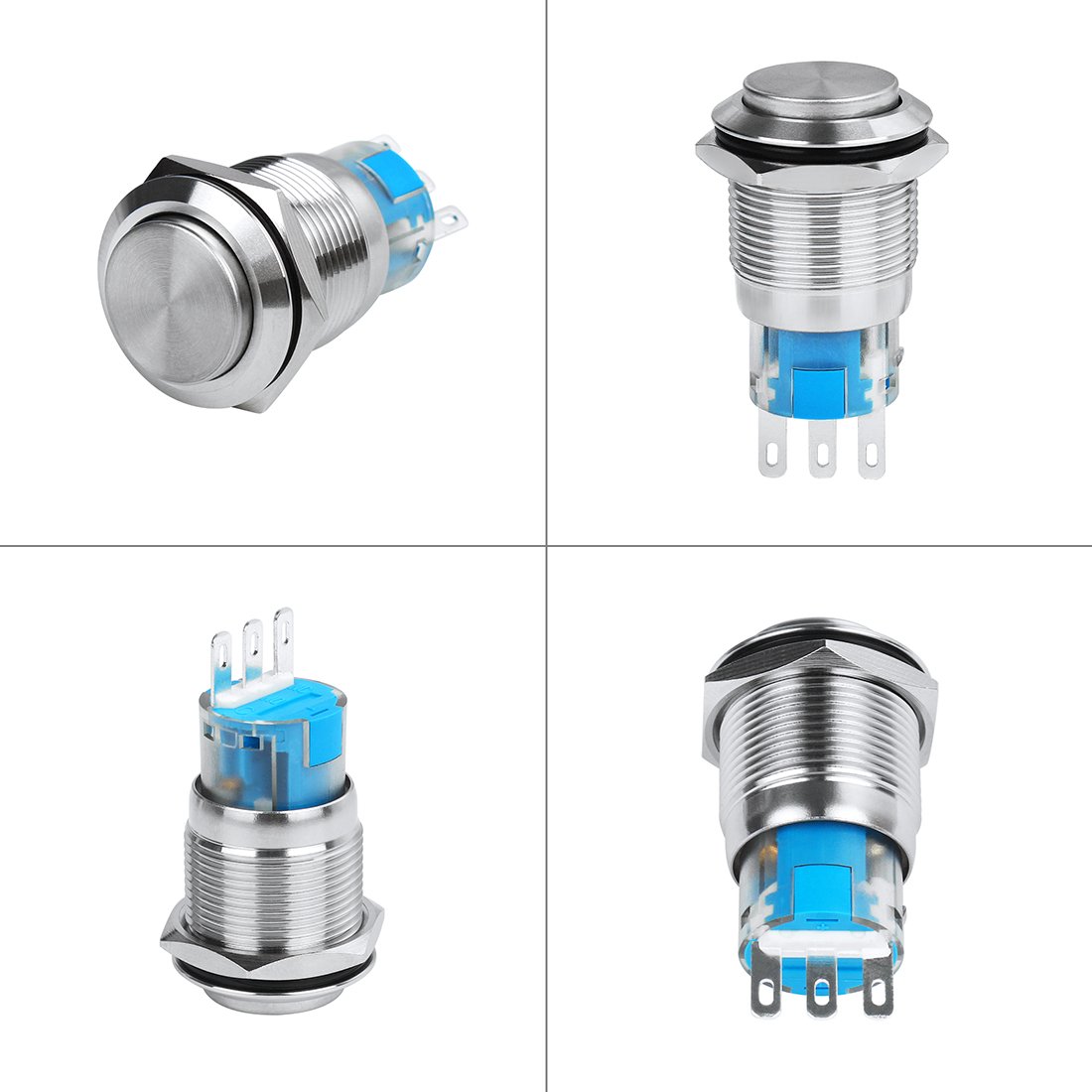

Larcele 19mm Momentary Push Button Switch,Waterproof DIY On Off Switch,5 Pieces JSANKG-06 (High Head,Momentary)

• Material: Stainless Steel, Plastic, Electric Parts.
• Rated current: 5A; rated voltage:AC 250V. Recommend install with the wire connector(KGWC-01).
• A push button is a momentary or non-latching switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. An automatic mechanism (such as a spring) returns the switch to its default position immediately afterwards, restoring the initial circuit condition.
• Operating temperature: -20~+55 ℃. Contact resistance: less 50mΩ. Insulation resistance: over 1000 MΩ.
• Commonly used as vehicle horns, ignition switch, doorbells, and car boat outdoor project. Recommend install with the wire connector.

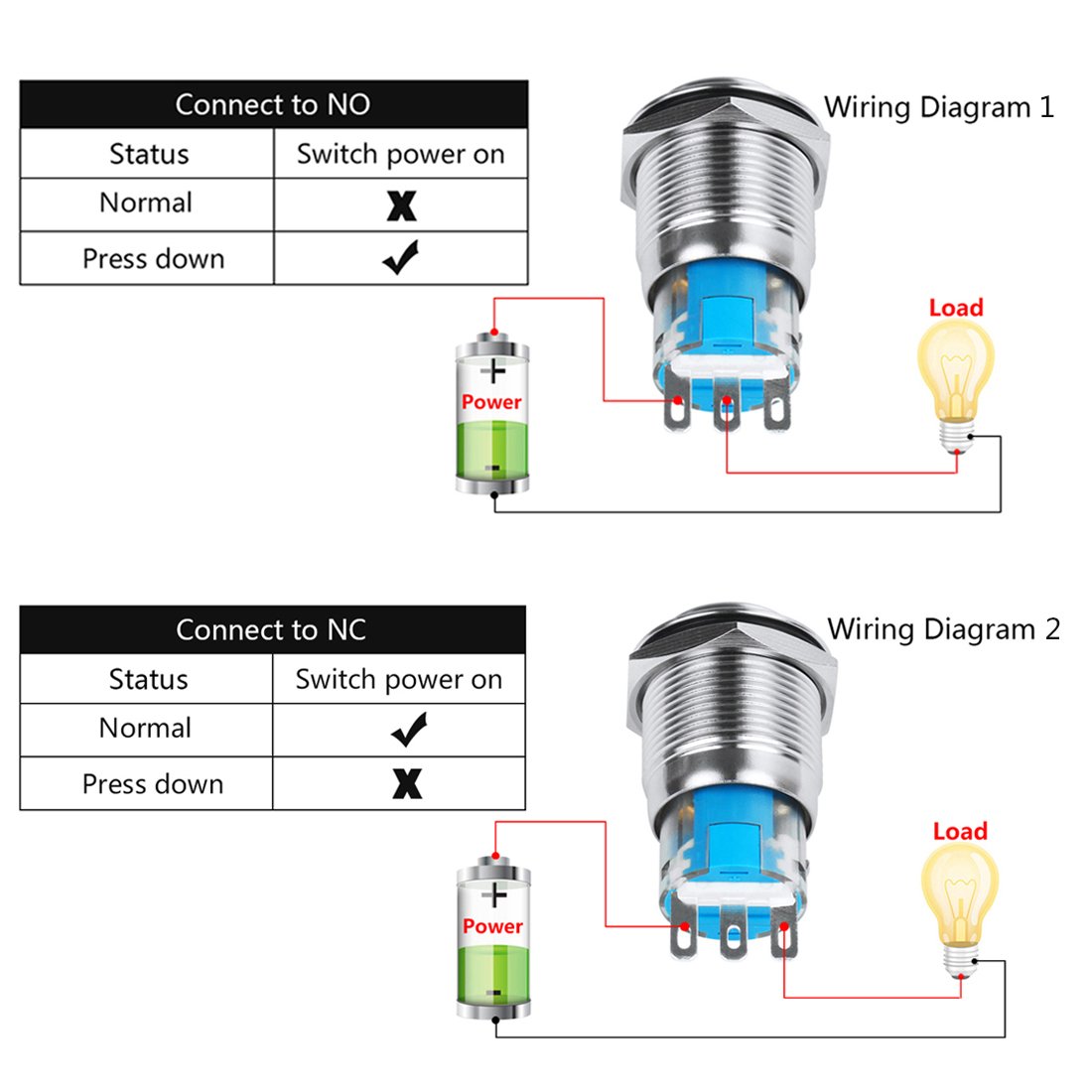

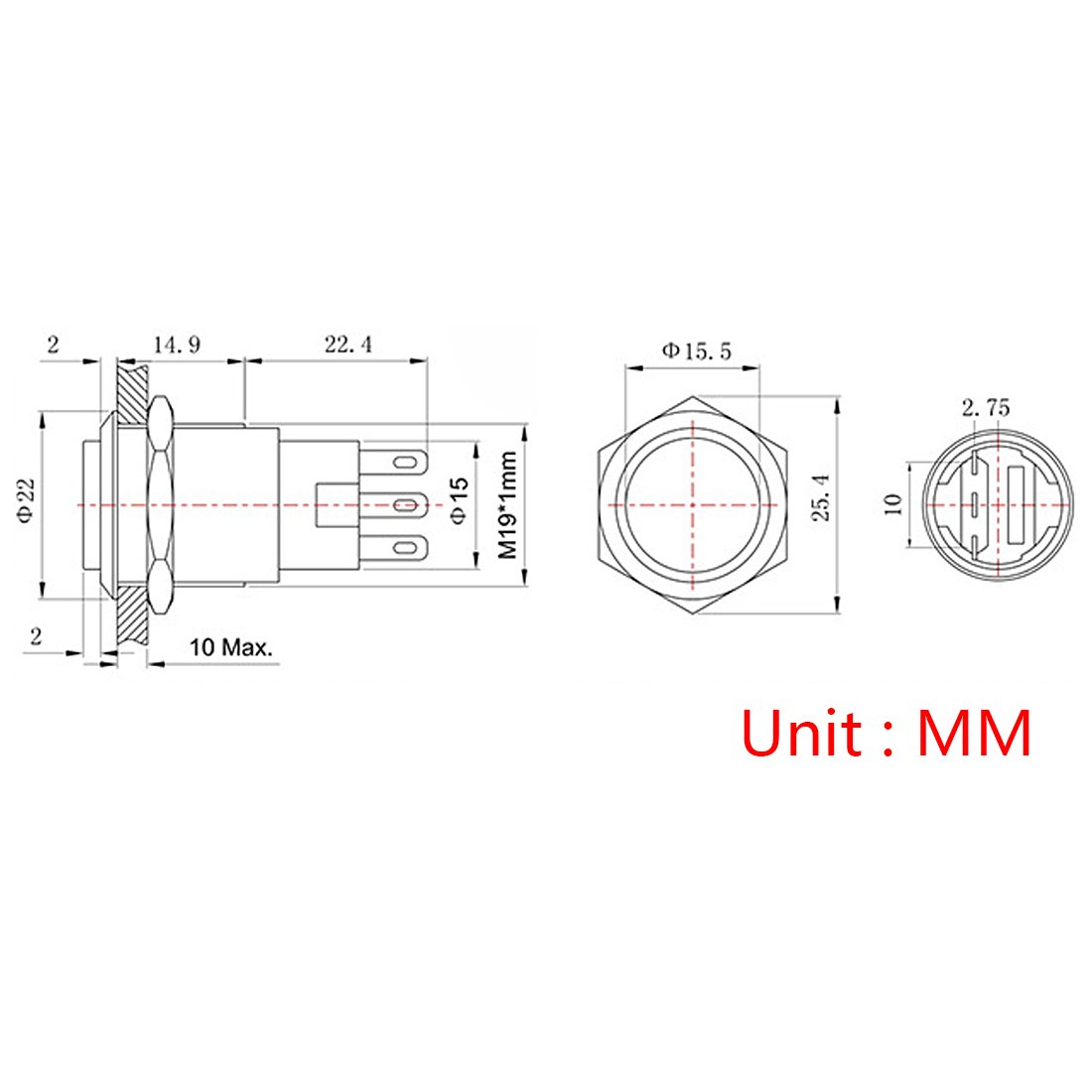

Mounting hole: 19mm Protection level: IP65, IK10 Operation Type: Momentary. Package included: 5 pieces Push Button Switch These buttons switch are perfect, Horn Button Switch, PC Power Switch, any circuit controls. Also great for electronic DIY projects. The terminals are small, need to be very careful when soldering the wires on to them. Recommended solder within 3 seconds Note: 1.Installation instruction and wiring diagram are not included in the package. 2.Professional installation is highly recommended.
