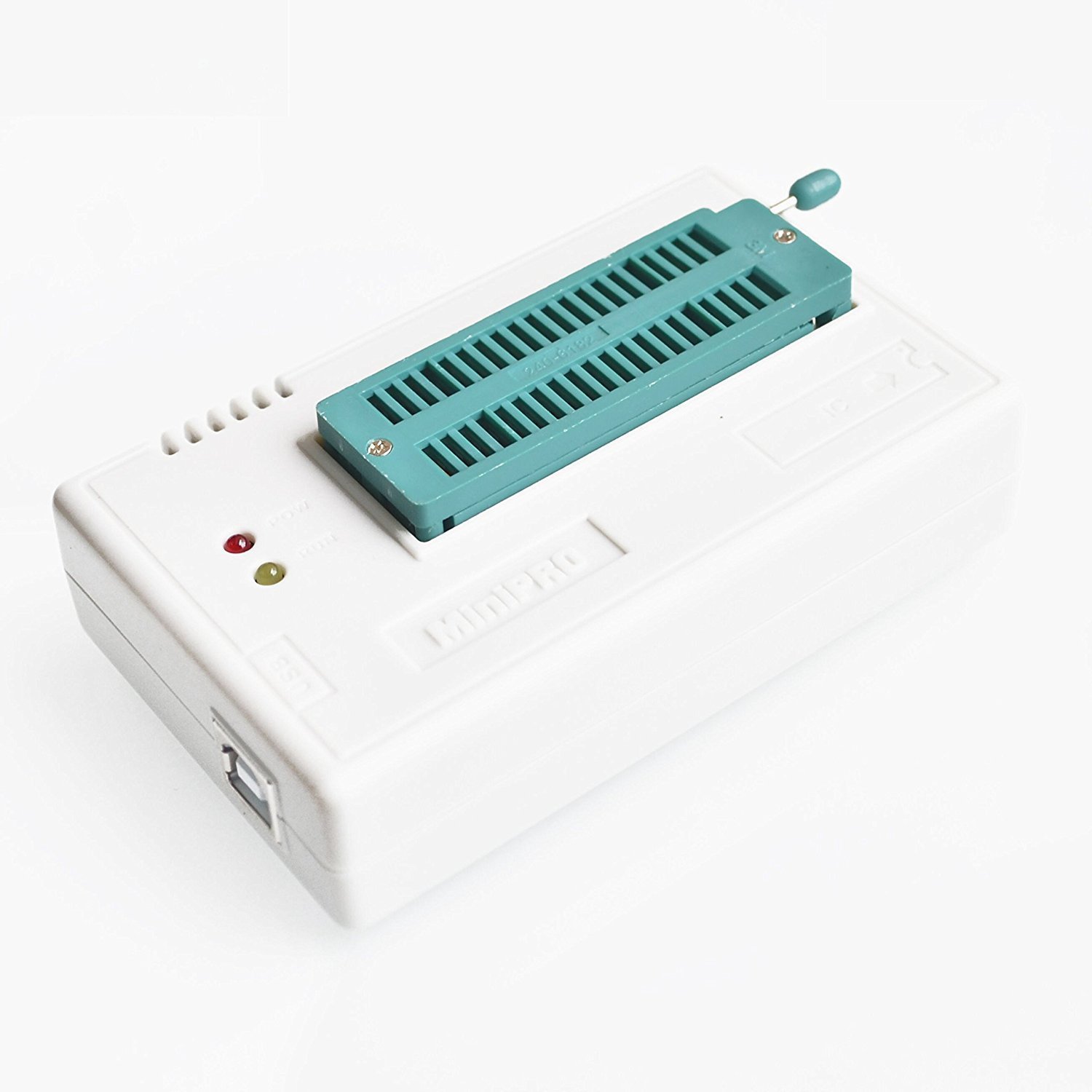

LAQIYA TL866? Plus Programmer USB EPROM FLASH BIOS Programmable Logic Circuits 6 Adapters Socket Extractor for 15000 IC

• Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH
• Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming
• Best internal 40 pin over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC
• Original chip encryptionoperation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip
• Support simultaneously burn with 4 Programmers each computer

www.autoelectric.cn/MiniPro/TL866II_Instructions.pdf Latest software download link: www.autoelectric.cn/MiniPro/XgproV705_Setup.rar Support Device List: www.autoelectric.cn/MiniPro/TL866II_List.txt (please note: before buying, make sure the models you want to program are in the list!) Tl866II PLUS programmer is the improvement of TL866CS/A programmer, difference is much higher programming speed (up to 2x) of high-capacity memories. It supports multiprogramming mode (up to four ). Well-designed cheap professional programmer, Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultr-small code -runs faster, supports bilingual (English and Chinese), it can automatically identify the operating system to install and run under WIN 2000/WIN XP/WIN 2003/WIN 2008/WIN VISTA /WIN7/WIN8/WIN10 (32BIit/64Bit). TL866II Plus VS Old Version Description ***************TL866II Plus********* TL866A ***********TL866CS Pin Dectected ************YES *******************No *****************No 1.8V supported ***********YES *******************No *****************No NAND FLASH *************YES ******************No *****************No ISP for 24/93/25 MCU *****YES *************only MCU *************No VPP Max.Voltage ********18V *******************21V ***************21V VCC Voltage ************1.8V-6.5V ************3.3V-6.5V *********3.3V-6.5 Package Included: 1. SOP8--DIP8 Adapter 2. PLCC44--DIP40 Adapter 3. PLCC32--DIP32 Adapter 4 PLCC28--DIP24 Adapter 5. PLCC20--DIP20 Adapter 6. OP16/SOP8/MSOP8/TSSOP8/SSOP8 adapter 7. PLCC IC Extractor 8. ICSP cable 9. USB 2.0 12Mbps Interface cable 10.Installation CD 11. TL866II Plus Programmer
