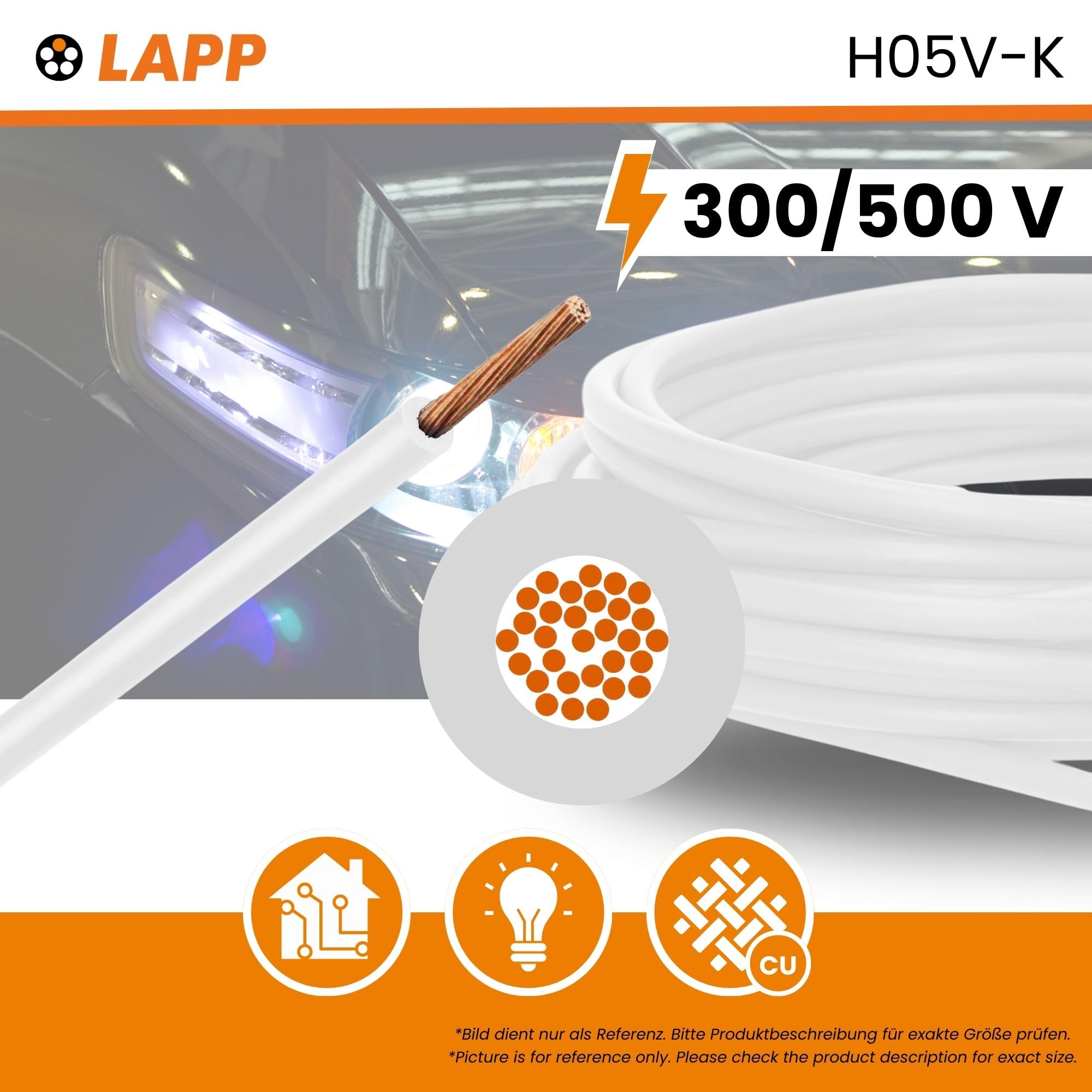

Lapp Cable PVC Cable H05V-K 1 x 0.75 mm² 100 m White

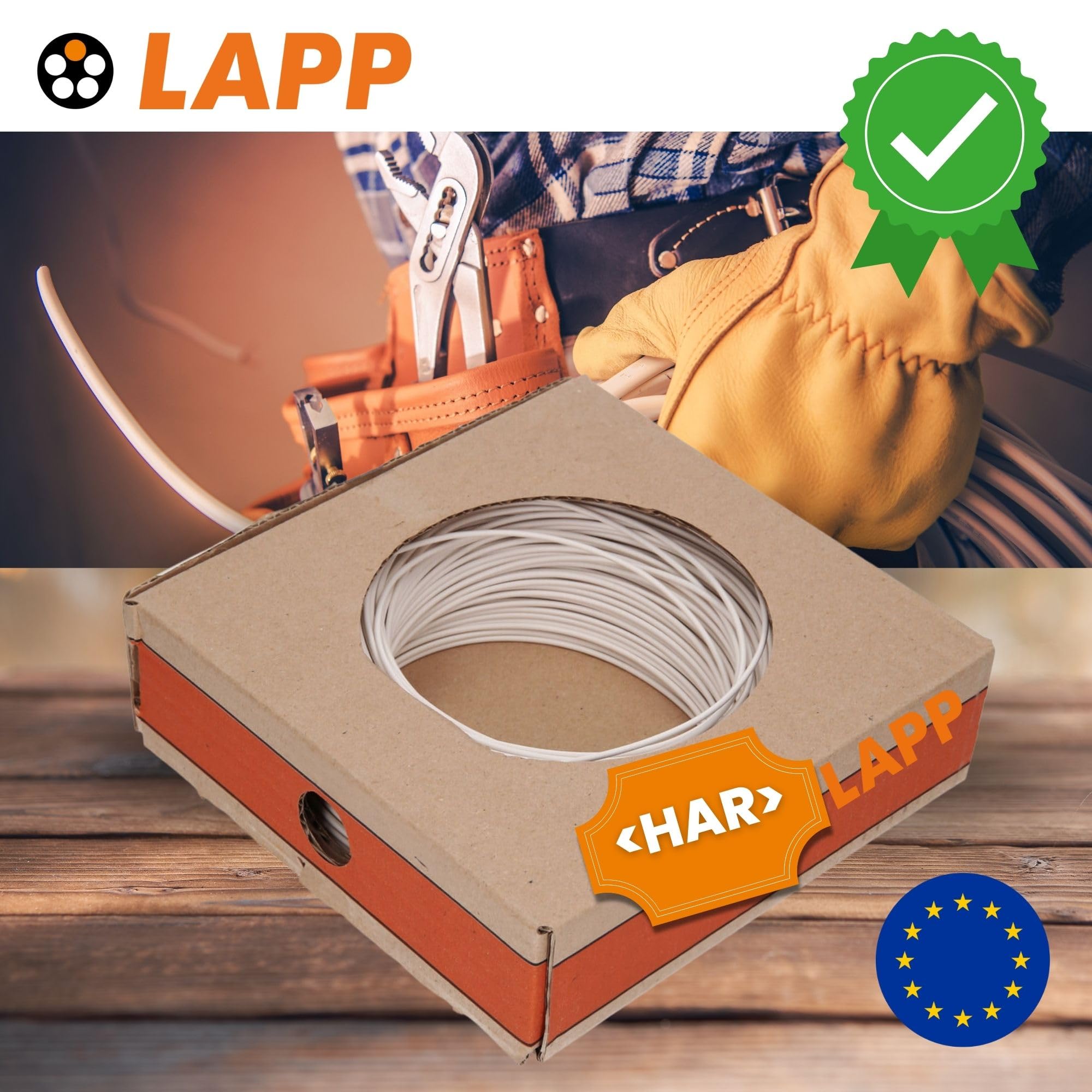

• Price per package á 100 meters
• H05V-K HAR, connection and control cable, PVC, 300/500 V, wiring machines and control cabinets, flame retardant, class 5/fine strand, permanently installed,
• The HAR marking on cables also stands for an international recognition of test marks/verifications of national certification institutes, e.g. in the form VDE HAR. The HAR marking is of particular importance for the movement of goods between European countries.
• Fields of application: Internal wiring of devices, Protected routing in and on luminaires, Signaling systems on and under plaster in pipes.
• Fine stranded copper conductor made of bare copper wires according to stranded conductor class 5 as per IEC 60228/ VDE 0295 Core insulation based on PVC

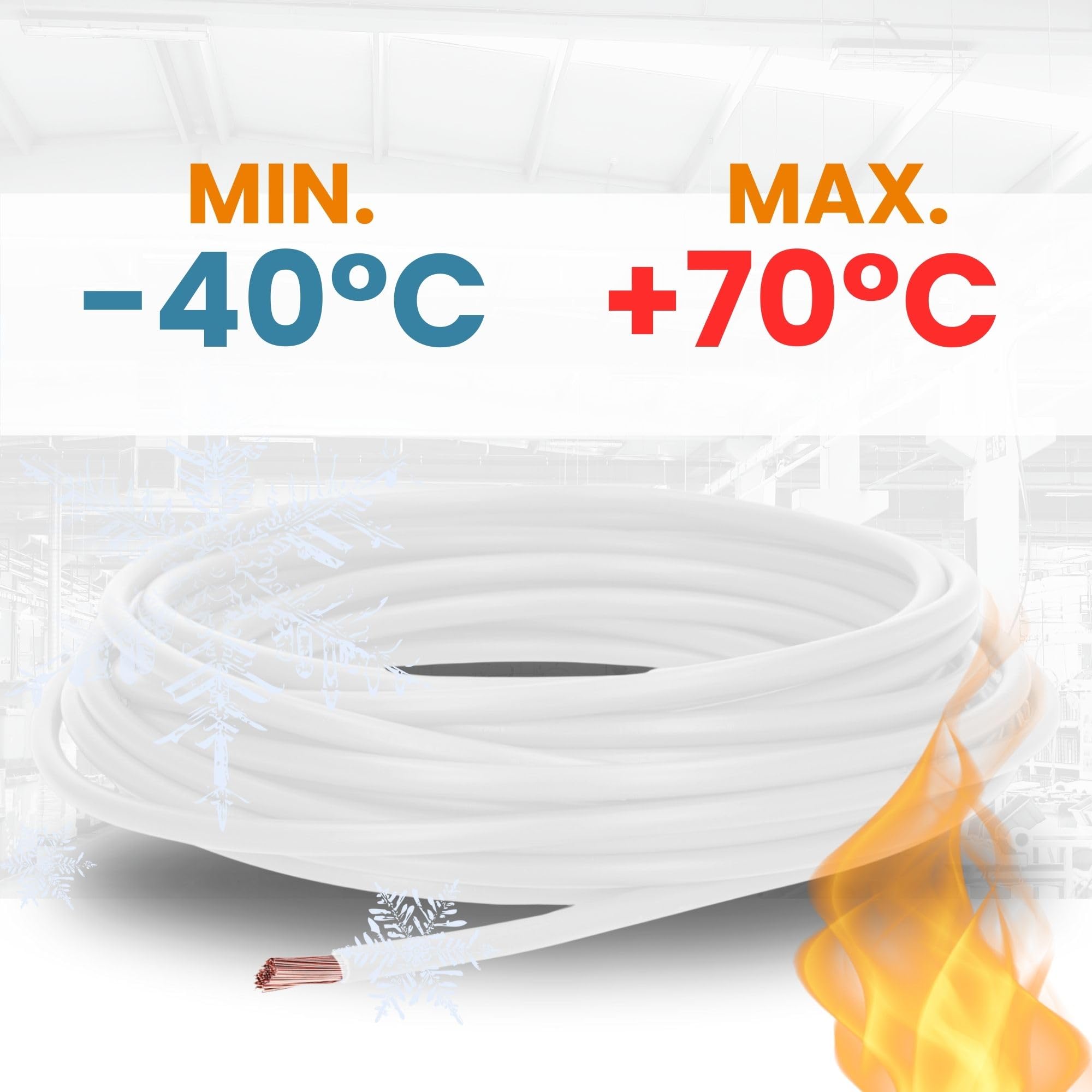

Connection and control cable H05V-K - Fine stranded copper conductor made of bare copper wires according to stranded conductor class 5 lt. IEC 60228 / VDE 0295 - Core insulation on PVC basis Application areas: Internal wiring of devices, Protected installation in and on luminaires, Signaling systems on and under plaster in pipes Technical data: Classification ETIM 5: ETIM 5.0 Class-ID EC000993; ETIM 5.0 Class-Description core cable Classification ETIM 6: ETIM 6.0 Class-ID EC000993; ETIM 6.0 Class-Description core cable Conductor construction: Fine stranded according to VDE 0295 Class 5 / IEC 60228 Class 5 Minimum bending radius: According to EN 50565-1; 4x outer diameter (AD) for intended use; 2x AD for careful bending Nominal voltage: U 300/500 V Test voltage: 2000V Current carrying capacity: VDE 0298 part 4; EN 50565-1 / VDE 0298-565-1 Temperature range: Fixed relocated -40°C - +80°C ; Moving +5°C - +70°C Note: Unless otherwise specified, all values shown for the product are nominal values.
