LampStation 20 Pack M20 20mm Cable Glands, IP68 Waterproof Black Nylon Compression Glands with Locknut & Washer for 6-12mm Cables - Outdoor, Junction Box & Electrical Enclosure Connectors

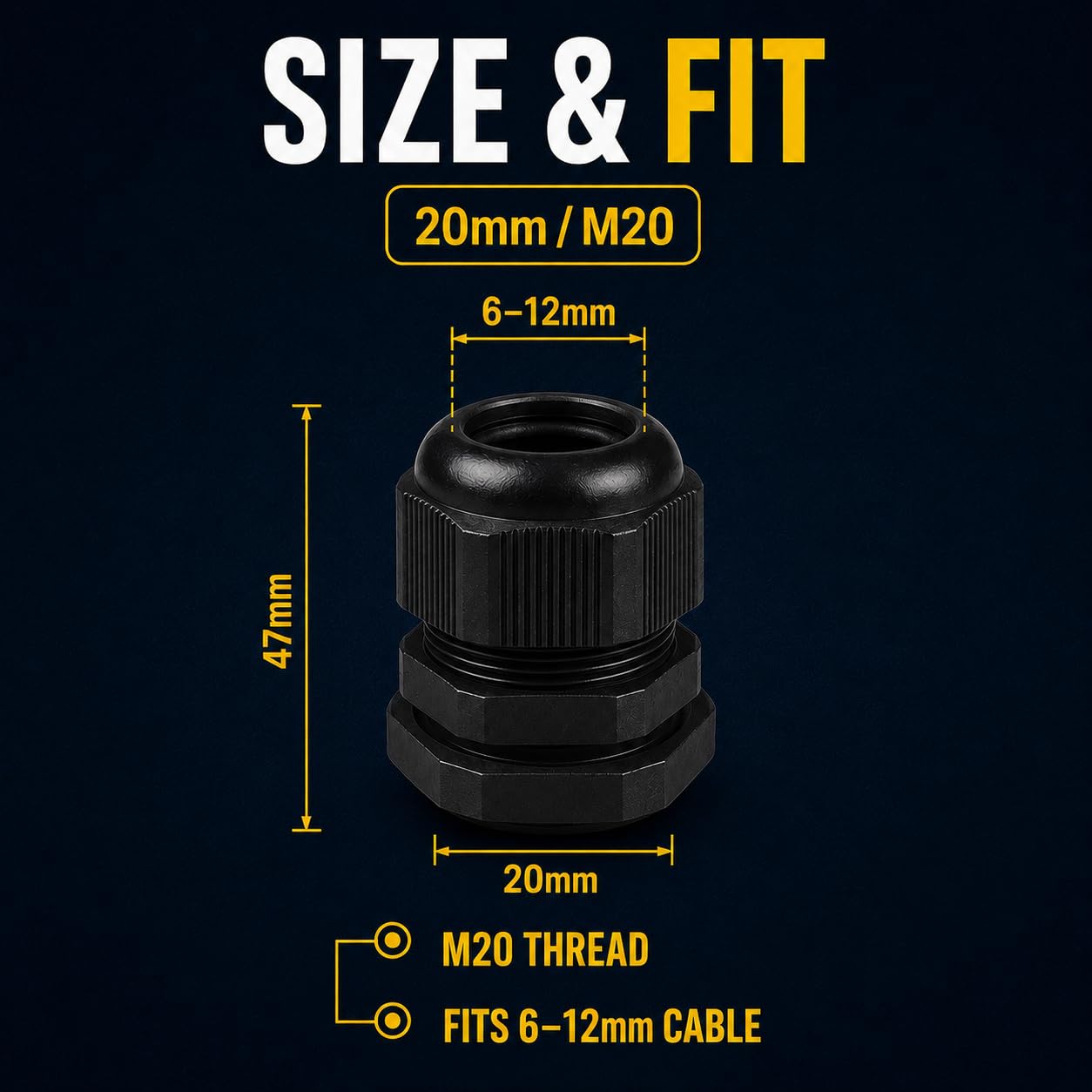

• IP68 WATERPROOF & DUST-TIGHT SEAL: M20 x 1.5 thread with 20mm body accepts 6-12mm cables. Sealed against rain, dust and immersion for indoor and outdoor electrical work.
• EACH GLAND INCLUDES 5 PARTS: Dome Nut, Compression Seal, Gland Body, Sealing Washer and Locknut supplied per gland for fast single-handed installation - no extra parts to source.
• PREMIUM NYLON 6/6 (PA66) BUILD: UV-stable, halogen-free, RoHS and REACH compliant. UL94 V-2 flame retardant. Operating range -40°C to +120°C for demanding environments.
• STRAIN RELIEF CABLE ENTRY GLAND: Threaded compression design grips the cable to prevent pull-out and vibration loosening. Reliable glands for electrical boxes, junction boxes and switch boxes.
• UPGRADE FROM CABLE GROMMETS FOR HOLES: Waterproof replacement for 20mm grommets for electrical boxes and cable hole covers. Suits outdoor LED lighting, CCTV, alarms and garden installations.

LampStation M20 Cable Glands provide an IP68 dust-tight and waterproof seal for cables passing through electrical enclosures, junction boxes and outdoor housings. With an M20 x 1.5 thread and 20mm outer body, each cable gland accepts cables from 6mm to 12mm in diameter - suitable for standard household wiring, outdoor LED lighting, CCTV, alarm systems and low-voltage outdoor power runs. Every M20 cable gland is supplied complete with all five working components - Dome Nut, Compression Seal, Gland Body, Sealing Washer and Locknut - for fast single-handed installation with no extra parts to source. The Nylon 6/6 (PA66) body is UV-stable, halogen-free, RoHS and REACH compliant, and rated for continuous use from -40°C to +120°C. Product Specifications: Thread Size: M20 x 1.5 Body Diameter: 20mm Cable Acceptance: 6mm to 12mm Overall Height: 47mm Material: Nylon 6/6 (PA66) Operating Temperature: -40°C to +120°C Ingress Protection: IP68 dust-tight and waterproof Flame Rating: UL94 V-2 Compliance: RoHS, REACH, halogen-free Colour Options: Black, White, Grey, Red Pack Quantities: 5, 10, 15, 20, 25 or 30 glands Typical Applications: Outdoor LED lighting and floodlights CCTV camera cable entry into housings Alarm and security system wiring Garden and landscape lighting installations Low-voltage outdoor power runs Marine, agricultural and greenhouse enclosures Solar PV junction box entry Switch box and control panel sealing This 20mm M20 cable gland makes an effective cable entry gland and a long-lasting waterproof upgrade from flat cable grommets for holes, cable hole covers and 20mm grommets for electrical boxes. The integrated strain relief grips the cable to prevent vibration loosening and pull-out, while the threaded compression design makes these reliable glands for electrical boxes, junction boxes and outdoor enclosures.
