KurDunly 7 inch Wireless WiFi Video Doorbell Intercom System Tuya Indoor Monitor with Wired Door Phone Call Panel Night Vision for Home Villa

• Tuya App: Supports to connect the device with Tuya APP via wireless Wifi. Can realize the functions of mobile phone remote unlocking, intercom, monitoring, photographing, video recording, viewing records by Tuya APP. Tuya APP is suitable for Android and iOS system.

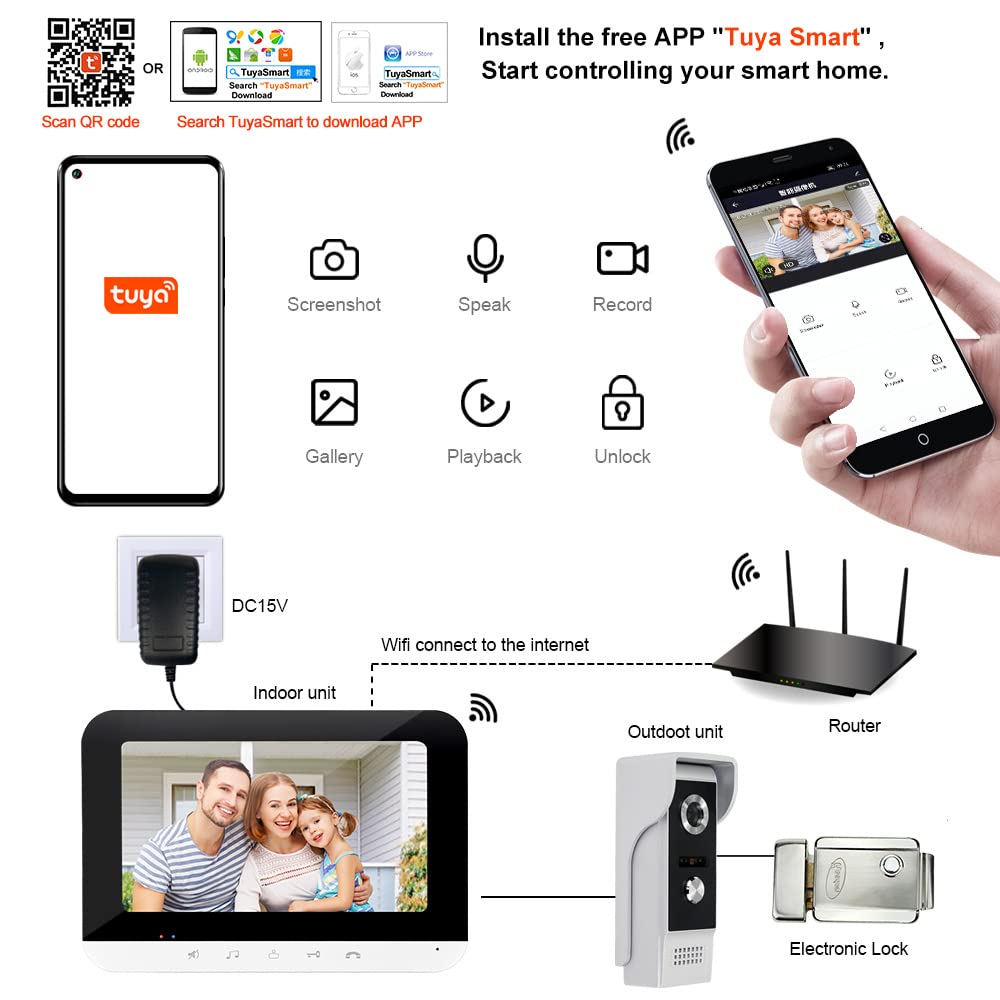

• Connection & Installation: Using 4-core cable to connect the indoor monitor screen with the outdoor camera. Wall-mounted installation, it is very easy. Can support to connect max 3 same type of indoor monitors at the same time.

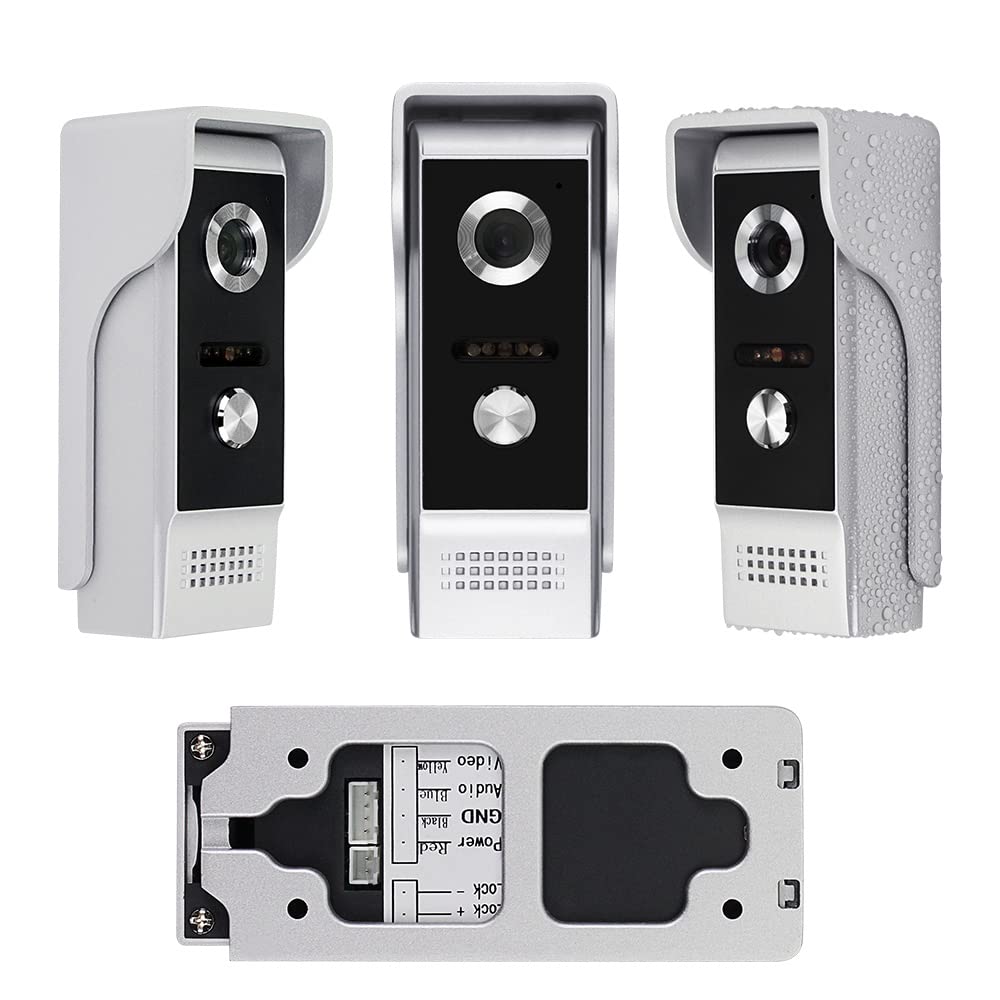

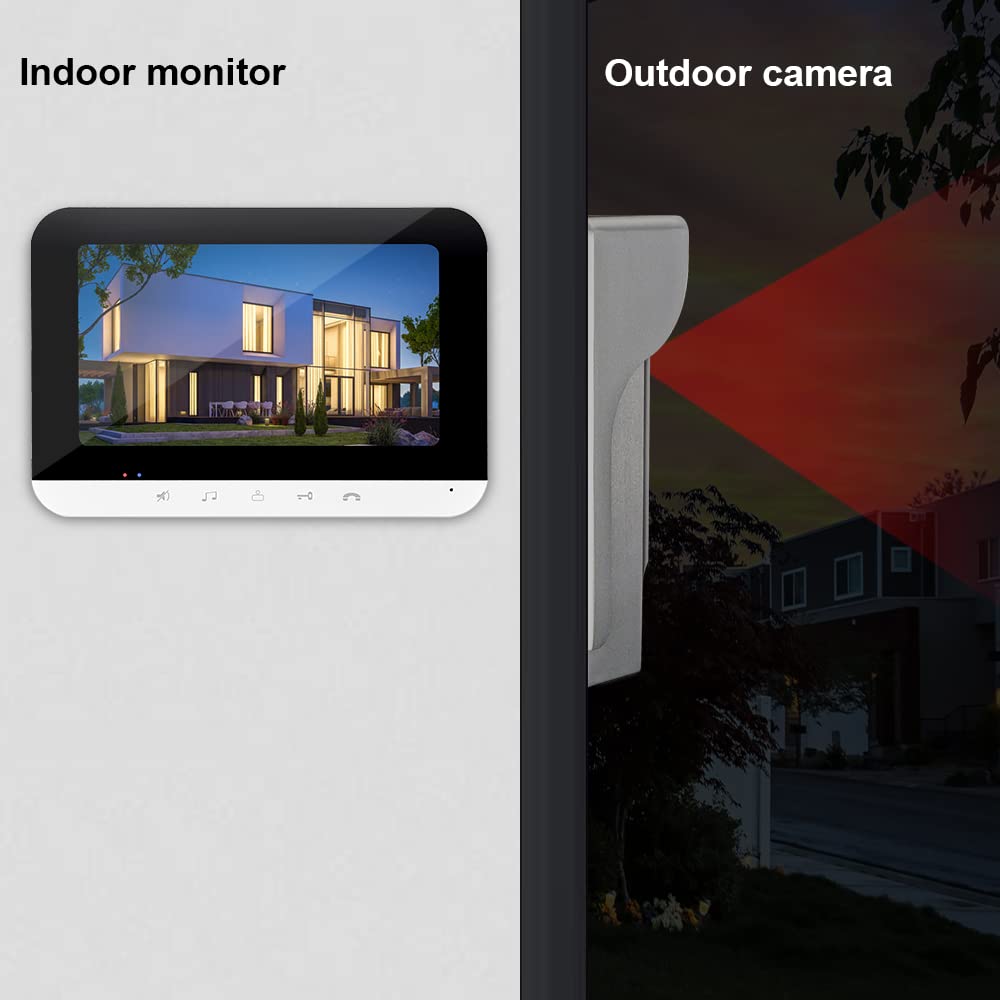

• Outdoor Camera: the outdoor camera is made of aluminium alloy and ABS plastic materia, with a 700TVL night vision camera. Equipped with a rainproof cover, can be used at outside.

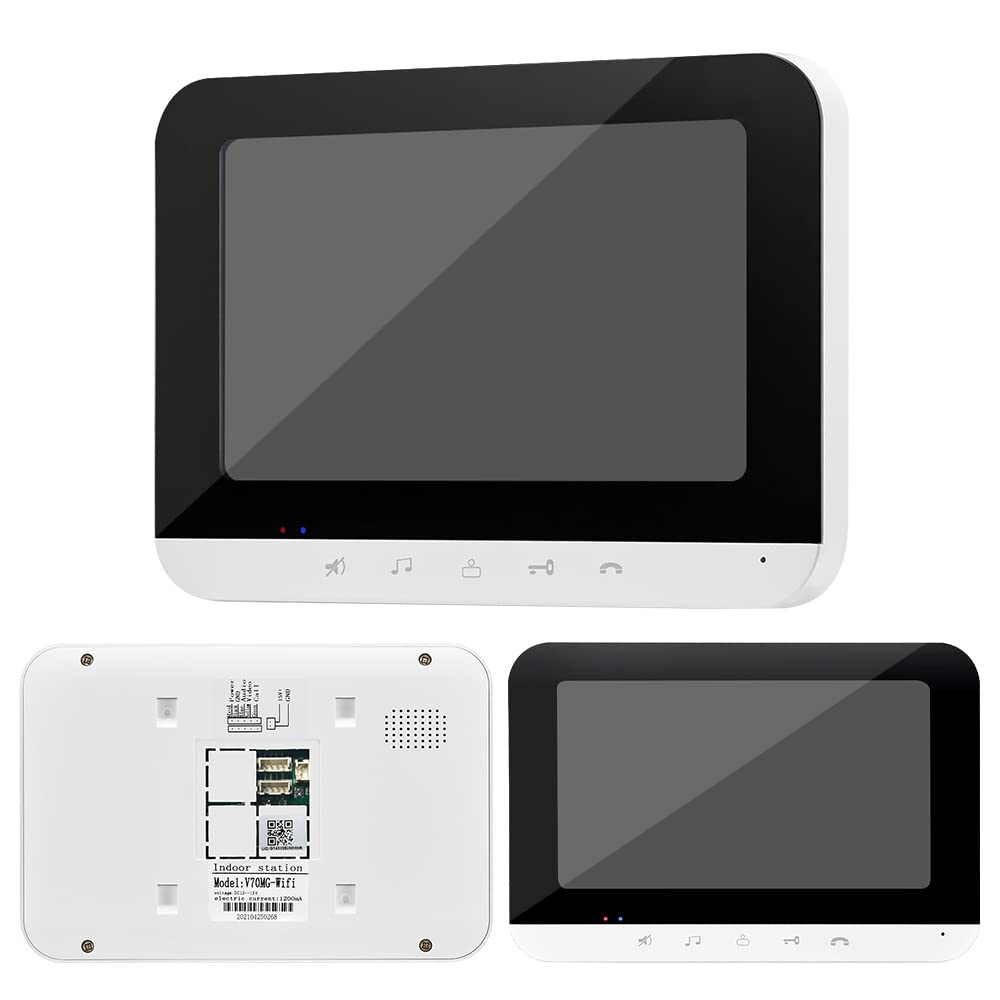

• Indoor Monitor: with 7inch TFT color display screen, support two-way audio, unlock, monitor, ringing, speaking,etc. Can set ringback, mute mode. Supports WIFI connection.
• Unlocking: can work with a DC 12V electric lock. Please noted that if you use electric magnetic lock, electric bolt lock or electric strike lock, please add a power supply control to connect the lock with this video intercom system.
• Extend Storage: Supports to insert a TF card (max 64G) to record the historical visitor. But the TF card is not included in the package. If you need it, please buy it in additional.

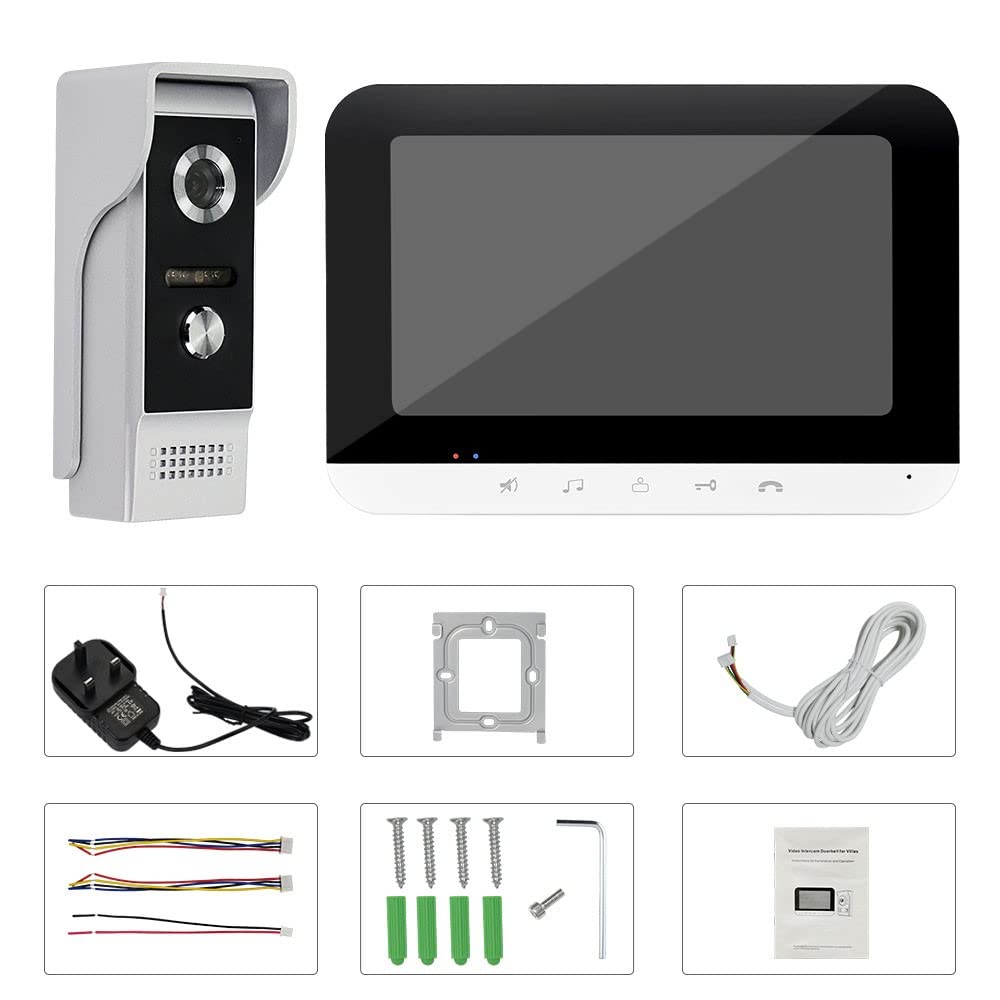

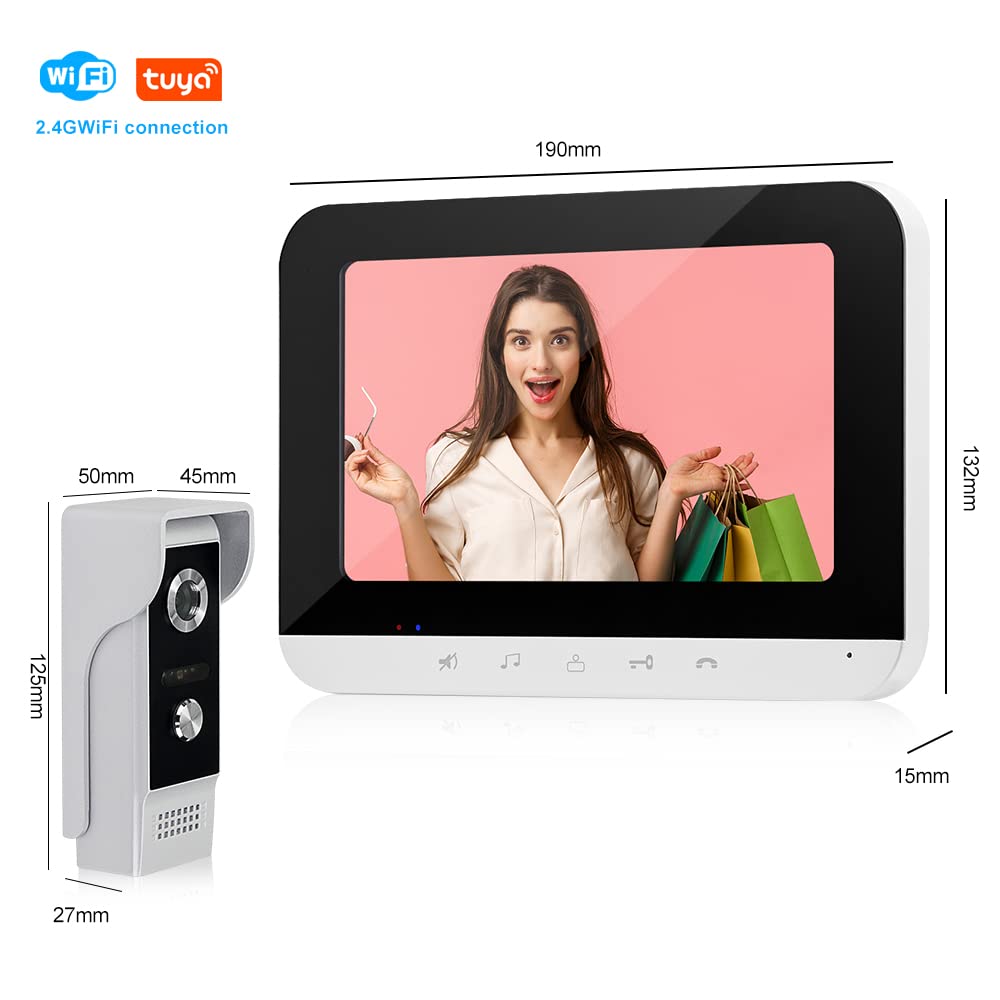

Introduction: This is a WIFI Tuya video intercom doorbell system, including a 7 inch color indoor monitor screen and a 700 TVL outdoor camera. The max distance between indoor monitor and outdoor camera is about 100 metters. Product Parameter: Outdoor Camera Camera: 700 line CMOS color digital camera with super backlight compensation Camera Lens: CMOS Resolution: 700 TV Line Night Vision: infrared LED Light, visible within 1.5 meters Vision Angle: 70° wide angle Power: supply from indoor unit Power Consumption: Standby: <2W; Working: <5W Camera: 30W Wiring Method: RVV4 core wire connection Working Temperature: -20°C ~ +50°C Material: ABS plastic, aluminum wire drawing Waterproof: IP55 waterproof, equipped with a rainproof cover Installation: Wall mounted Dimension: 50*27*125mm Indoor Monitor Screen: 7 inches color TFT-LCD screen Effective Pixels (Resolution): 800 * 480 Intercom / Monitor Time: 90 s Ringtone: 25 chord ringtones optional Adapter Input: AC100 - 240V / 50-60HZ Adapter Output: DC 15V / 1.2A Room to Room intercom: Yes Wiring Method: RVV4 wire connection Multiple Intercom: up to 4 indoor monitors Multiple doorbell: up to 2 outdoor units Use Distance: not over 100m Material: ABS plastic Working Temperature: -35℃ ~ 55℃ Installation: Wall mounted Dimension: 190*132*15mm Function: intercom, monitoring, unlocking, door bell and so on. Point for attention: The product is equipped with a white cable only 4 meters long for testing. Please buy longer cable in additional, if you need. Before installing, it is necessarry to make a testing by using the equipped power adapter and cables to connect the indoor monitor and outdoor unit.
