KooingTech Solar Isolator Switch, Circuit Breaker with IP65, MCB 2P DC 500V 32A Solar Panel Kit with Cable and PV Connector

• SOLAR PANEL CONNECTORS: Includes built-in PV connectors and MCB for efficient energy transmission. Provides overvoltage/overload protection, extends solar system lifespan. IP65 rating ensures safe operation

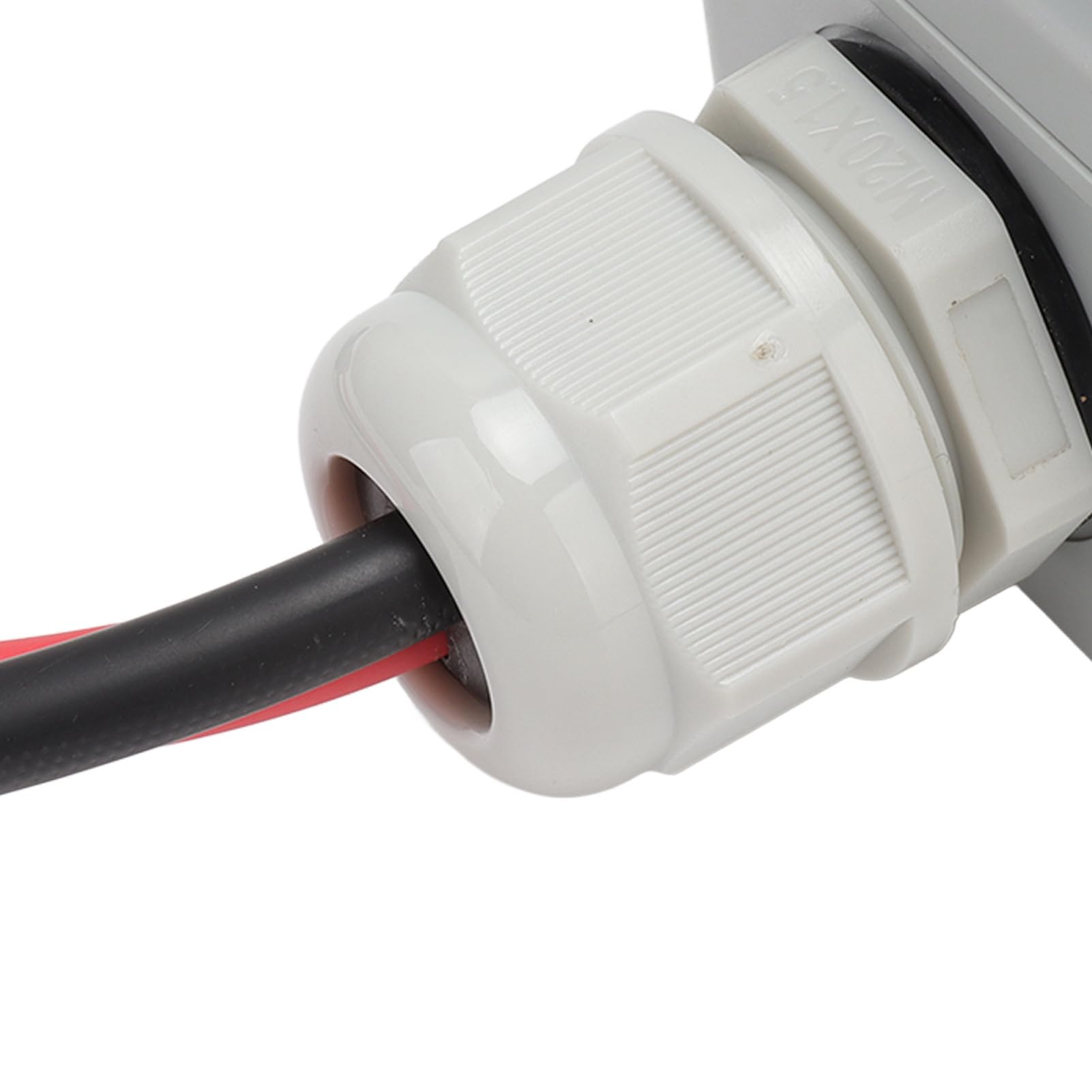

• PLUG-AND-PLAY SOLAR CONNECTORS: Pre-installed cable glands (M20 6mm*2) with male/female connectors. Transparent cover allows quick status monitoring during extreme weather
• CIRCUIT BREAKER FOR MULTIPLE SCENES: Compatible with 500V solar grids, RVs, and household systems. Compact design (120x55x90mm/4.7x2.2x3.5in) fits indoor/outdoor spaces
• SOLAR PANEL CABLE INTEGRATION: Installed between panels and inverters. Dual cable glands support 32A current with reinforced polycarbonate/ABS housing
• OUTDOOR SWITCH BOX SPECS: Rated 32A/500V DC, IP65 water-proof. Includes wrench, screws, and user manual. Weighs 0.5kg/1.1lb for portability

Specification Item Type: Circuit Breaker Model: LQX C32.2 Material: Polycarbonate, ABS Input: 1 String Output: 1 String Maximum Voltage: 500V Maximum DC Short Circuit Input Current Isc: 32A, replaceable. Protection Grade: IP65 Product Size: Approx. 120 x 55 x 90mm / 4.72 x 2.17 x 3.54in Cable Inlet: M20 6mm*2 Output Cable Gland: M20 6mm*2 Rated Insulation Voltage Ui: 500V Rated Current Le: 32A Maximum Working Voltage Ucpv: 500V Rated Working Voltage: 500V Package List 1 x Circuit Breaker 4 x Connector (2pcs male connector, 2pcs female connector) 4 x Screw 4 x Wall Plug 1 x PV Wrench 1 x User Manual
