KNIPEX Self-Adjusting Crimping Pliers for Wire Ferrules with Front Loading, 0.08-16 mm², Square Compression, Crimping Tool, Wire Crimper, 97 53 09

• For crimping wire ferrules according to DIN 46228 parts 1 + 4
• Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die

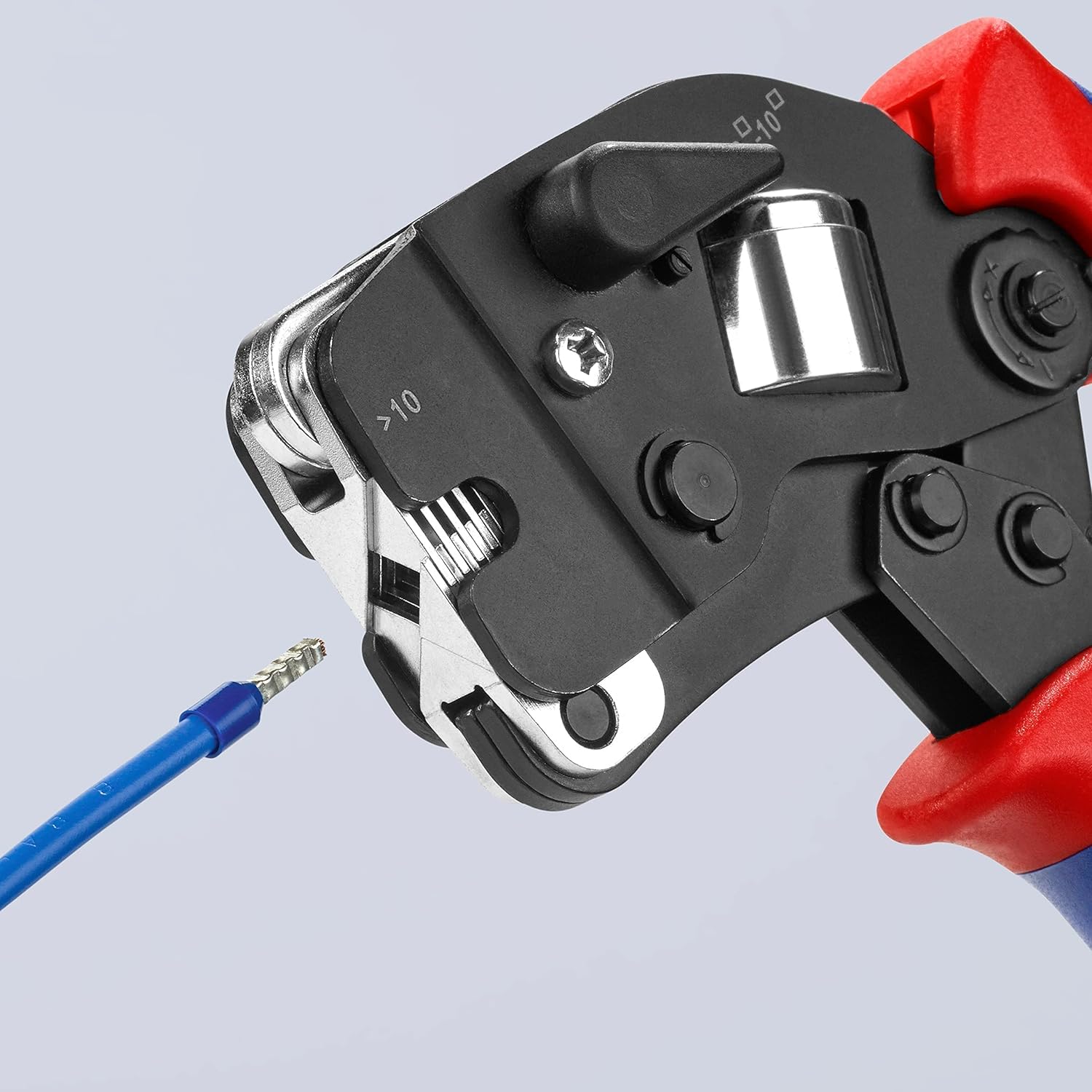

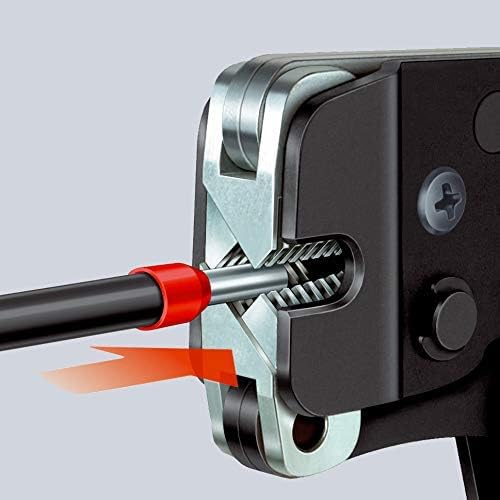

• Frontal insertion of the wire ferrules into the pliers
• Repetitive, high crimping quality due to ratchet mechanism (unlockable)
• Precise, factory calibrated crimping pressure

Product Description 97 53 09 Self-Adjusting Crimping Pliers for End Sleeves (ferrules) For crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4 Self-adjusting adaptation to the desired end sleeve (ferrule) size: no wrong crimps caused by using the wrong die Front loading of the end sleeves (ferrules) into the tool Repetitive, high crimping quality due to integral lock (self-releasing mechanism) Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable Optimum transmission of force thanks to toggle lever for fatigue-reduced operation Handy shape and low weight provide high operation comfort Chrome vanadium electric steel in special quality, oil-hardened Compression from 0.08 - 10.0 and 16.0 mm in one profile With selector lever for setting the crimping area either to 0.08 - 10 mm or 16 mm Suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm or 2 x AWG 8 Pliers: burnished Handles: with multi-component grips AWG: 28 - 5 Applications: End Sleeves (ferrules) Capacity in square millimetres: 0.08 - 10 + 16 mm Number of crimping positions: 1 Length: 190 mm Net weight: 486 g Box Contains 97 53 09 Self-Adjusting Crimping Pliers for End Sleeves (ferrules)
