KNIPEX X-Cut Compact Diagonal Cutter High Lever Transmission Self-Service Card Chrome-Plated Insulated with Multi-Component Grips, 73 06 160 SB

• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Box-joint design: highest stability with low weight
• Doubly supported joint axis for heavy duty

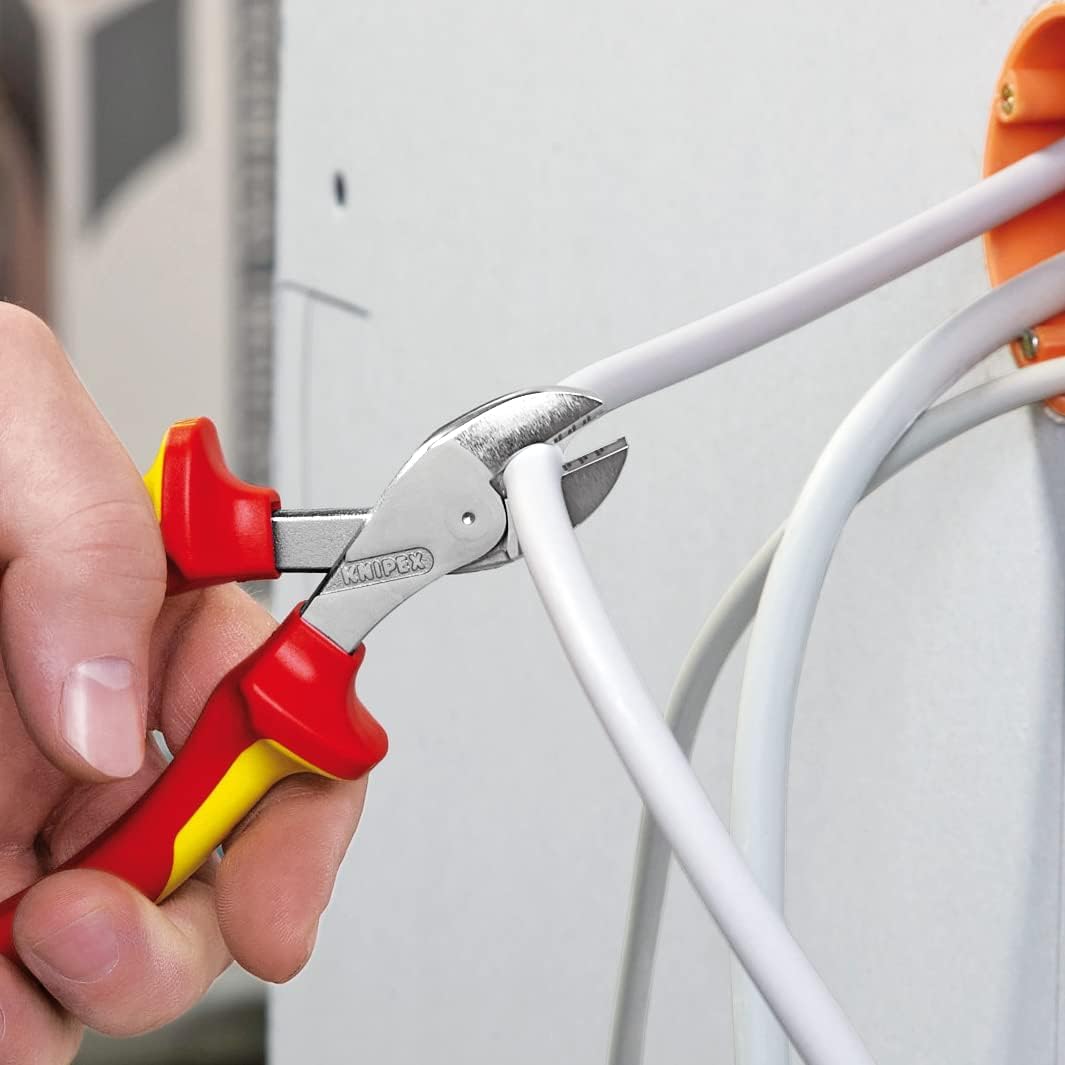

• Large opening width for thicker cables

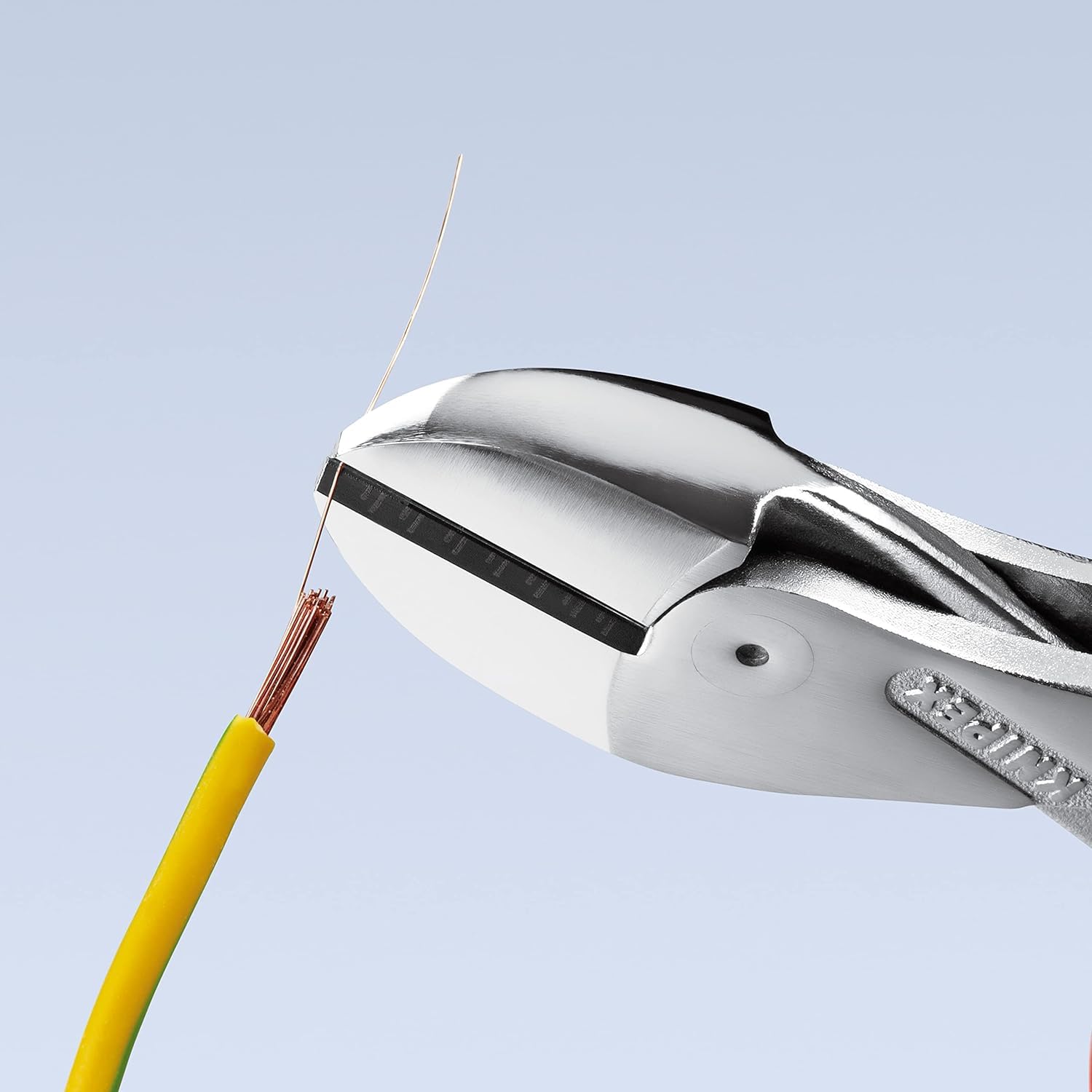

• Cuts precisely, even through fine copper wires

73 06 160 SB KNIPEX X-Cut cuts finest strands as well as multi-core cables and piano wires. Powerful, light and universal. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Box-joint design: highest stability with low weight. Doubly supported joint axis for heavy duty. Large opening width for thicker cables. Cuts precisely, even through fine copper wires. Compact, low-weight construction. Universally usable, in the assembly, maintenance and production. 40% less force required compared with standard diagonal cutters of the same length. self-service card/blister. Cutting capacities soft wire (diameter) : Ø 4.8 mm Cutting capacities medium hard wire (diameter) : Ø 3.8 mm Cutting capacities hard wire (diameter) : Ø 2.7 mm Cutting capacities piano wire (diameter) : Ø 2.2 mm Cutting capacity copper cable, multiple-stranded : Ø 12.0 mm VDE tested : yes
