Sensky BS010WL 12V-30V Motion Sensor Detector Light Switch Light Sensor Switch Distance Time Light Adjustable

• Sensitivity, light sensor and delay time is adjustable.
• Infrared detection controller, adopt infrared detection way to control load switch.
• Automatically switches lamps on and off when someone enters the detection zone.
• PIR sensor has an effective range of 10cm and diminished sensing of a moving human body to 7m.

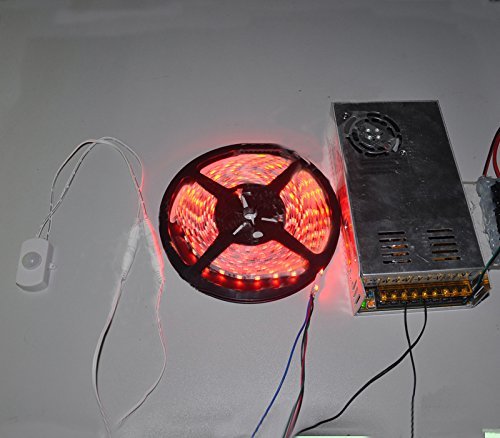

• Widely used for Motion-activated LED lighting,LED strips,Alarm,Security System,Automatic Sensory Device and more.

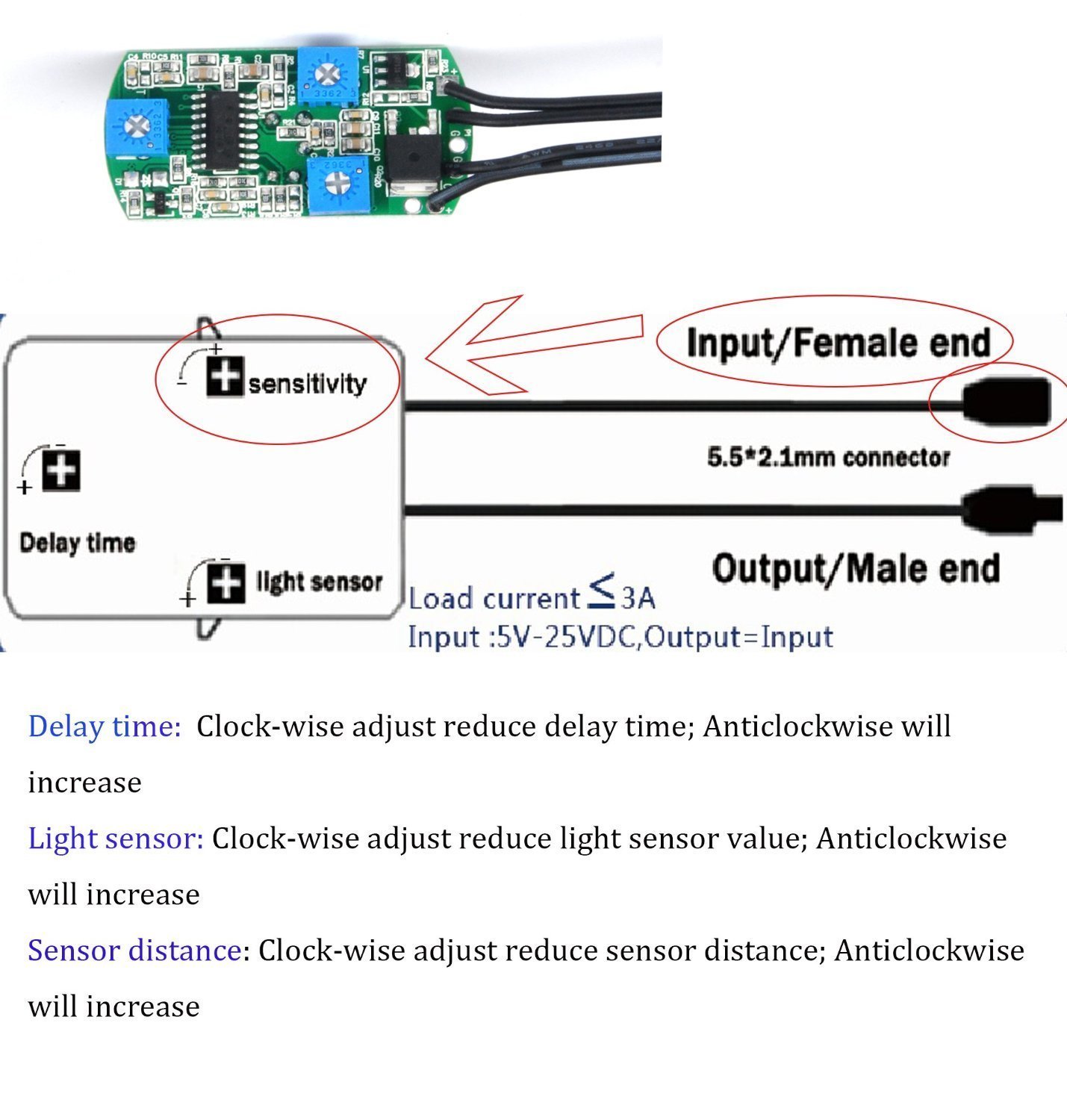

Description KKIWI PIR Motion Sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted by human body. Operating voltage is DC 12-30V, and output voltage is equal to input voltage. Widely used for Motion-activated LED lighting, LED strips, Alarm, Security System, Automatic Sensory Device and more Features Delay time: Default setting 5-25sec(2-280 Seconds adjustable). Sensor distance: Default setting 4M-7M(10CM-7M adjustable). Light sensor: Default setting 20lux (10-300lux adjustable). Automatic Induction: When people enter into the range of induction, it will output a voltage equal to input voltage,after the delay time, it will output 0V; during the delay time if motion detected, the delay time will reset, and start a new delay time. Specifications Operating voltage: DC 12V-30V Load current: 3A Static power loss: ≤ 50 uA Trigger way: Continuous triggering Detecting range: ≤ 110 degrees cone angle, ≤ 5-7 meters Light sensor: YES Blockade time: 0 seconds Size: 48*25*14 mm Note 1.Don't over load or short circuit. 2.Don't exposed to direct sun light or lighting, big wind, near a heater or air condition. 3.Don't fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though. 4.The PIR Sensor requires a "warm-up" time in order to function properly,about 10s to1min, depend on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready. 5. It's just a sensor switch, not including a light.
