Kit Power Over Ethernet (PoE Injector + Splitter)

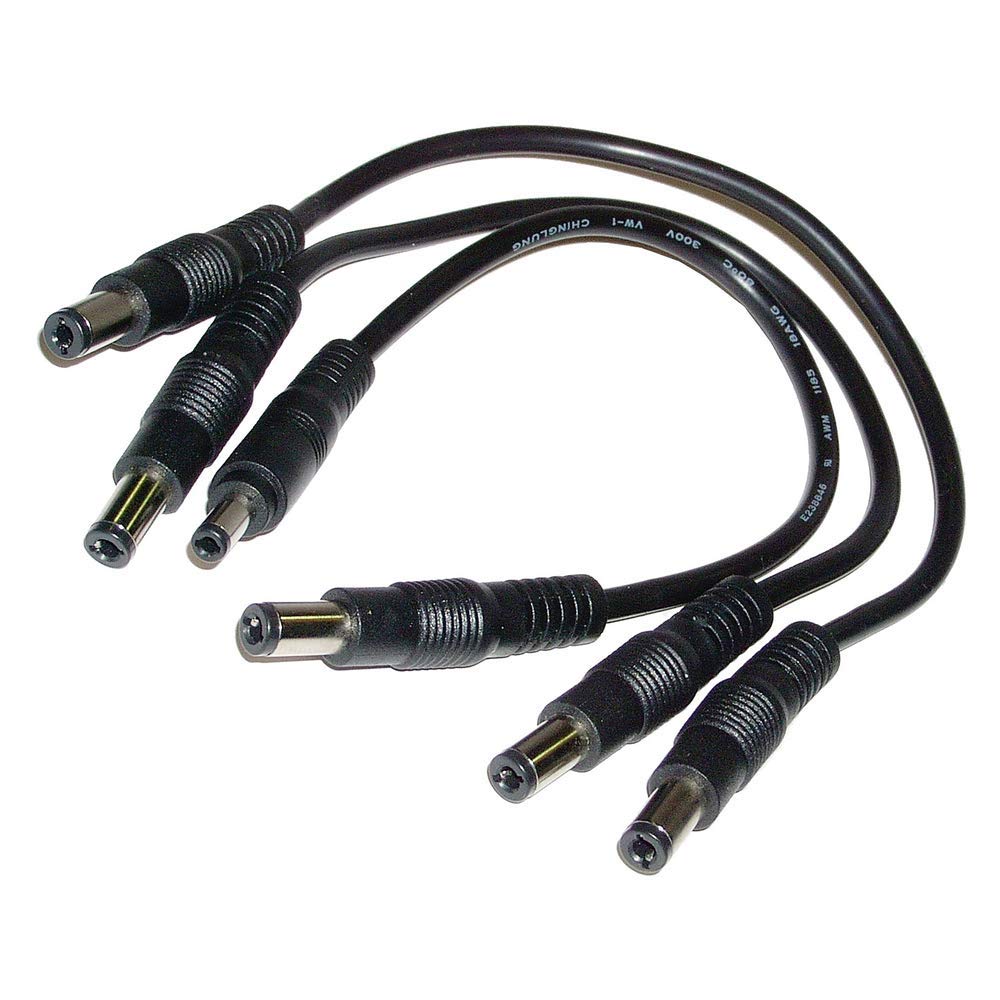

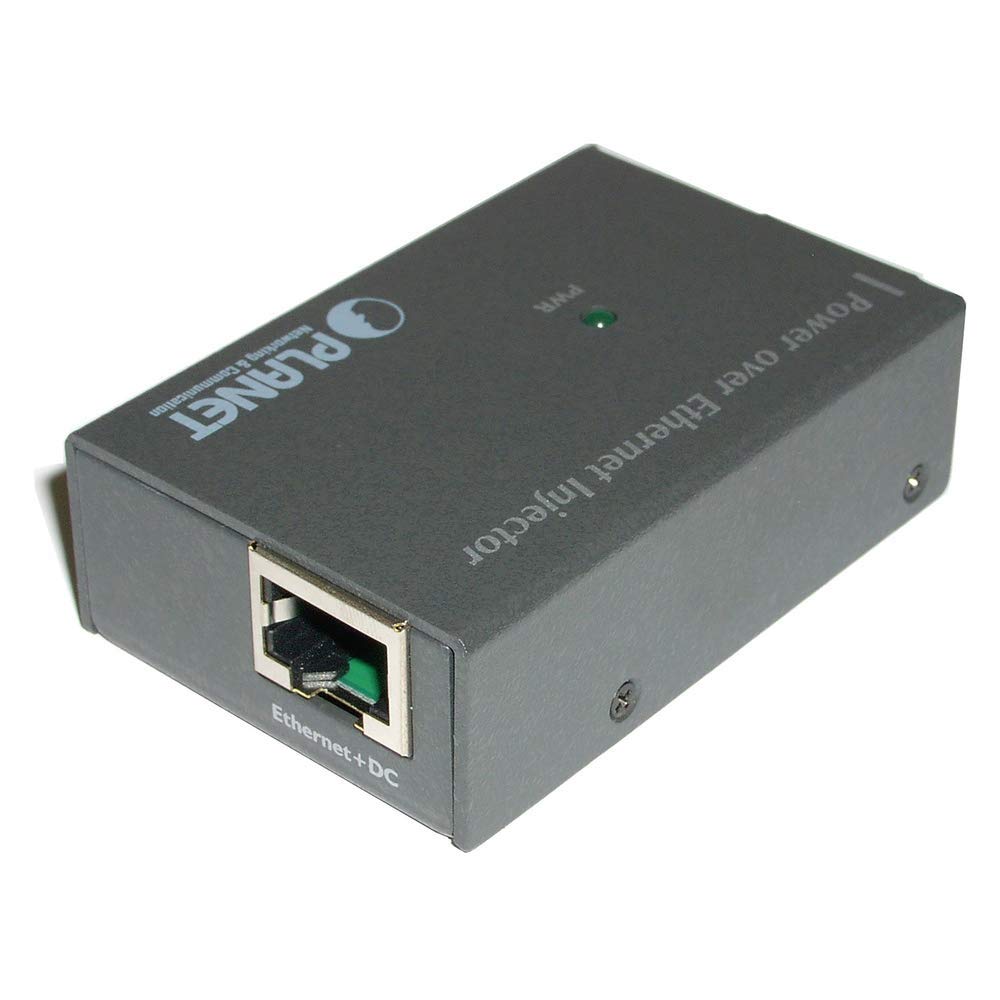

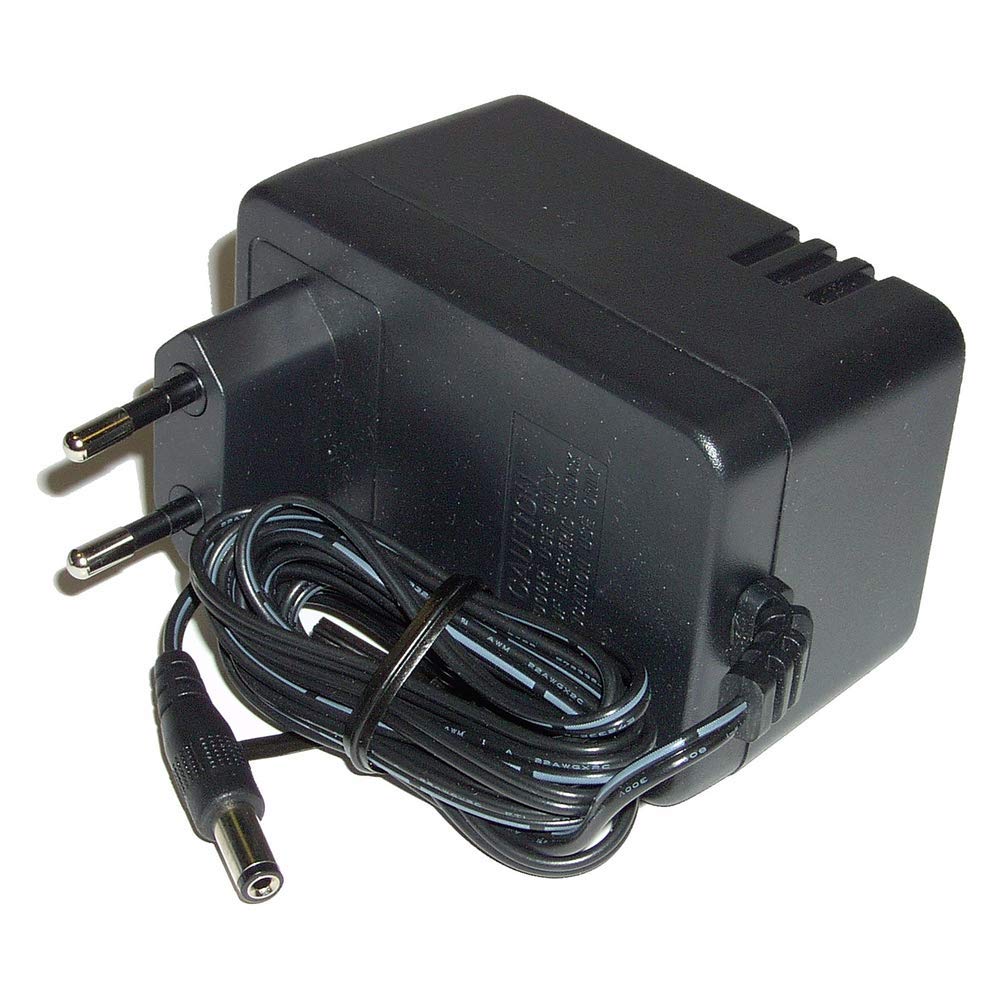

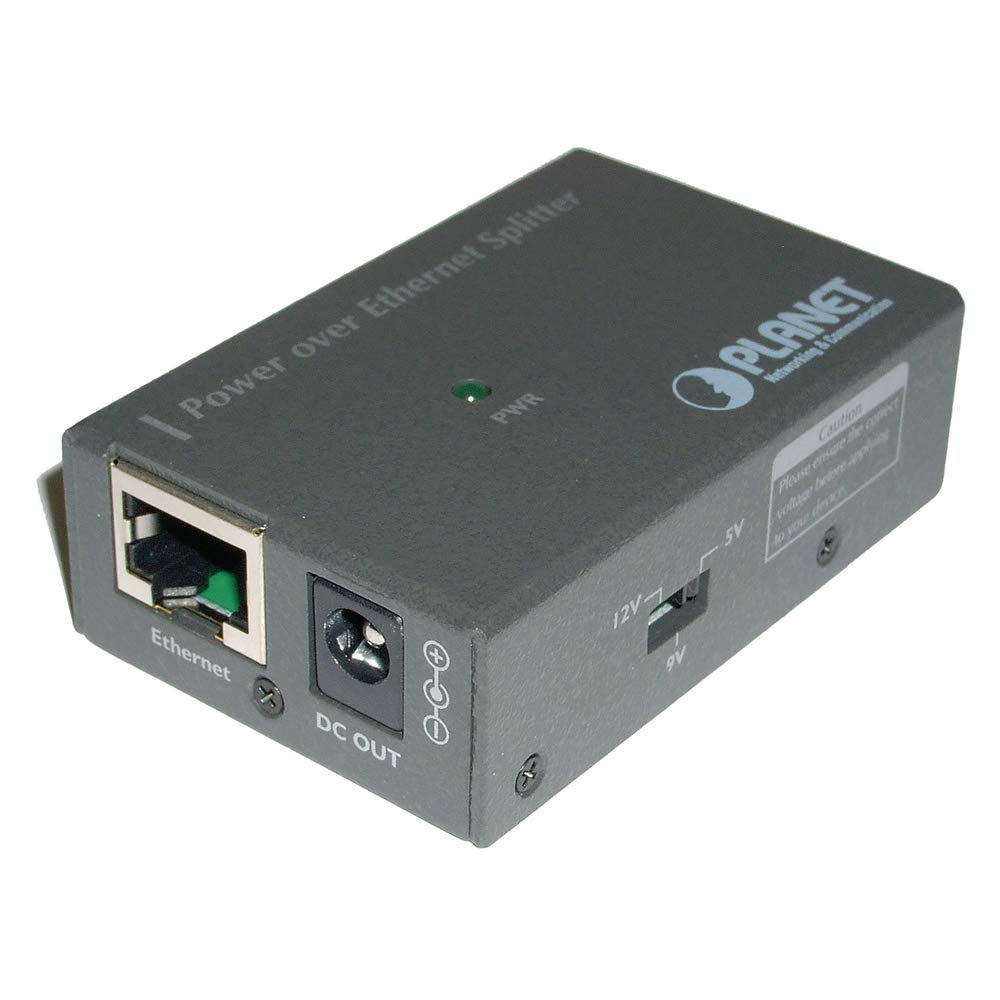

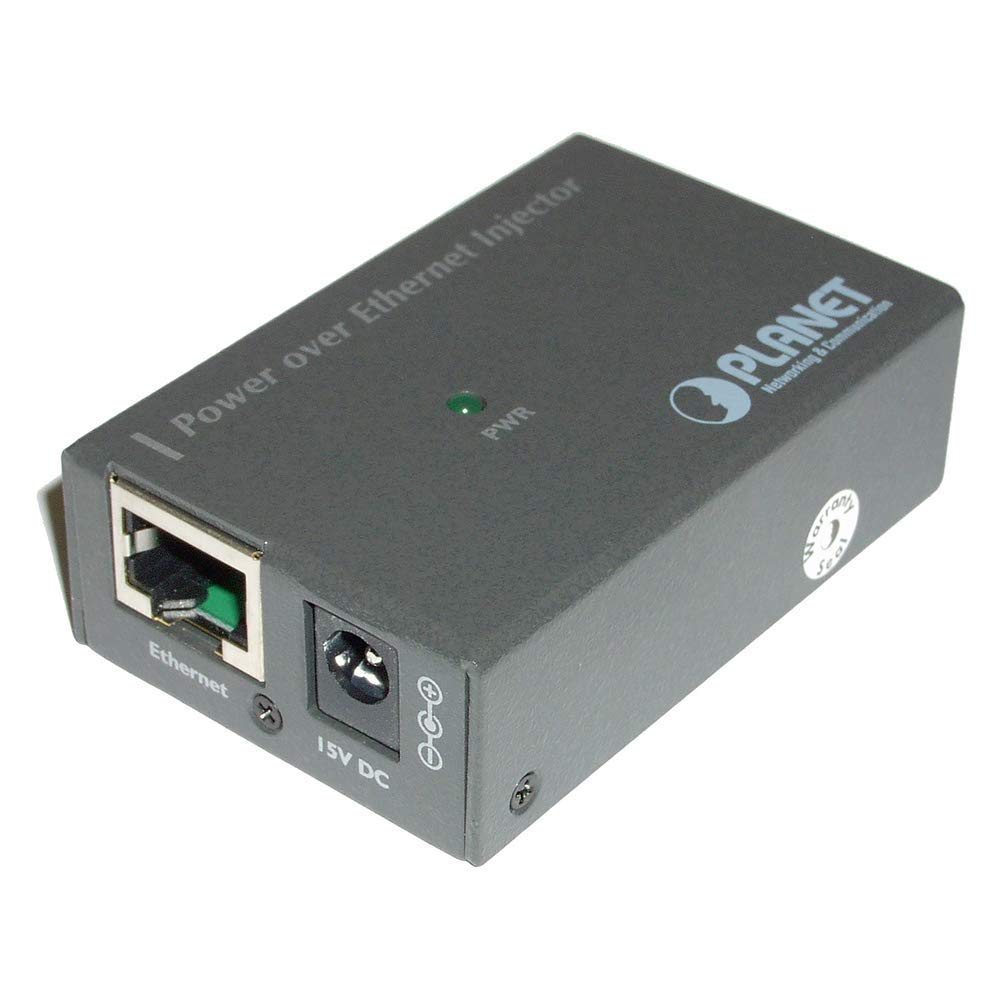

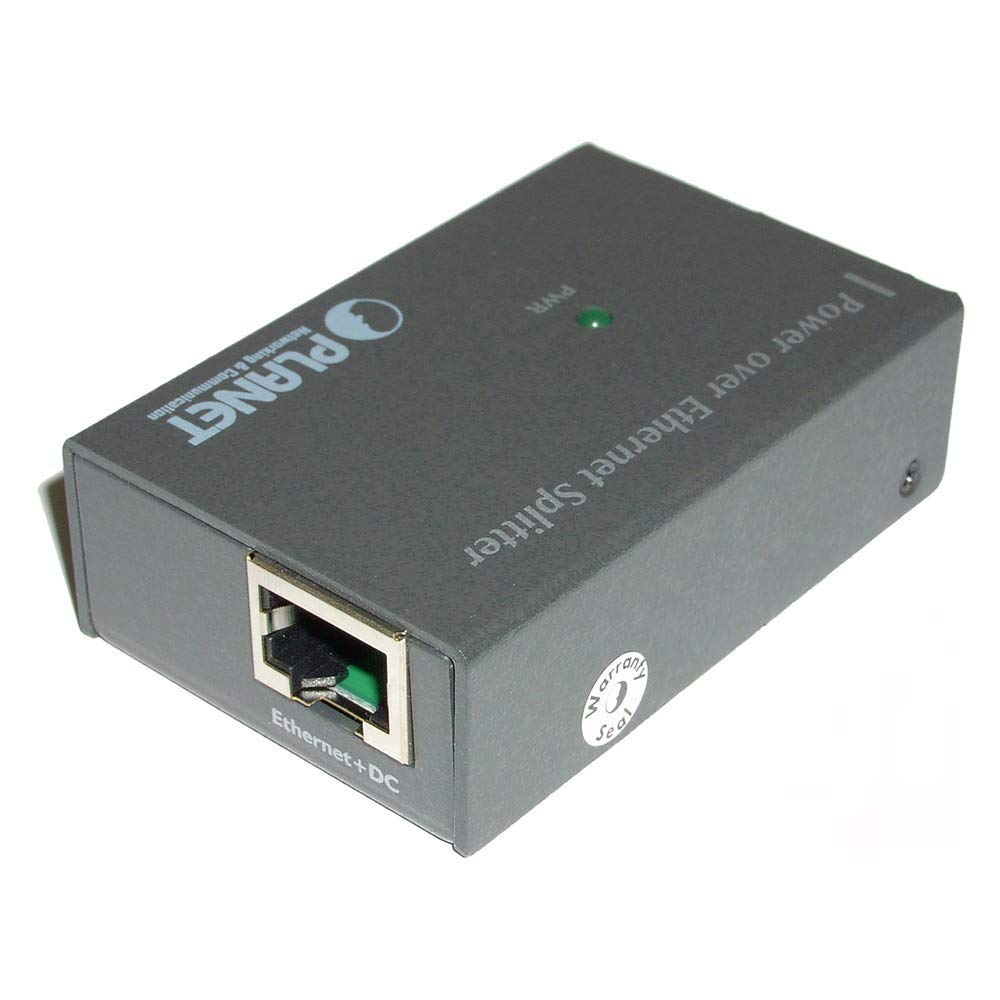

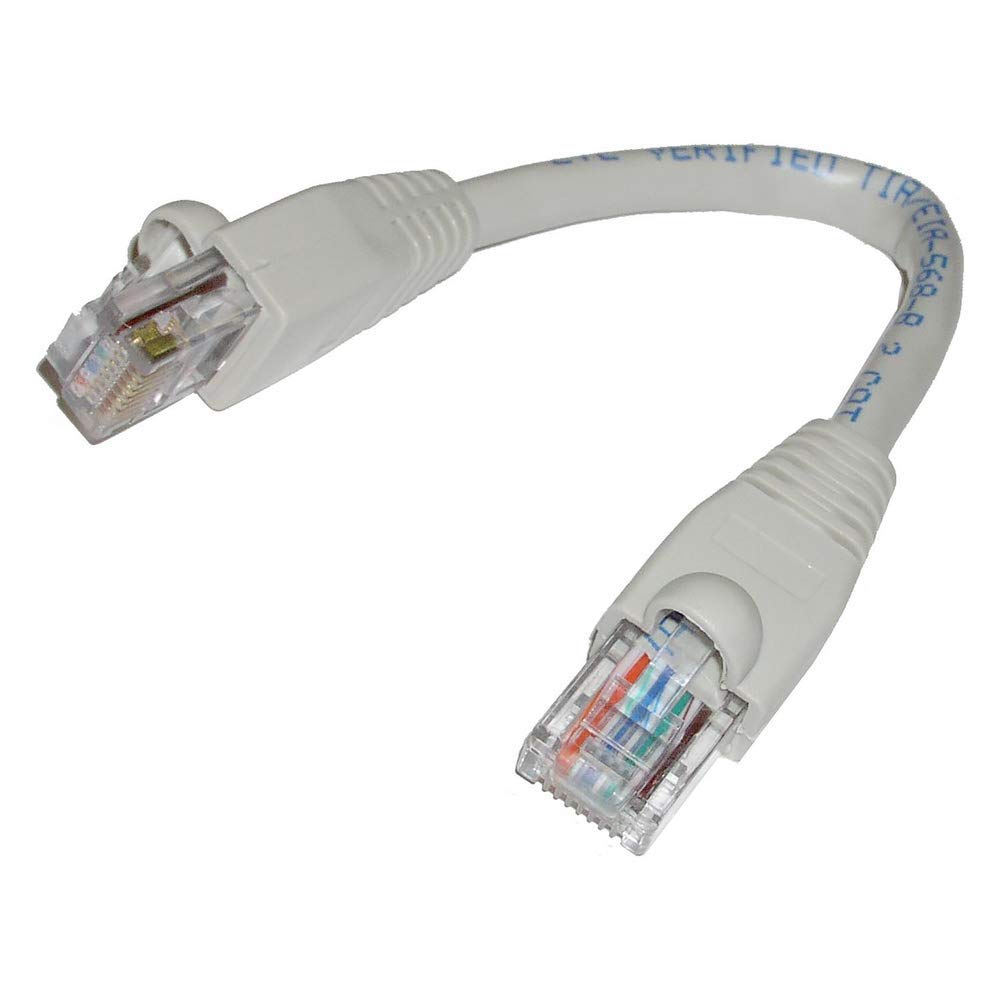

The kit consists of two small modules: the injector and the splitter. The DC injector inserted into the full functionality of the UTP cable data transmission network itself, using free wires (pins 4, 5, 7 and 8). With the injector is supplied with one source to power supply 15Vdc used to inject the current. Power by lots a input, RJ45 (LAN) and output RJ45 (LAN + DC). Or the separator (splitter) is to separate data and DC (LAN + DC) who will eat the device again. The maximum distance between these two devices is 100 m, which is defined by the IEEE 802.3 standard itself. Allows 3 different voltages: 5 V/2 A, 12 V/1 A 7.5 V/1.5 A and, designed to adapt to most devices, selectable by switch located in the divider. Works with TIA/EIA-568 cable category.5/5e, 4 arrêtss For 10Base-T or 100Base-TX. SPLITTER module has a separate entrance for both RJ45 (LAN + DC), Power Output (DC) and output RJ45 (LAN). With the power cable to the 3 Splitter supplied with different diameters 15 cm DC connector, and a 15 cm hose Cat.5e. Size 64x42x21 mm modules.
