KINGMODEL 5A Dual Brushed ESC 2S-6S for 130-390 Motor RC Tank

• Power supply: KINGMODEL dual-way 5Ax2 PRO Brushed ESC supports 2-6S Lithium battery
• Applicable motor: 380 390 high current brush motors for the RC boat dozer blade and Tank
• Adjustable mode: Dual mode switch switching: It can adjust the differential turn of the two motors, or control the forward and reverse of 2 motors separately. In the mixed control mode, can make a double-motor differential turn boat, tucker, tracked vehicle, etc.
• Performance: Good heat dissipation and power indicator: Small size with built-in capacitor module strong resistance current capability, also with red power led indicator, no longer worry about the heat problem of long working time
• Multiple Protections: No more worry about losing overheating (130 degrees), over-current, loss of throttle signal, the 5A brushed dual-way Bidirectional ESC has been fully considered

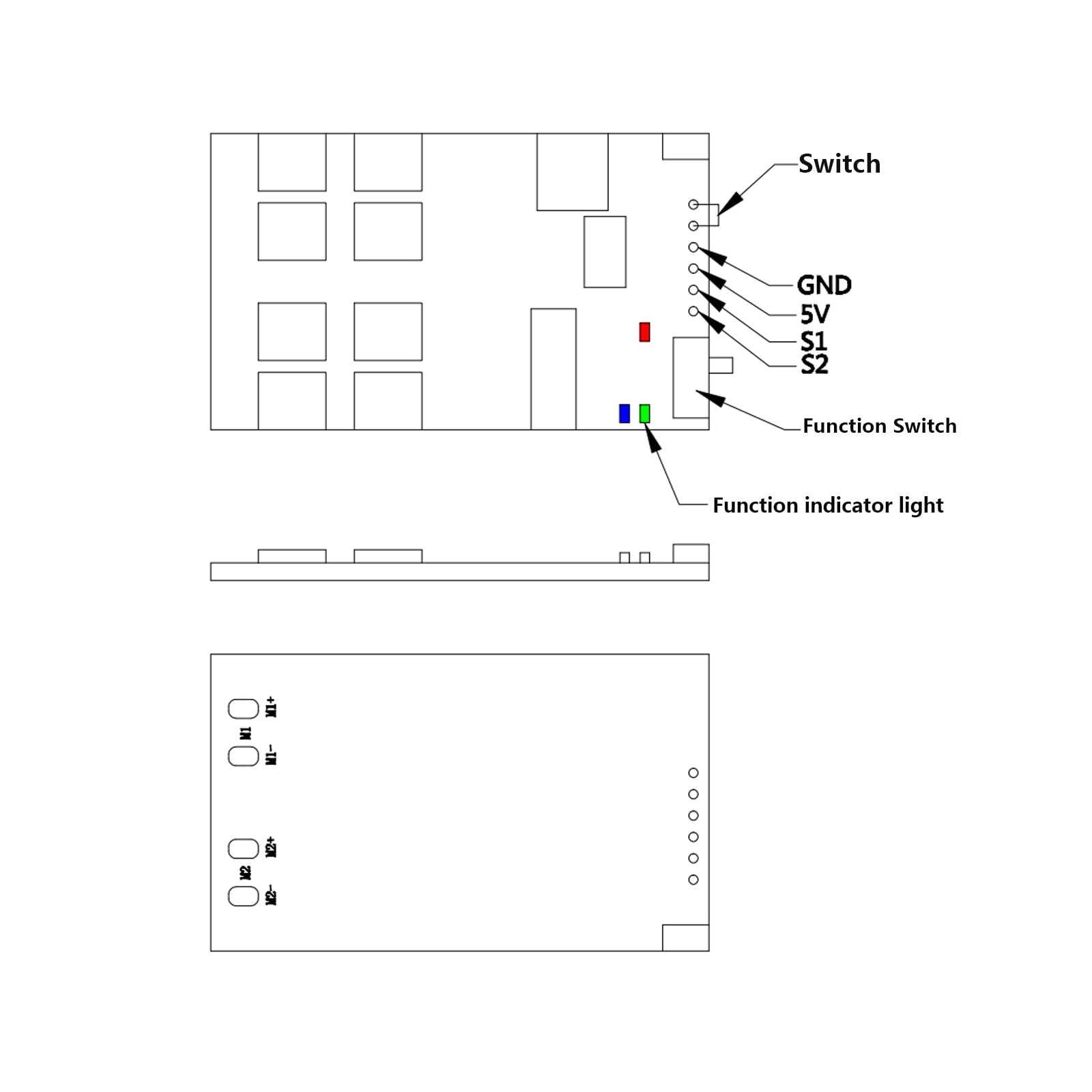

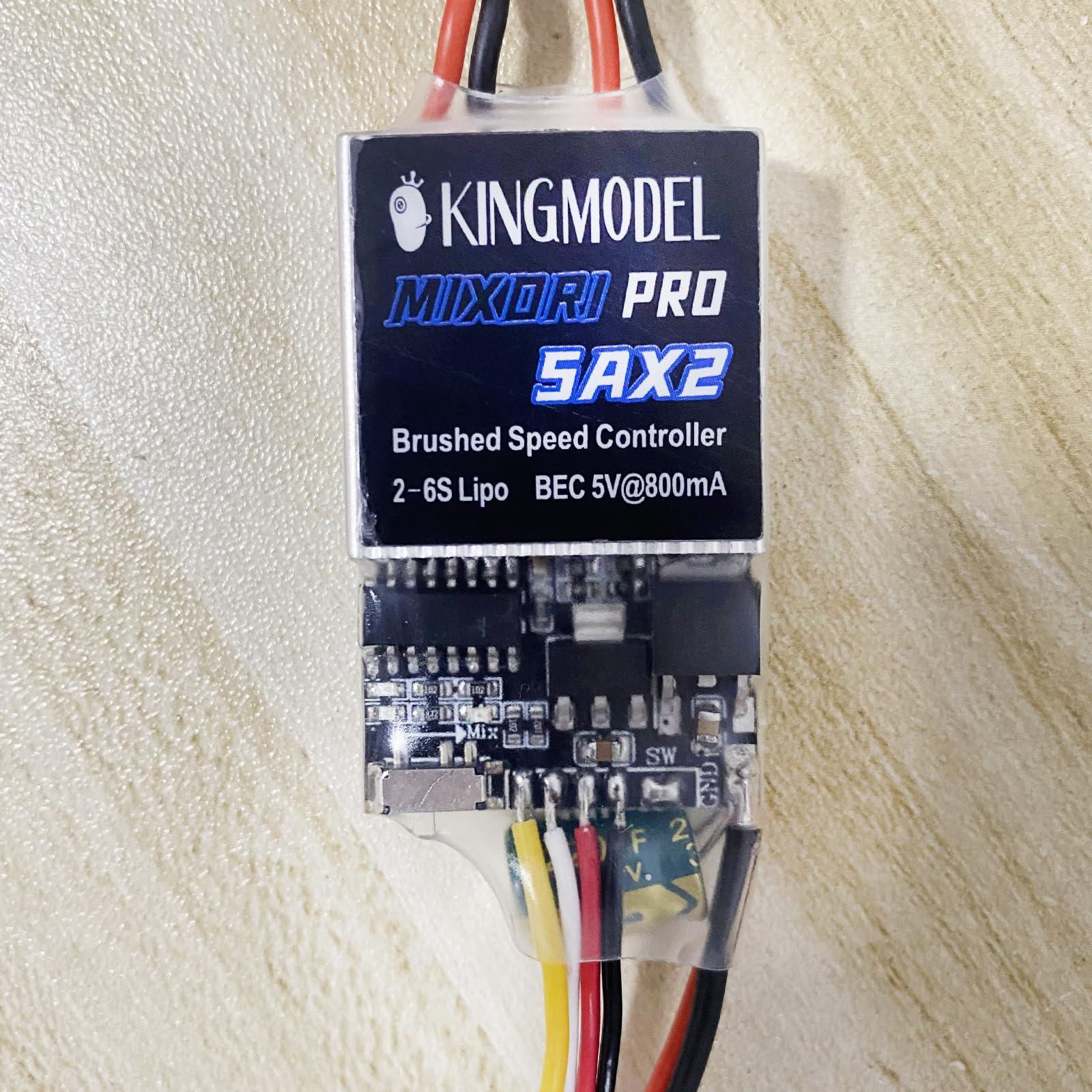

The KINGMODEL Dual-way Bidirectional Brushed 5Ax2 Pro ESC is small size Bidirectional Brushed 5Ax2 Pro ESC, widely used for 1/35 RC model cars,tanks, 4WD RC cars etc. Compatible with 130 180 Brush Motor, it can be go forward and backward freely. In the mixed control mode, can make a double-motor differential turn boat, tucker, tracked vehicle, etc. It is just a good job man! Also , it can be worked with 550/380 390/ high current brush motor. Specification: Product Name: Dual-way Bidirectional Brushed 5A ESC. Power supply: 2s - 6s battery Output current: 5A x 2. BEC: 5V 1.5A. Weight: 20.3g Mode can be adjusted: mixed/independent Board size :42*26mm Control signal: PWM Applicable motor: 380 390 high current brush motor Main features: Applicable motor: 380 390 high current brush motor This 5Ax2 Pro brushed ESC has three modes, choose it before before power on(toggle switch). This ESC has three modes, choose it before before power on(toggle switch). Mode 1, Mixed control (differential speed green LED is on) control mode by toggling switch inward. The two outputs are controlled by two PWM signals to achieve differential speed control, and a differential remote control is required. Mode 2, Two-way synchronous control mode (switch inward or MIX Gears ). The output power of the two channels is the same (only connected to S1, not connected to S2), and also forward and reverse. Mode 3, Two independent control modes (switch extension Blue led is on). Two-way synchronous control mode (switch inward), Two independent control modes (switch extension). MC1 is consistent with PPM1, and MC2 is consistent with PPM2. The output power of the two channels is the same (only connected to PPM1, not connected to PPM2), and also forward and reverse. The two outputs are controlled by two PPM signals to achieve differential speed control, and a differential remote control is required. More tips: Power-on prompt: You will hear a beep from the motor, prompting you to power on Start at the centre position.Throttle channel 1 is 1500, you will hear the motor beep, and the ESC will start. The signal is abnormal: S1(PWM) signal is greater than 2.1MS or less than 0.9MS, abnormal signal is equivalent to signal loss. Out of control protection: If the signal is lost, the throttle needs to be returned to the center and unlocked again for safety and motor protection. Over current protection: 130 degree overheat protection, and hardware over current protection. Power-off protection: Power supply voltage is lower than 4V, ESC restart protection. Package includes: 1pcs x 5Ax2 PRO Dual-way Bidirectional Brushed ESC.
