Khadas Tone Board Hi-Res Audio USB DAC Based in Chip 32-bit ES9038Q2M XMOS XU208 External Sound Card with S/PDIF input(Generic Version)

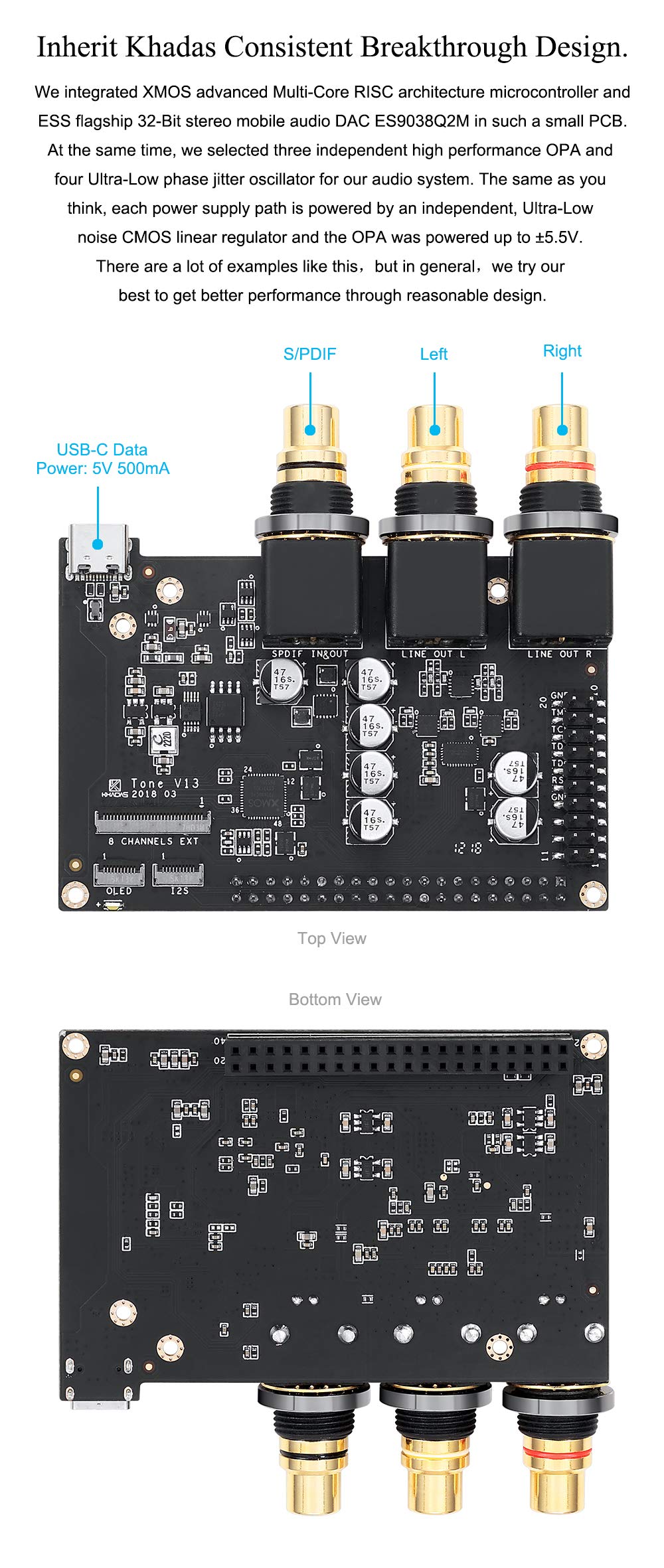

• XMOS: XU208-128-QF48, Eeight Cores, Core Share up to 500 MIPS; ES9038Q2M 32-Bit Stereo Mobile Audio DAC
• COMPATIBILITY: Windows PC, Mac OS, Android, Linux PC, Volumio, LibreELEC, and Other SBCs. The XMOS USB Audio to ensure a rock-solid connection. We selected to use the XMOS XU208 microcontroller for its stability, powerful functionality,and its reliability. You can be sure that the Tone Board will just work when connected to most audio sources,such as computers and mobile media terminals

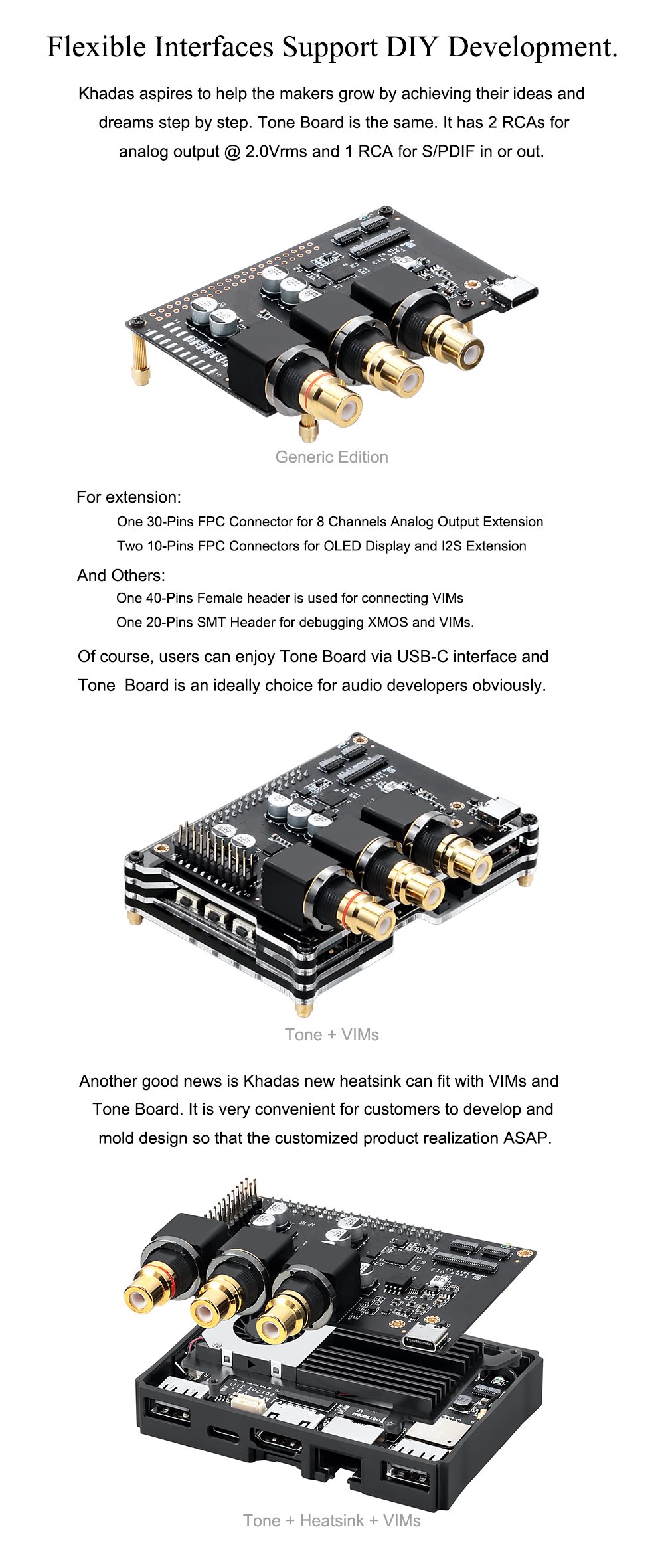

• EXTENSION: One 30-Pins FPC Connector for 8 Channels Analog Output Extension; Two 10-Pins FPC Connectors for OLED Display and I2S Extension; VIMs Version also have 40-Pins Female header connecting with VIMS and 20-Pins SMT Header for debugging XMOS and VIMs
• UNTRA=LOW PHASE NOISE CLOCK JITTER:The SiTime ultra performance oscillator SiT820&8209 series with just 0.5ps phase jitter and output frequency stability as low as ± 10PPM. We chose it as a reference clock in our audio system so that the data clock jitter < 30ps
• DIFFERENT VERSIONS: VIMs Versions (Khadas Tone + VIMs) connected through GPIO Pins; Generic Edition won't have GPIO Pins on board. (for this Asin it's Generic edition)DIFFERENT VERSIONS: VIMs Versions (Khadas Tone + VIMs) connected through GPIO Pins; Generic Edition won't have GPIO Pins on board. (for this Asin it's Generic edition)

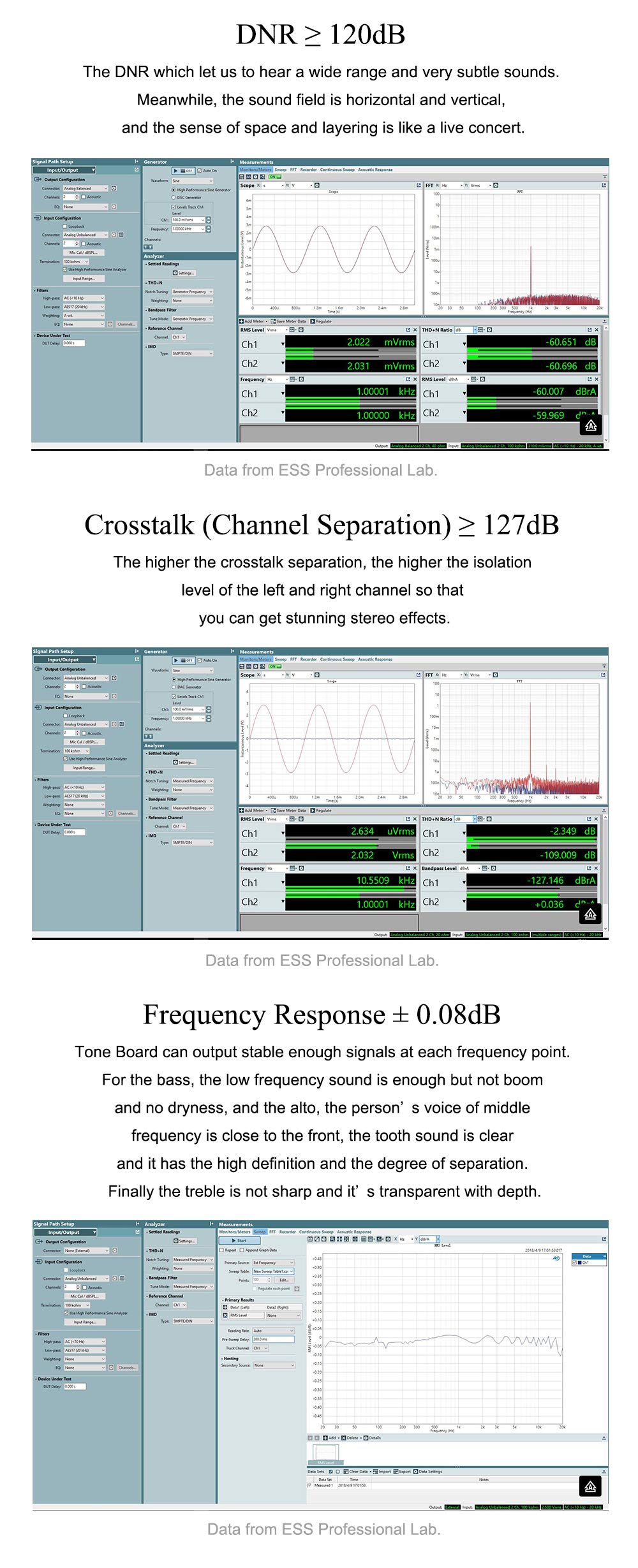

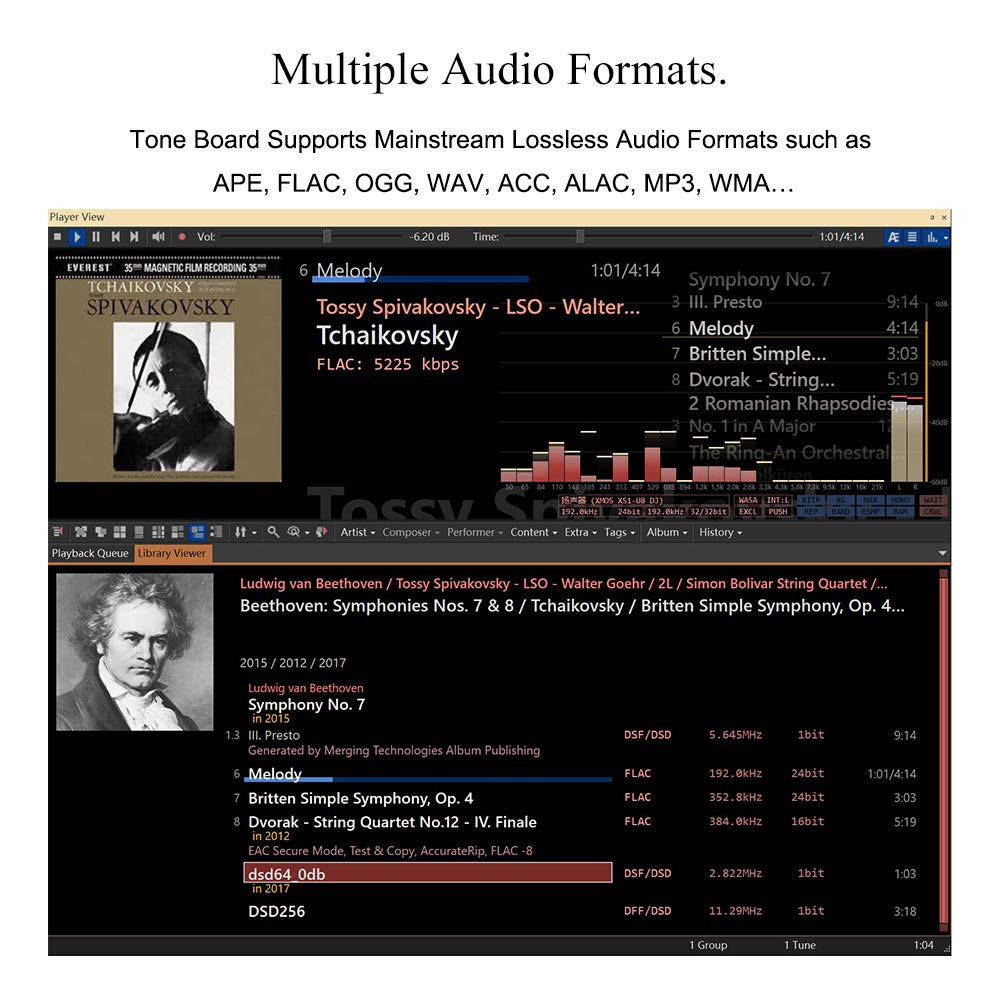

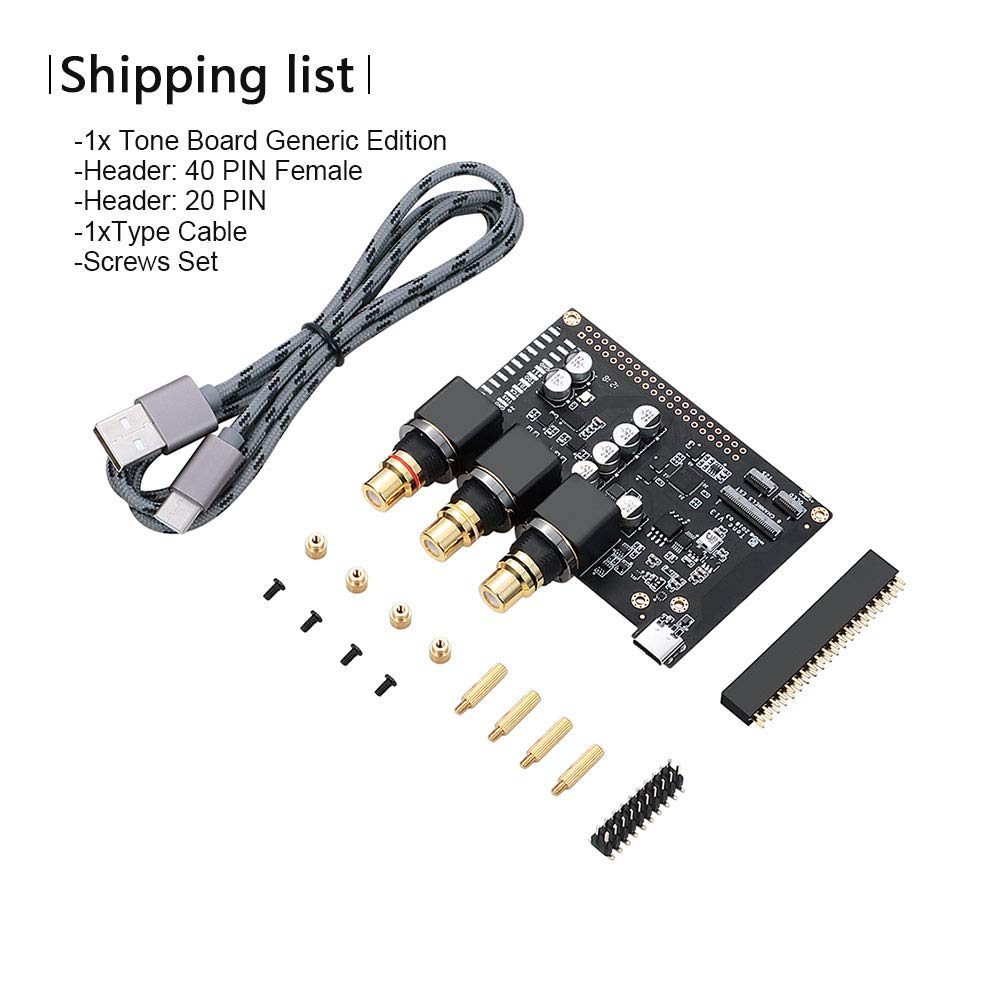

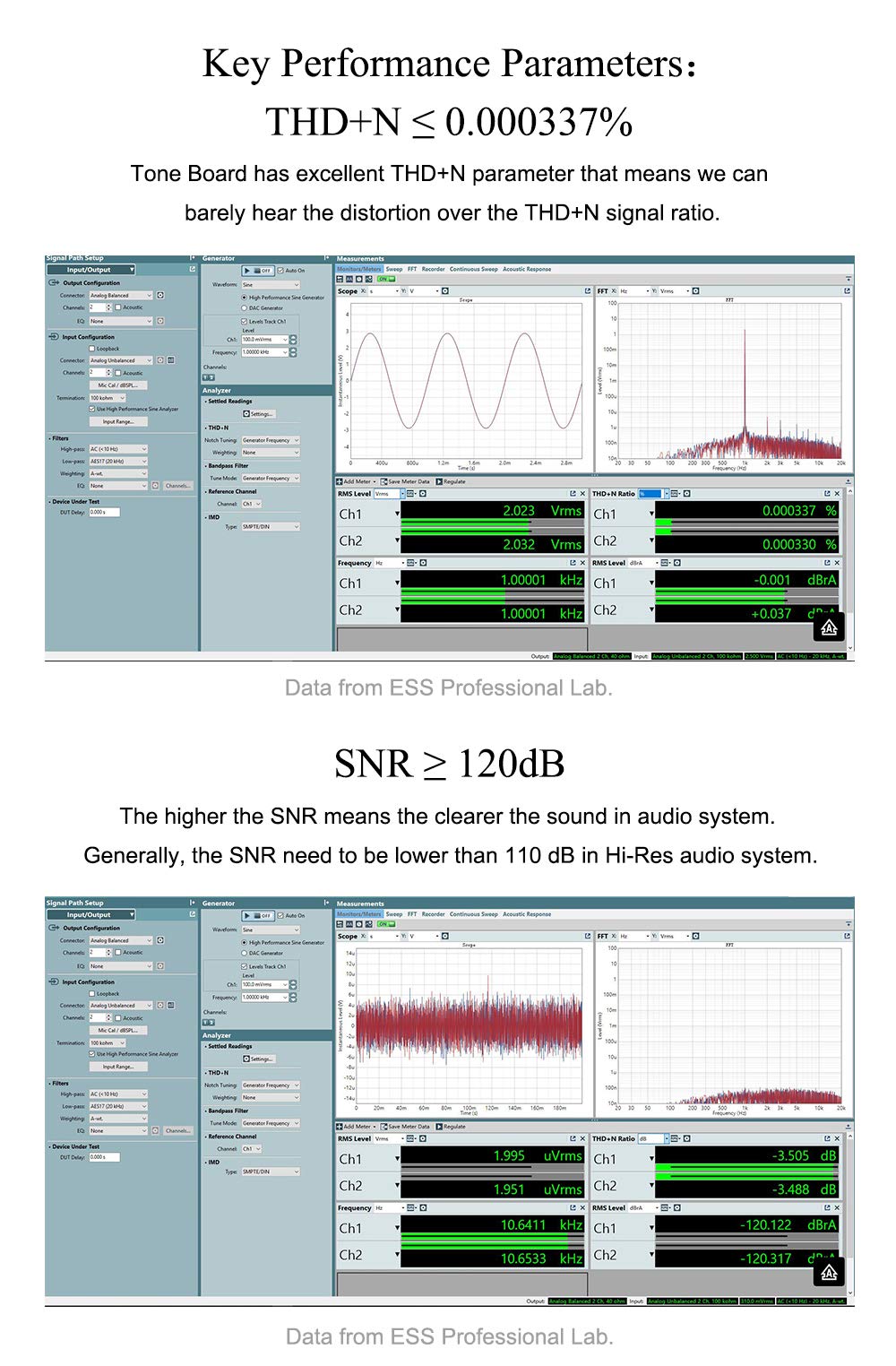

Khadas Tone Board High Resolution USB DAC Designed for Music Fanatic. Its Excellent Performance and Compatibility Will Takes the Listening Experience into a Whole New Level. Go ahead for your different Music world! 1. XMOS XU208-128-QF48: 8 xCores, Core Share up to 500 MIPS 2. DAC ES9038Q2M: 32-Bit Stereo Mobile Audio DAC 3. THD+N ≤ 0.000337% @1KHz 4. SNR ≥ 120dB @ 10Hz~20KHz 5. DNR ≥ 120dB @ 10Hz~20KHz 6. Crosstalk ≥ 127dB @ 10Hz~20KHz 7. Frequency Response ±0.08 dB @ 10Hz~20KHz 8. Sample Rate: PCM: Up to 768KHz @ 32bit ; DSD: Up to DSD256 @ 1bit 9. Clock Jitter: Reference Clock Jitter <3ps ; Data Clock Jitter <30 ps 10. Audio Formats: APE2/FLAC/OGG/WAV/ACC/ALAC/MP3/WMA… 11. Line Out: 1x Red RCA for Right Channel, 1 x White RCA for Left Channel 12. Indicator: White LED x1 13. Mounting Holes: Size M2 x 5 14. FPC Connector: 30-Pin 0.5mm Pitch: for 8 Channels Extension 15. FPC Connectors: 10-Pin 0.5mm Pitch: for VIMs I2S Extension； 10-Pin 0.5mm Pitch: for OLED Display 16. S/PDIF IN: Up to 192KHz 17. USB-C Port 18. Dimensions: 82.0 x 74.5 x 24.0 mm 19. Compatibility: 20. Others: Should also support other Single Board Computers(SBCs) 21. In the box -1x Tone Board Generic Edition -1x Type C Cable Technical Support: User Manual: https://docs.khadas.com/toneboard/UserManual.html Expert Support: monica@ smartfire.cn Skype: monica_9122
