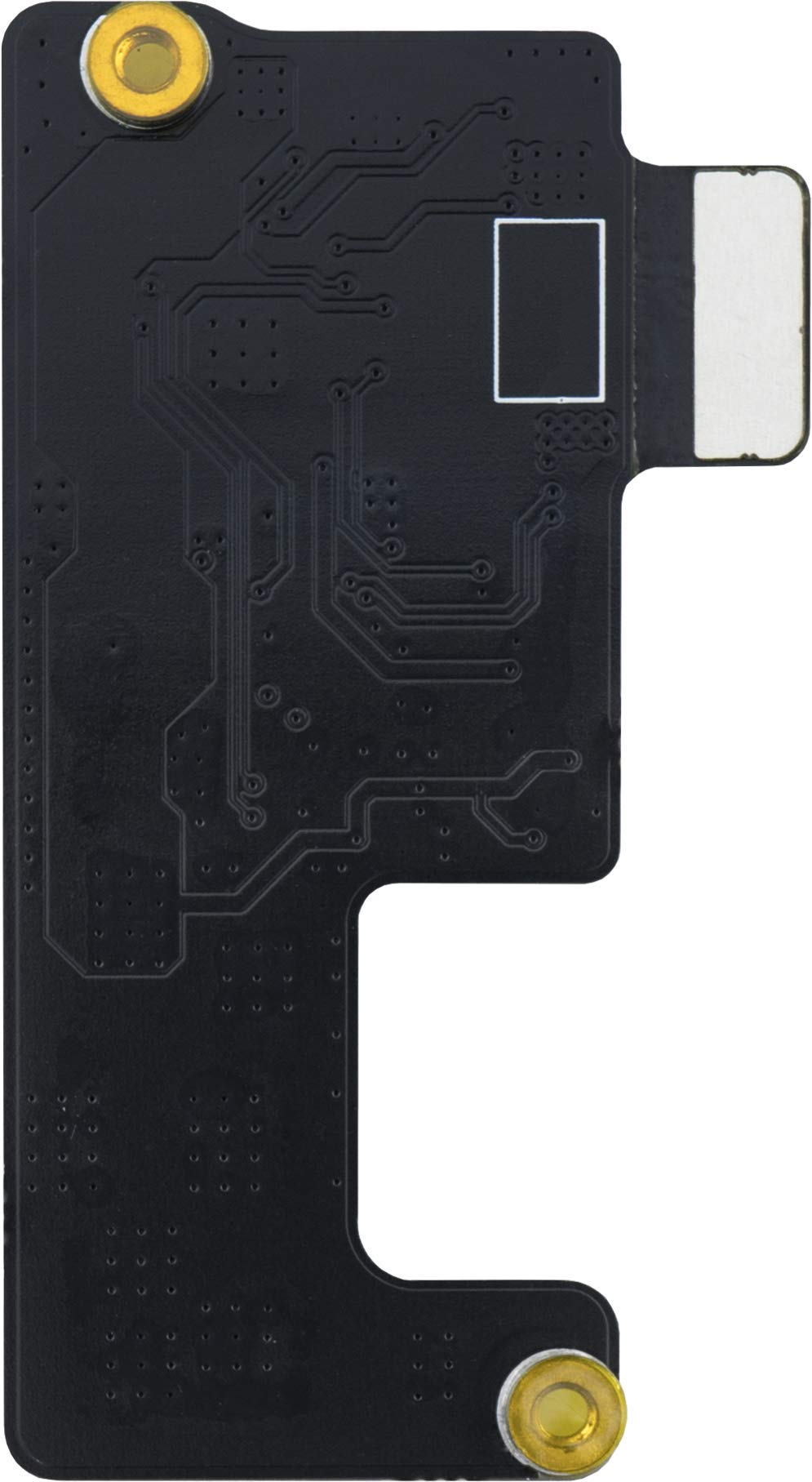

Khadas Juice Board for Edge-V - External Li-Po Battery Controller with BQ25703 and CW2015

• Efficient Battery Management:Specially designed for Edge-V, the Juice Board integrates BQ25703ARSNR charging IC and CW2015CSAD power meter IC to provide efficient battery charge/discharge management.
• Dual Battery Cell Support:Supports 2 x 7.4V Li-Polymer batteries, enabling your Edge-V device to run for long periods of time in outdoor or unpowered environments.
• Safe Charging and Discharging:The Juice Board safely charges and discharges your batteries, protecting them from overcharging and overdischarging damage and extending battery life.
• Compact design for easy installation:Measuring 50.0 x 27.2 x 3.5 mm and weighing only 3.1g, it comes with M2 mounting holes for easy fixing and integration into your project.
• Environmentally Compliant and Compatible:RoHS compliant to ensure environmental protection and human health and safety. Compatible with Edge-V and a variety of lithium polymer batteries for a flexible energy solution.

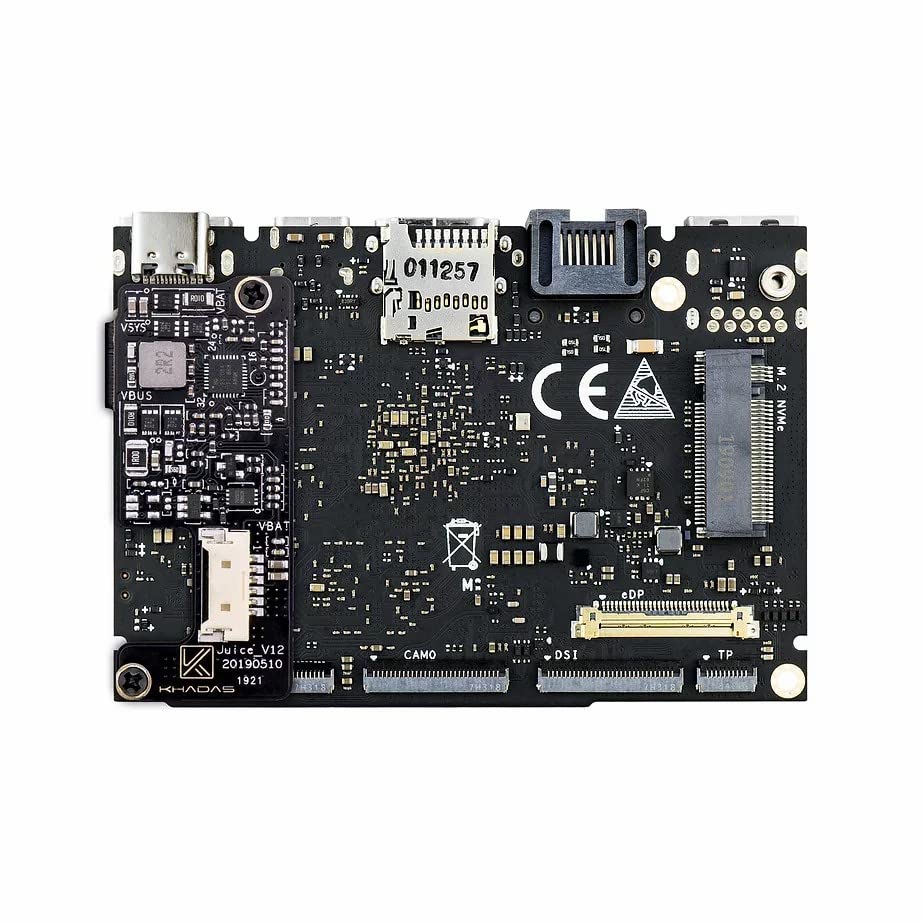

Use the "Juice Board" to connect your Edge-V to an external Lithium Polymer Battery. It is a battery-charge controller board that can discharge and recharge batteries. Specifications: Charge IC: BQ25703ARSNR Gauge IC: CW2015CSAD Battery: 2-cell 7.4V Battery Connector: Molex 537800670 Mounting Holes: M2 Dimensions: 50.0 x 27.2 x 3.5 mm Weight: 3.1g RoHS Compliant Compatibility: Edge-V Li-Po Battery
