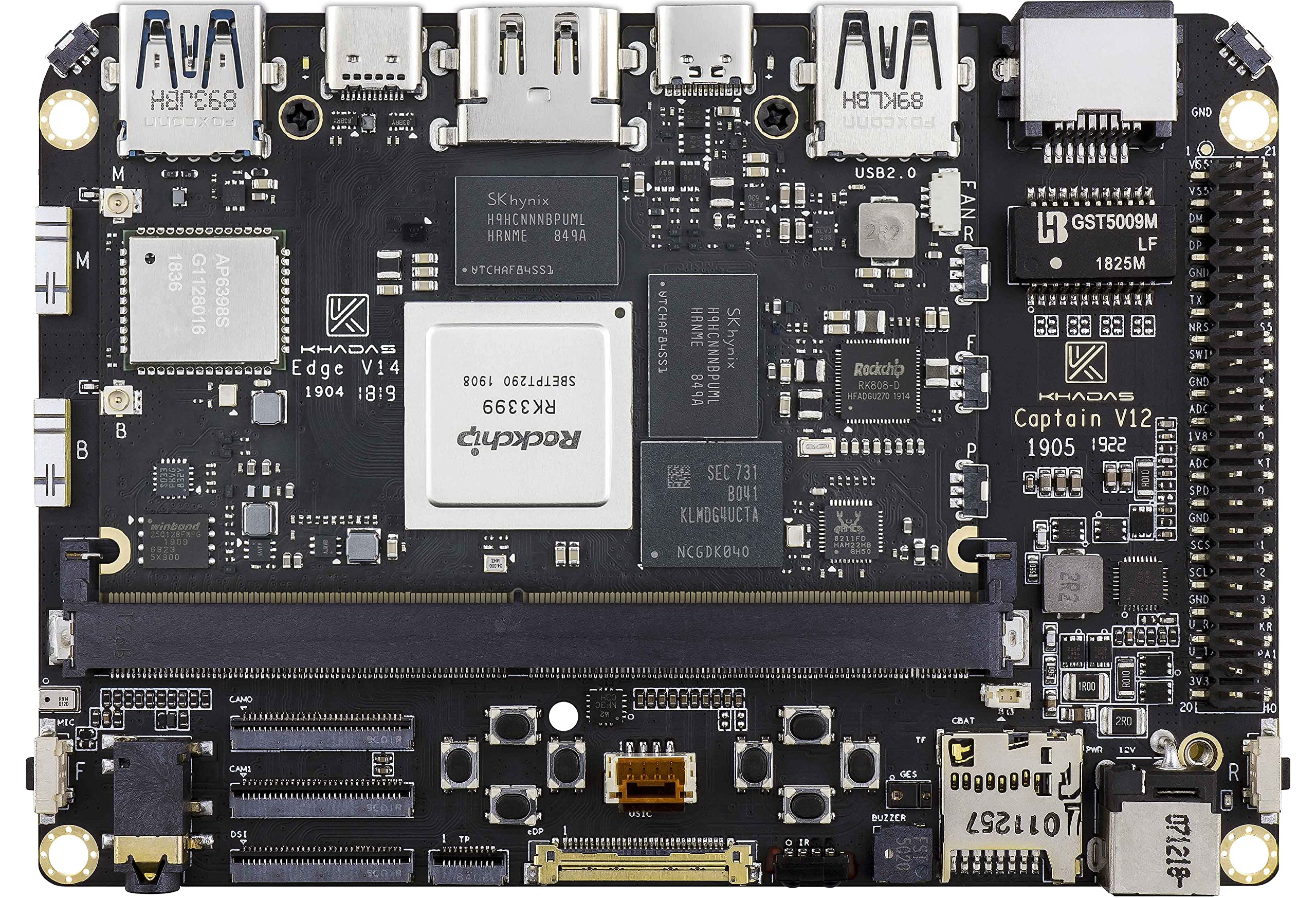

Khadas Captain Carrier Board for Edge - 13MP Camera Support, M.2 NVMe, PCIe, 8-Button Game Pad, Wi-Fi, IR
★★★★★
$108.99
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

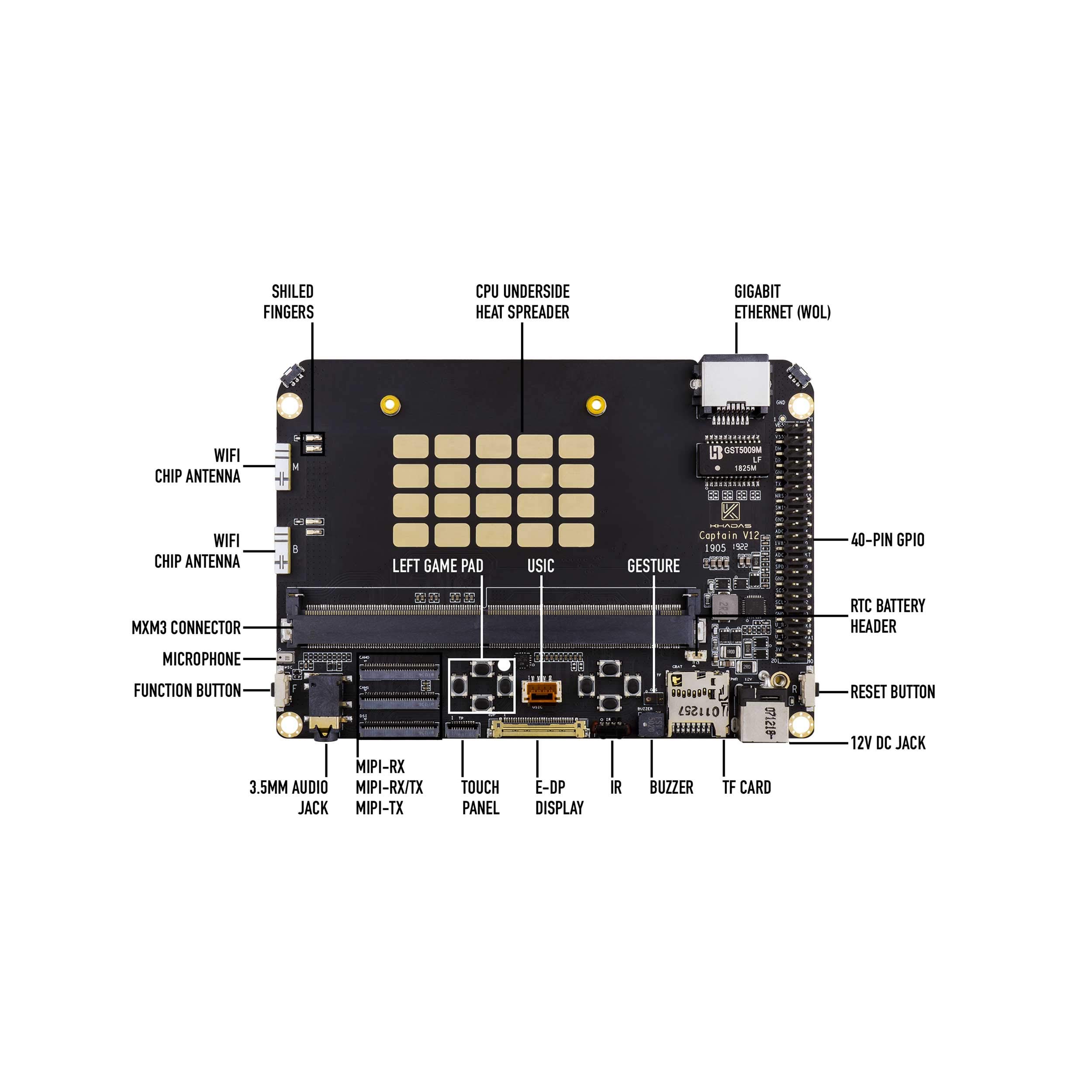

- Camera:Interface: 4 lanes MIPI-CSI Dual 13 MegaPixels Supported Connector: 30 Pin 0.5mm Pitch FPC Connector 4 lanes MIPI-DSI 4 lanes eDP 1.3, up to 10.8Gbps

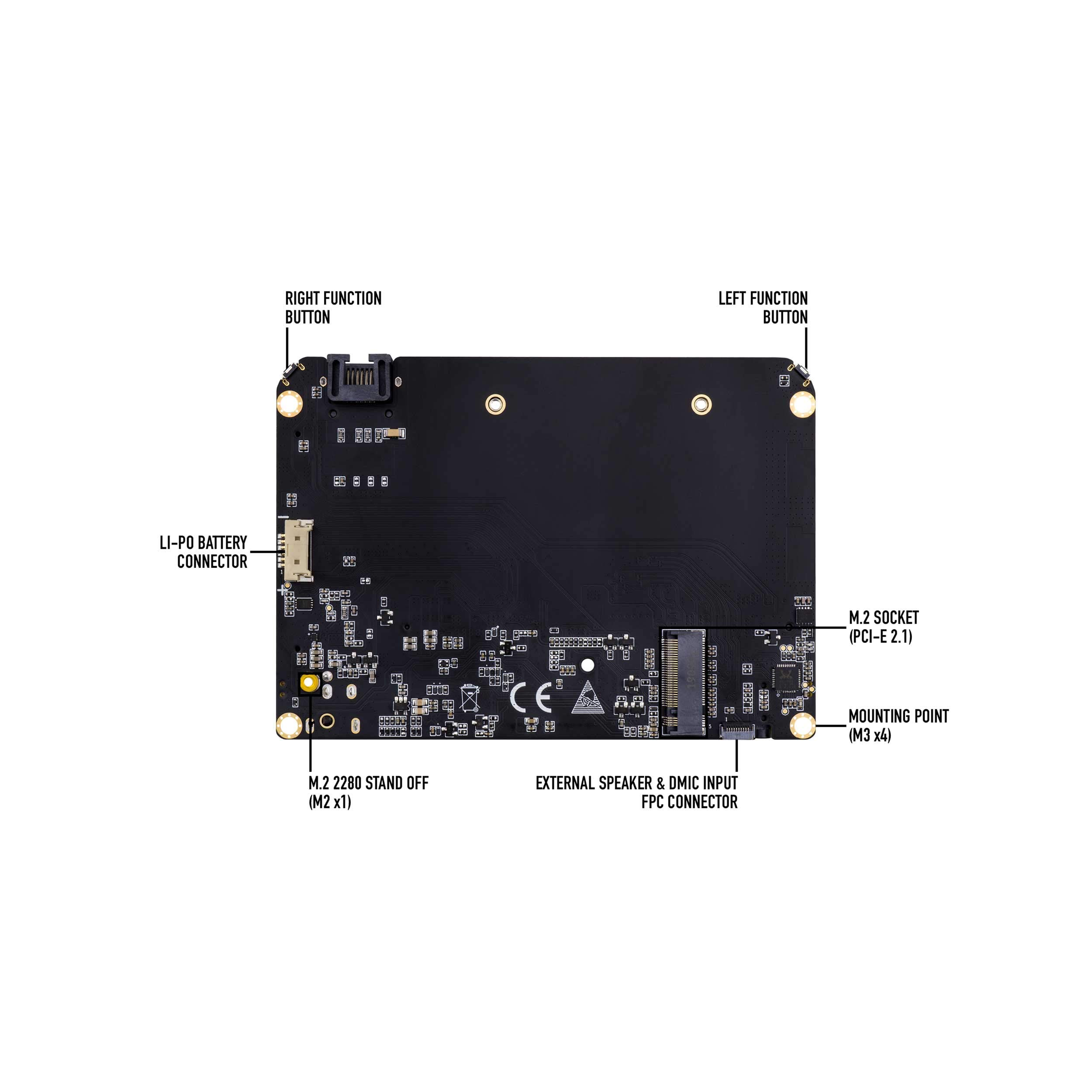

- Display: 10PIN 0.5mm Pitch FPC Connector Touch Panel M.2 Socket 4 full-duplex lane PCIe 2.1 M.2 2280 NVMe SSD Supported
- Buttons: x8 (Programmable Game Pads) x2 (Left & Right Function Buttons) x2 (Reset, U-Boot/Func) Wi-Fi Antenna Chip Antenna x2 Model: Pulse W3006 2.4-2.5/5.15-5.85GHz Dualband
- IR Receiver: 2 Channels LED: Red LED x1, Programmable USIC: via a 1.25mm Pitch Header 40 PIN 2.54 Header USB, I2C, SPI, I2S, SPDIF, ADC, STM8S MCU IOs
- Audio: Realtek ALC5651 Audio Codec 3.5mm Headphone Jack Microphone Sensitivity: -42dB Speaker(via FPC) DC Jack: Input Voltage: 12V Outer/Pin Diameter: 5.5/2.1mm
Product description

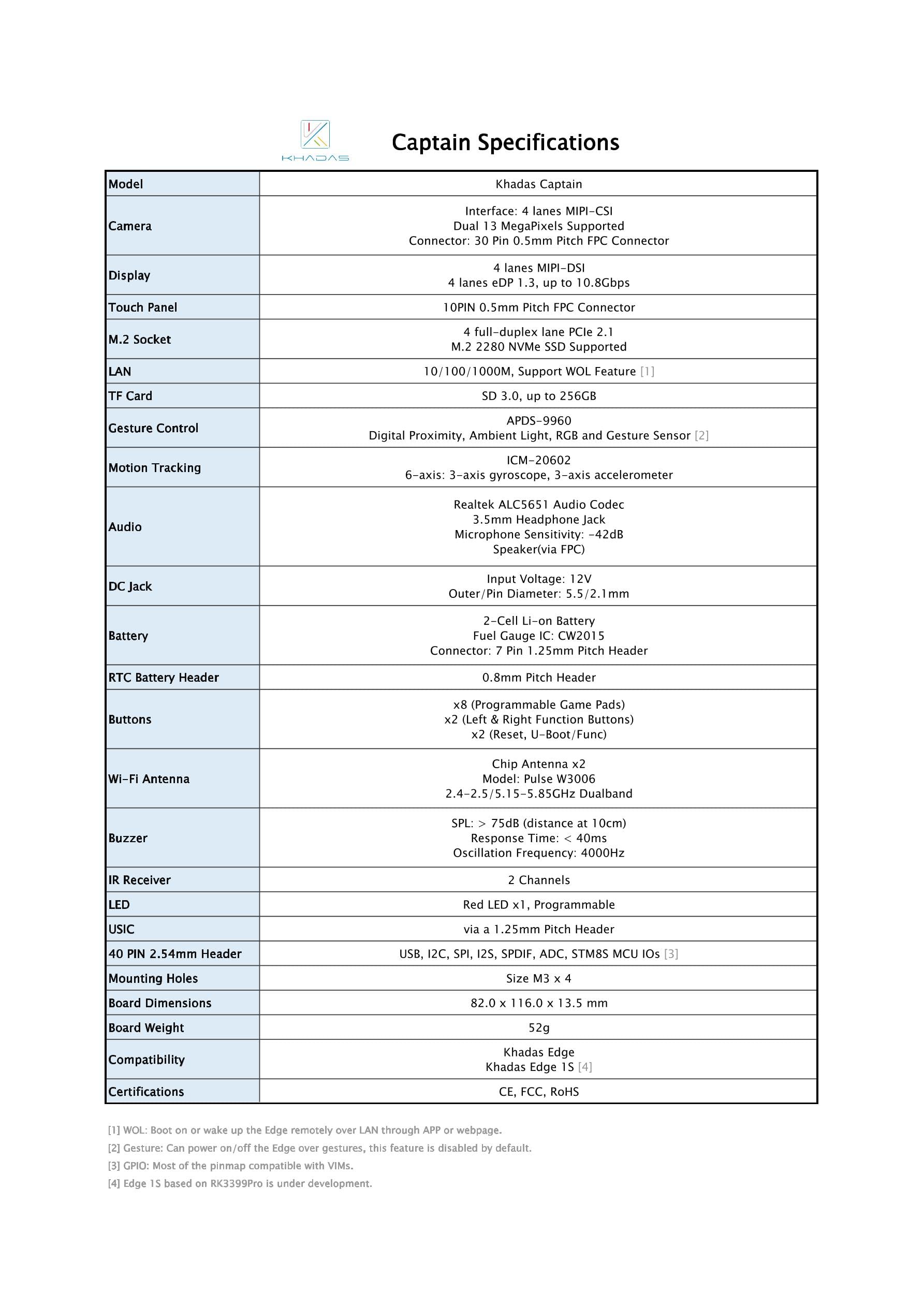

Camera: Interface: 4 lanes MIPI-CSI Dual 13 MegaPixels Supported Connector: 30 Pin 0.5mm Pitch FPC Connector 4 lanes MIPI-DSI 4 lanes eDP 1.3, up to 10.8Gbps Display: 10PIN 0.5mm Pitch FPC Connector Touch Panel M.2 Socket 4 full-duplex lane PCIe 2.1 M.2 2280 NVMe SSD Supported LAN: 10/100/1000M, Support WOL (Wake On LAN) Feature TF Card: SD 3.0, up to 256GB Gesture Control: APDS-9960 Digital Proximity, Ambient Light, RGB and GestureSensor Motion Tracking: ICM-20602 6-axis: 3-axis gyroscope, 3-axis accelerometer Audio: Realtek ALC5651 Audio Codec 3.5mm Headphone Jack Microphone Sensitivity: -42dB Speaker(via FPC) DC Jack: Input Voltage: 12V Outer/Pin Diameter: 5.5/2.1mm Battery: 2-Cell Li-Ion Battery Fuel Gauge IC: CW2015 Connector: 7 Pin 1.25mm Pitch Header RTC Battery Header 0.8mm Pitch Header Buttons: x8 (Programmable Game Pads) x2 (Left & Right Function Buttons) x2 (Reset, U-Boot/Func) Wi-Fi Antenna Chip Antenna x2 Model: Pulse W3006 2.4-2.5/5.15-5.85GHz Dualband Buzzer: SPL: > 75dB (distance at 10cm) Response Time: <40ms Oscillation Frequency: 4000Hz IR Receiver: 2 Channels LED: Red LED x1, Programmable USIC: via a 1.25mm Pitch Header 40 PIN 2 Compatibility: only Khadas Edge In the Box: Captain Carrier Board
