KERUI Wireless Security PIR Motion Infrared Sensor Detector for Home Security Voice Burglar Alarm System 433mhz

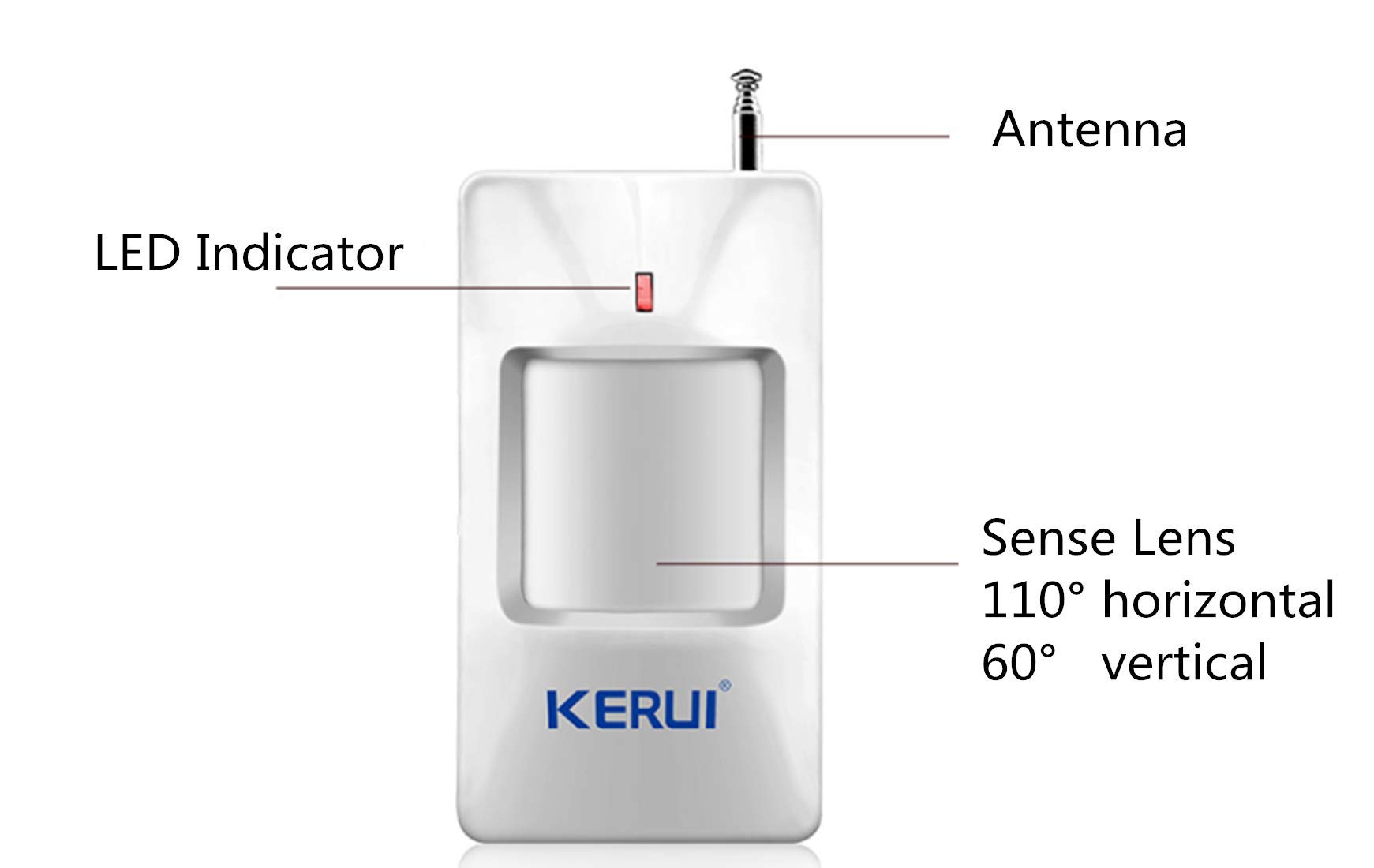

• Detection angle: 60 degree vertical, 110 degree horizontal. No dead spots were left when installed in the corner of a room.
• Detection range is up to 25ft (8m), which creates a large motion detecting area, and it will trigger the alarm system to alert you when someone or animals enter and move in the monitored area. Works completely wirelessly, so it can be installed at any location in your house or business to provide a second layer of protection, or cover the area that cannot be secured by door contacts.
• Communication distance from the control panel is up to 250 feet away unobstructed. The antenna can be drawn out to maximize its transmission range. Compatible with all KERUI Alary System, cannot work alone.

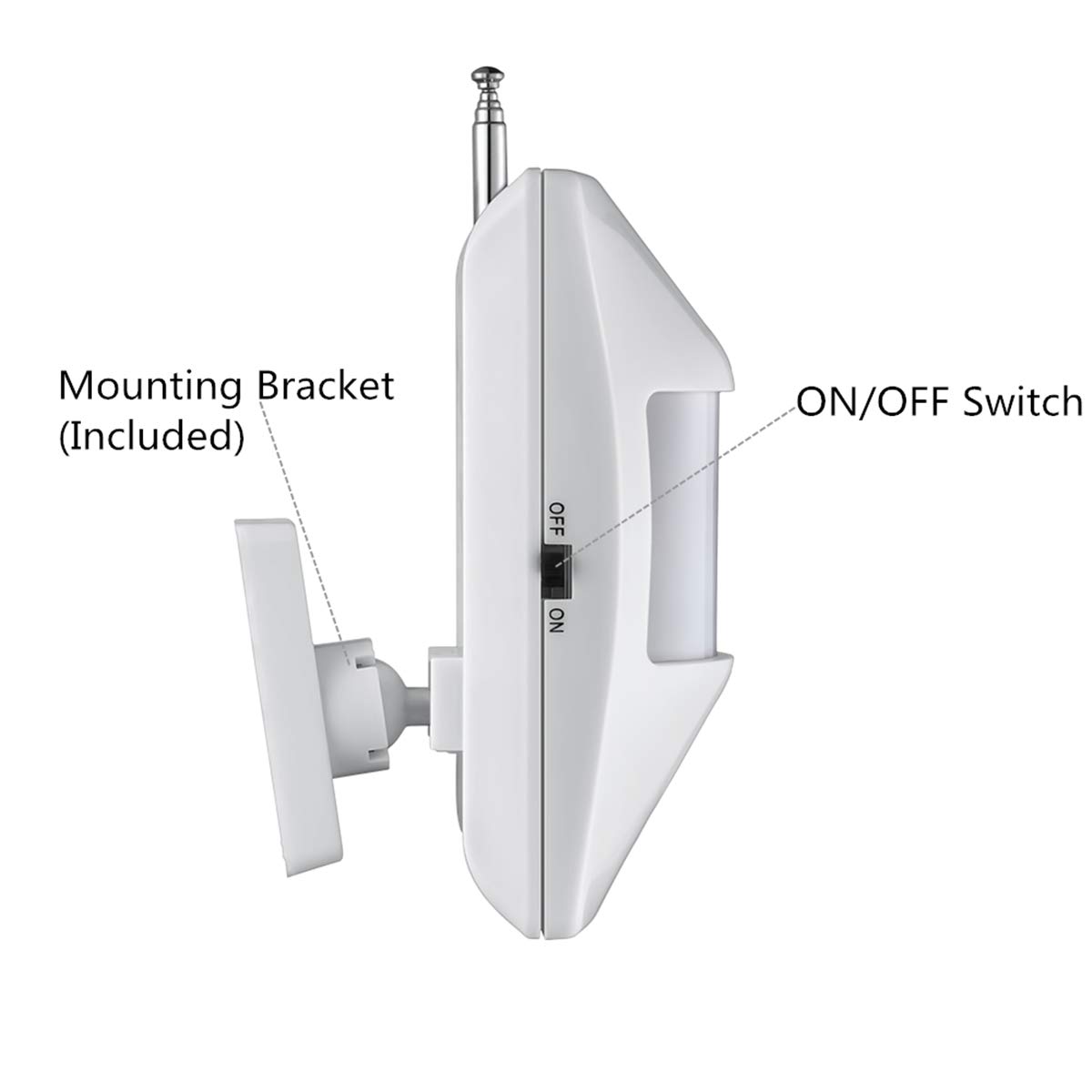

• Operates with one (1) 9V 6F22 battery (Included). ON/OFF Switch and low battery indication. After detecting motion, the sensor “sleeps” for 5 seconds, good for saving the battery.
• The recommended position is mounting the PIR Motion Sensor 8-9 feet above the ground and pointed at your intended monitored area. NOTE: Do not mount the PIR sensor to face window, oven, air conditioner, as moving heat sources and wind would trigger the PIR. Proper installation will help decrease or eliminate the false alarms that no one wants.

The PIR Motion Sensor will detect any movement 25ft (8m) in front of it, when under Armed status, it will send a signal to the control unit as soon as it picks up any illegal movement. Because PIR motion detector will divide detection areas into many small segments, in order to optimize its detection performance, the ideal installation area is the pathway where a burglar would cross if he need to access into your residence and business, some places can be hallways or living rooms. Specification Frequency: 433 MHz Extendable antenna Detection distance: 0-8 meters Detection range: 110 degree horizontal view and 60 degree vertical view Battery: 1pcs 9V 6F22 battery (Included) Standby current: less than 12uA Alarm current: less than 15mA Operating temp.: -10 to +50 degrees Installation mode: wall mounted Installation height: 2.5m (Recommended) Package Contents 1* Wireless PIR Motion Detector Free Batteries and Mounting Hardware Included NOTE: Do not mount the PIR sensor to face window, oven, air conditioner, as moving heat sources and wind would trigger the PIR.
