kenable aura 24AWG 8 Core Belden Alternative Multicore Cable F/SCR LSZH Eca 100m Grey

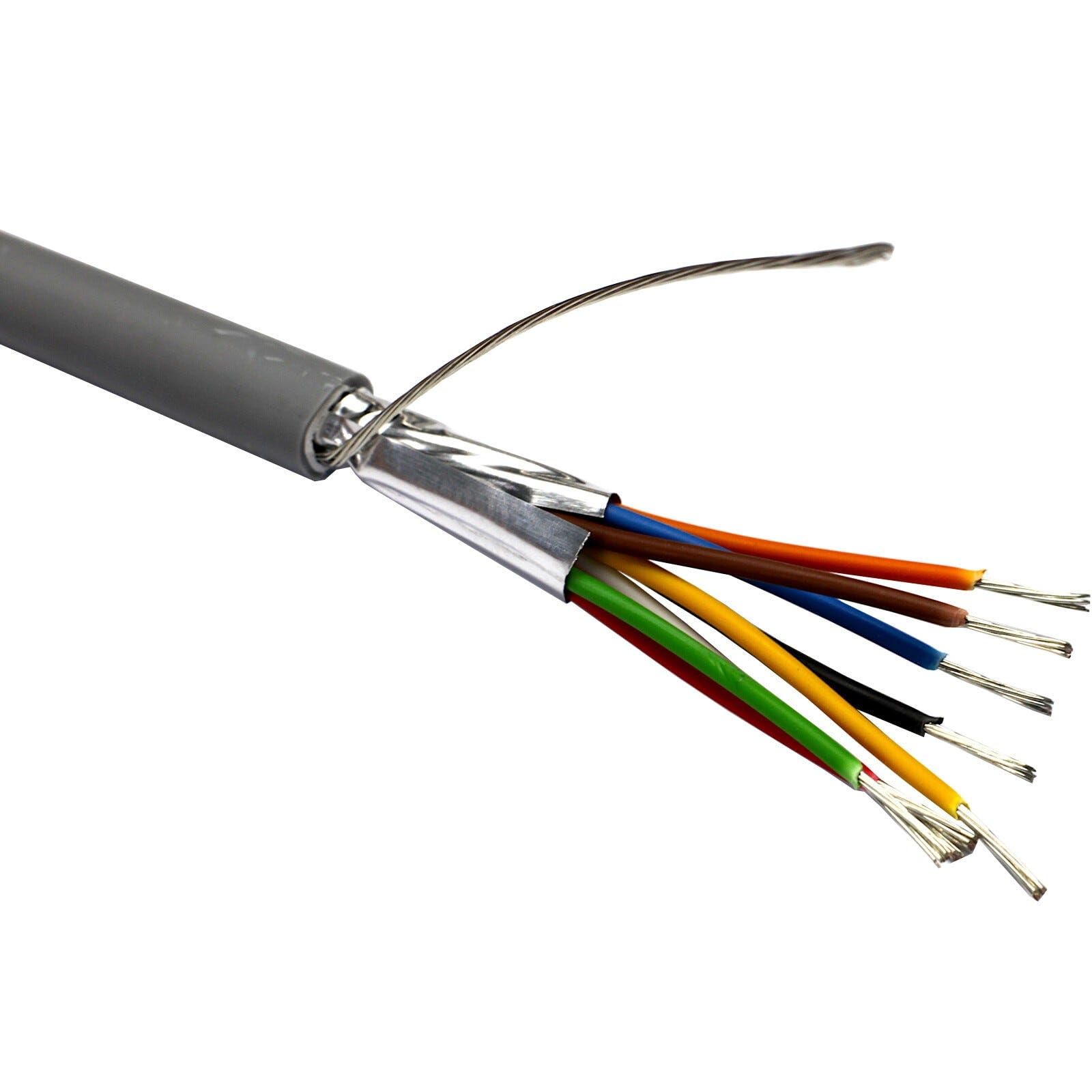

• 8 CORE MULTICORE CABLE - 24AWG (7/0.2mm) tinned copper conductors with colour-coded PVC insulation (Red, Black, White, Green, Blue, Brown, Orange, Yellow) for easy identification and reliable connections in audio, data, and instrumentation applications
• FOIL SCREENED PROTECTION - Overall aluminium/polyester foil shield with tinned copper drain wire provides excellent protection against electromagnetic interference, ensuring clean signal transmission for RS232, audio systems, and control circuits
• LSZH FIRE RATED SHEATH - Low Smoke Zero Halogen grey jacket meets CPR Euroclass Eca standards, minimising toxic fumes and smoke in fire conditions, making it suitable for public buildings, commercial installations, and enclosed spaces
• PROFESSIONAL SPECIFICATIONS - 0.22mm² conductor size, 4.5mm overall diameter, 50V voltage rating, 1A current rating, 83.3Ω resistance, operating temperature range -10°C to +70°C, providing reliable performance for demanding installations

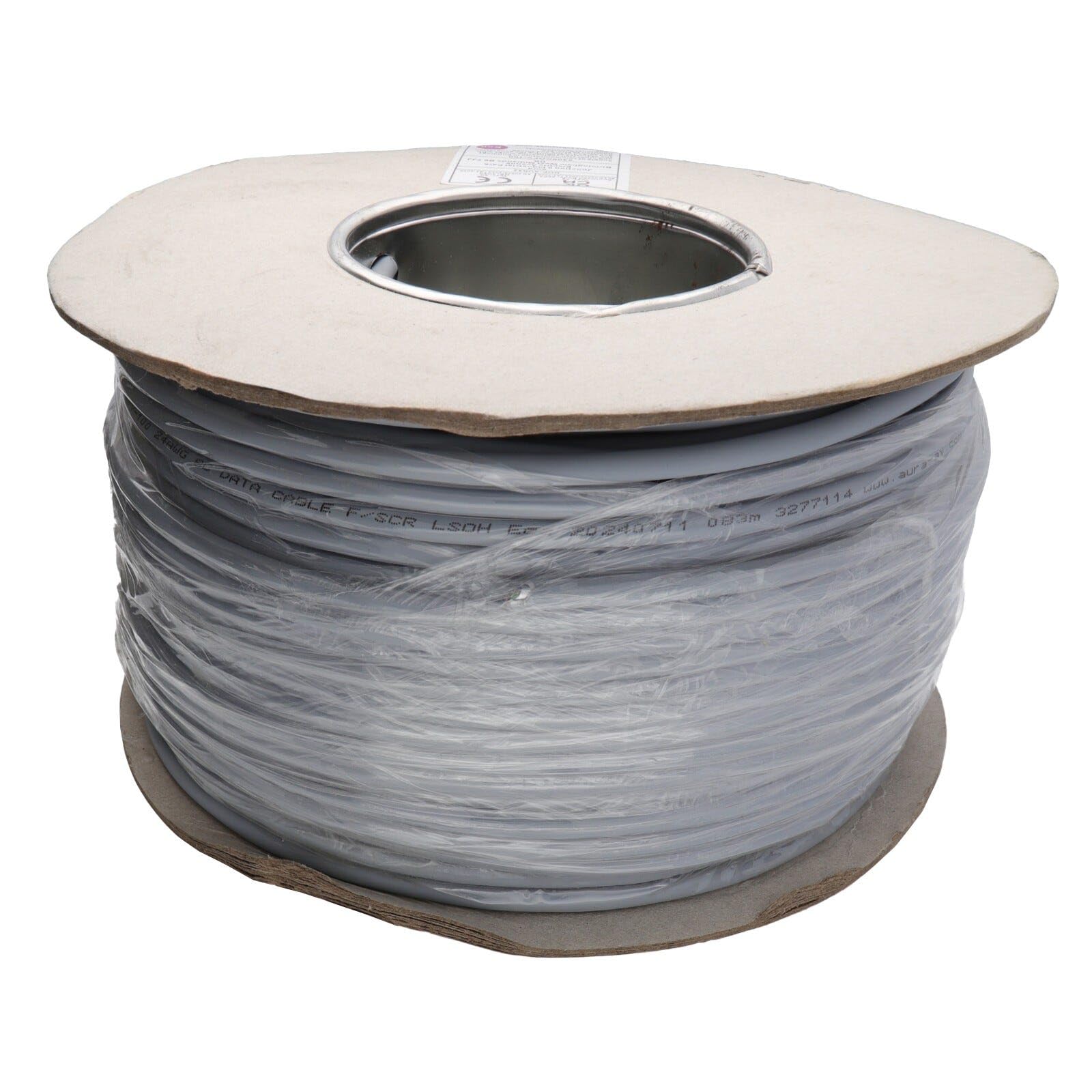

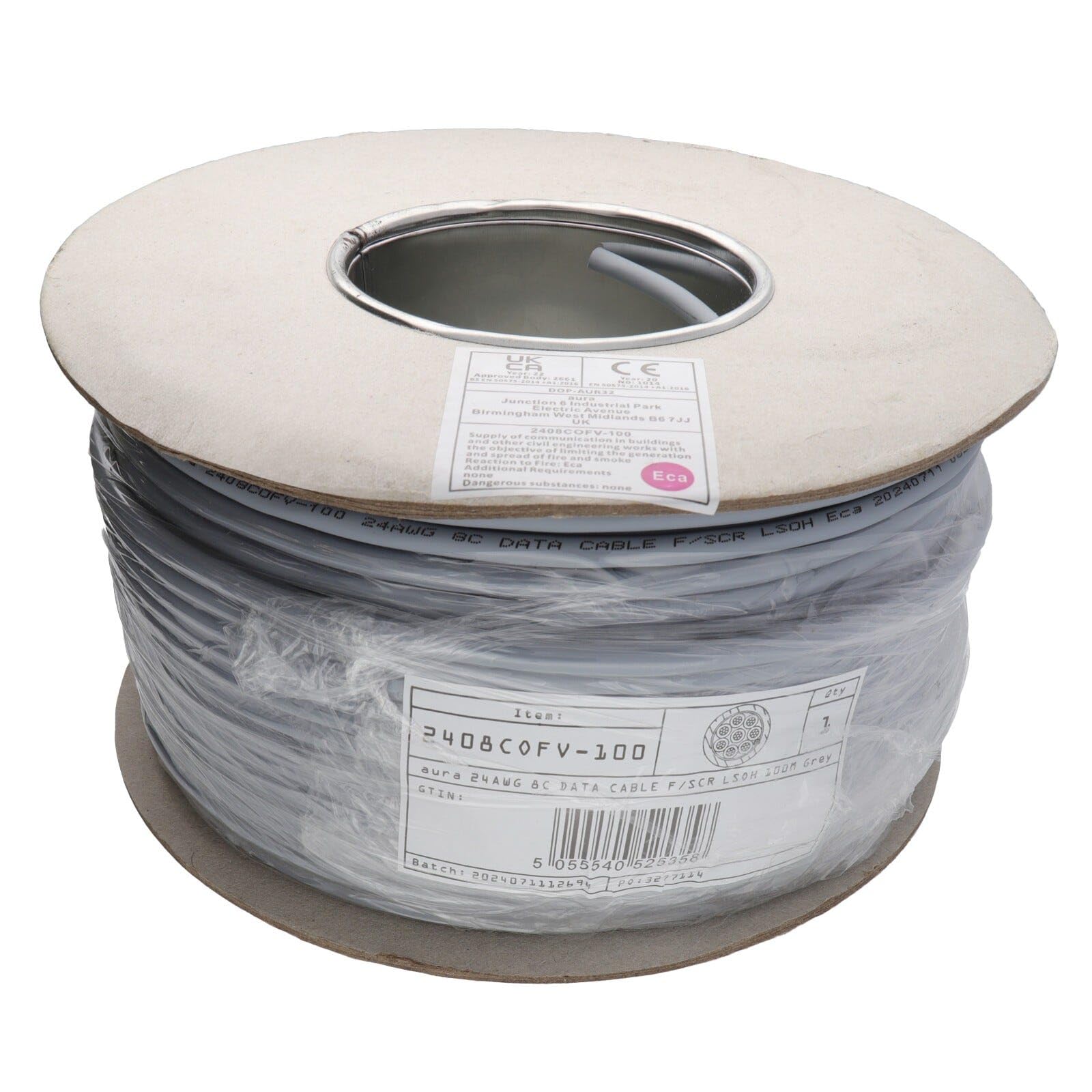

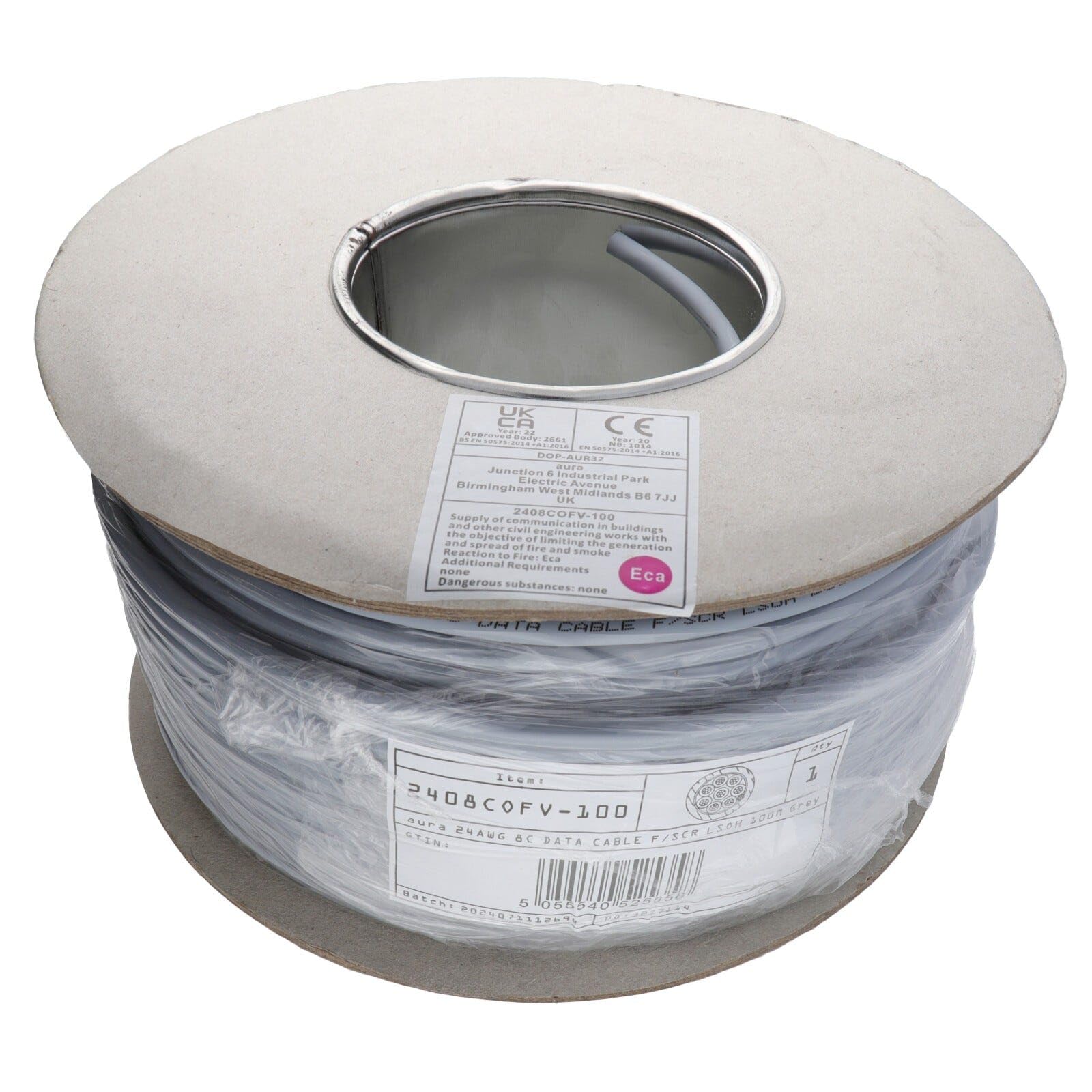

• 100 METRE REEL SUPPLIED - Cost-effective Belden 9538 alternative delivering professional-grade performance for audio systems, instrumentation panels, data transmission, and control applications where screened multicore cable is required

The kenable Aura 2408COFV multicore cable delivers professional-grade performance for audio, data, and instrumentation applications. This 8-core screened cable provides a cost-effective alternative to premium brands whilst maintaining high quality standards for reliable signal transmission. Each of the eight 24AWG conductors features tinned copper construction using 7 strands of 0.2mm wire, providing excellent flexibility and resistance to corrosion. The colour-coded PVC insulation makes identification straightforward during installation and maintenance, with cores in Red, Black, White, Green, Blue, Brown, Orange, and Yellow. The overall aluminium/polyester foil screen with tinned copper drain wire provides effective shielding against electromagnetic interference and radio frequency noise. This screening is essential for maintaining signal integrity in electrically noisy environments, making the cable ideal for RS232 data communications, audio installations, and sensitive instrumentation circuits. The Low Smoke Zero Halogen outer sheath meets CPR Euroclass Eca fire rating standards, ensuring compliance with building regulations for commercial and public installations. In the event of fire, LSZH materials produce significantly less smoke and no halogen-based toxic gases compared to standard PVC, improving safety for building occupants and emergency responders. With a compact 4.5mm overall diameter, this cable is easy to route through trunking, conduit, and equipment racks. The operating temperature range of -10°C to +70°C covers most indoor and sheltered outdoor applications. Rated for 50V and 1A per conductor, it handles typical low-voltage control, audio, and data signals with ease. Supplied on a 100-metre reel, this multicore cable provides excellent value for installers, system integrators, and maintenance teams working on audio systems, building management systems, industrial controls, and communication networks. The consistent quality and reliable performance make it suitable for both new installations and retrofit projects where screened multicore cable is specified.
