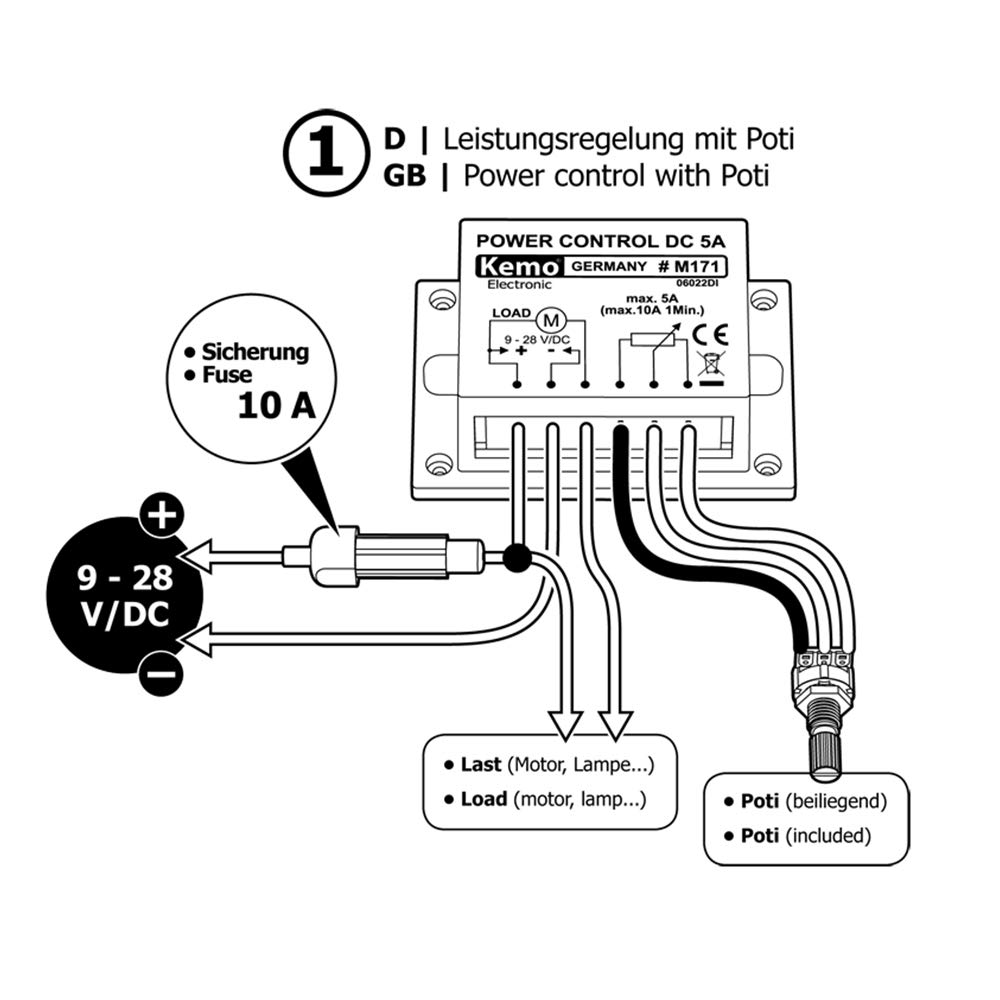

Kemo M171 PWM Power Regulator 9-28 V/DC, Max. 10 A. Regulations of DC Loads: Motors, Incandescent Lamps, Heaters, LED's with Resistors

• Operating voltage: 12 V/AC (10 - 14 V/AC), 50 - 60 Hz (only for normal iron core transformers, not for electronic halogen transformers).
• Country of origin: Germany.
• Load capacity: for resistive or inductive loads such as lamps, motors, electromagnets etc. up to 50 watts (4.5 A).
• High quality.

Continuously controls 12 V/AC bulbs (halogen lamps), heaters 12 V/AC, motors (also DC motors with upstream rectifier), etc. Only for operation with a 12 V/AC transformer (50 - 60 Hz), not for DC voltage (battery). By replacing the potentiometer, 24 V/AC (pot lin. 2.2 k) or 48 V/AC (pot lin. 4.7 k).
