Kemo M204 Power Regulator 230 V Max 16 A for Heaters. Control of Resistive Loads without Additional Suppression Requirement with Pulses in Zero Pass. For Heaters, Thermal Welding Machines, Furnaces

• Operating voltage 220 - 240 V/AC, 50 - 60 Hz --- Max. Current load capacity: approx. 16 A. Power indicator with built-in LED.
• Output voltage; pulsating, approx. 0.8 Hz with adjustable pulse length, each phase zero continuity switching on and off. This creates almost no radio interference.

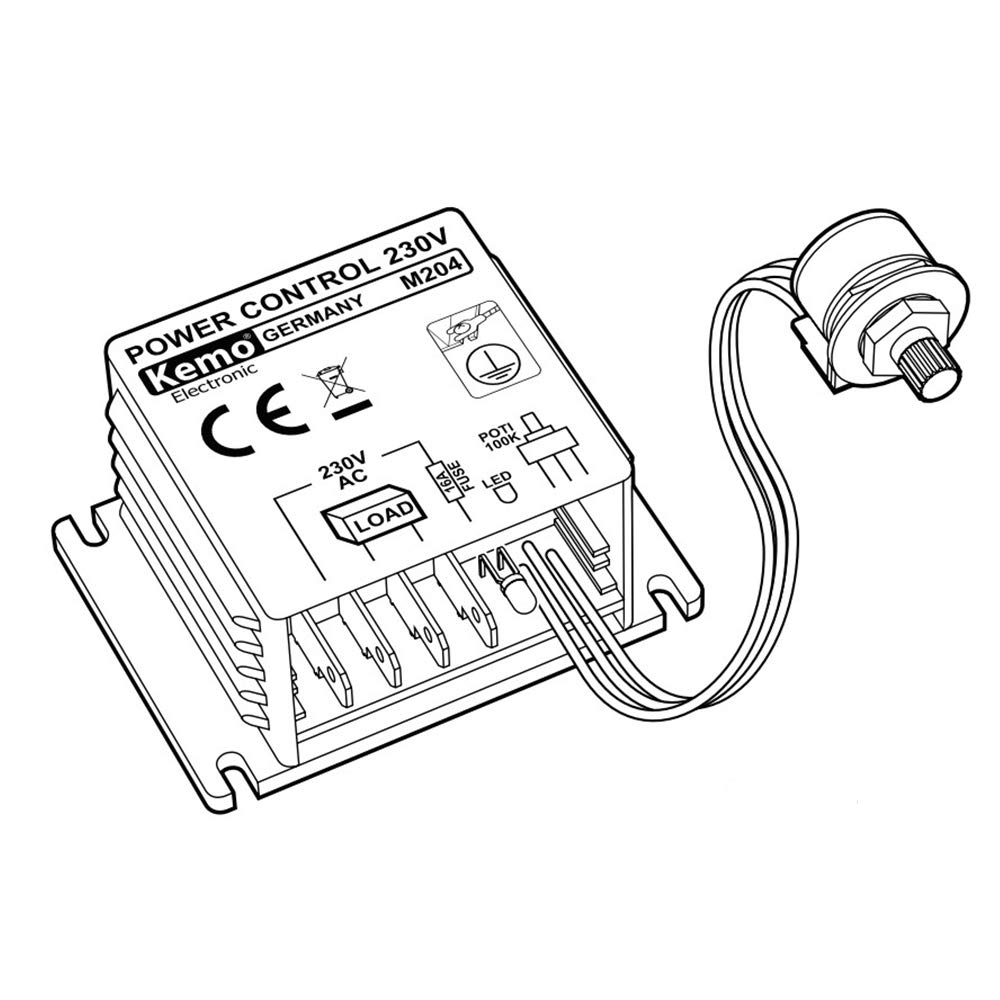

• Connection via flat plug 6.3 mm. Power consumption without load approx. 0.3 W – Aluminium metal housing with cooling fins, moulded.

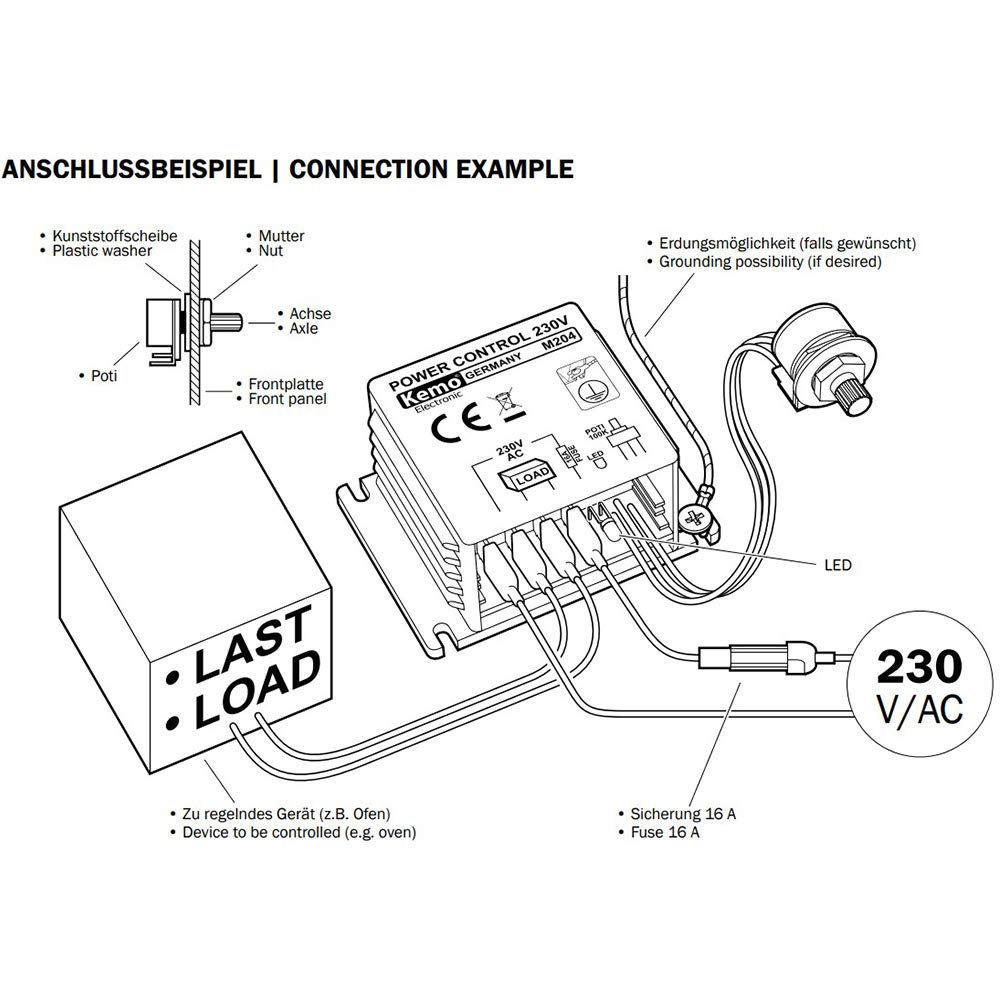

• Control via a connected, supplied potentiometer approx. 0-100% The potentiometer is fully insulated on the operator side. Dimensions: approx. 55 x 50 x 36 mm (without mounting straps).

Regulates resistive loads such as heaters etc. with pulses in zero transmission without additional suppression requirements. The control is done by switching on and off impulsively. Therefore, only suitable for heating systems (heat plates, welding wires, thermal welding machines, ovens, etc.). Not for engines + lamps (which would stutter or flash).
