Kemo M169A Adjustable Electronic Temperature Switch Thermostat 12 V/DC. Temperature switching range 0-100 °C. Connection with control electronics possible

• Kemo M169A Temperature Switch Building Block 12 V/DC 0 - 100 °C
• Contents: 1 item

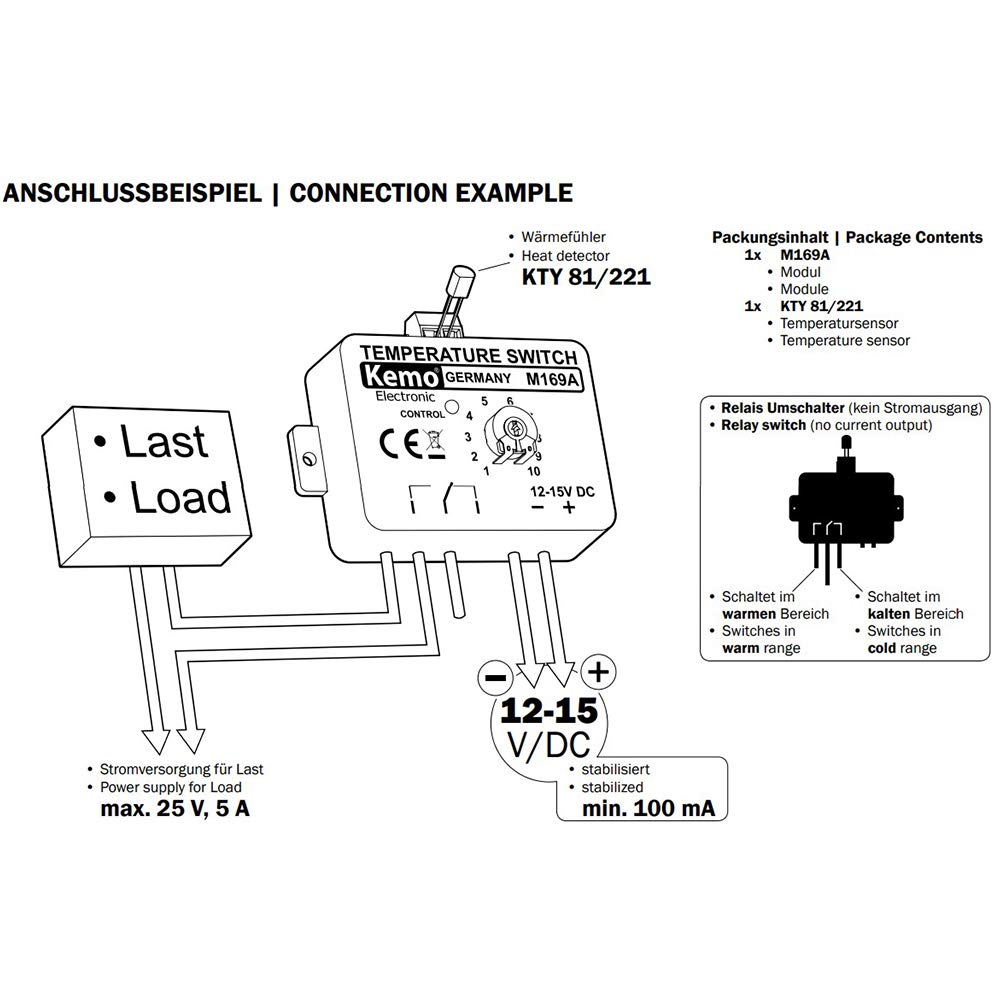

Adjustable electronic temperature switch M169A. The sensor (diameter 5 mm) can be connected to the control electronics via a cable up to 1 m long. Operating voltage: 12-15 V/DC stabilised (min. 0.1 A). Temperature switching range: approx. 0 - 100 °C. Switching output: relay contact 1x UM max. 5 A / 25 V. The sensor (diameter 5 mm) can be connected to the control electronics via a cable up to 1 metre in length. Dimensions: approx. 60 x 45 x 25 mm (without mounting tabs) with trimming pot.
