Kemo M091A Phase Coupler for Powerline Products for DIN Rail Mounting Connects all 3 internal mains phases capacitive for transfer rates up to 650 Mbit

• Connects all 3 internal network phases capacitively
• This means that transfer rates of up to 650 Mbit are possible via the mains supply for internet or computer networking
• If the signal is only fed in 1 phase, the phase coupler connects every 3 phases
• Also suitable for wireless intercoms
• Dimensions: approx. 86 x 36 x 61 mm (without clamps)

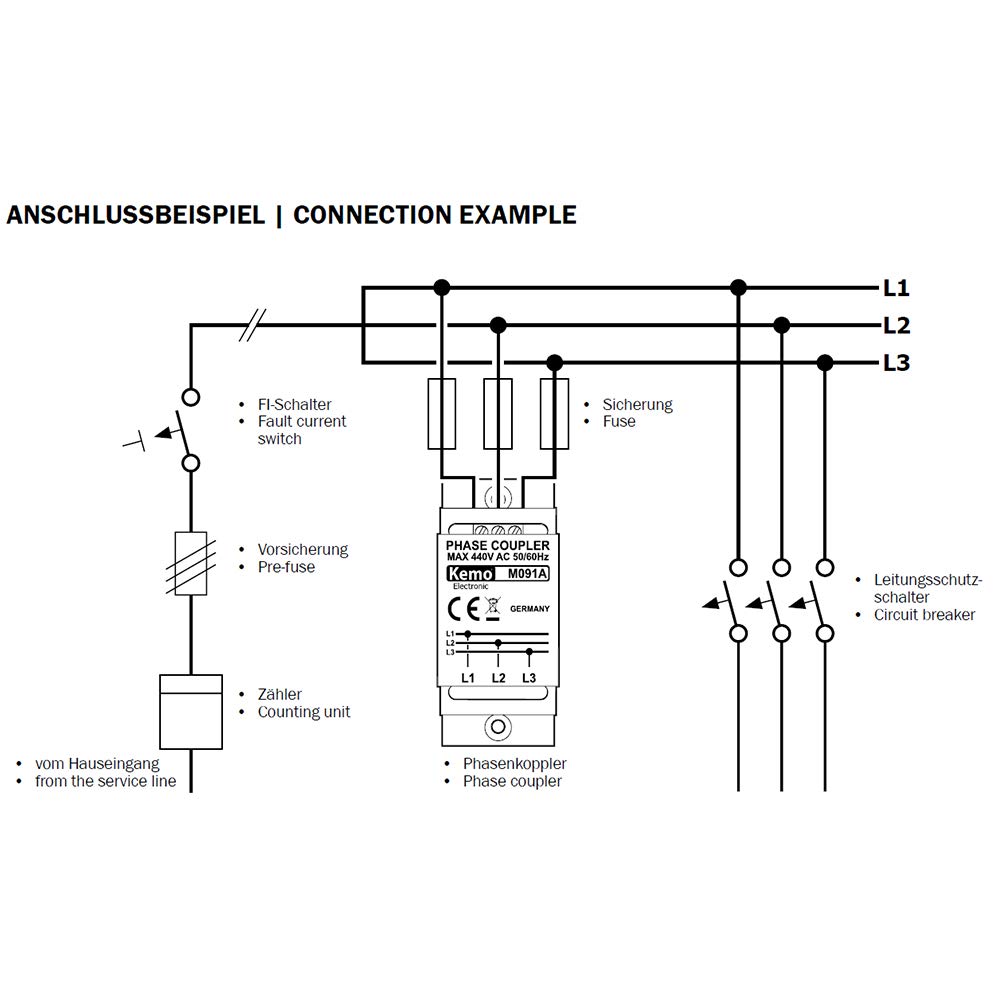

For DIN rail mounting M091A. Capacitatively connects all 3 in-house network phases, so that transmission rates up to 650 Mbit are possible via the mains network for internet or computer networking (depending on the nature of the power network). When the signal is only fed in 1 phase, the phase coupler connects to each other every 3 phases, so that they are permeable to the power line signal and the internet or computer signal is also available on all other sockets of the home network. Also suitable for wireless intercoms. A significant increase in range and transmission quality can be achieved. For power networks: 110 V – 440 V/AC. 3-phase version: 0.5-1000 MHz For Powerline products: 10-650Mbit Dimensions: approx. 86 x 36 x 61 mm (without clamps).
