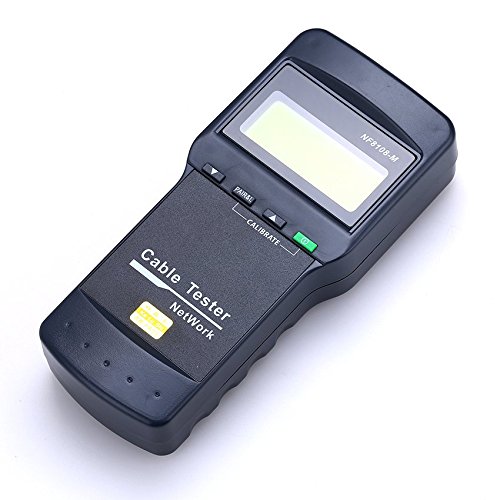

NF8108-M Digital Network Cable Length Tester Network Cable Tester 8 Meter Length Remote Units Cat5E/ 6E UTP STP CAT5 RJ45

• Locating Cable: far-end passive test jack (8 are included in set)
• Check wiring error in 5E, 6E, coaxial cable such as open circuit, short circuit, jumper wire, and reverse connection.
• Measure cable length and determine the distance short circuit for LAN cable
• Type of Tester Cable: STP / UTP twin twisted cable and Coaxial cable
• Tester Port Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R) can be used to measure and check the continuity of coaxial cable.)

Specifications Overall Dimension Main Tester: 180 x 80 x 40mm Remoter identifier: 77 x 31 x 21mm 1.Power: Main tester uses 6V DC for power supply (not included in the set) Reciever uses 9V battery (not included in the set) 2.Display: special 4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.2mm) 3.Type of cable tested: STP / UTP twin twisted cable, coaxial cable 4.Ambient temperature in work: -10~60°C 5.Tester Port RJ45 master port (M), tester LOOPBACK RJ45 port (L) 6.Remote identifier: RJ45 port (R) 7.Length Measurement of Twin Twisted Cable 8.Scope: 1~305 M (3~1000 ft) 9.Calibration accuracy: 3% (±0.5M or ±1.5ft) (calibrating cable >10M) 10.Shipment Accuracy: 5% (±0.5M or ±1.5ft) (AMP, AT&T Class 5 cable) 11.Display: M or ft 12.Length Calibration: User can calibrate cable length by himself with a given length cable. The length of calibrating cable is more than 10M 13.Wire Sequence and Locating Cable Error: Check errors such as open circuit, short circuit, and reverse connection. 14.Locating Cable: Trace cable among a group of unknown cables 15.Automatic Time-delay Shut Off Time: If the tester does not operate for 30 minutes Package included 1 x Multi-Network Cable Tester 8 x far-end test jack (ID1~ID8) 1 x Soft Carrying Bag English Instruction Manual About the service: If you have any questions, please feel free to contact us.
