KDL Wired Video Doorbell Intercom System 7 inch Color Monitor Panel with Night Vision Video Camera Door Phone Two-Way Audio 12 Ringtones Waterproof for Home Apartment Safe

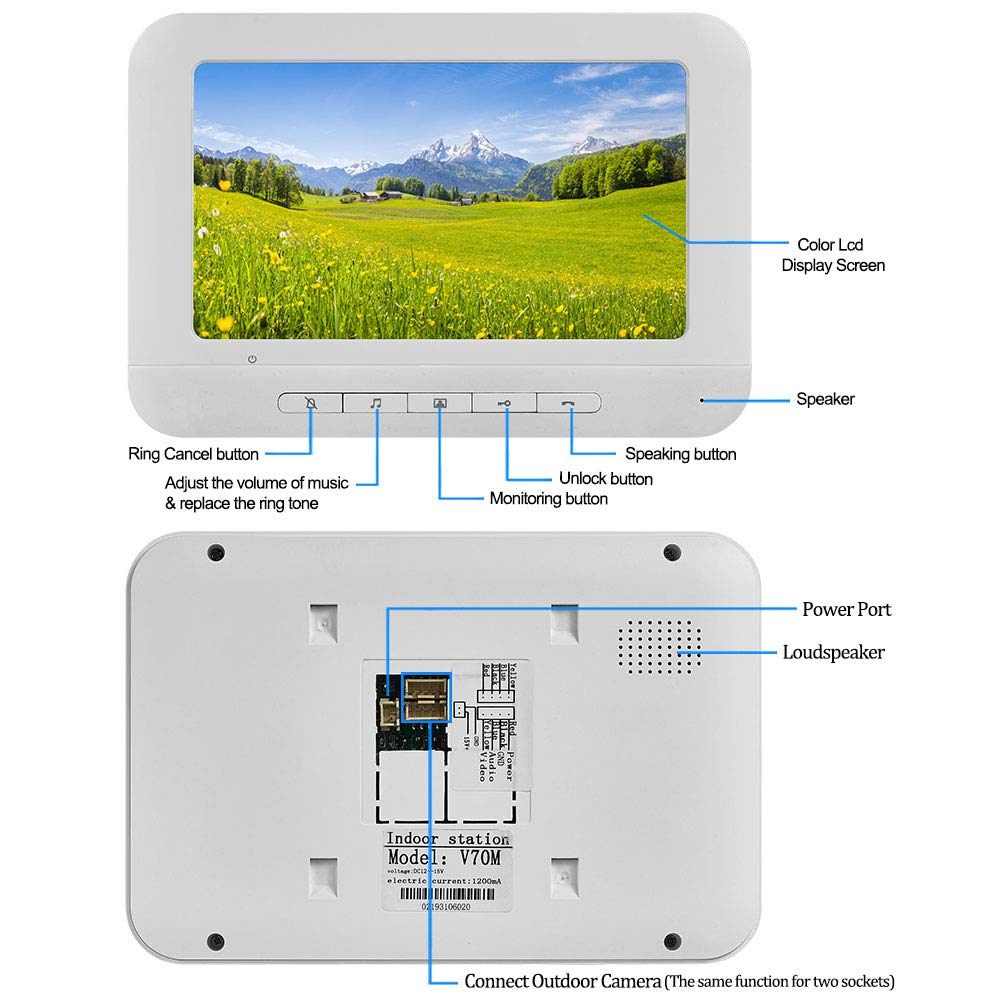

• 1, Indoor Unit: 7” LCD colorful screen, with 12 chord ringtones, one key unlock function, with mute mode.

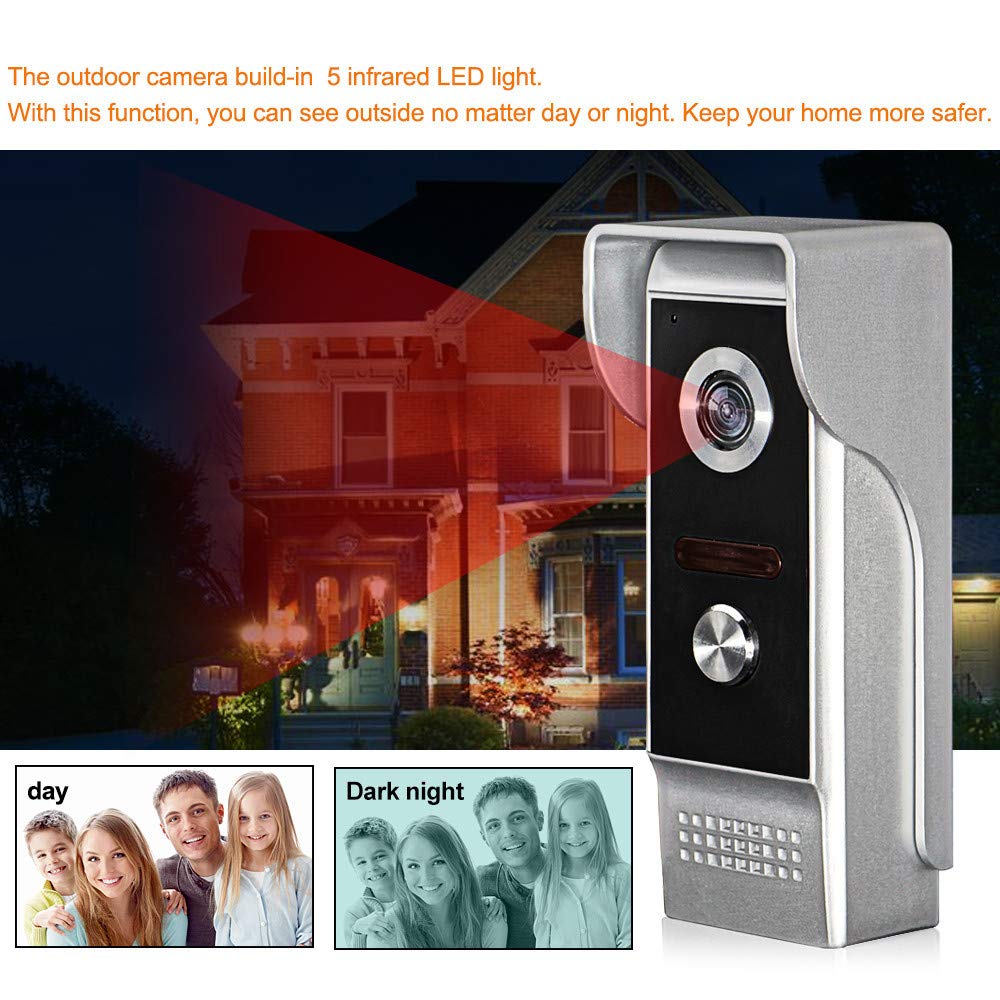

• 2, Night Vision: IR night vision, providing clear vision of visitors even in the darkness of night.

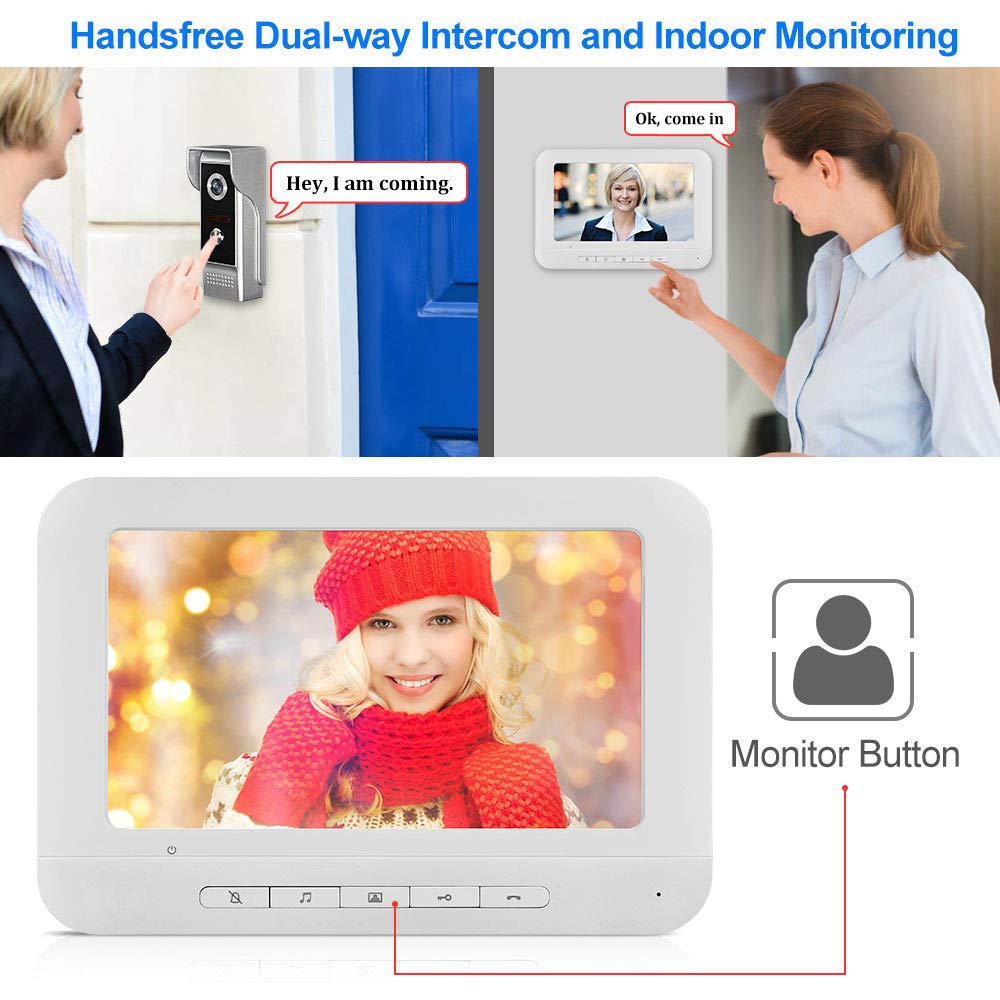

• 3, Function: Support two-way audio and ringback function; Support hands-free intercom and monitoring; Support to adjust the volume of the ring.

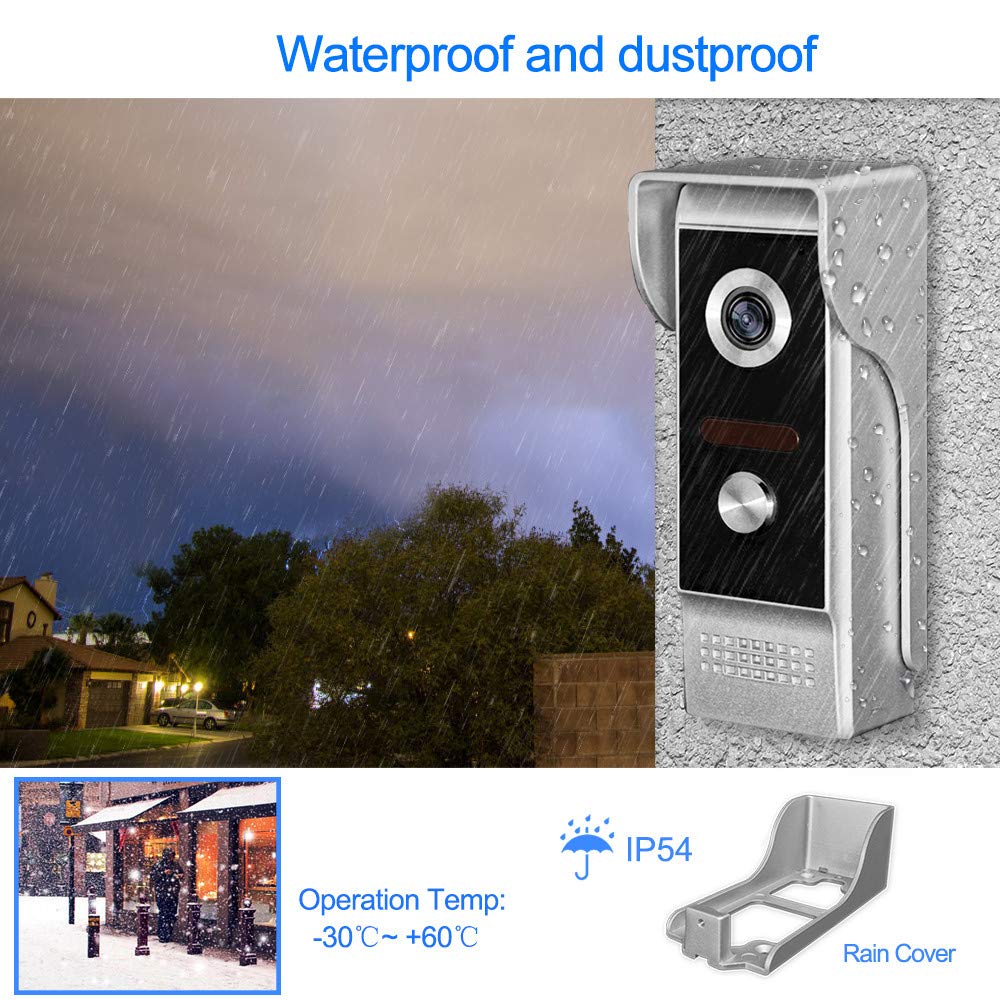

• 4, Waterproof and dustproof: The outdoor camera equipped with a waterproof cover, can be used even in very bad weather.
• 5, Applications: Wired connection stability clear vision for home security, Can be used in apartments, villas, hotels, offices, public buildings, etc.

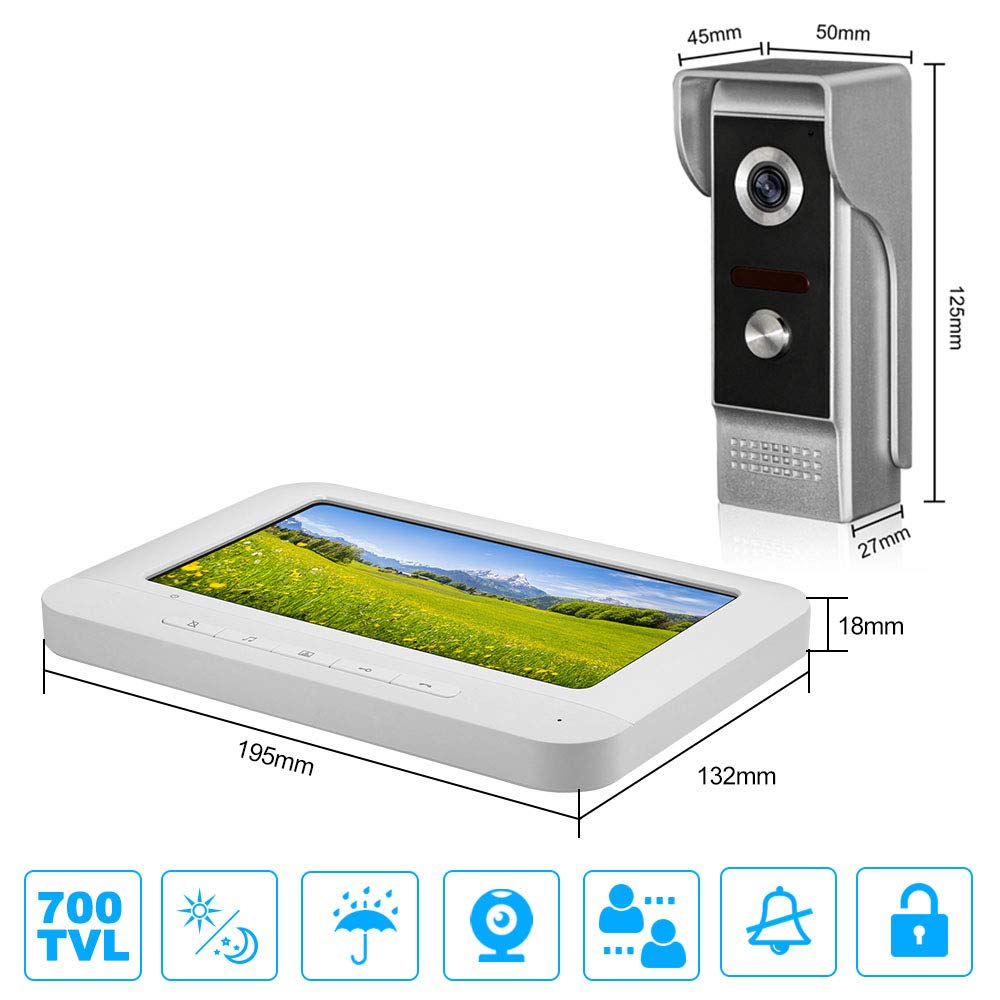

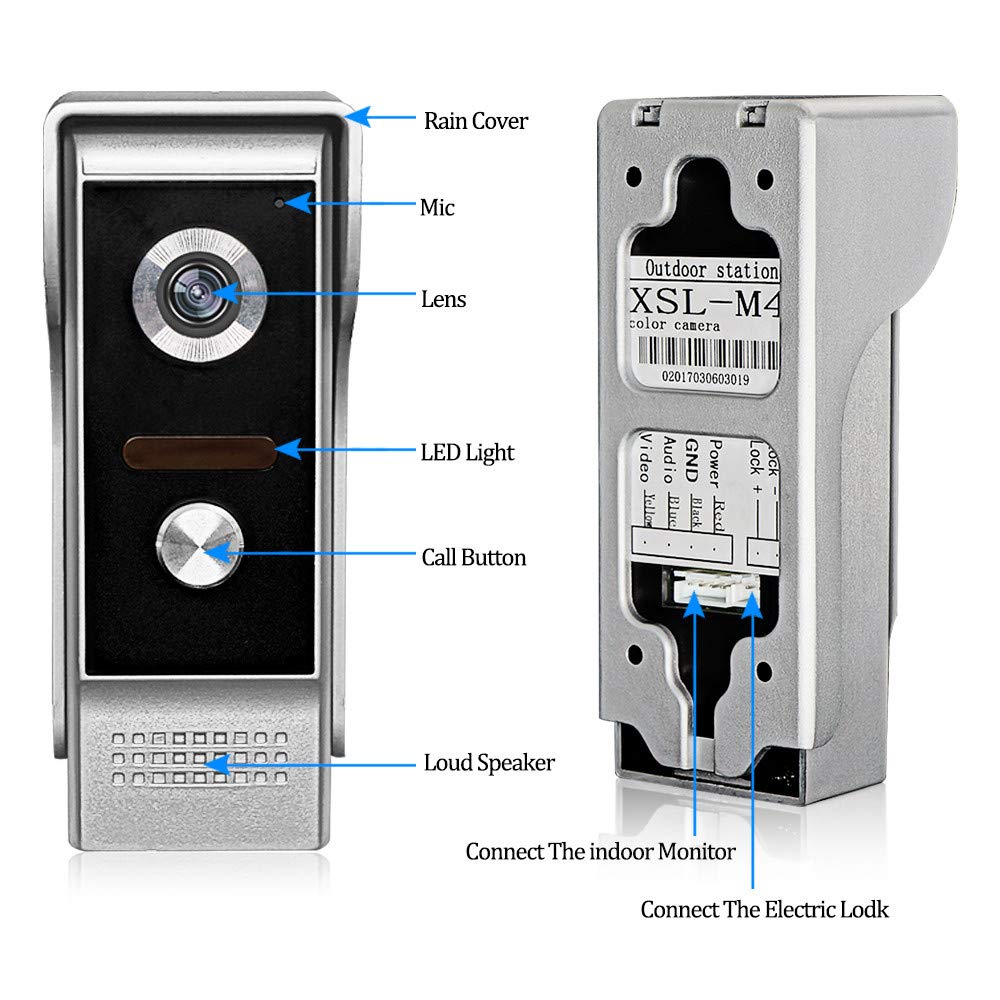

Features: 1, The distance between the outdoor unit to indoor unit is max 100m in theoretical. 2, This wired video intercom system support to connect max 2 outdoor cameras and max 6 indoor monitors. All of the monitors which connected in a same system should be 4-core or 5 core wires type, while the outdoor unit should be 2-core or 4 core wires type. 3, The outdoor camera can talk with the monitors. If you connected several indoor monitors, the monitors also support to talk with each other. 4, Support to connect with access control products. Such as access controller, power supply, electric door lock, etc. Indoor Unit (Monitor) LCD Screen: 7 inch TFT-LCD Resolution: 800X480 Ringtone: 12 Chord Power Supply:Input:AC100V-240V Output: DC15V/1500mA Power: Standby:≤1w, Working:≤10w Working Temperature:﹣20℃- 60℃ Timing: Intercom: 30 seconds; Monitoring: 90 seconds Video Signal: 1VP-P Wiring: 4 or 5 PIN Line RVV Installation: Wall mounting Dimension: 195*132*18mm Material: Acrylic & Drawing Outdoor Unit (Camera) Camera Lens: CMOS LED Night: 5 LED infrared light Angle: 85°~92° Night Vision: LED infrared light, visible Within 2 Meters Camera: 30W Resolution:700TVL POWER:Standby: ≤0W Working: ≤2W Power Supply:Receive power from monitor Working Temperature:﹣20℃- 60℃ Wiring: 2 or 4 PIN Line RVV Installation: Wall mounting Dimension: 125X50X27mm Material: Zinc alloy & Acrylic Package List: 1* Outdoor unit 1* Indoor Unit 1* Power adapter (UK Plug) 1* White cable & wires 1* Mounting plate 1* Bag of screws 1* User manual Attentions: We suggest you test the product before install. When you test it, please keep indoor unit at least 3 meters far from outdoor unit. Otherwise, it will emit an unpleasant shrill sound.
