KDL RFID Access Control System Kit - Waterproof Controller Keypad with DC 12V Electric Lock, Exit Release for Single Wooden/Glass Door Outdoor Use

• 1, Introduce: Full access control system kit, including access control keypad, power supply, electric lock and a door exit.
• 2, Access Controller: It is a stand-alone access controller with full programming from the keyboard. Off-line working, don’t need to connect to computer.
• 3, Open Door Mode: Total three modes. RFID Card, password, RFID card + password. User Capacity: Support 2000 users.
• 4, Electric Lock: NC model, Fail-safe type, unlocked when power off, locked when power on.
• 5, Applications: Suitable for Wooden / Glass/ Metal/ Fireproof single door, etc.

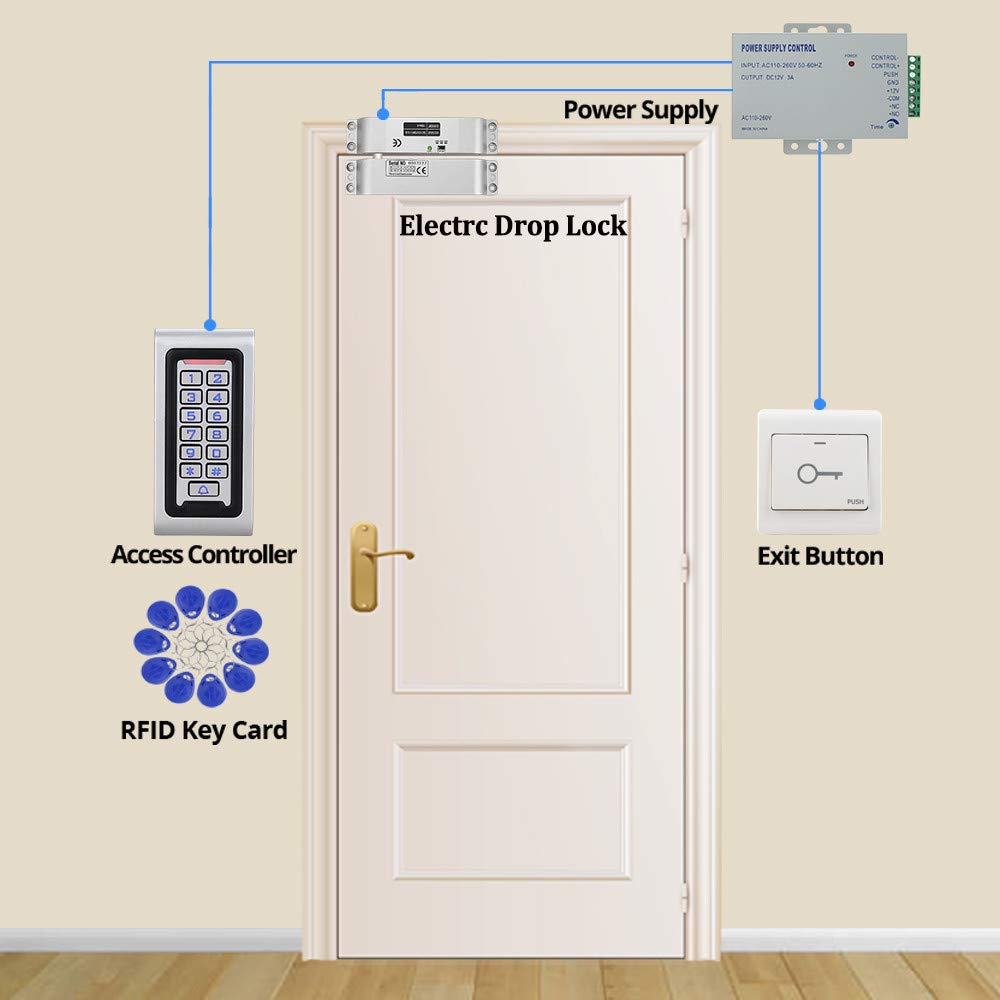

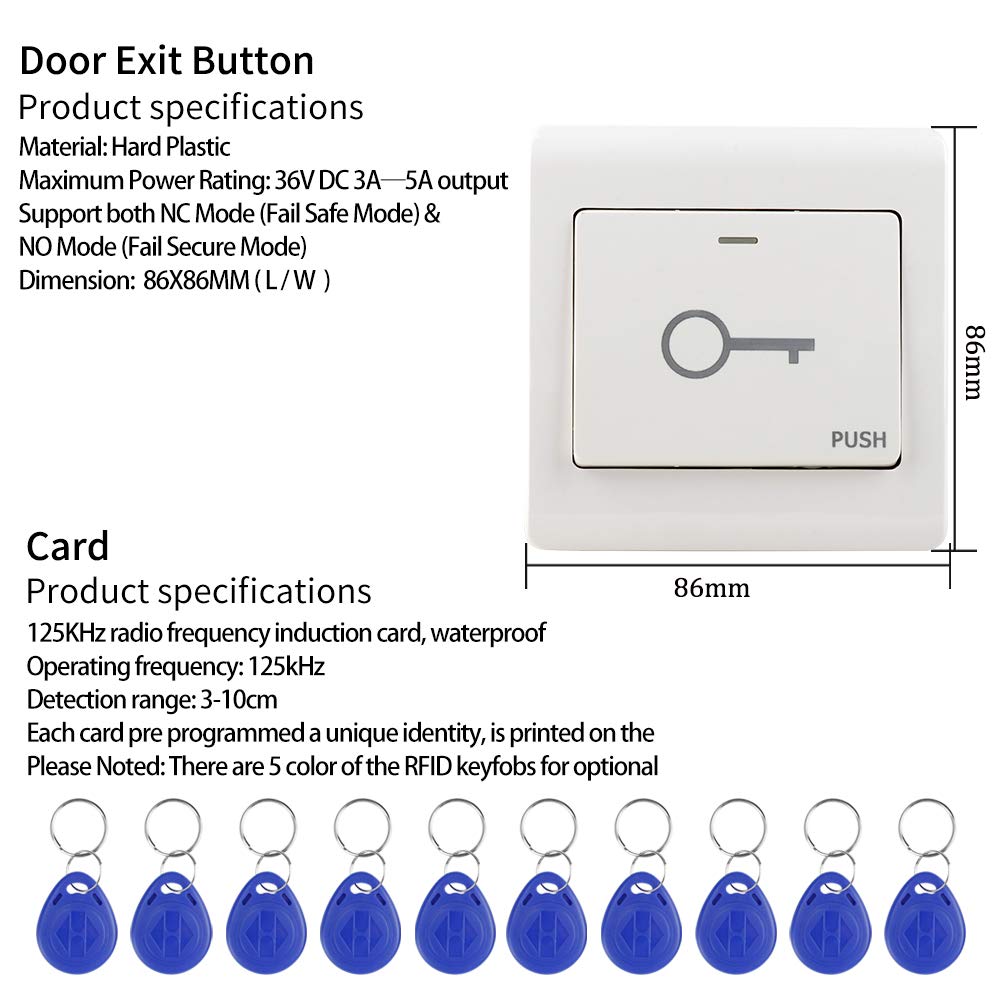

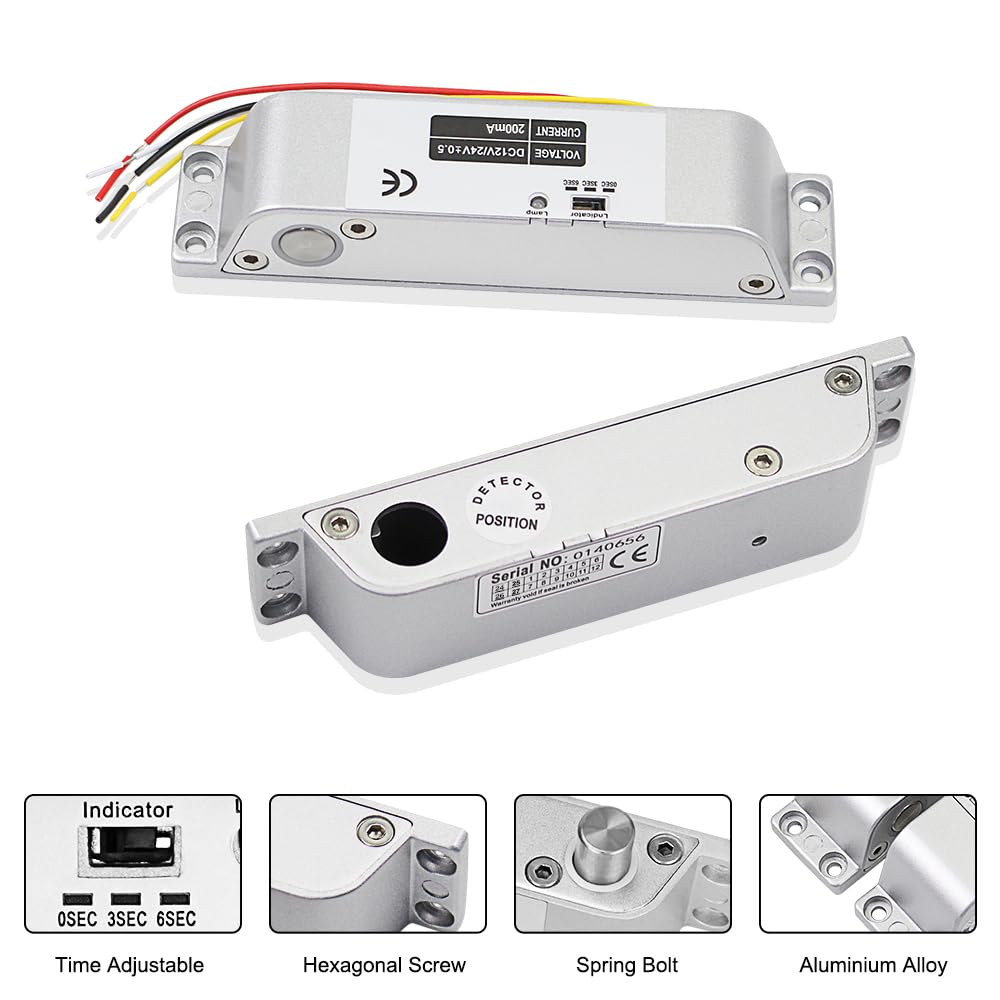

Product Introduce: 1, This is a complete access control system, including a access controller, a power supply, a electric lock, a door exit button, and 10 pieces RFID cards. 2, The access controller is IP68 waterproof. Can be installed in outdoors. 3, The current of Power Supply is a DC 12V/ 3A. Only support to connect to one electric lock. 4, Applications: Home/ hotel/ office/ apartment/ factory access control system, etc. Access Control Keypad Voltage: 12VDC; Active Current: <60mA User capacity: 2000 users Reader Frequency: 125KHz Compatible Cards: EM or EM compatible card Open Door Mode: RFID card, password, RFID card + password Wiegand Interface: Wiegand 26 bits Features 1: Digital keypad with blue back light. Can be used at night. Features 2: Sealing with glue for the internal components, IP68 waterproof. Can be installed in outdoors. Power Supply AC input: Standard AC100V-240V 50-60HZ 36W DC output: DC12V/3 A Set NC / NO outputs, can control various types of electric locks. Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit. Electric Door Lock Model: electric drop bolt lock Working Voltage: DC12V, Working Current: Start state 1.2A, Persistent state 120mA NC Mode: Fail-safe type, unlocked when power off, locked when power on. Lock core: The diameter 12.5MM, extending the length of 15MM. Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc. With time delay: 0s, 3s, 6s Waterproof: Yes, suitable for outdoor use Wires: red to "NC", black to "GND". Warm Note:yellow line and white line are useless, don't need to be connected. Package List: 1 x RFID Access Controller 1 x Power Supply 1 x Electric Lock 1 x Door Exit Button 10 x RFID cards 1 x User Manual
