KDL RFID Access Control System Kit Waterproof Controller Keypad with 180kg/350lbs Electric Magnetic Lock, Door Exit Release, for Single Door Entry System

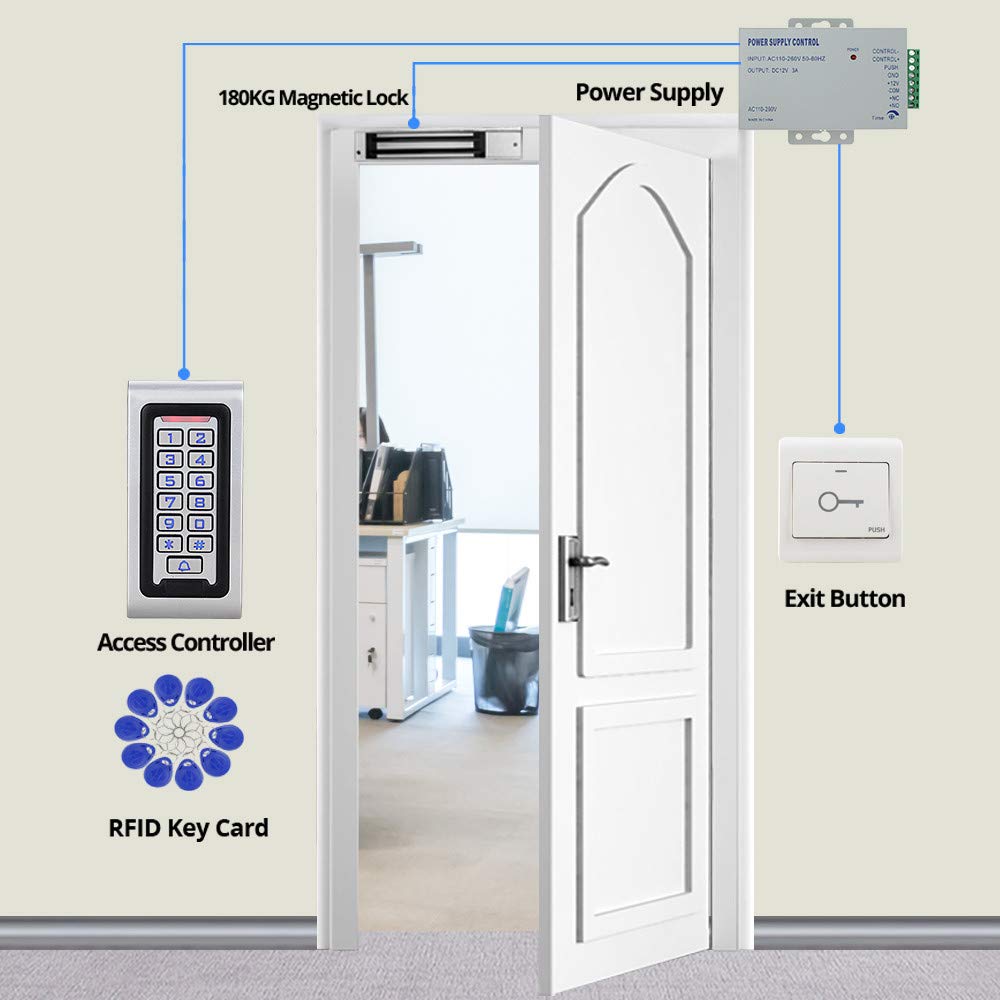

• 1, Introduce: Full access control system kit, including access control keypad, power supply, electric lock and a door exit.

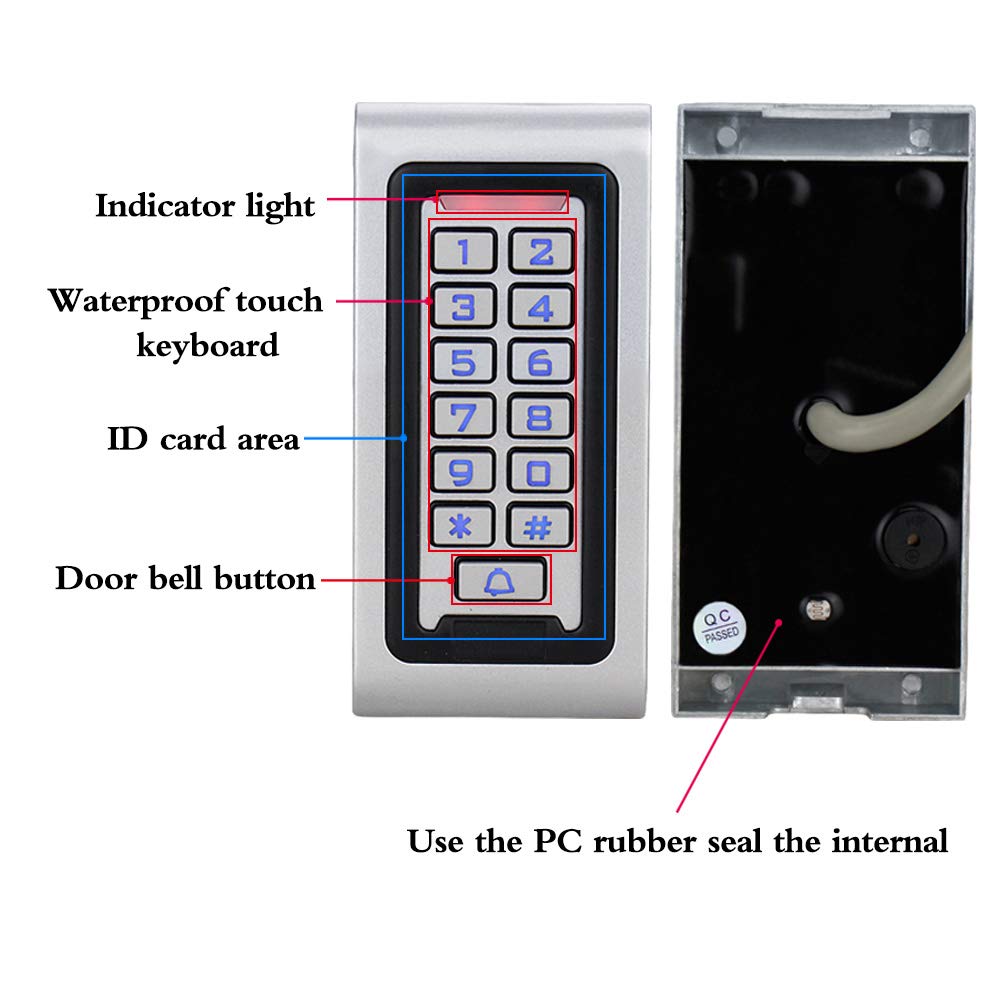

• 2, Access Controller: It is a stand-alone access controller with full programming from the keyboard. Off-line working, don’t need to connect to computer.
• 3, Open Door Mode: Total three modes. RFID Card, password, RFID card + password. User Capacity: Support 2000 users.

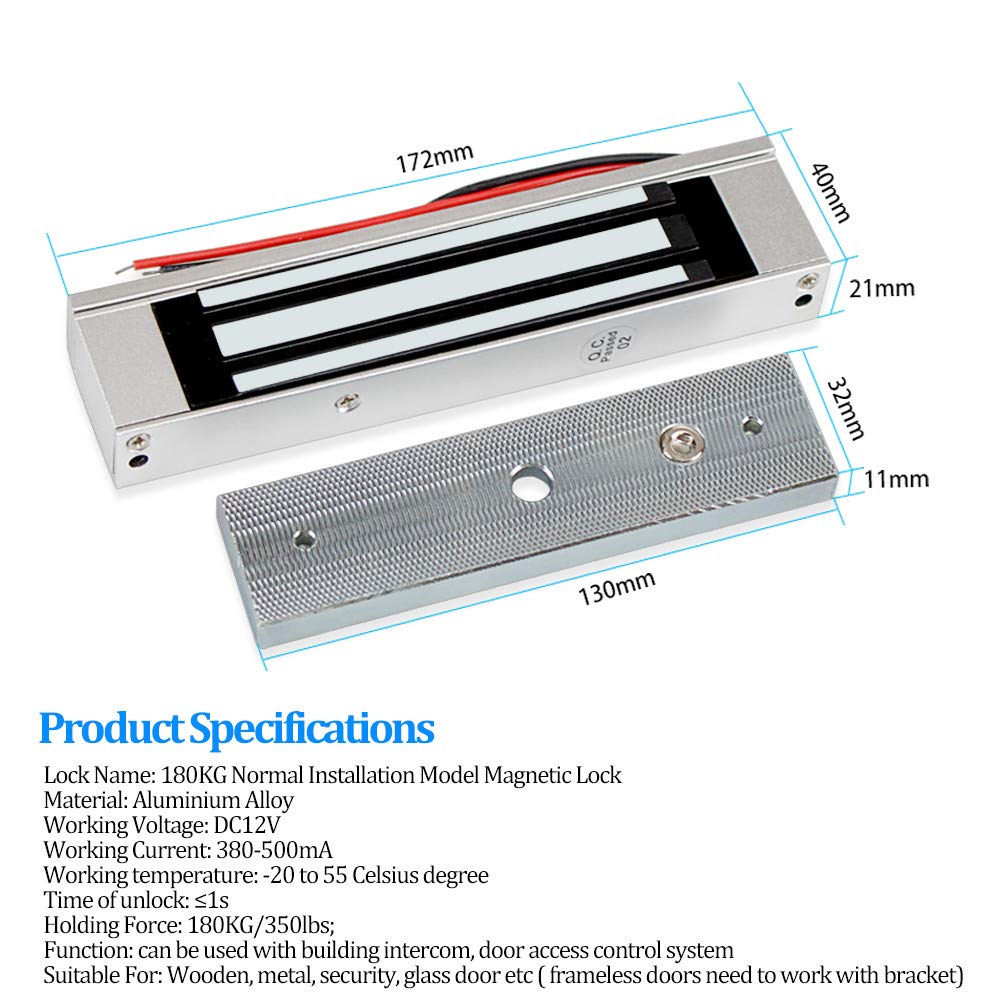

• 4, Electric Lock: 180kg/350lbs holding force. NC model, Fail-safe type, unlocked when power off, locked when power on.
• 5, Applications: Suitable for Wooden / Glass/ Metal/ Fireproof single door, etc.

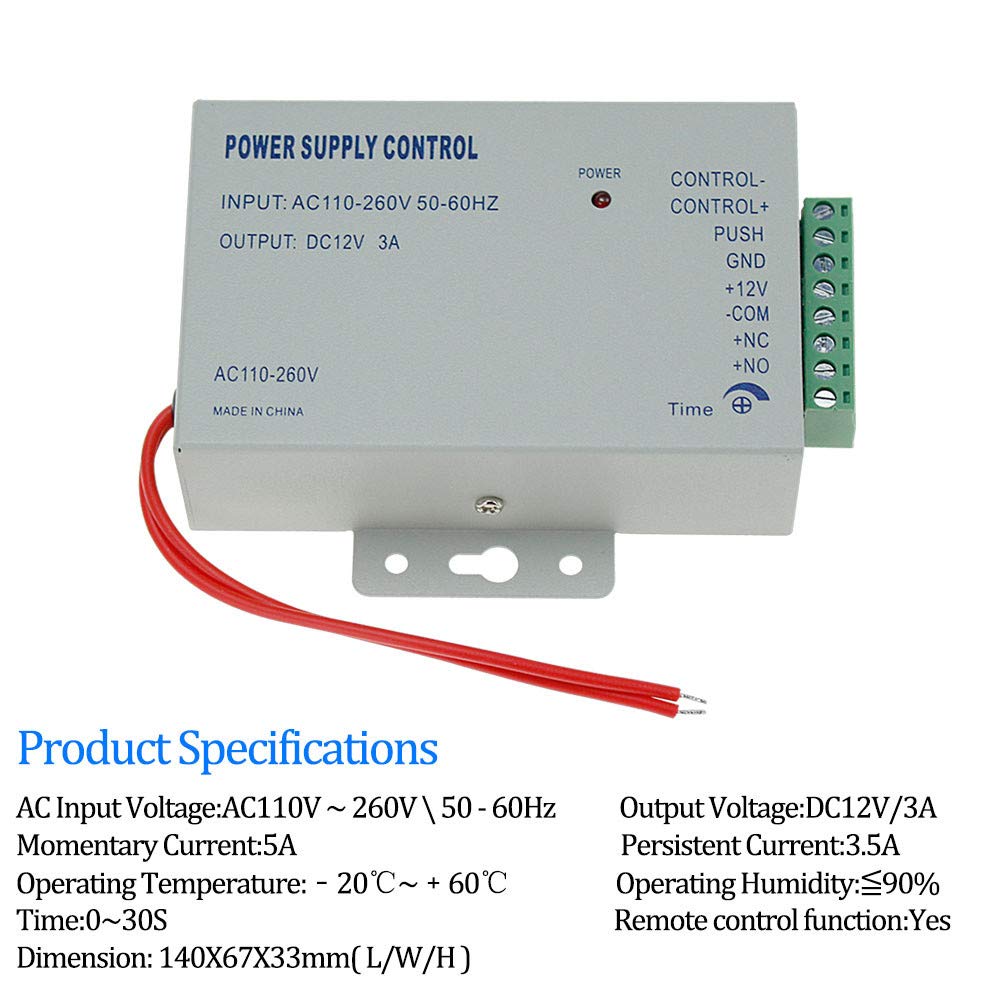

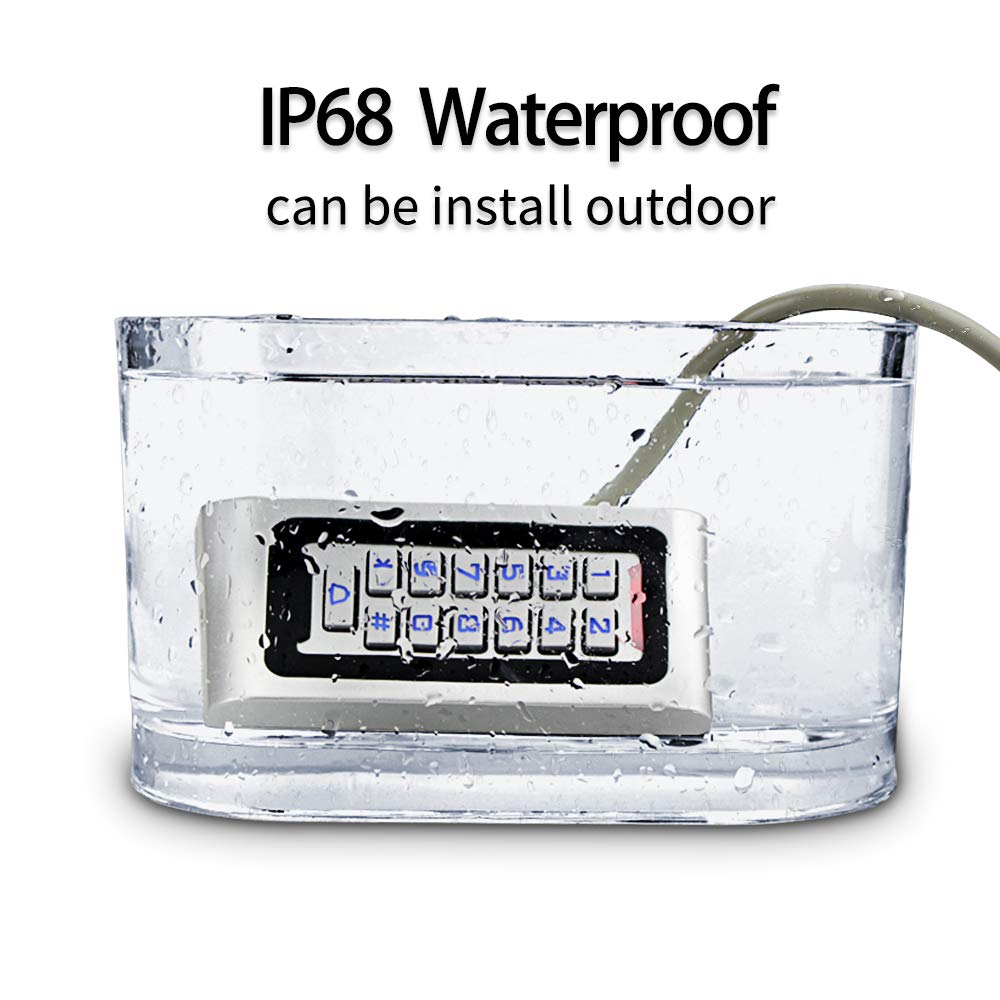

Product Introduce: 1, This is a complete access control system, including a access controller, a power supply, a electric magnetic lock, a door exit button, and 10 pieces RFID cards. 2, The access controller is IP68 waterproof. Can be installed in outdoors. 3, The current of Power Supply is a DC 12V/ 3A. Only support to connect to one electric lock. 4, Applications: Home/ hotel/ office/ apartment/ factory access control system, etc. Access Control Keypad Voltage: 12VDC; Active Current: <60mA User capacity: 2000 users Reader Frequency: 125KHz Compatible Cards: EM or EM compatible card Open Door Mode: RFID card, password, RFID card + password Wiegand Interface: Wiegand 26 bits Features 1: Digital keypad with blue back light. Can be used at night. Features 2: Sealing with glue for the internal components, IP68 waterproof. Can be installed in outdoors, used in rain. Power Supply AC input: Standard AC100V-240V 50-60HZ 36W DC output: DC12V/3 A Set NC / NO outputs, can control various types of electric locks. Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit. Electric Door Lock Model: electric magnetic lock Working Voltage: DC12V, Working Current: 380 ~500mA Holding Force: 180kg/350lbs NC Mode: Fail-safe type, unlocked when power off, locked when power on. Features: unfold install, Built-in voltage spike suppressor, waterproof, without LED working indicator light. Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc. Dimensions: 170x23x39mm / 130x33x9.3mm Package List: 1 x RFID Access Controller 1 x Power Supply 1 x Magnetic Lock 1 x Door Exit Button 10 x RFID cards 1 x User Manual
