KDL Door Access Control System IP68 Waterproof RFID Keypad Controller, DC12V Power Supply, Electric Magnetic Lock 180kg/350lbs with Z&L Bracket, Door Exit Button, 125KHz Proximity Keyfobs for Home

• 1, Introduction: This is a complete access control system, including access controller, power supply, door lock, switch button, and RFID keyfobs. Off-line working, waterproof, suitable for outdoor using.

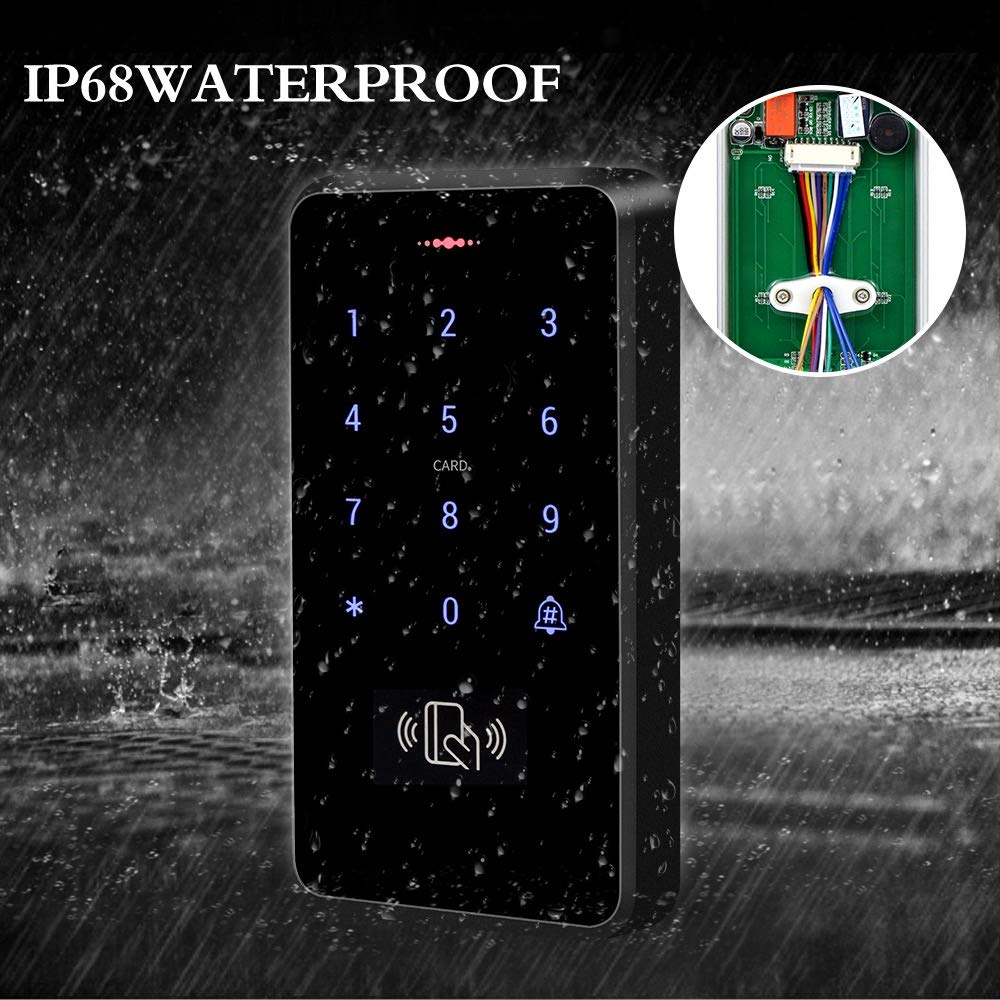

• 2, Access Controller: touch keys with working indicator and backlight. Built-in tamper alarm. Don't need install software or connect to computer. Easy to operate.

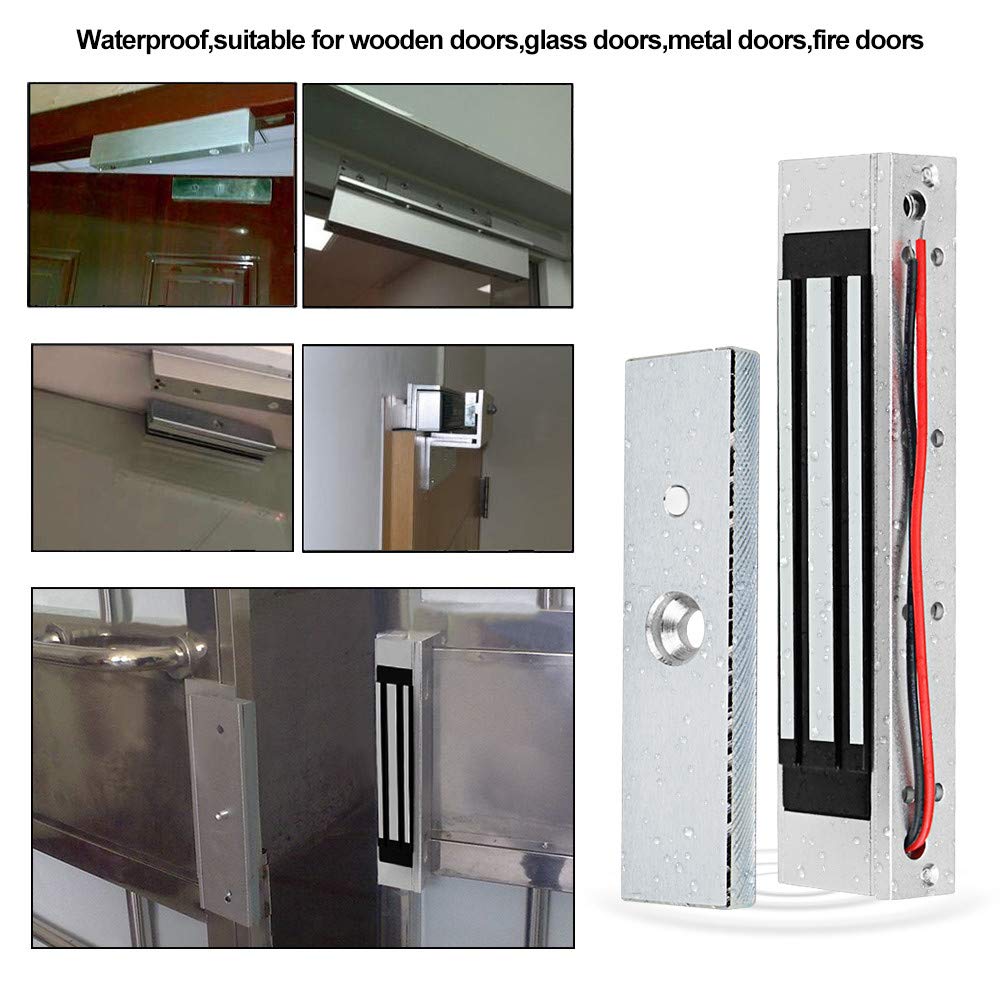

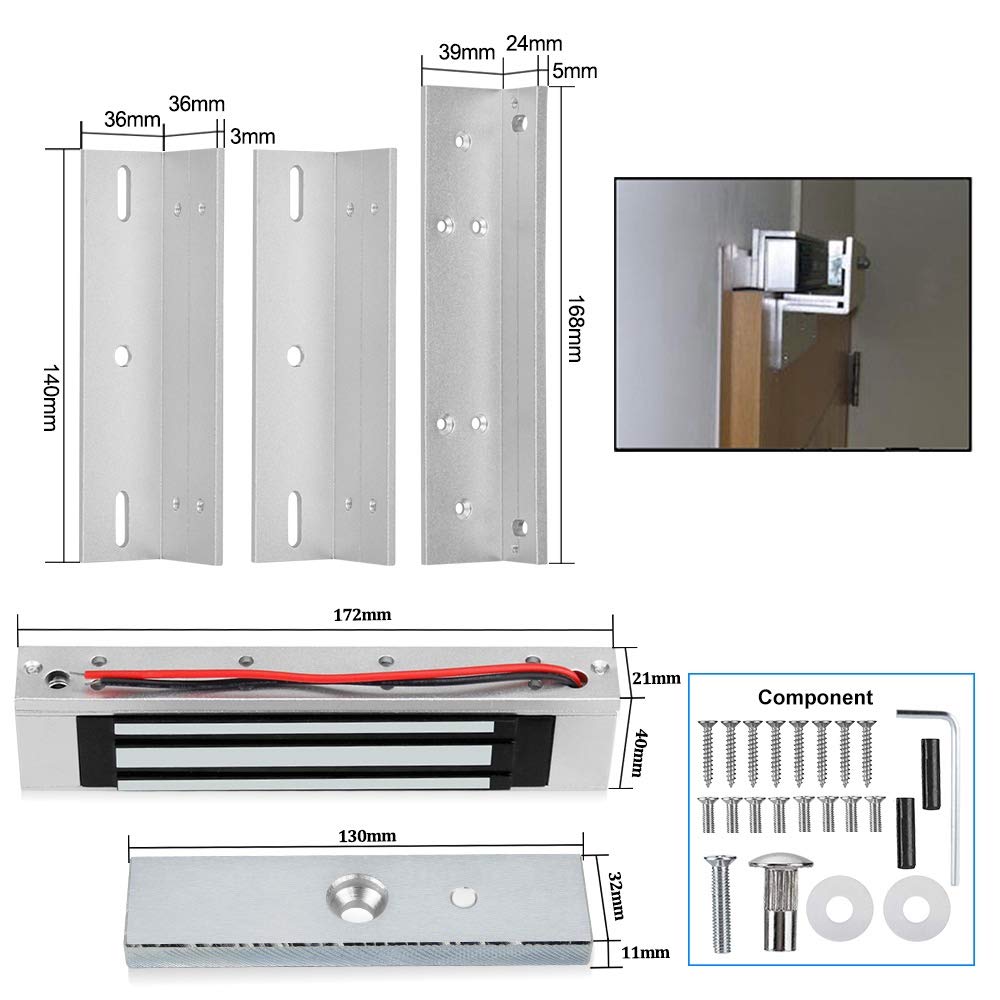

• 3, Electric Magnetic Lock: 180kg/350lbs holding force, equipped with Z&L bracket. NC mode: Locked when power on, unlocked when power off. Suitable for wooden door, metal door, glass door, PVC door, security door, etc.
• 4, Features: working frequency 125KHz, DC12V working voltage. Support to open door by password, RFID card, password+RFID cards, 3000 user capacity.
• 5, Applications: door entry system of home, hotel, office, apartment, factory, etc.

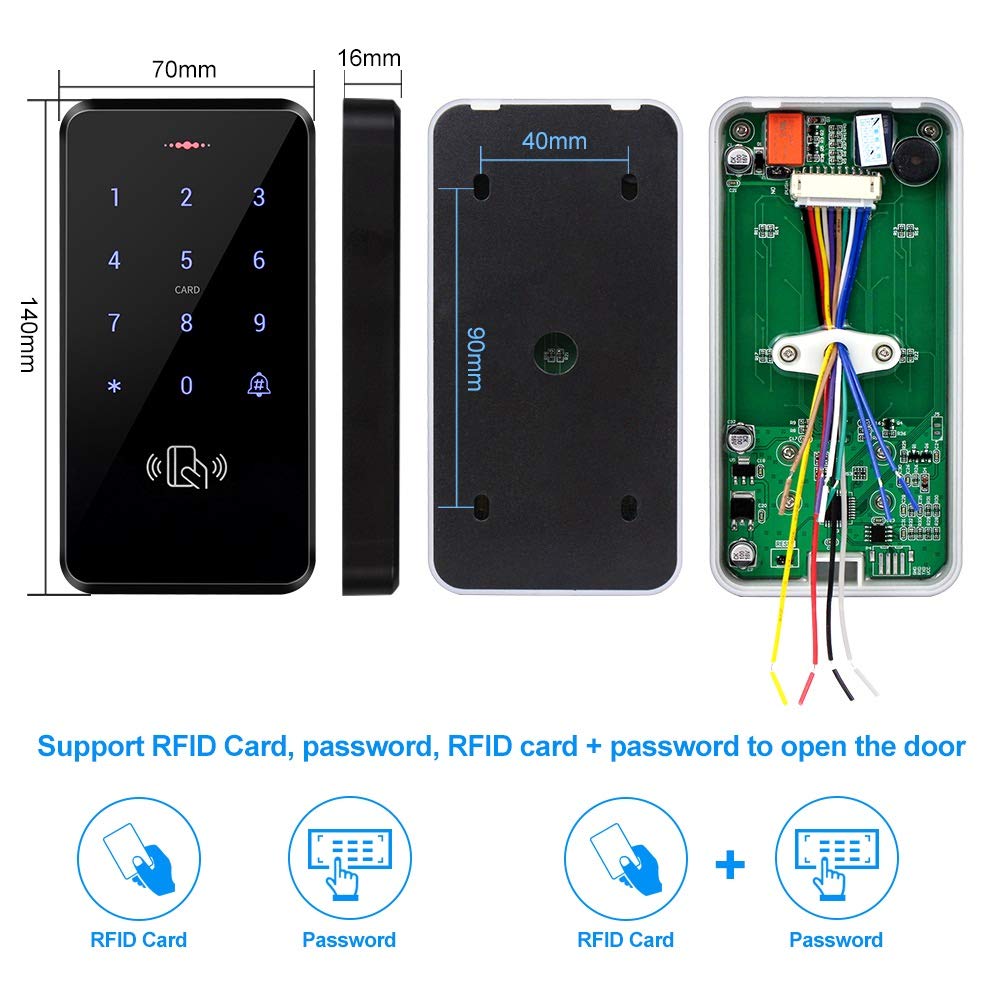

Access Controller Operating voltage: DC12V. Static current: ≤30mA. Open door method: password, cards, password + cards. User capacity: 3000 user cards RFID working frequency: 125 KHz Card reading distance: 5 to 10 cm Wiegand signal: Wiegand 26/34-bit output/input. Door opening delay: 0-255 seconds Waterproof level: IP68, can be installed outdoors Touch keys with working indicator and backlight can be used even in the dark. Material: plastic. Size: 140 x 70 x 16 mm. Power source Voltage: Input: AC 110-260V/50-60HZ; Output: DC12V/3A. Time delay: 0~15 s adjustable Adjust NC/NO outputs, can control different types of electric locks Automatic protection function: It will protect automatically and no voltage output in case of short circuit in circumferential circuit. Size: 100 x 65 x 32 mm. Magnetic Lock Type: electric magnetic lock Operating voltage: DC12V, current: 380mA ~ 500mA. Holding force: 180 kg/350 lbs. Working mode: NC mode, built-in safety type (unlocked when power off, locked on power on) Waterproof, can be installed outdoors Installation: installed surface, no need to drill a hole Suitable for: wood, metal, glass, security door, etc. Material: aluminium alloy. Size: 172 x 40 x 2 mm/130 x 32 x 1 mm. Locking Bracket Type: Z&L holder for magnetic lock 180 kg/350 lbs. Size: L support: 168 x 24 x 39 mm; Z support: 140 x 36 x 78 mm. Open angle: 90 degrees Package contents: 1 x access controller. 1 x magnetic lock. 1 x Z&L holder. 1 x power supply. 1 x switch button. 10 x RFID key rings. 1 x user manual
